1Ø Multifunction Meter
- Network Selection:1Ø-2W
- Display Voltage, Current, Frequency, Power Factor, Kilo-Watt, Kilo-Watt Hours
- RS-485 Modbus as Per Request
PM-11
Multifunction Meter - Horizontal Mounting
- 3Ø-4W Design for Comprehensive Power Measurement
- Pulse and RS-485 Modbus Communication for Versatile Integration
- High Accuracy Class 0.5 for Reliable Data
EPM-310
3Ø Energy Meter
- Network Selection: 3Ø-4Wire
- Measure and Display KW, KWH Meter
- Pulse Output and RS-485 Modbus Communication
- Relay Available in Model EPM-14
EPM-14-M1
1Ø Energy Meter
- Single-Phase, 2-Wire Setup for Efficient Energy Monitoring
- Accurate KWH Measurement & Display for Real-Time Insights
- RS-485 Modbus Communication for Seamless Integration with Systems
EM-1P
1Ø Watt Meter
- 1Ø-2Wire
- CT Primary 5A to 50A
- Voltage 20-300V AC
- Size: (H)96mm X (W)96mm X(D)43mm
- Accuracy: 0.5
WM-11
3Ø Ampere Meter
- 3Ø Ampere Meter
- Individual Display for Each Phase Current Ampere
- CT Selectable Upto 9999A
- RS-485 Modbus Option Available in Model AMP-13
AMP-19
3Ø Voltmeter
- 3Ø-3W/4W
- Individual Display for 3Ø Voltage
- Primary Voltage: 100V to 520KV AC
- Secondary Voltage : 100V to 520V AC
VOLT-19
AVF Meter - 3 + 3 Line Display
- 3Ø-3W/4W, 1Ø-2W Selectable
- 3-Line Display for Voltage & Current
- 6-Line Display – 3-Line + 3-Line, 7-Segment LED Display
- RS-485 Modbus Available
AVF-133
DC Amp+ Volt Combined Meter
- DC Ampere Range: -999 to 9999A DC
- DC Voltage Range: -1500 to 1500V DC
- DC Watt Range: -999 to 9999 KW DC
- 2 Relay for protection
- RS-485 Modbus
- Size: (H)96mm X (W)96mm X (D)54mm
- Supply Voltage: 24V - 270V AC/DC, 50/60 Hz
DC-142
DC Volt Meter
- Fixed Range: -20.0V DC to +20.00V DC, -50.0V DC to +50.0V DC, -100V DC to 100.0V DC, -200V DC to +200.0V DC, -750V DC to +750V DC
- Wide Auxillary Supply
AV-14DV
DC Ampere Meter
- Input Through DC Shunt 75mV DC.
- Range 0-9999DC Selectable.
- High Precision: Achieve accurate DC current measurements to ensure optimal system performance.
AV-14DA
DC Ampere Meter- Direct 20A DC
- Input through DC Shunt 75mV DC
- Range: 2A DC, 5A DC, 10A DC, 20A DC (Factory Set)
- Supply Voltage:100-270V AC/DC, 50/60 Hz
AV-14DZ
Multifunction Meter - THD & IMP-EXP
- 1Ø-2W, 3Ø-3W/4W Selectable
- Separate Display for KWH Reading
- PT Ratio & CT Ratio Selectable
- THD Upto 32nd Order for Voltage & Current
- Maximum Demand on KW & KVA
- Pulse & RS-485 MODBUS Communication
AVH-16
Automatic Power Factor Controller- APFC
- Single CT, 2Ø Voltage input
- 8-Stage APFC
- Auto/Manual/Rotation Mode
APFC-9608
Multifunction Meter - 3 Line Display
- 1Ø-2W, 3Ø-3W/4W Selectable
- PT Ratio & CT Ratio Selectable
- Pulse & RS-485 Modbus Communication
- Accuracy Class 0.5
MFM-13-M1
AVF Meter - 3 Line Display
- 3Ø -3W/4W, 1Ø-2W Selectable
- 3-Digit, 3-Line, 7-Seg, 0.59” RED LED
- Primary CT Selectable upto 9999A
- Secondary CT 5A
- 50-520V AC (L-L), 30-300V AC (L-N)
AVF-19D
Power Quality Meter
- 1Ø-2W, 3Ø-3W/4W Selectable
- Voltage Input 100V to 520kVAC, Secondary 100V to 520V AC
- THD Upto 32th Order
- Import Export Energy
- Import Export Energy Measurement
- Pulse & RS-485 Modbus Communication
PQM-16+-M1
Demand Controller
- 1Ø-2W, 3Ø-3W/4W Selectable
- PT Ratio & CT Ratio Selectable
- THD upto 32th Order for Ampere + Voltage
- Pulse & RS-485 Modbus Communication
- Accuracy Class 0.5
DMR-162
Energy Power Meter
- Network Selection: 1Ø-2W, 3Ø-3W, 3Ø-4W
- Measure and Display KW, KVA, KWH Meter
- Pulse Output and RS-485 Modbus Communication
EPM-35
DG Monitoring Relay
- Network Selection:3Ø-4W
- Protection Available
- Over / Under Voltage
- Asymmetry
- Phase loss
- Phase Sequence
- Reset Mode: Auto
DGMR-132
DIN Rail Digital Multifunction Meter
- 1Ø-2W, 3Ø-3W/4W Selectable
- Primary Voltage 100V to 520kVAC
- Secondary Voltage 100V to 520V AC ( L-L )
- Pulse & RS-485 MODBUS Communication
- Accuracy Class 0.5 ( Standard )
EPM-70
AVH 16+-M1
- 1Ø-2W, 3Ø-3W/4W Selectable
- Separate Display for KWH Reading
- PT Ratio & CT Ratio Selectable
- THD Upto 32nd Order for Voltage & Current
- Maximum Demand on KW & KVA
- Pulse & RS-485 MODBUS Communication
AVH 16+-M1
MFM 13-M1
- 1Ø-2W, 3Ø-3W/4W Selectable
- PT Ratio & CT Ratio Selectable
- Pulse & RS-485 Modbus Communication
- Accuracy Class 0.5
MFM 13-M1
DC Energy Meter
- Shunt Selectable: 1 to 9999 Amp
- DC Voltage Range: -999 to 1000V DC
- DC Watt Range: -999 to 9999 KW DC
- RS-485 Modbus Optional
EDC-351
Automatic Power Factor Controller 8 Stage
- Primary CT Ratio: 5 to 9999 Amp Selectable
- Secondary Current Ac: 0.01 To 5.0 Amp (Without CT)
- 8-Stage Available
- Auto/Manual/Rotation Mode
- With Alarm Output
APFC-308
AVF Meter
- 3Ø -3W/4W, 1Ø-2W Selectable
- 3-Digit, 3-Line, 7-Seg, 0.59” RED LED
- Primary CT Selectable upto 9999A
- Secondary CT 5A
- 50-520V AC (L-L), 30-300V AC (L-N)
- Size: (H)96mm X (W)96mm X (D)43mm
- Supply Voltage: 230V AC,50Hz ± 20%
AVF-19D
AVF Meter
- 3Ø-3W/4W, 1Ø-2W Selectable
- 3-Digit, 3-Line, 7-Seg, 0.59” RED LED
- CT Primary Selectable Upto 9999A
- CT Secondary Selectable 5A or 1A
- PT Primary Selectable 100V to 520KV
- PT Secondary Selectable 50V to 520V AC
- 50-520V AC (L-L), 30-300V AC (L-N)
- Size: (H)72mm X (W)72mm X (D)45mm
- Supply Voltage: 100-270V AC, 50/60 Hz
AVF-29T
3Ø-Energy Meter
- Network Selection: 3Ø-4Wire
- 30 to 300V AC (L-N), 50 to 520V AC (L-L)
- Display for KWH and KW Indication
- Pulse, RS-485 Modbus Communications
EM-10
3Ø Ampere meter
- Single Line Display for Each Phase Current Ampere with Scrolling Facility
- CT Primary :Upto 9999A
- CT Secondary : 5A & 1A AC
- Size: (H)96mm X (W)96mm X(D)43mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
AMP-13
3 Phase Ampere Meter
- Single Display for Each Phase Current Ampere with Scrolling Facility
- CT Primary :Upto 9999A
- CT Secondary : 5A & 1A AC
- Size: (H)72mm X (W)72mm X(D)45mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
AMP-23
Digital Power Factor Indicator
- 3Ø-4W
- CT Primary Selectable Upto 9999A
- CT Secondary: 5A
- Size: (H)96mm X (W)96mm X (D)43mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
PF-13
3Ø Voltmeter
- 3Ø-3W/4W
- Single Line Display for 3Ø Voltage with Scrolling Facility
- Primary Voltage : 100V to 520KV AC
- Secondary Voltage : 100V to 520V AC
- Size: (H)96mm X (W)96mm X(D)43mm
- Supply Voltage: 230V AC, ±20%,50Hz
Volt-13
3Ø Volt Meter
- 3Ø-3W/4W
- Single Line Display for 3Ø Voltage with Scrolling Facility
- Primary Voltage : 100V to 520KV AC
- Secondary Voltage : 100V to 520V AC
- Size: (H)72mm X (W)72mm X(D)36mm
- Supply Voltage: 100 to 270V AC, 50/60 Hz
Volt-23
Automatic Power Factor Controller 8 Stage
- Primary CT Ratio: 5 to 9999 Amp Selectable
- Secondary Current Ac: 0.01 To 5.0 Amp (Without CT)
- 8-Stage Available
- Auto/Manual/Rotation Mode
- With Alarm Output
APFC-108

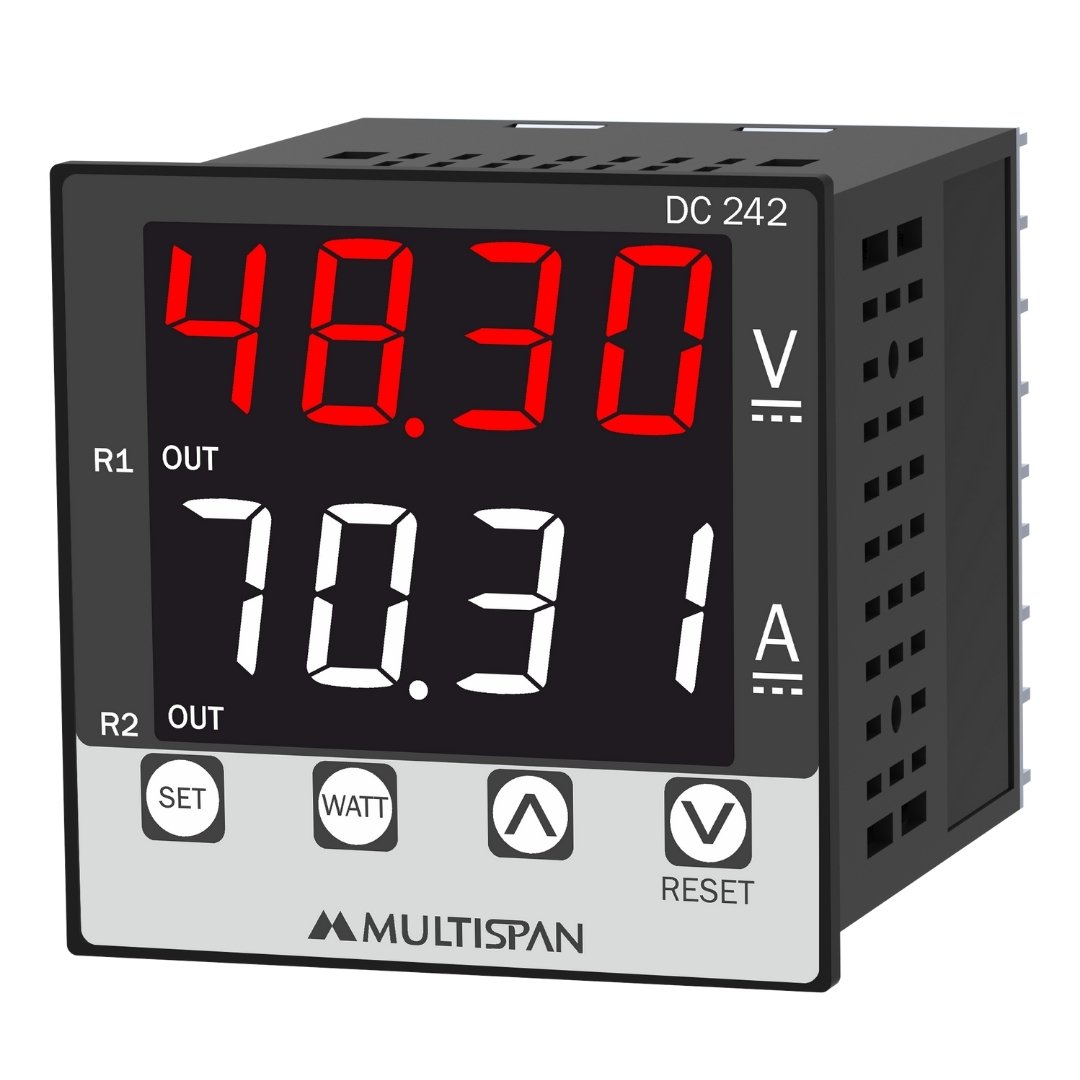

DC Multifunction Meter
- DC Ampere Range: -999 to 9999A DC
- DC Voltage Range: -1500 to 1500V DC
- DC Watt Range: -999 to 9999 KW DC
- 2 Relay for protection
- RS-485 Modbus
- Size: (H)72mm X (W)72mm X (D)85mm
- Supply Voltage: 24V - 270V AC/DC, 50/60 Hz
DC-242
Automatic Power Factor Controller 14 Stage
- Single CT, Capacitor CT,2Ø Voltage Input
- Upto 14 stage
- Auto/Manual/Rotation Mode
- With Alarm Output
APFC-114
Dc volt meter
- Fixed Range:- 20.0V DC to +20.00V DC, -50.0V DC to +50.0V DC, -100V DC to 100.0V DC, -200V DC to +200.0V DC, -750V DC to +750V DC
- Size: (H)72mm X (W)72mm X (D)36mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
AV-24DV
Dc panel meters
- Fixed Range: -20.0V DC to +20.00V DC, -50.0V DC to +50.0V DC, -100V DC to 100.0V DC, -200V DC to +200.0V DC, -750V DC to +750V DC
- Size: (H)48mm X (W)96mm X (D)26mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
AV-34DV
DC Amp+ Volt Combined Meter
- DC Ampere Range: -999 to 9999A DC
- DC Voltage Range: 0 to 1000V DC
- DC Watt Range: 0000 to 9999KW DC
- Size: (H)48mm X (W)96mm X (D)26mm
- Supply Voltage: 100-270V AC, 50/60 Hz
VAW-34DC
DC Ampere Meter
- Shunt Primary :-999A DC to 9999A DC
- Shunt Secondary : -75mV DC to 75mV DC
- Size: (H)72mm x (W)72mm x (D)36mm
- Supply 100-270V AC/DC, 50/60 Hz
AV-24DA
DC Ampere Meter
- Shunt Primary :-999A DC to 9999A DC
- Shunt Secondary : -75mV DC to 75mV DC
- Size: (H)48mm x (W)96mm x (D)26mm
- Supply 100-270V AC/DC, 50/60 Hz
AV-34DA
AVF Meters
- 3Ø-3W/4W, 1Ø-2W Selectable
- 3-Digit, 3-Line, 7-Seg, 0.59” RED LED
- CT Primary Selectable Upto 9999A
- CT Secondary Selectable 5A or 1A
- PT Primary Selectable 100V to 520KV
- PT Secondary Selectable 50V to 520V AC
- 50-520V AC (L-L), 30-300V AC (L-N)
- Size: (H)96mm X (W)96mm X (D)43mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
AVF-19T
DC Multifunction Energy Meter
- Shunt Selectable: -1 to 9999A DC
- DC Voltage Range: -1500 to 1500V DC
- DC Watt Range: -999 to 9999 KW DC
- RS-485 Modbus
- 2 Relay Output
- Size: (H)90mm X (W)35mm X (D)61.5mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
