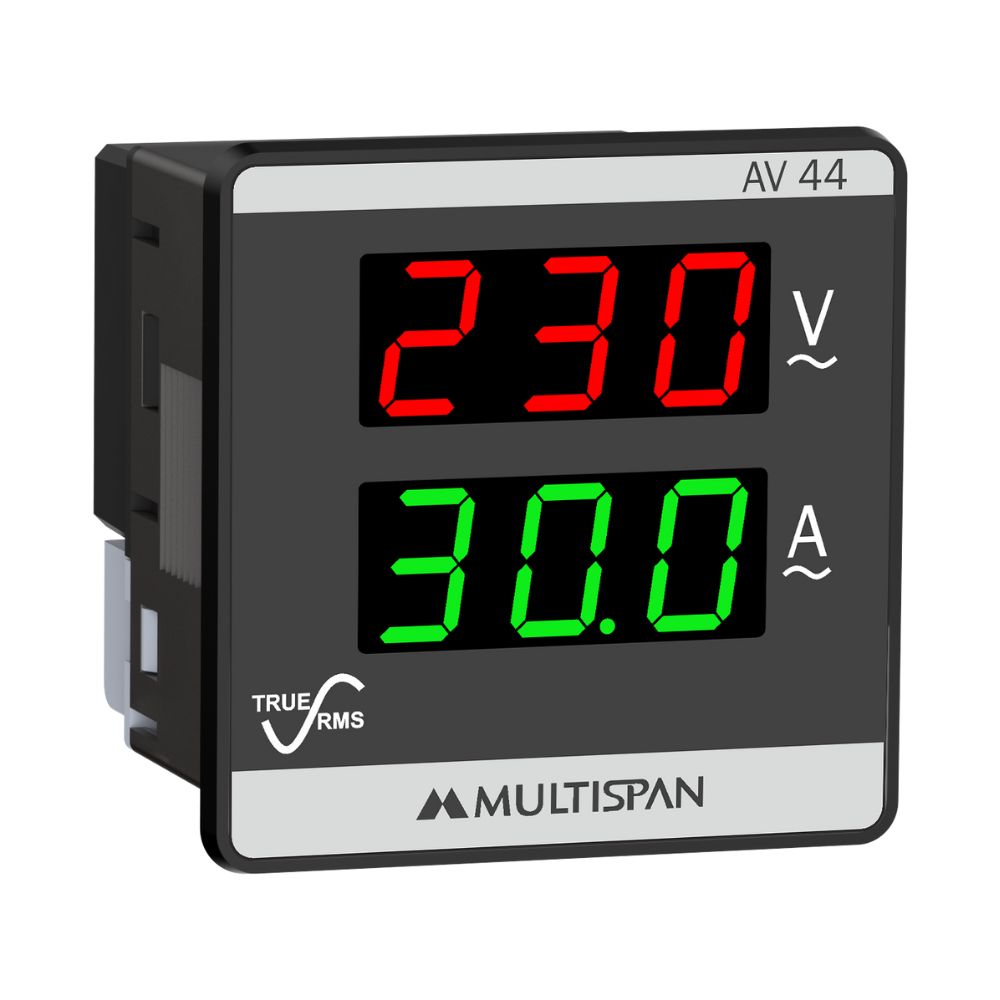

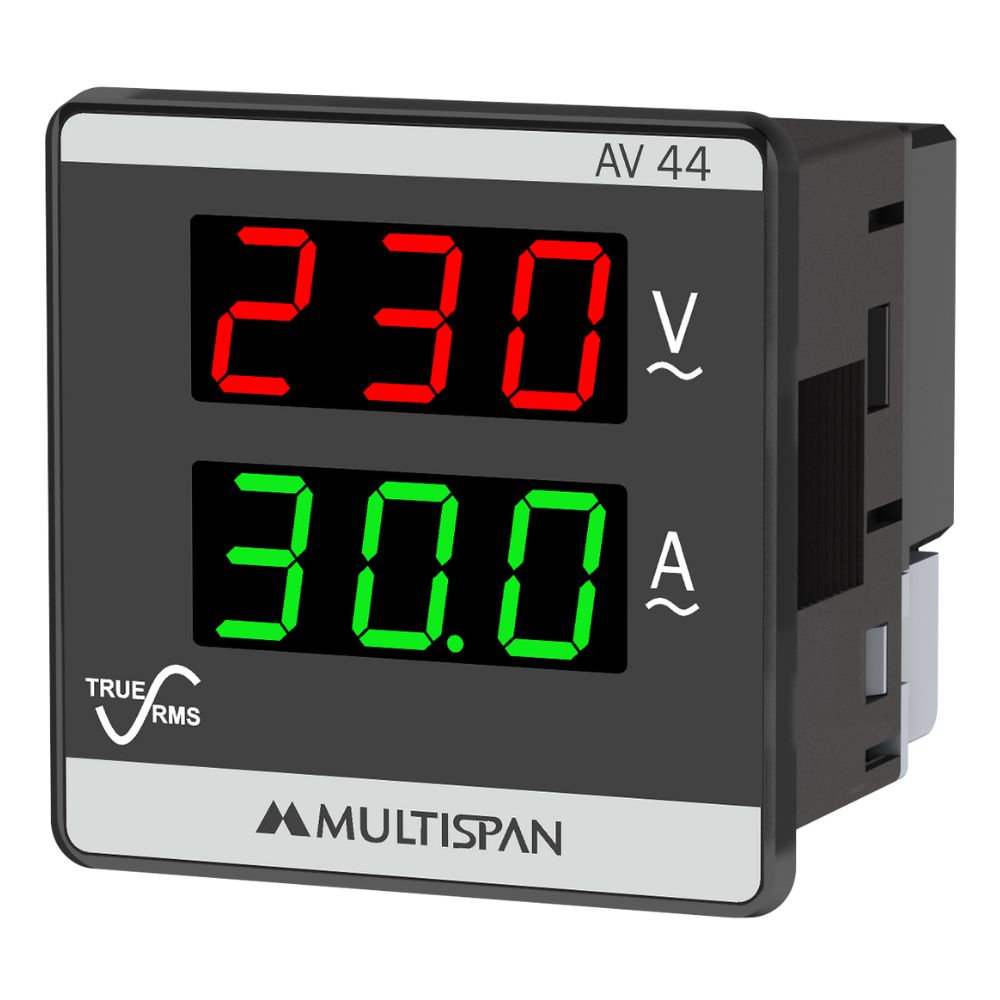

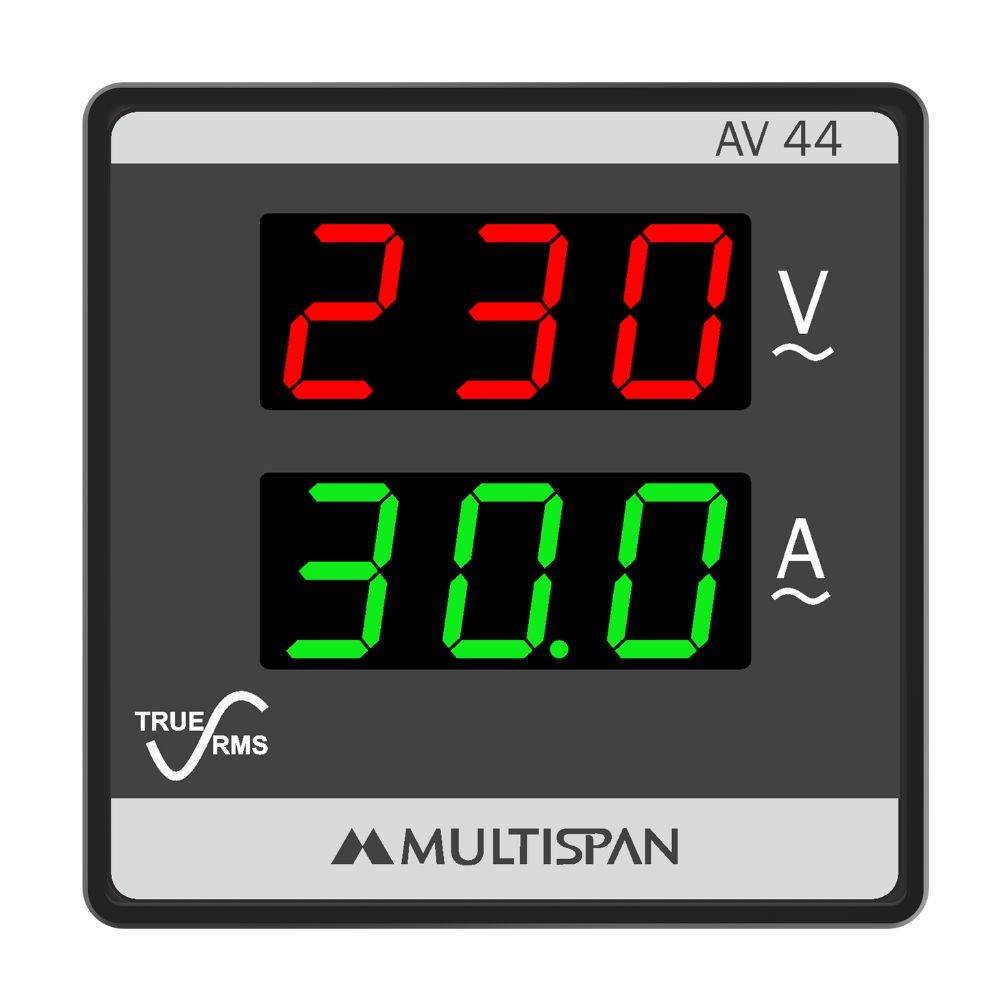

AV-44 - Ampere + Volt Combined Meter regular image AV-44 - Ampere + Volt Combined Meter front image AV-44 - Ampere + Volt Combined Meter side image

Ampere + Volt Combined Meter

Product: AV-44

  • Separate Display for Amp + Volt
  • 30A  Direct CT Available
  • Size: (H)48mm X (W)48mm X(D)66mm
  • Supply Voltage: 100-270V AC/DC, 50/60 Hz

Top Variants:

Input
NETWORK CONNECTION 1 Phase- 2 Wire (1P-2W)
Voltage AC
Direct voltage AC 30 to 500V AC
Burden  <0.2 VA
Current AC
Input Current 30.0A AC Direct
Burden  <0.2 VA
Overload For 5A CT : Upto 6A Continous
DISPLAY  AND KEYS
Display 3-Digit , 2-Line , 7-Seg 0.56 Red LED
Key   Provided at Back Terminal
DIMENSION
Size(mm) 48 (H) x 48 (W) x 66 (D)
Panel Cutout (mm) 45 (H) x 45 (W)
AUXILIARY POWER SUPPLY
Power Supply 100- 270V AC/DC 50/60 Hz
Burden Approx 4VA @ 230V AC
ENVIRONMENAL CONDITION
Working Temperature 0 to 55 °C
Storage Temperature 0 to 55 °C
Relative Humidity  95 %  RH Non - Condensing
Protection Level (As per Request ) IP-65 (front side As per IS /IEC 60529 :2001)
  • Electrical Control Panel
  • Power Distribution
  • Instrumentation Panel
  • Transformer training

Product Variant

Model Voltage Current Supply
AV-44 Network Selection :1Ø-2Wire
Voltage Input: 0 to 500V AC
0 to 30.0A AC Direct 100-270V AC/DC
