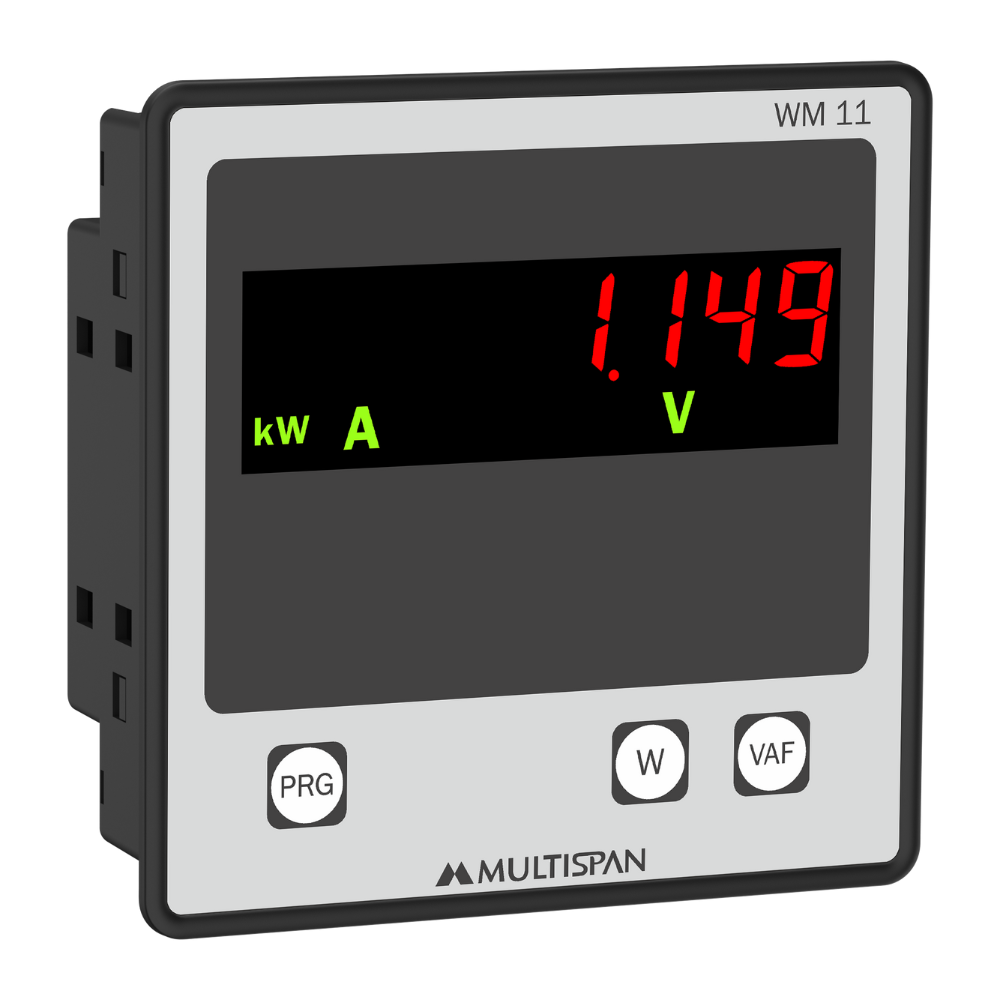

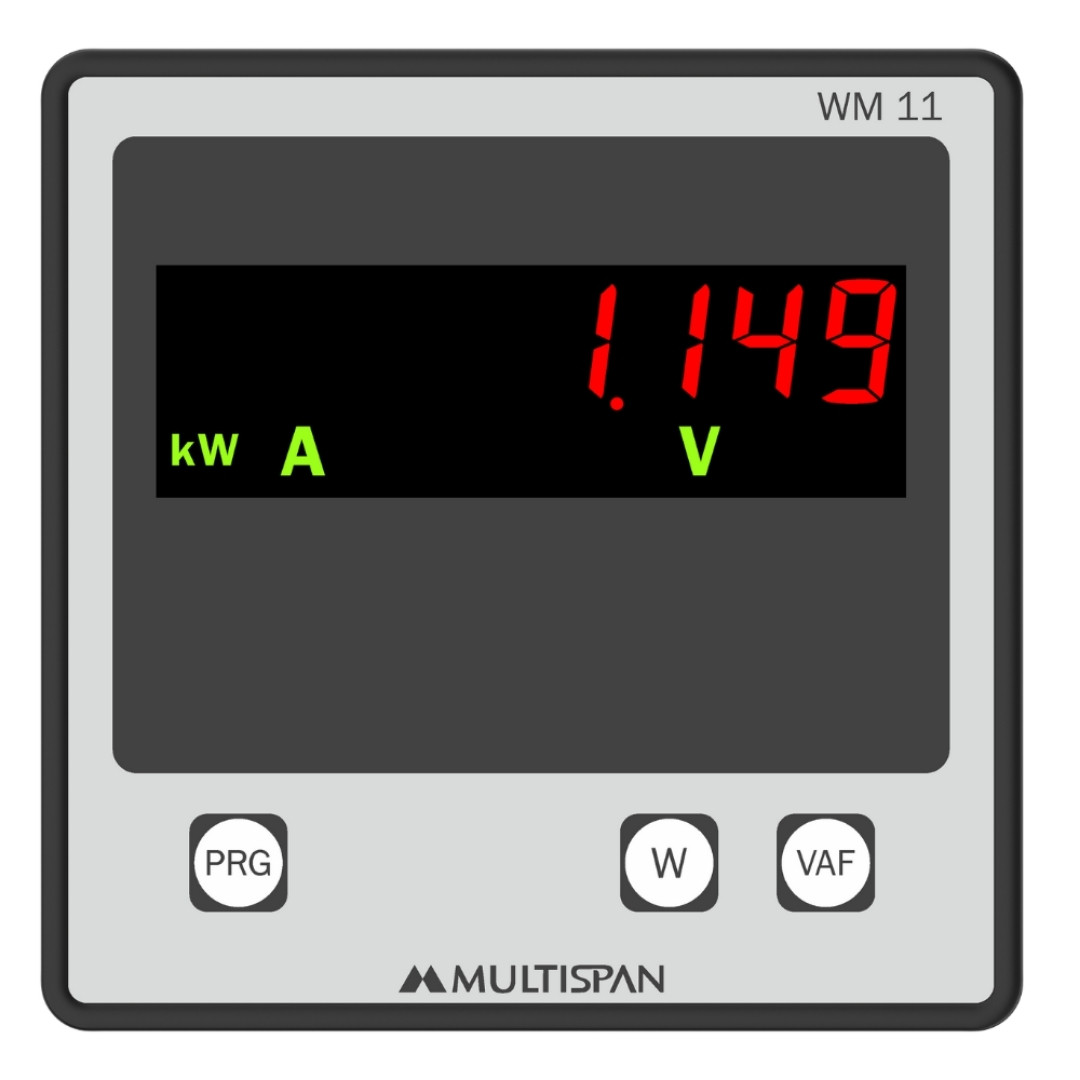

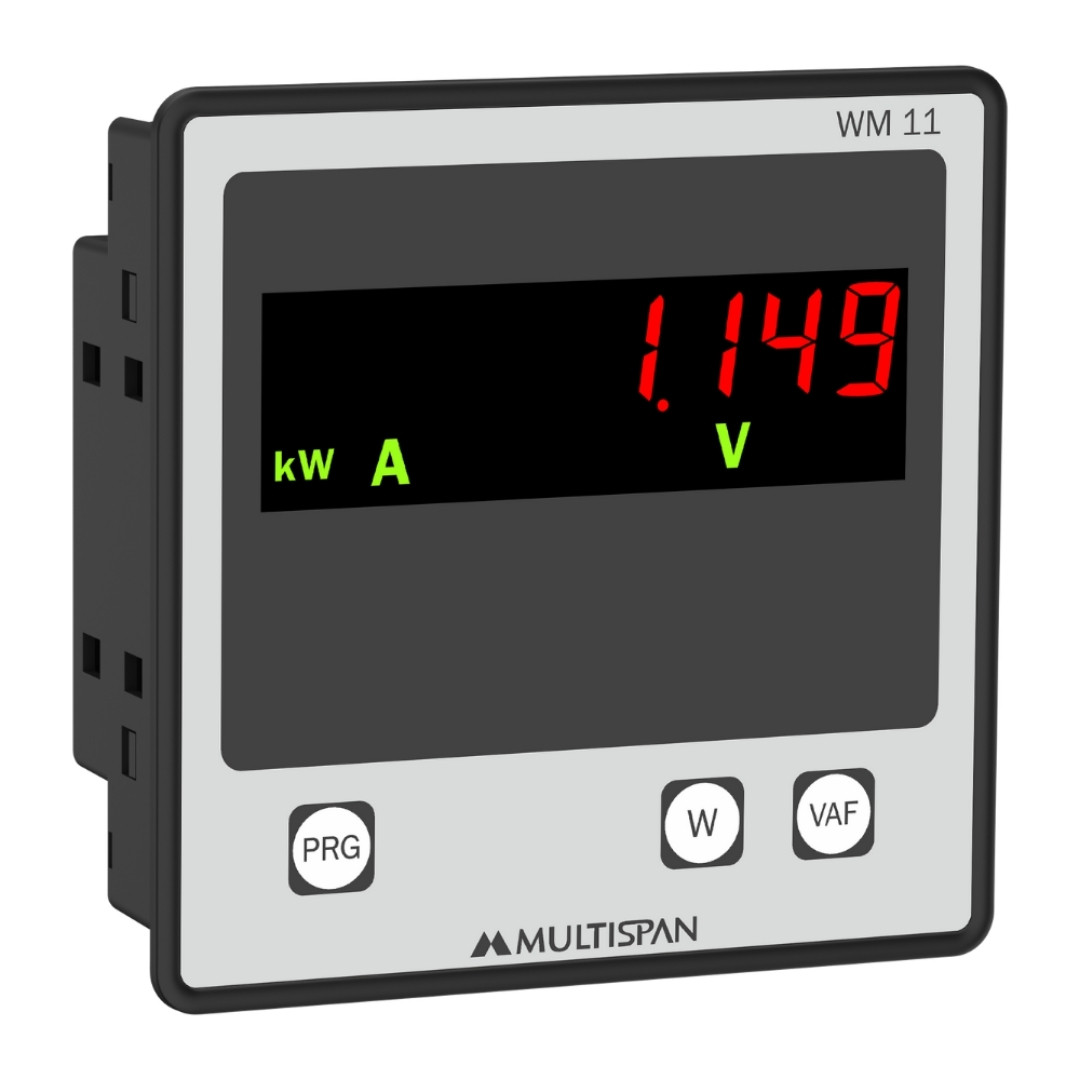

WM-11 - Kw Meter - product regular image WM-11 - Kw Meter - product front image WM-11 - Kw Meter - product side image

1Ø Watt Meter

Product: WM-11

  • 1Ø-2W
  • CT Primary 5A to 50A
  • CT Secondary 5A
  • Voltage 20-300V AC
  • Size: (H)96mm X (W)96mm X(D)43mm
  • Supply Voltage: 100-270V AC/DC, 50/60 Hz

Model WM-11
Display 8-Digit, 7-Segment, 0.5” Red display
Size (mm) 96 (H) X 96 (W) X 43 (D)
Panel Cutout (mm) 92 (H) X 92 (W)
Voltage Input 20 To 300V AC VLN CAT III
Current Input 30mA To 5 Amp or higher through external CT
Active Power (KW) 0.000 Watt To 9999 KW
Power Supply 100 To 270V AC/DC,50/60Hz,Approx 3VA
Frequency 45 To 65 Hz
Wiring System 1Ø-2W
Protection
Level
(As Per Request)
IP-65 (Front side) As per IS/IEC 60529 : 2001
Operating Temperature 0°C To 50°C
Relative Humidity Upto 95% RH Non Condensing
Weight (Approx) gms :
Unpacked 172
Packed 224

Product Variant

Model Voltage Current Auxillary
WM-11-E3-N0 Network Selection :1Ø-2Wire
Voltage Input: 20-300V AC
CT Primary :5A to 50A
CT Secondary : 5A
100 to 270V AC/DC
Note: Modbus Available on Request
