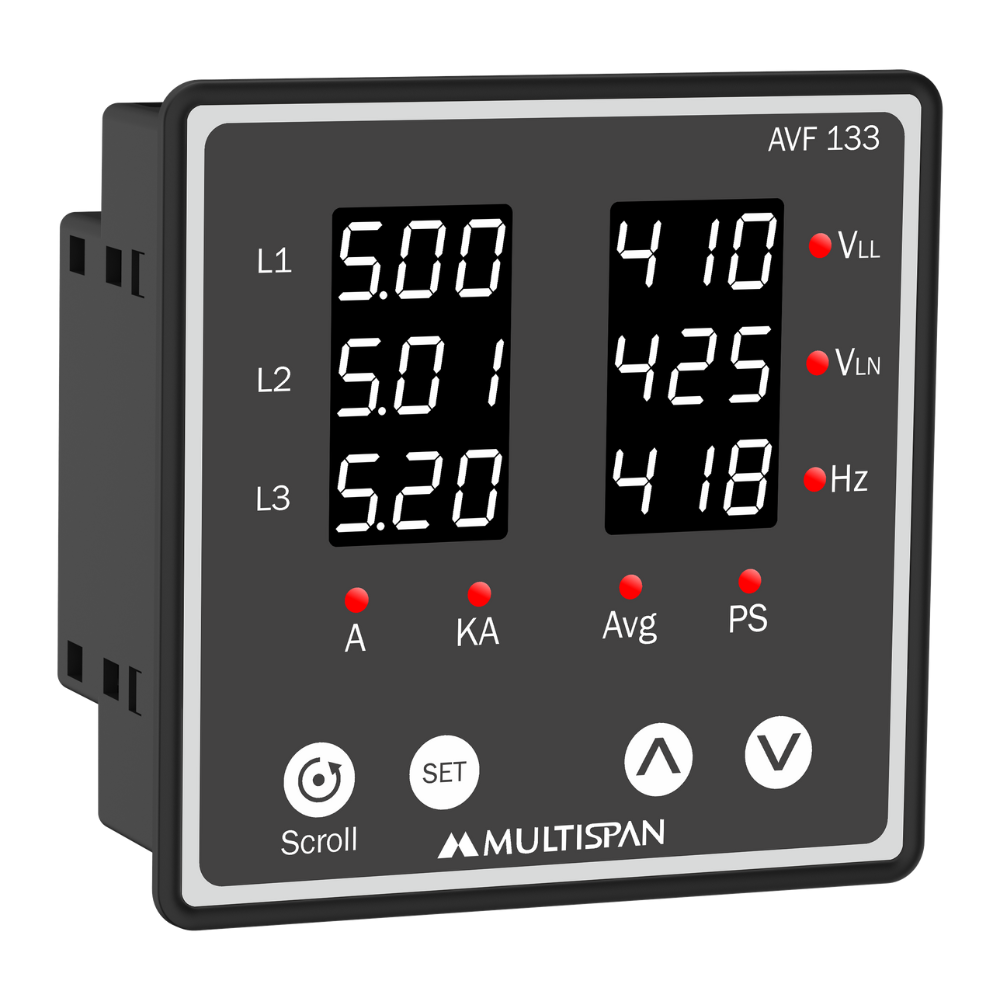

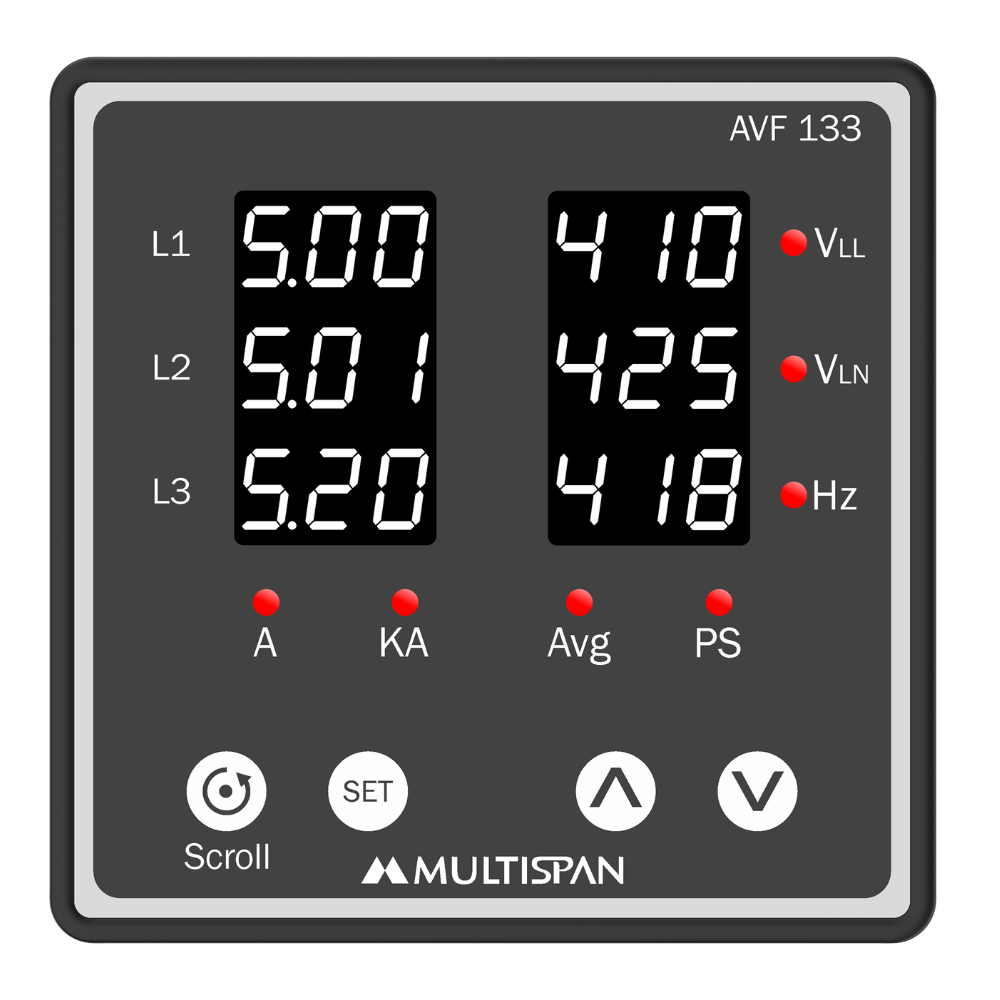

AVF Meter - 3 + 3 Line Display
Product: AVF-133
- 3Ø-3W/4W, 1Ø-2W Selectable
- 6-Line Display – 3-Line + 3-Line, 7-Segment LED Display
- 50-520V AC (P-P), 30-300V AC (P-N)
- RS-485 Modbus Communication Optional
- Size: (H)96mm X (W)96mm X (D)54mm
- Supply Voltage: 100-270V AC, 50/60 Hz
Top Variants:
| INPUT | |
| Voltage AC | |
| Direct Voltage AC | 30 to 300V (L - N) |
| 50 to 520V (L - L) | |
| Burden | < 0.2 VA |
| Current AC | |
| Primary CT Ratio | 5 to 9999 Selectable |
| Secondary Current Ac | 0.1 To 5 Amp |
| Burden | < 0.2 VA |
| Overload | Upto 6A Continuous |
| Frequency | 45.0 to 65.0 HZ |
| CALCULATED PARAMETERS | |
| Voltage | VLL ,VLN , Avg |
| Current | All Phase Amp, Avg Amp |
| Frequency | System Frequency |
| Phase Sequence | Indication |
| Load Hour | Up to 9999 Hr 59 min |
| ACCURACY | Class 0.5 (Standard) |
| AUXILIARY POWER SUPPLY | |
| Power Supply | 100 to 270V AC,50/60Hz |
| Burden | 4VA |
| DISPLAY, KEY & LED | |
| Display |
3-Digit, 6-Line, 7-Seg 0.36” LED |
| Key | Scroll, Set, Inc ,Dec |
| LED Indication | A , KA , VLL , VLN , Avg, PS, Hz |
| ENVIRONMENTAL CONDITION | |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 55°C |
| Relative Humidity | 95 % RH Non - Condensing |
| Protection Leval | IP-65 (Front side As per IS/IEC 60529 : 2001) |
| DIMENSION | |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- LT Panel
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Current | Auxillary |
| AVF-133-E3-00 | Network Selection :3Ø3W/4W, 1Ø2W Voltage Input: 50-520V AC (P-P) 30-300V AC (P-N) |
CT Primary :Upto 9999A CT Secondary : 5A |
100 to 270V AC/DC |
| Note: | Modbus Available on Request | ||
