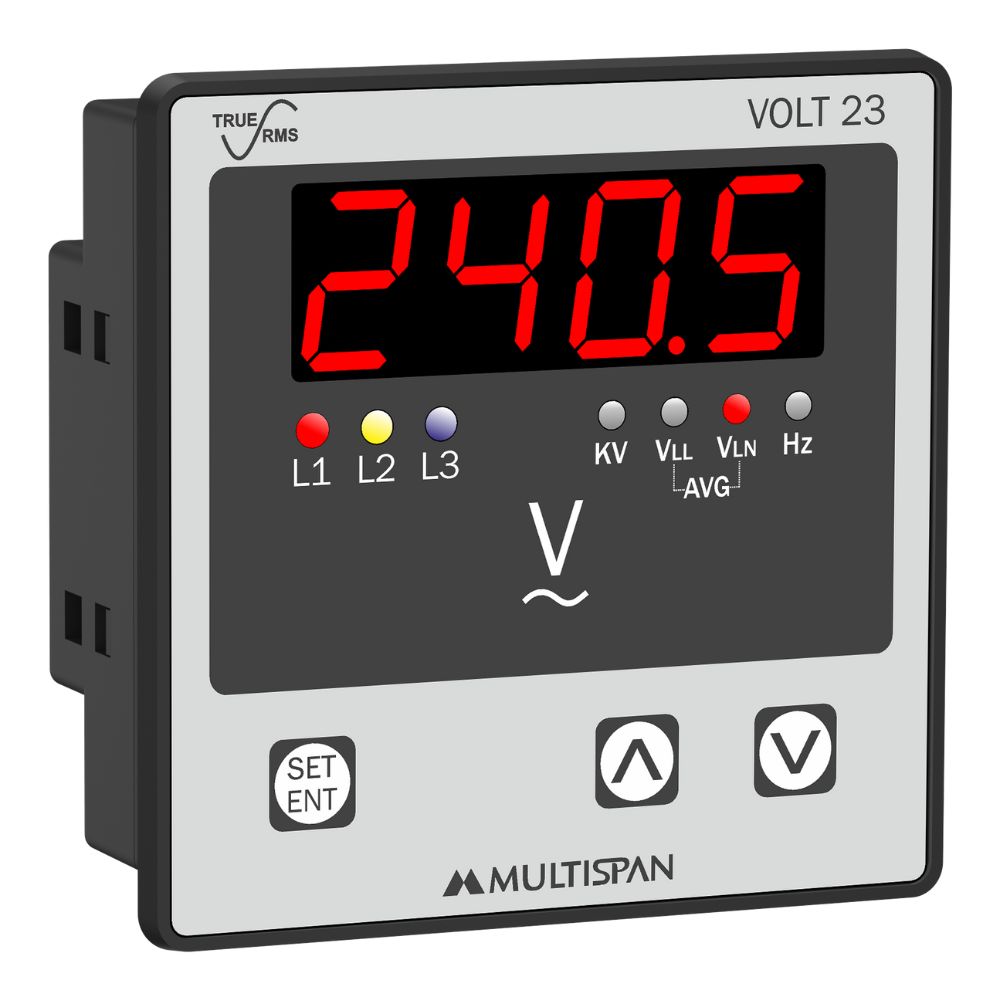

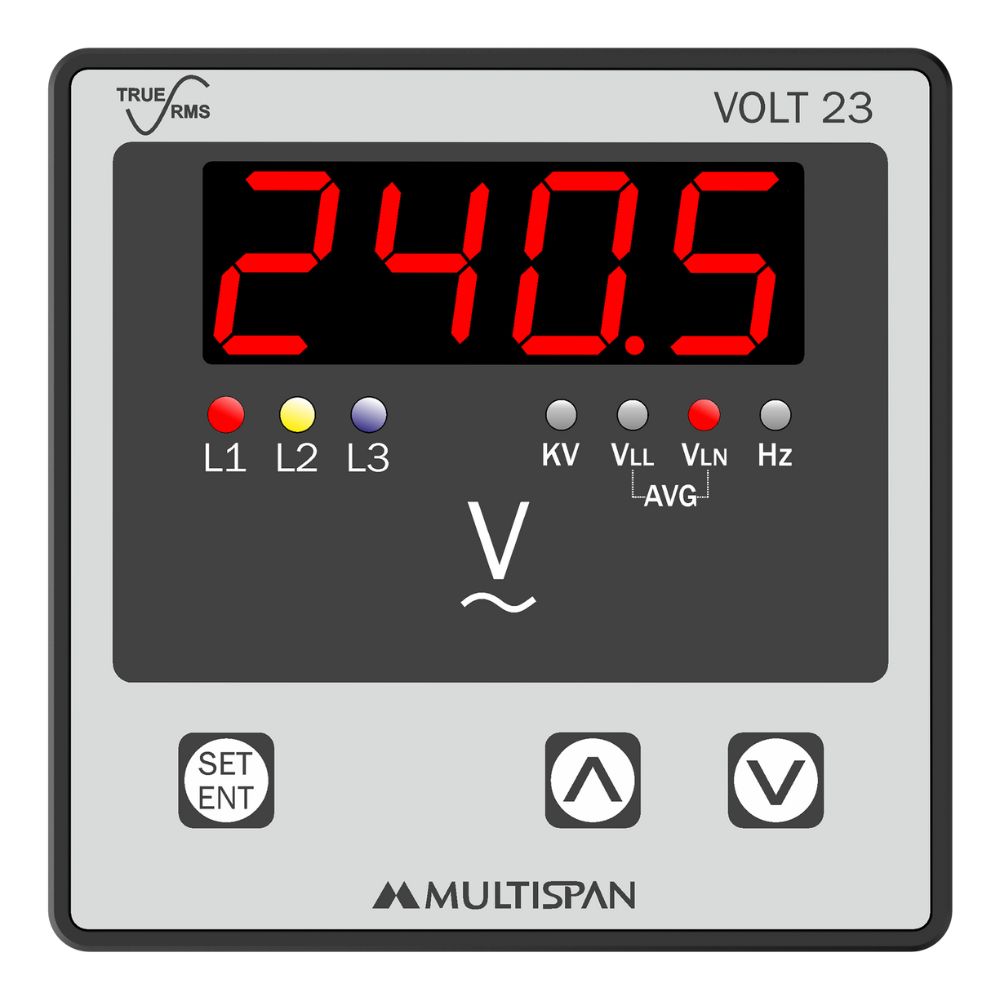

3Ø Volt Meter
Product: Volt-23
- 3Ø-3W/4W
- Single Line Display for 3Ø Voltage with Scrolling Facility
- Primary Voltage : 100V to 520KV AC
- Secondary Voltage : 100V to 520V AC
- Size: (H)72mm X (W)72mm X(D)36mm
- Supply Voltage: 100 to 270V AC, 50/60 Hz
Top Variants:
| INPUT SPECIFICATION | |
| Voltage AC | |
| Rated voltage Ac (Direct voltage AC) | 50 to 520V (L - L) |
| 30 to 300V (L - N) | |
| Primary PT | 100 to 520kV AC (L-L) (Selectable) |
| Secondary PT | 100 to 520V AC (L-L) (Selectable) |
| Frequency | 45.0 to 65.0 Hz |
| Resolution | 1 Volt |
| DISPLAY AND KEYS | |
| Display | 4-Digit,1-Line, 7-Seg, 0.56” RED LED |
| Keys | SET/ENT, INC, DEC |
| LED Indication | L1, L2, L3, Avg, L-L, L-N, Hz |
| GENERAL SPECIFICATION | |
| Dimension (mm) | 72 (H) x 72 (W) x 36 (D) mm |
| Panel Cutout (mm) | 68 (H) x 68 (W) mm |
| ACCURACY | Class 0.5 (Standard) |
| AUXILIARY SUPPLY | |
| Supply voltage | 100 to 270V AC,50/60Hz |
|
Power consumption (VA RATING) |
4 VA MAX |
| NETWORK CONNECTION | 3Ø-3W/3Ø-4W |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity |
Upto 95% RH (non-condensing) |
| Protection Level (As per request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- Process Control
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Auxillary |
| VOLT-23-A2-00 | Network Selection :3Ø3W/4W Voltage Input: 50 to 550V AC (P-P) 30 to 300V AC (P-N) |
100 to 270V AC |
