| INPUT: | |
| Voltage AC | |
| Input voltage AC | 300 to 520V AC (L - L) |
| Burden | < 5 VA |
| Frequency | 50/60 Hz |
| Current AC(1 CT Sensing) | |
| Primary CT Ratio | 5 to 9999 Amp Selectable |
| Secondary Current Ac | 0.01 To 5.0 Amp (Without CT) |
| Burden | < 0.4 VA |
| Overload | Upto 6A Continuous |

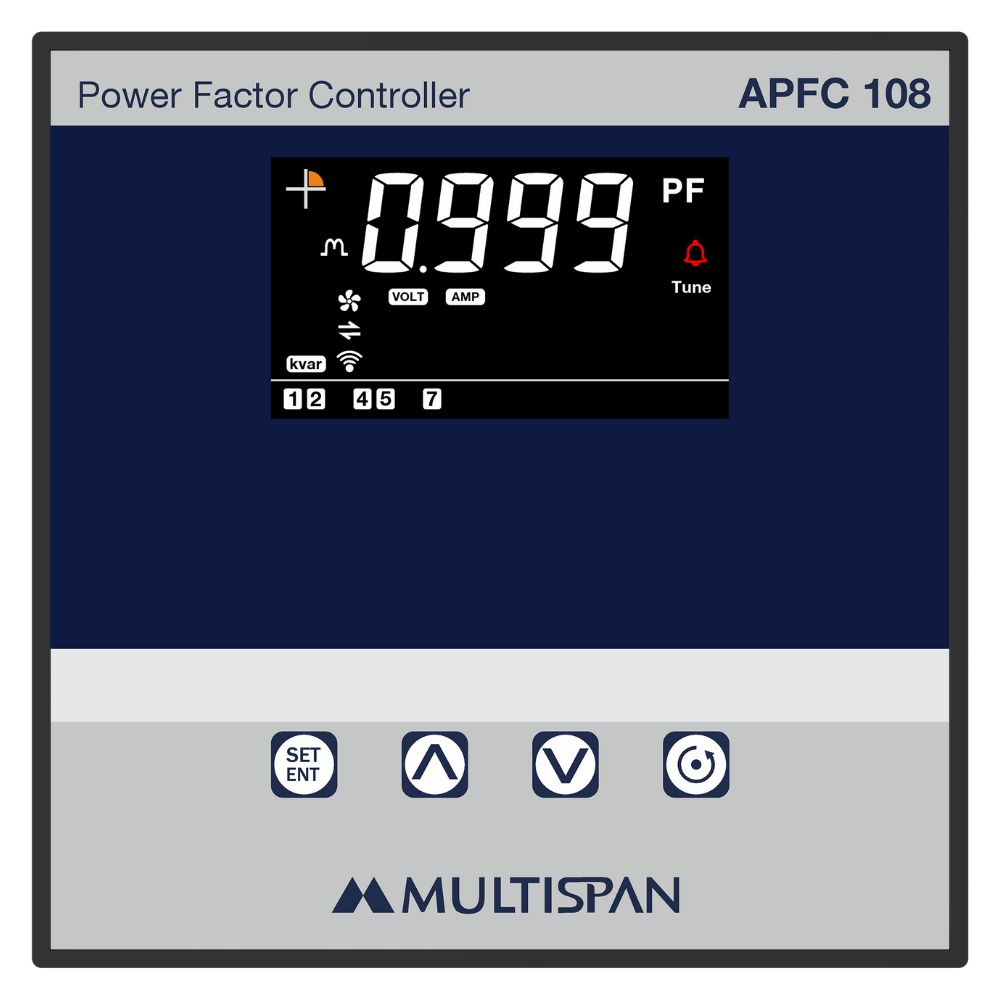

| DISPLAY, KEY & LED: | |
| Display | Upper: 4 Digit,7 seg,0.60" Lower: 7 Digit,7 seg,0.38" |
| Key | SET/ENT, INC, DEC, SCROLL |

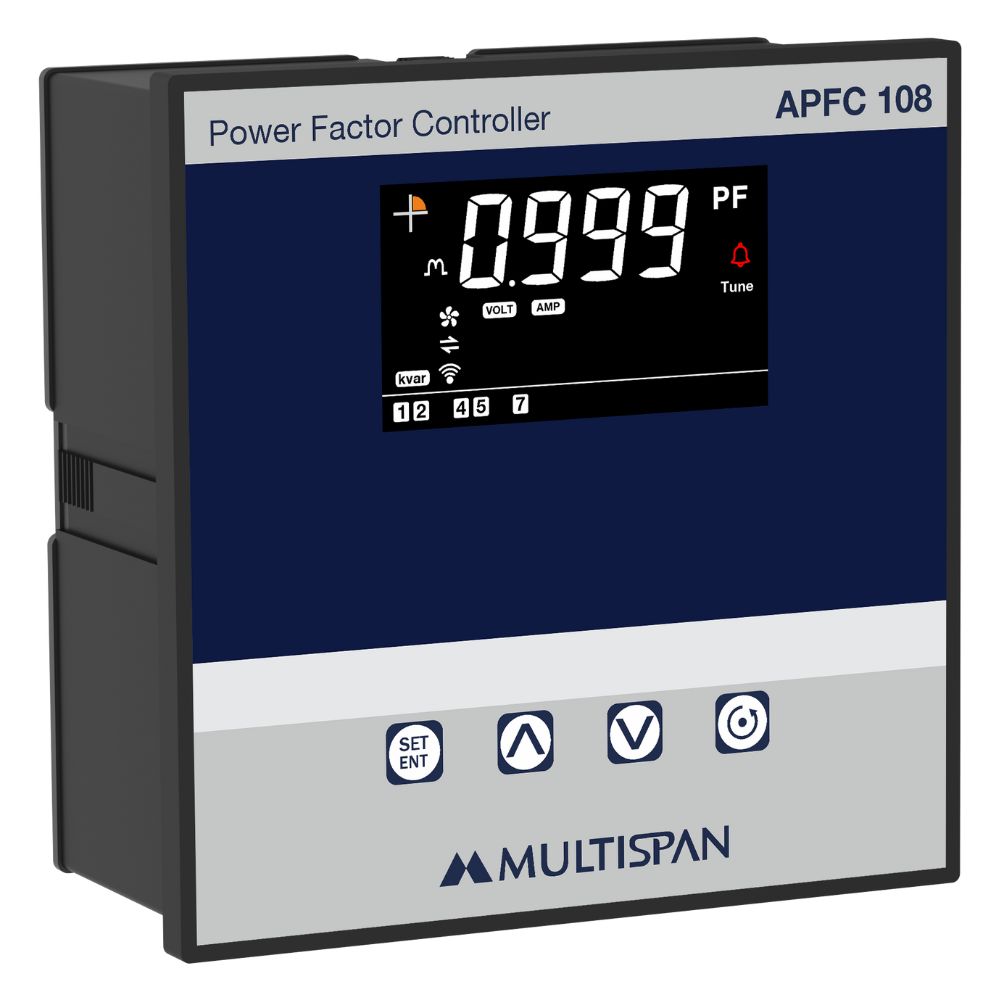

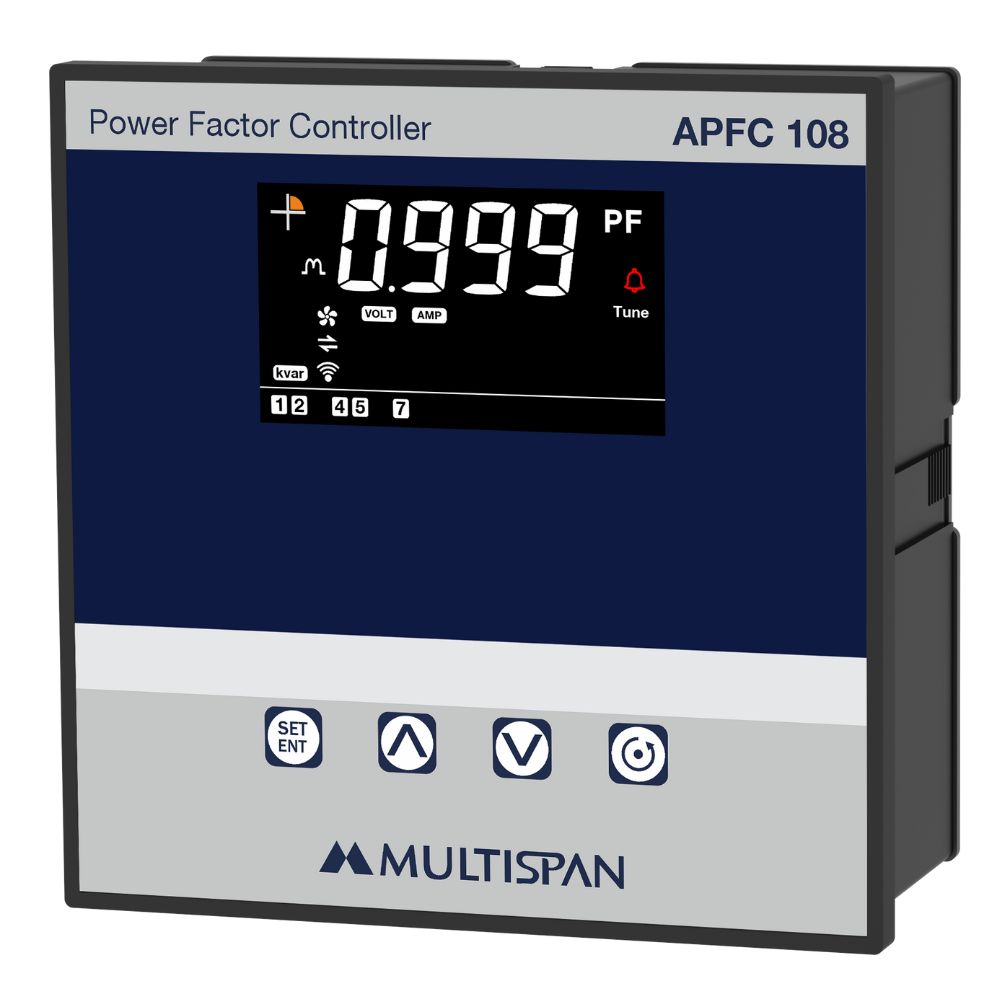

| DIMENSION: | |
| Size | 144 (H) x 144 (W) x 70 (D) mm |
| Panel Cutout | 137 (H) x 137 (W) mm |
| CONTROLLING RANGE: | |
| Operating Mode | Kvar / Intel / Manual |
| Programmable Hysteresis |
0 to 25 KVAr |
| OUTPUT SPECIFICATION: | |
| 8 Stage Capacitor Relay | |
| Relay Type | (NO-C) |
| Rating | 7A, 250V AC |
| AUXILIARY SUPPLY: | |
| Supply voltage | 300V to 520V AC (L-L) |
| Power consumption (VA RATING) |
Approximately 8VA |
| ACCURACY: | |
| Class 0.5 (Standard) | |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
- PF Management using 1 CT Method
- For 3Ø Balanced Industrial Loads
- Energy Monitoring System
- DG Set Panels
- Process Control
- Power Factor Correction Panels
- Commercial Buildings
