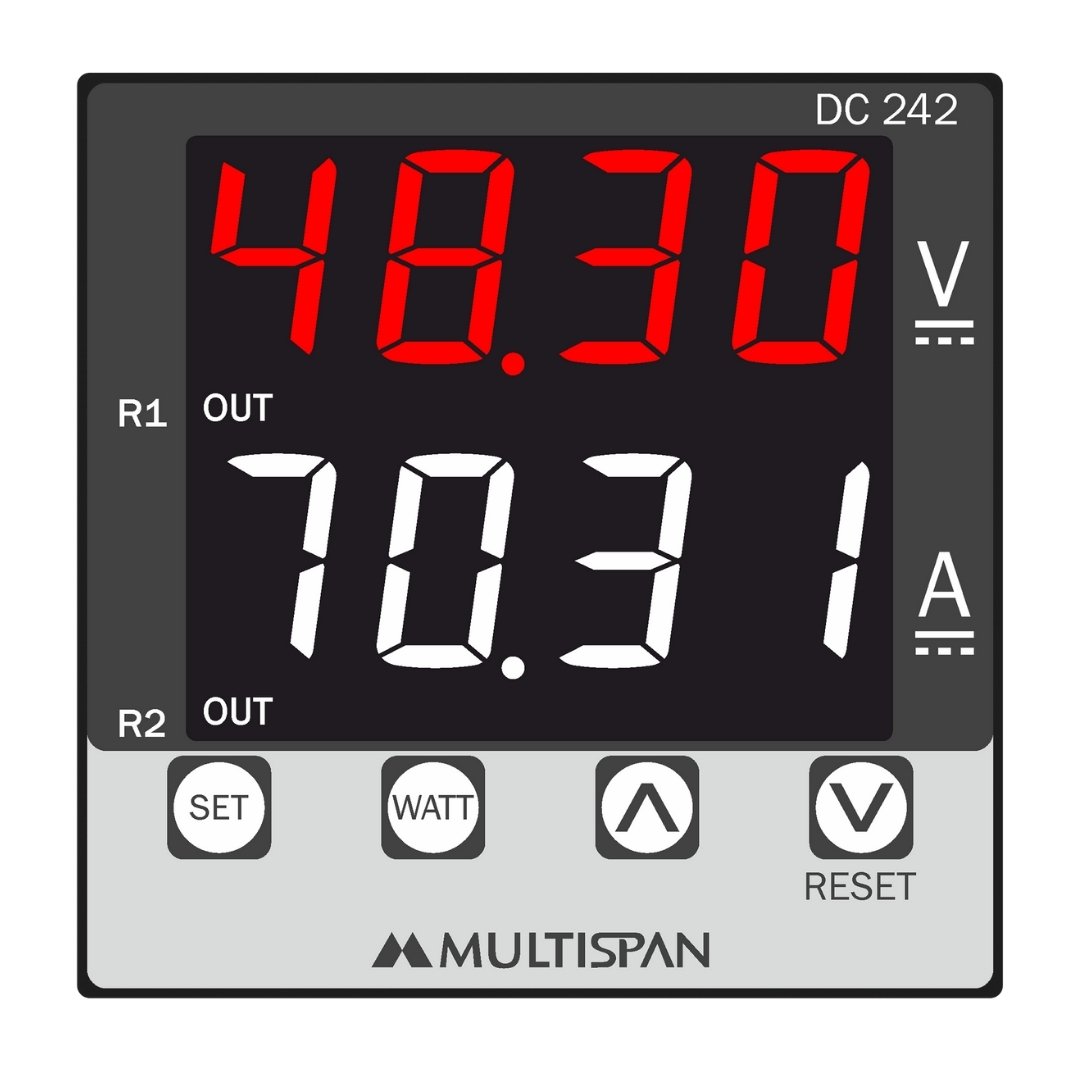

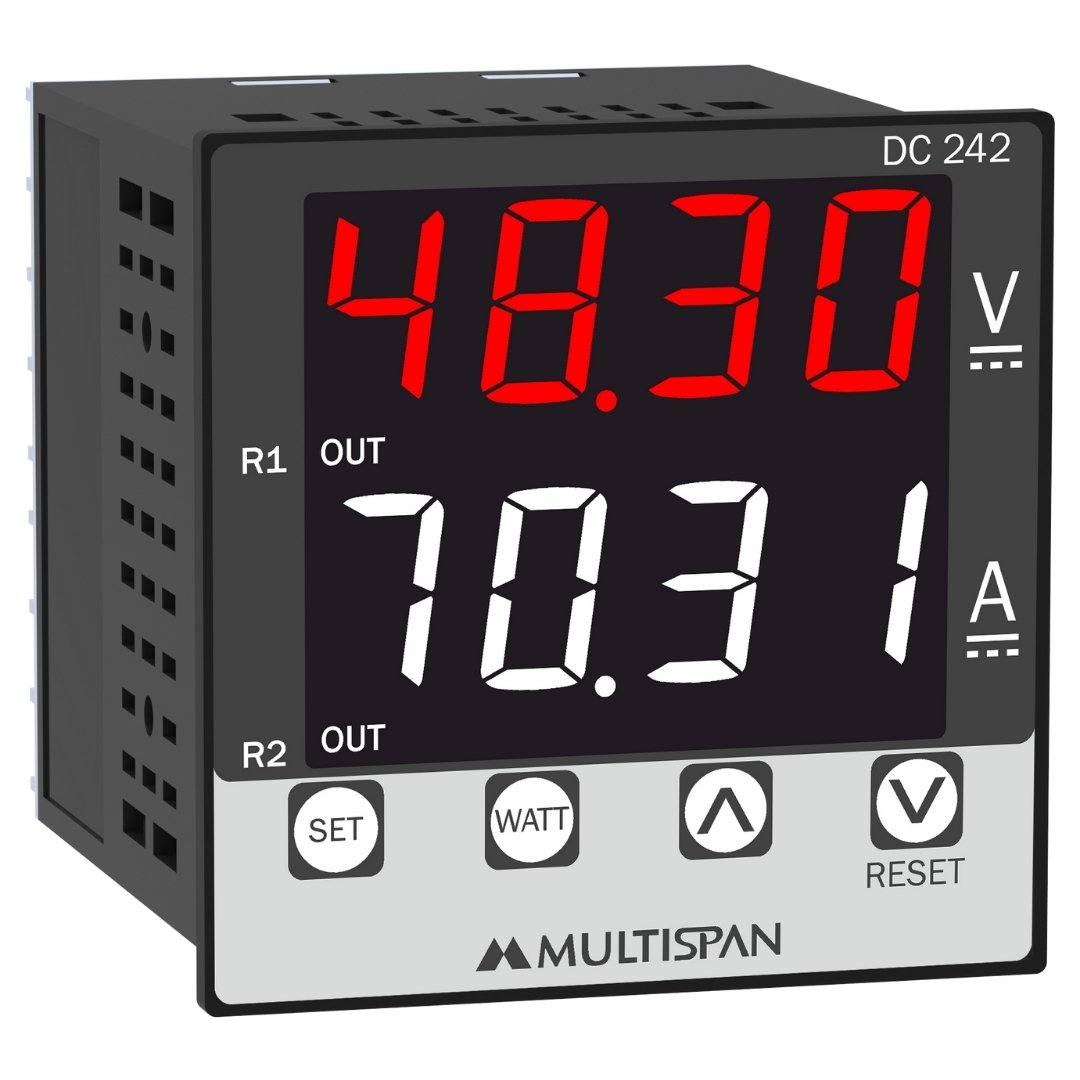

DC Multifunction Meter
Product: DC-242
- DC Ampere Range: -999 to 9999A DC
- DC Voltage Range: -1500 to 1500V DC
- DC Watt Range: -999 to 9999 KW DC
- 2 Relay for protection
- RS-485 Modbus
- Size: (H)72mm X (W)72mm X (D)85mm
- Supply Voltage: 24V - 270V AC/DC, 50/60 Hz
Top Variants:
| INPUT SPECIFICATION | ||
| Current | ||
| Input Current | Through external shunt (-75mV To+75mV DC) | |
| Shunt Selectable | 1 to 9999 Amp | |
| Voltage | ||
| Direct voltage DC | -1500 to 1500V DC | |
| CALCULATED PARAMETERS | ||
| Parameter | Range | Accuracy |
| DC Voltage | -1500 - 1500V DC | 0.5 % OF FSD |
| DC Current | -999 - 9999 A DC | |
| WATT | -999 - 9999 kW | |
| DISPLAY & KEYS | ||
| Display | 4 Digit, 1 Line 7 seg. 0.65" RED | |
| 4 Digit, 1 Line 7 seg. 0.65" White | ||
| Key | Set, INC, DEC | |
| DIMENSION | ||
| Size (mm) | 72 (H) x 72 (W) x 85 (D) mm | |
| Panel Cutout (mm) | 68 (H) x 68 (W) | |
| AUXILIARY POWER SUPPLY | ||
| Power Supply | 24V to 270V AC/DC,50/60Hz | |
| Burden | Approx 5VA @ 270V AC | |
| COMMUNICATION | ||
| RS-485 MODBUS | ||
| ACCURACY | Class 0.5 | |
| Relay Output | ||
| Relay | 2 Nos | |
| Relay Type | 1C/O (NO-C-NC) | |
| Rating | 10A, 230V AC / 28V DC (Reg. Load) | |
| ENVIRONMENTAL CONDITION | ||
| Working Temperature | 0 to 55°C | |
| Storage Temperature | 0 to 55°C | |
| Relative Humidity |
95 % RH Non-Condensing |
|
| Protection Level ( As per Request ) | IP-65 (Front side As per IS/IEC 60529 : 2001) | |
| Protection Parameter | Over Voltage Under Voltage Over Current Under Current |
|
- Electrical Control Panel
- Instrumentation Panel
- Solar Panel
- EV Charging Station
Product Variant
| Model | Voltage | Current | Auxillary |
| DC-242-M1-D7-N0 | Voltage Input : -1500 to 1500V DC | Shunt Primary :-999A DC to 9999A DC Shunt Secondary : -75mV DC to 75mV DC |
24V to 270V AC/DC,50/60Hz |
