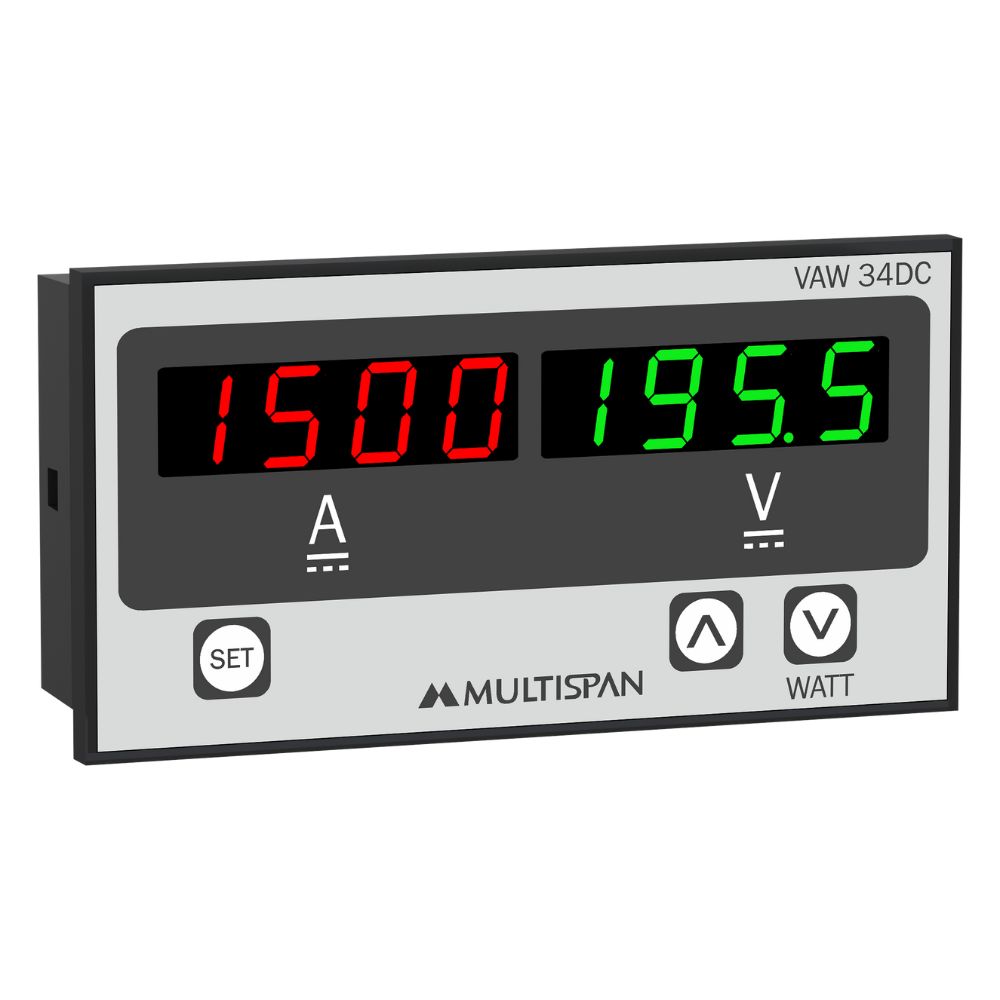

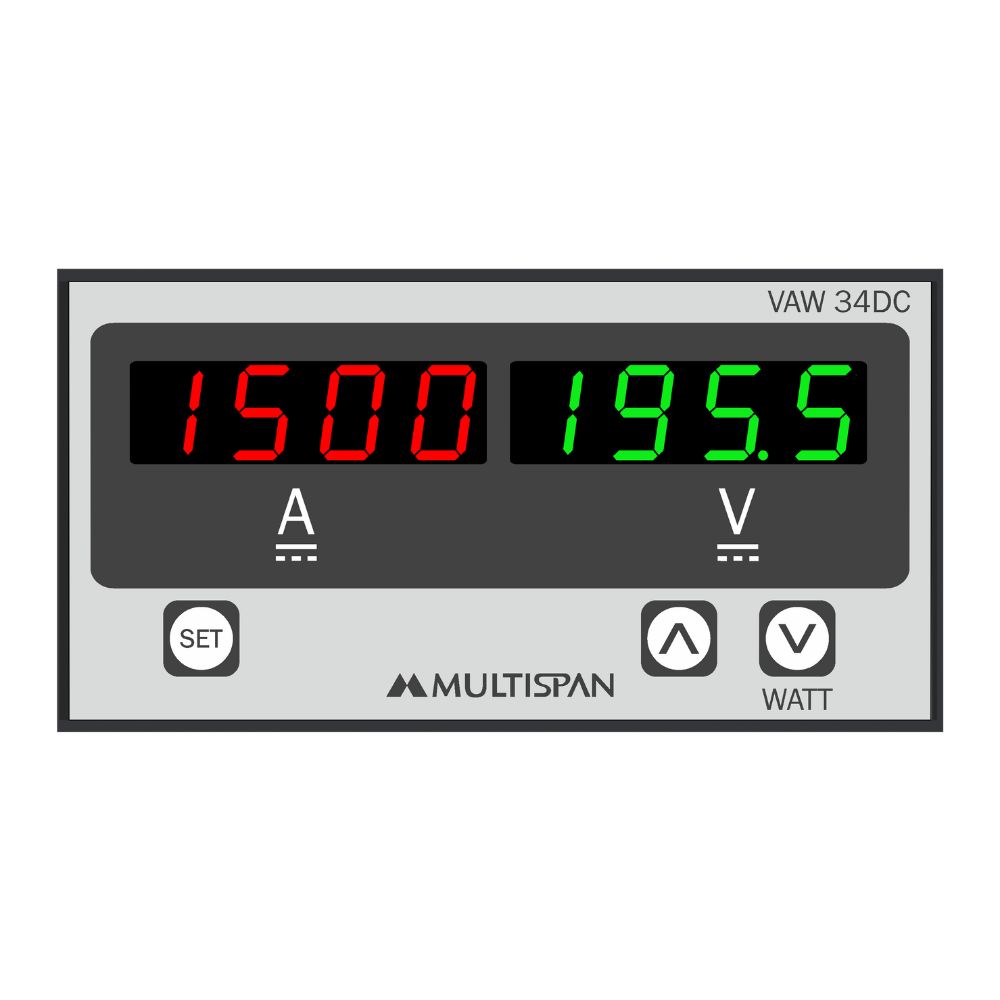

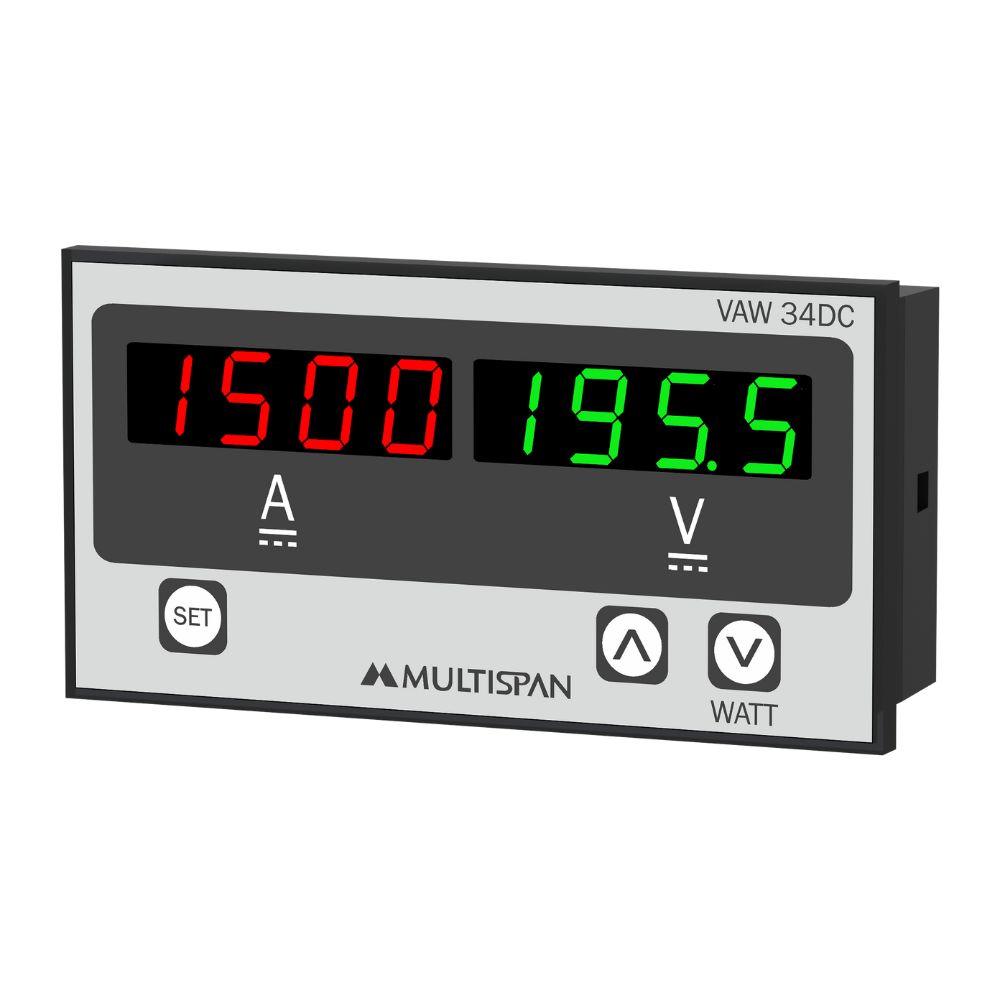

DC Amp+ Volt Combined Meter
Product: VAW-34DC
- DC Ampere Range: -999 to 9999A DC
- DC Voltage Range: 0 to 1000V DC
- DC Watt Range: 0000 to 9999KW DC
- Size: (H)48mm X (W)96mm X (D)26mm
- Supply Voltage: 100-270V AC, 50/60 Hz
Top Variants:
| INPUT SPECIFICATION | ||
| Current | ||
| Input Current | Through external shunt (0 To 75mV DC) | |
| Shunt Selectable | -999 to 9999 Amp | |
| Voltage | ||
| Direct voltage DC | 0 to 1000V DC | |
| CALCULATED PARAMETERS | ||
| Parameter | Range | Accuracy |
| DC Voltage | 0.00 - 49.99 V DC | 1 % OF 49.99V |
| 50.0 - 199.9 V DC | 1 % OF 199.9V | |
| 200.0 - 399.9 V DC | 1 % OF 399.9V | |
| 400.0 - 1000 V DC | 1 % OF 1000 V | |
| DC Current | -999 - 9999 A DC | 1 % OF FSD |
| WATT | 0000 - 9999 KW DC | |
| DISPLAY & KEYS | ||
| Display | 4-Digit, 1-Line, 7-Seg. 0.8" RED | |
| 4-Digit, 1-Line, 7-Seg. 0.8" White | ||
| Key | Set, INC, DEC | |
| DIMENSION | ||
| Size (mm) | 48 (H) x 96 (W) x 26 (D) | |
| Panel Cutout (mm) | 46 (H) x 92 (W) | |
| AUXILIARY POWER SUPPLY | ||
| Power Supply | 100V to 270V AC,50/60Hz | |
| Burden | Approx 3VA @ 230V AC | |
| ACCURACY | Class 1.0 (Standard) | |
| ENVIRONMENTAL CONDITION | ||
| Working Temperature | 0 to 55°C | |
| Storage Temperature | 0 to 55°C | |
| Relative Humidity |
95 % RH Non-Condensing |
|
| Protection Level ( As per Request ) | IP-65 (Front side As per IS/IEC 60529 : 2001) | |
- Battery Charger
- Solar Equipments
- DC Motor Parameter Indications
- Led Light Testing Panel
- Extrusion Plants
Product Variant
| Model | Voltage | Current | Auxillary |
| VAW-34DC-A2-00 | Voltage Input :0V to 1000V DC | Shunt Primary :-999A DC to 9999A DC Shunt Secondary : 0V DC to 75mV DC |
100 to 270V AC |
