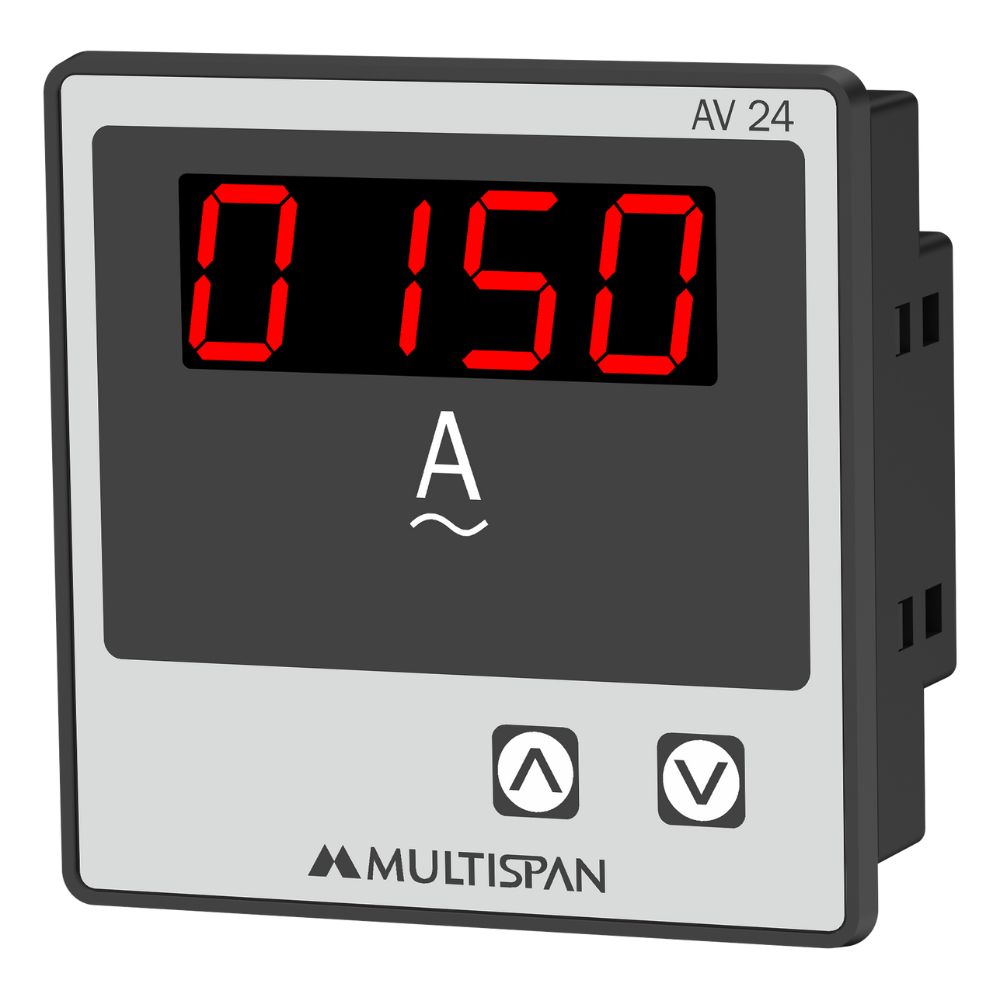

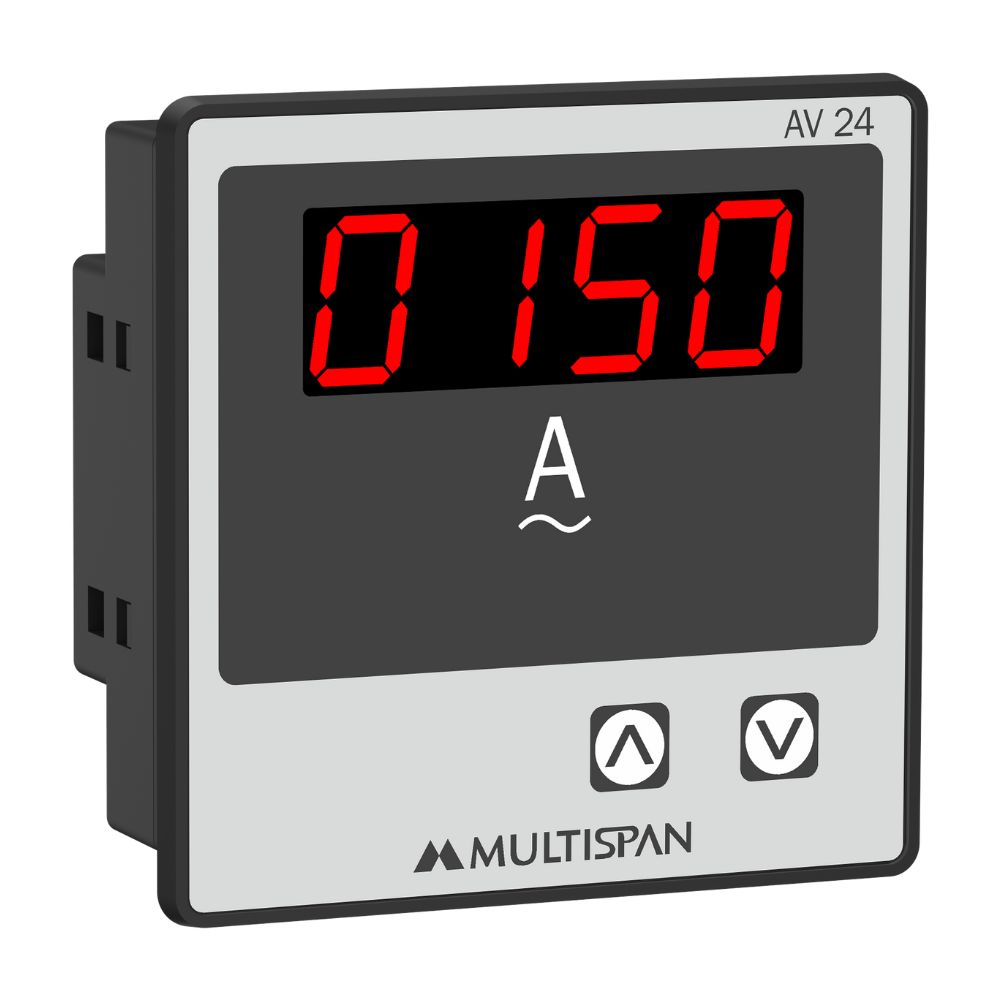

1 Ph AC Ampere Meter
Product: AV-24
- 7-Segment, 4-Digit LED Display
- CT Selectable Upto 4000/5
- Size: (H)72mm X (W)72mm X(D)36mm
- Supply Voltage: 230V AC
Top Variants:
| Model | AV-24 |
| Display | 4-Digit, 7-Seg 0.56”, Red LED Display |
| Size (mm) | 72 (H) X 72 (W) X 36 (D) |
| Panel Cutout (mm) | 68 (H) X 68 (W) |
| Input Current | Primary: 5 to 4000A Selectable |
| Secondary: 0.5 to 5A AC Direct | |
| Accuracy | Class 0.5 |
| Power Supply | 230V AC, 50Hz |
|
Protection Level (As per request) |
IP-65(Front side) AS per IS/IEC 60529:2001 |
| Relative Humidity | 0°C To 55°C |
| Operating Temperature | Upto 95% RH Non Condensing |
- Electrical Control Panel
- Power Distribution
- Instrumentation Panel
- Transformer training
Product Variant
| Model | Input | Supply |
| AV-24 | CT Primary : 5A to 4000A CT Secondary : 0.5A to 5A |
230V AC |
