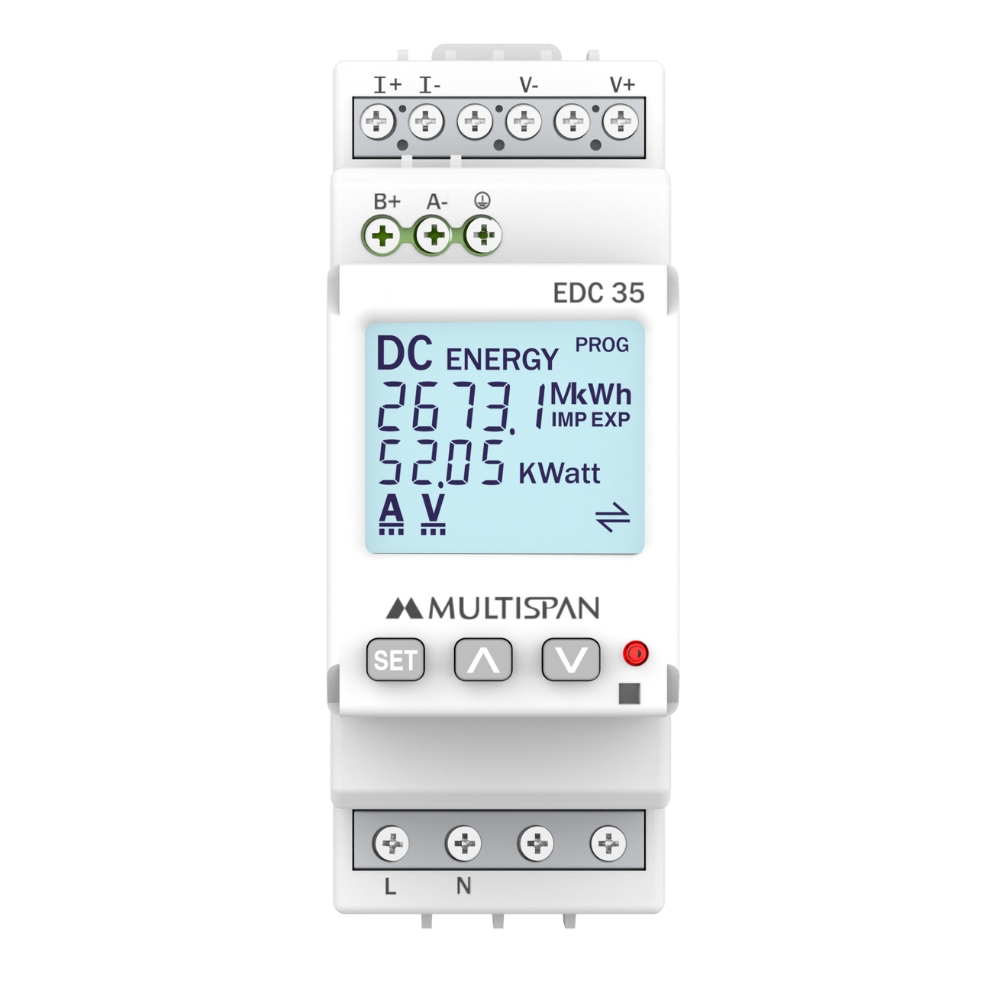

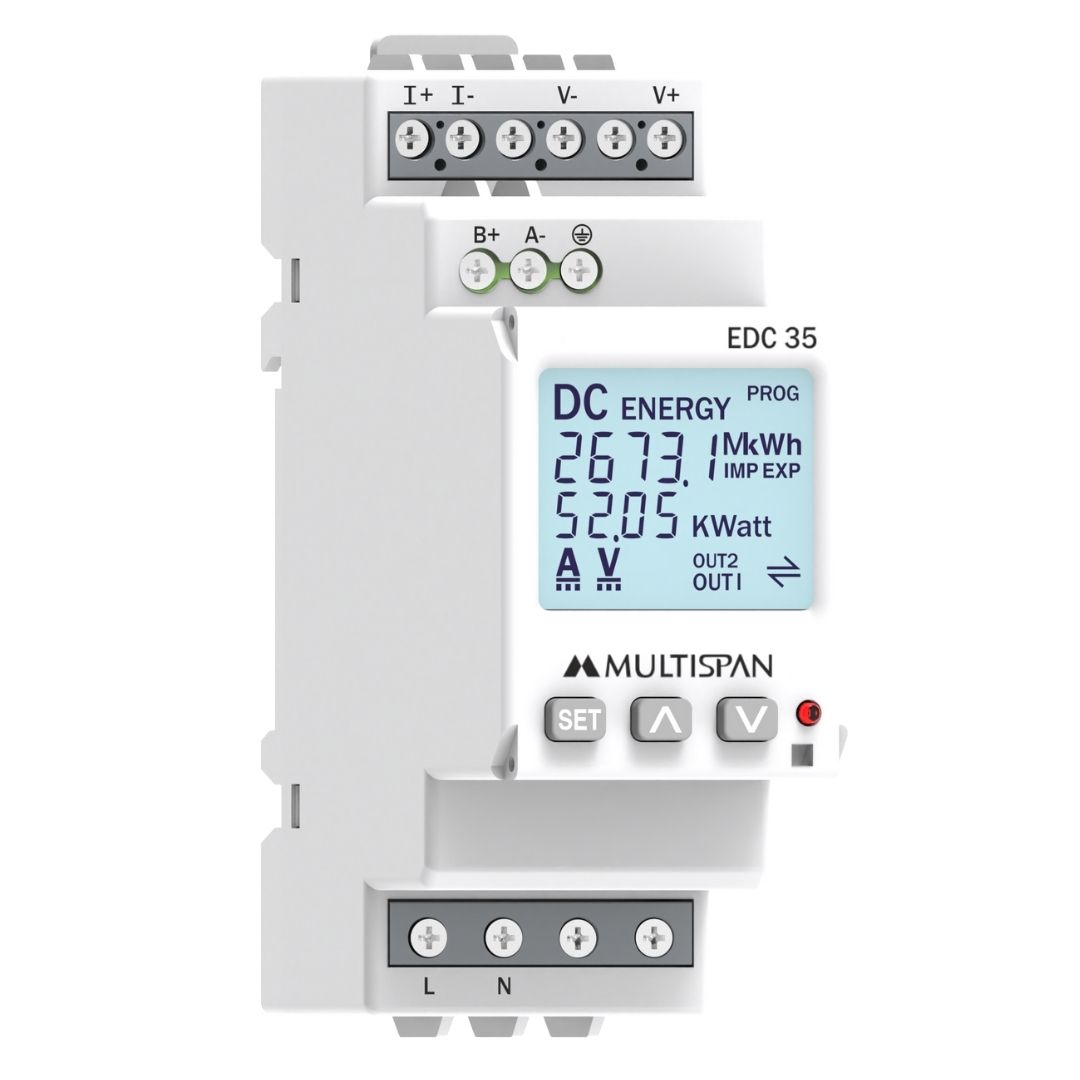

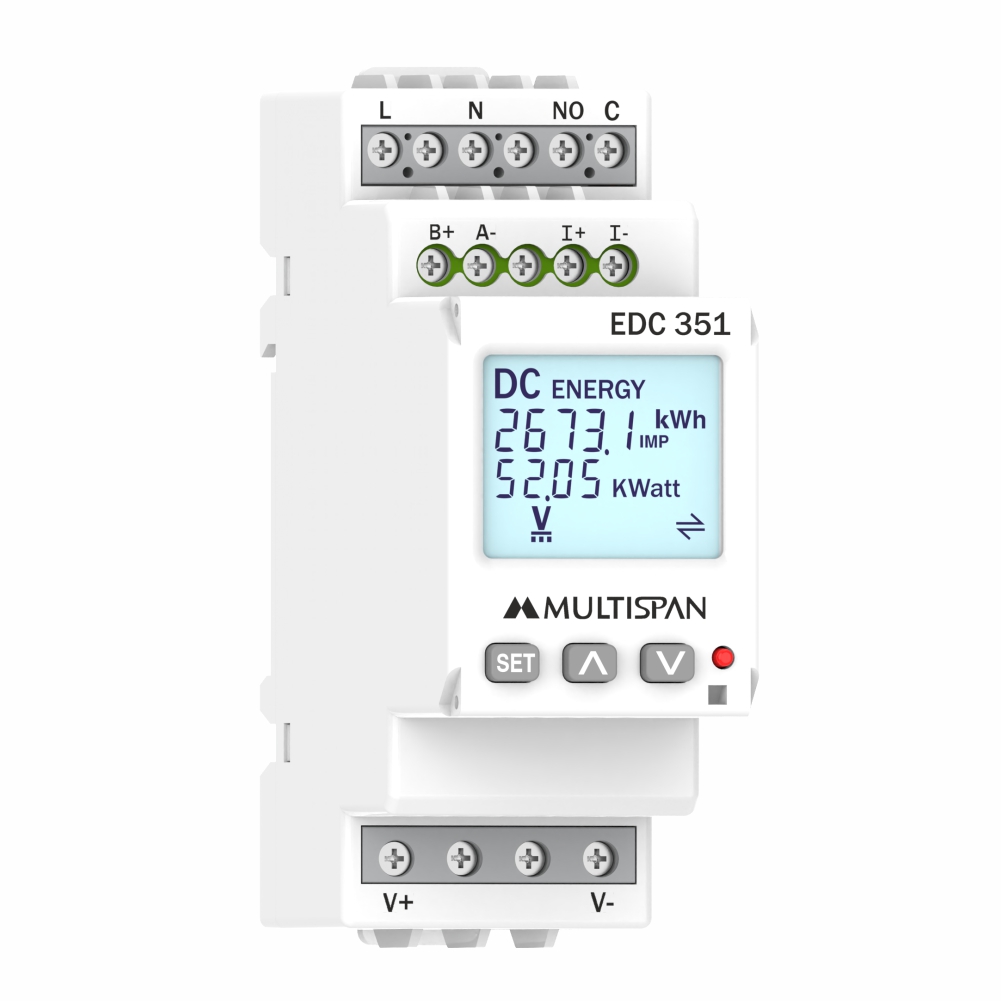

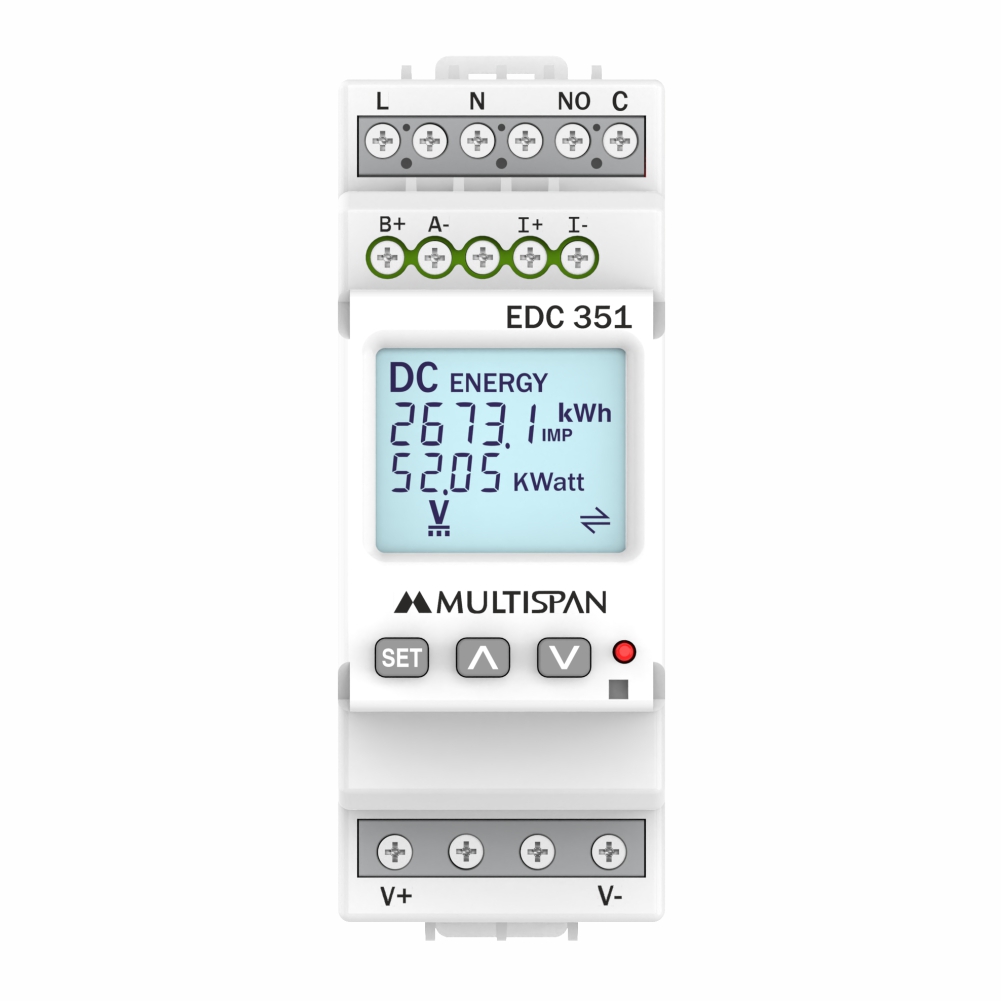

DC Energy Meter
Product: EDC-35
- Shunt Selectable: -1 to 9999A DC
- DC Voltage Range: -999 to 1000V DC
- DC Watt Range: -999 to 9999 KW DC
- RS-485 Modbus Optional
- Size: (H)90mm X (W)35mm X (D)61.5mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
| INPUT SPECIFICATION : | ||
| Current | ||
| Input Current | Through external shunt (-75mV To+75mV DC) | |
| Shunt Selectable | 1 to 9999 Amp | |
| Voltage | ||
| Direct voltage DC | -999 to 1000V DC | |
| DISPLAY AND KEY : | ||
| Display | LCD | |
| Keys | SET, INC, DEC/RST | |
| AUXILIARY POWER SUPPLY : | ||
| Power Supply | 100 To 270V AC/DC | |
| Power consumption (VA RATING) | Approx 3 VA @ 230V AC MAX | |
| CALCULATED PARAMETERS : | ||
| Parameter | Range | Accuracy |
| DC Voltage | -50.0 - 49.99 V DC | 0.5 % OF 49.99V |
| -200 - 199.9 V DC | 0.5 % OF 199.9V | |
| -400 - 399.9 V DC | 0.5 % OF 399.9V | |
| -999 - 1000 V DC | 0.5 % OF 1000 V | |
| DC Current | -999 - 9999 A DC | 0.5 % OF FSD |
| WATT | 999 - 9999 kW | |
| kWh Total (Imp. Exp. Energy) | 0.000 - 99999 MWh | 0.5 % OF FSD |
| ACCURACY: | ||
| Class 0.5 (Standard) | ||
| OUTPUT SPECIFICATION : | ||
| Relay | 2 nos. | |
| Relay Type | (NO-C) | |
| Rating | 5A, 230V AC Resistive Load / 24V DC | |
| ENVIRONMENT CONDITION : | ||
| Operating Temp | 0°C to 55°C | |
| Relative Humidity | UP to 95% RH (non-condensing) | |
| Communication : | ||
| RS-485 Modbus | ||
