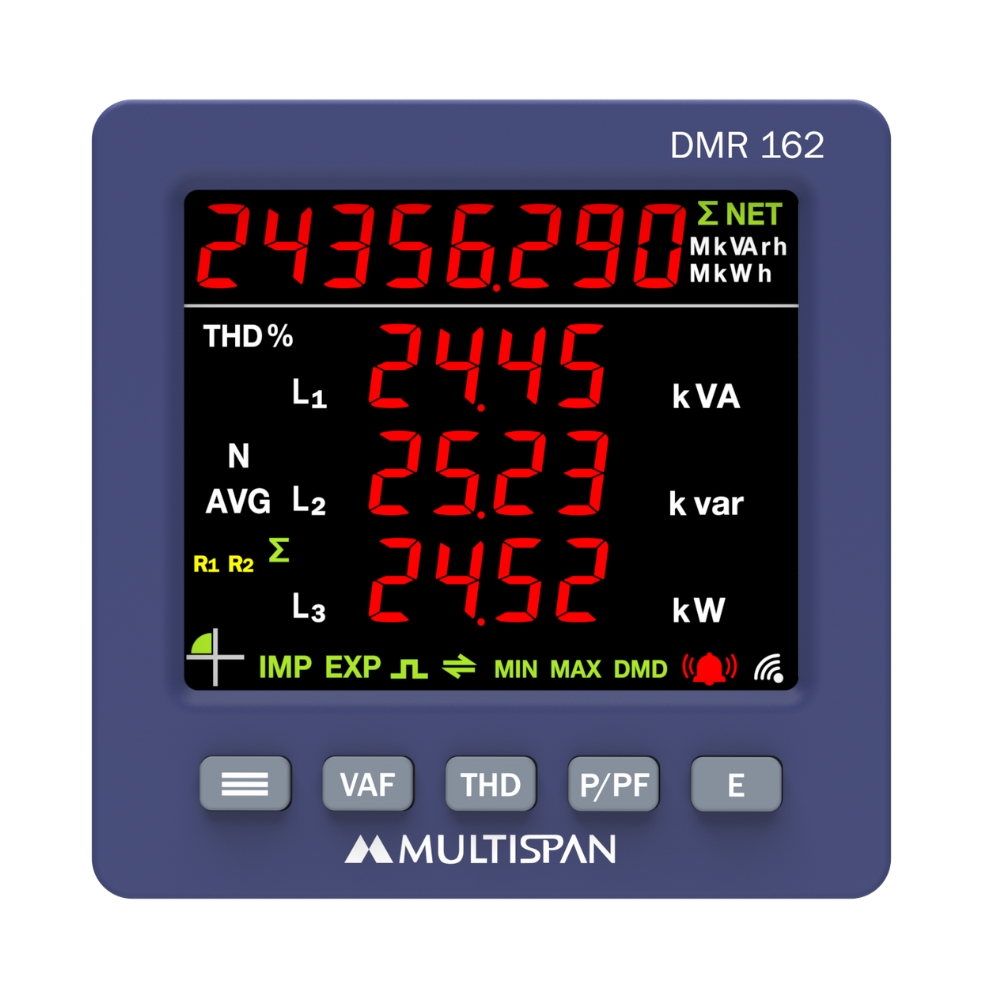

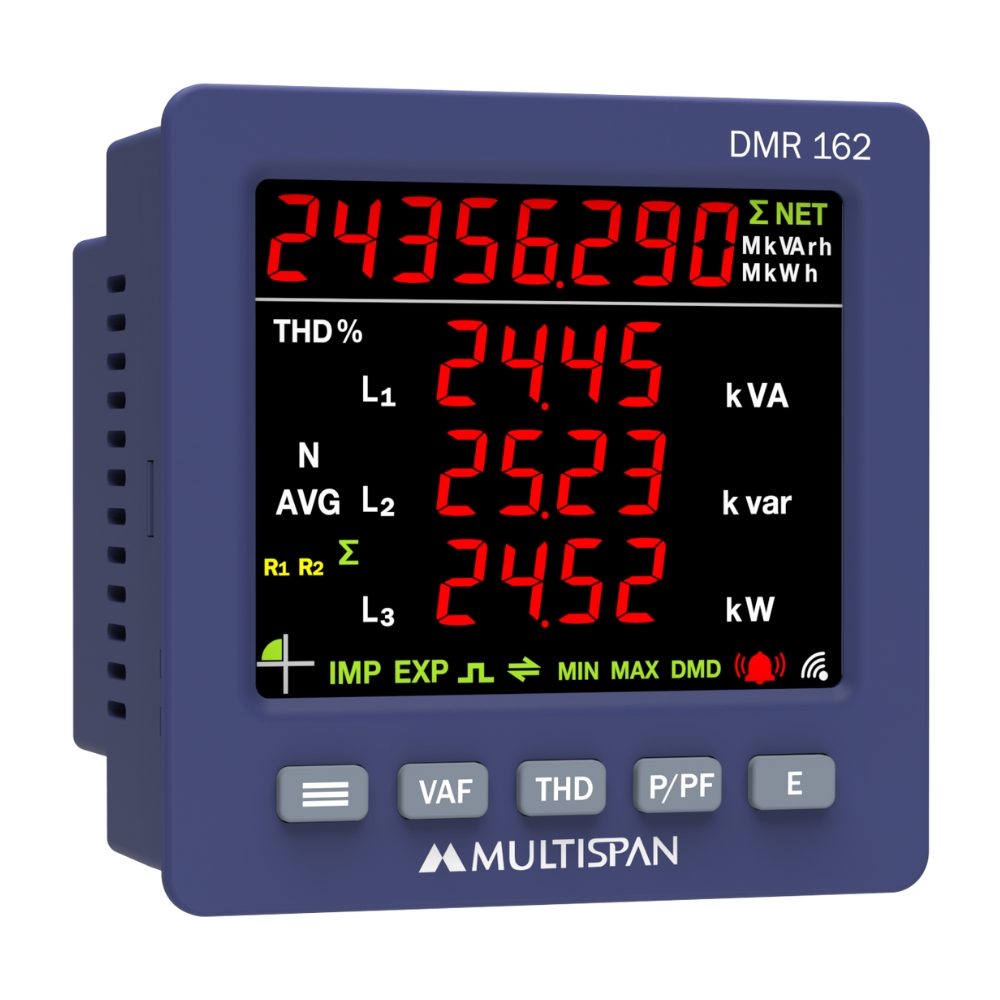

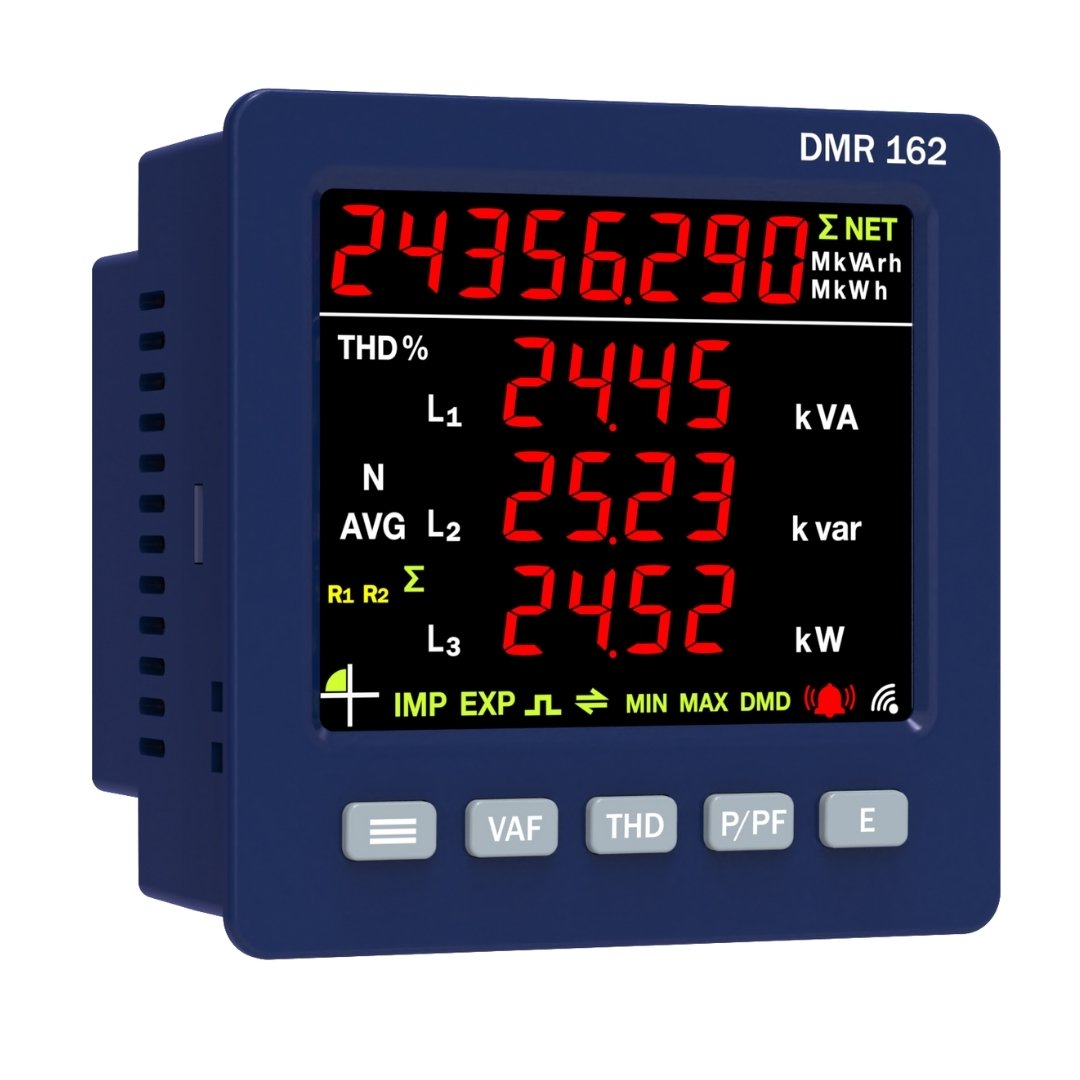

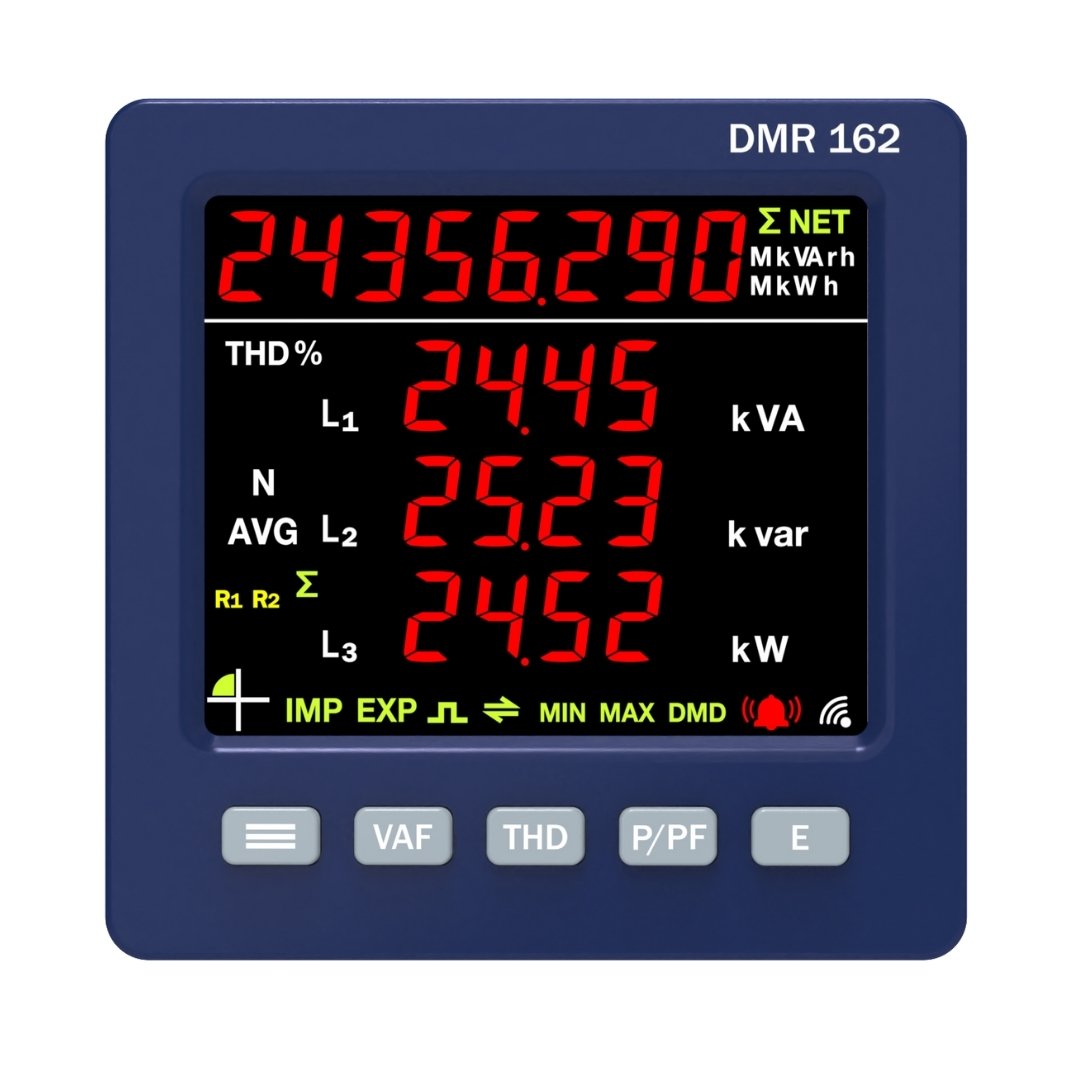

Demand Controller - DMR-162 regular image Demand Controller - DMR-162 front image Demand Controller - DMR-162 side image

Demand Controller

Product: DMR-162

  • 1Ø-2W, 3Ø-3W/4W Selectable
  • Voltage Measurement 100V to 520kVAC, Secondary 100V to 520V AC
  • THD upto 32th Order for Ampere + Voltage
  • Pulse & RS-485 Modbus Communication
  • Accuracy Class 0.5

PARAMETER SPECIFICATION
Input Signal 3Ø-3Wire / 3Ø-4Wire / 1Ø-2Wire
CT Primary up to 9999A (Programmable)
CT Secondary 5 Amp/1 Amp selectable
PT Primary 100V to 520kV (Programmable)
PT Secondary 100V to 520V (L-L) (Programmable)
PF Avg. & Per Phase  0.100 - 1.000
Frequency (Hz) 45.00 - 60.00 Hz
Load hours 9999.59 Hrs/Min.
No load hours 9999.59 Hrs/Min.
RPM 3600 RPM @ 60 Hz & 2-Pole
POWER
KW Total 0.000 - 9999 MW
kW Per Phase 0.000 - 9999 MW
kVA Total 0.000 - 9999 MVA
kVA Per Phase 0.000 - 9999 MVA
kVAr Total 0.000 - 9999 MVAr
kVAr Per Phase 0.000 - 9999 MVAr
ENERGY
Import kWh 000.000 - 99999999 MWh
Export kWh 000.000 - 99999999 MWh
kVAh Total 000.000 - 99999999 MVAh
Import kVArh 000.000 - 99999999 MVArh
Export kVArh 000.000 - 99999999 MVArh
DISPLAY & KEY
Display Upper: 8 Digit, 7 Seg 0.40”,RED LED
Lower: 4 Digit, 3 Line 7 Seg 0.40”,RED
Key PROGRAM, VAF, POWER /POWER FACTOR ,ENERGY, THD%
OUTPUT SPECIFICATION:
Relay Output
Relay 2 Nos
Relay Type 1 relay (NO-C)
2 relay (NO-C)

Rating 1 relay 7A, 250V AC
2 relay 7A, 250V AC

DIMENSION
Size (mm) 98 (H) x 98 (W) x 61.5 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
AUXILIARY SUPPLY
Supply voltage 100 to 300V AC/DC, 50/60Hz
Power consumption (VA RATING) Approx 4 VA @ 230V AC MAX
ACCURACY Class 0.5 (Standard)
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity

Upto 95% RH (non-condensing)


Protection Level (AS Per Request) IP-65 (Front side) As per IS/IEC 60529 : 2001
Weight (Approx) gms :
Unpacked 333
Packed 386

  • Demand Controlling & Monitoring
  • Original Equipment Manufacturers
  • Energy Management System
  • DG Set Panels
  • LT / HT Panel
  • Power Control Center Panels
  • Motor Control Center Panels

Product Variant

Part No. Input ModBus Display Color Relay Power Supply
DMR-162-E5-00 CT input : 3Ø [2] Voltage Input : 3Ø3W/4W ,1Ø2W - Red 2 100 to 300V AC/DC
DMR-162-M1-E5-00 CT input : 3Ø [2] Voltage Input : 3Ø3W/4W ,1Ø2W RS-485 Red 2 100 to 300V AC/DC
