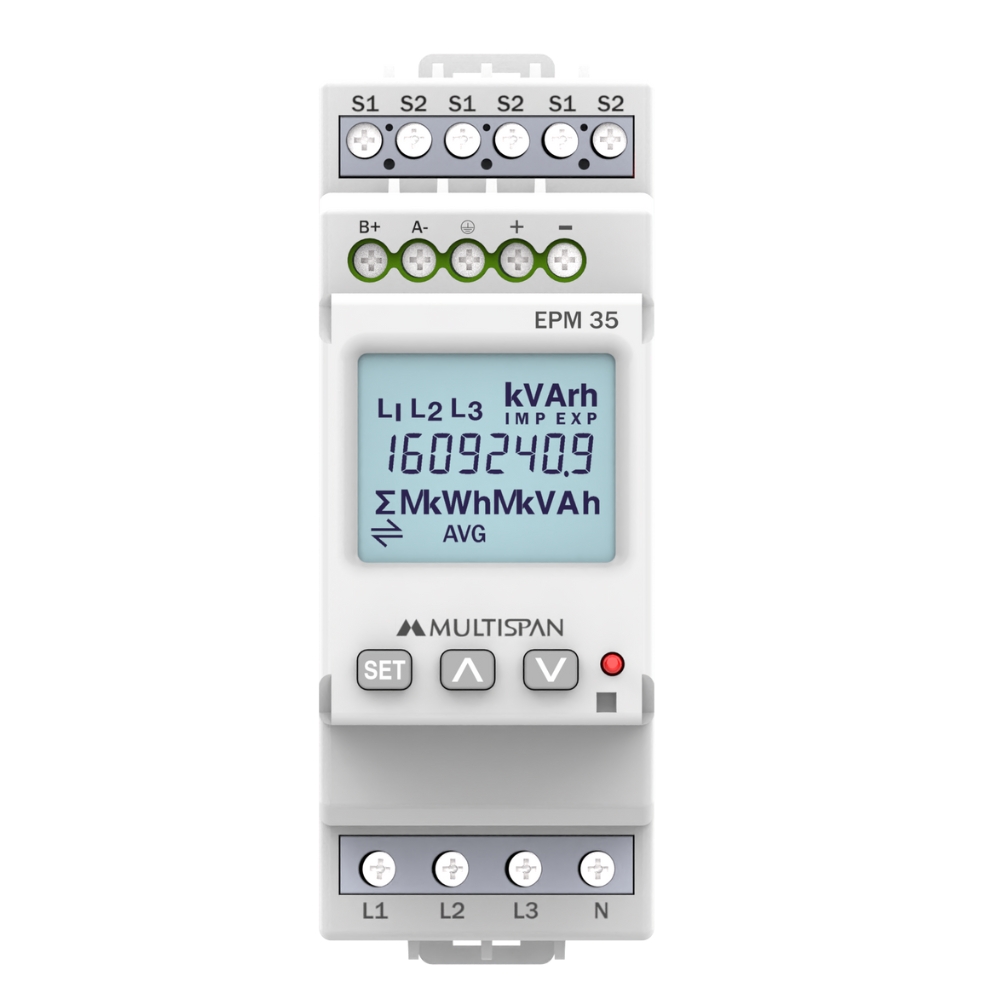

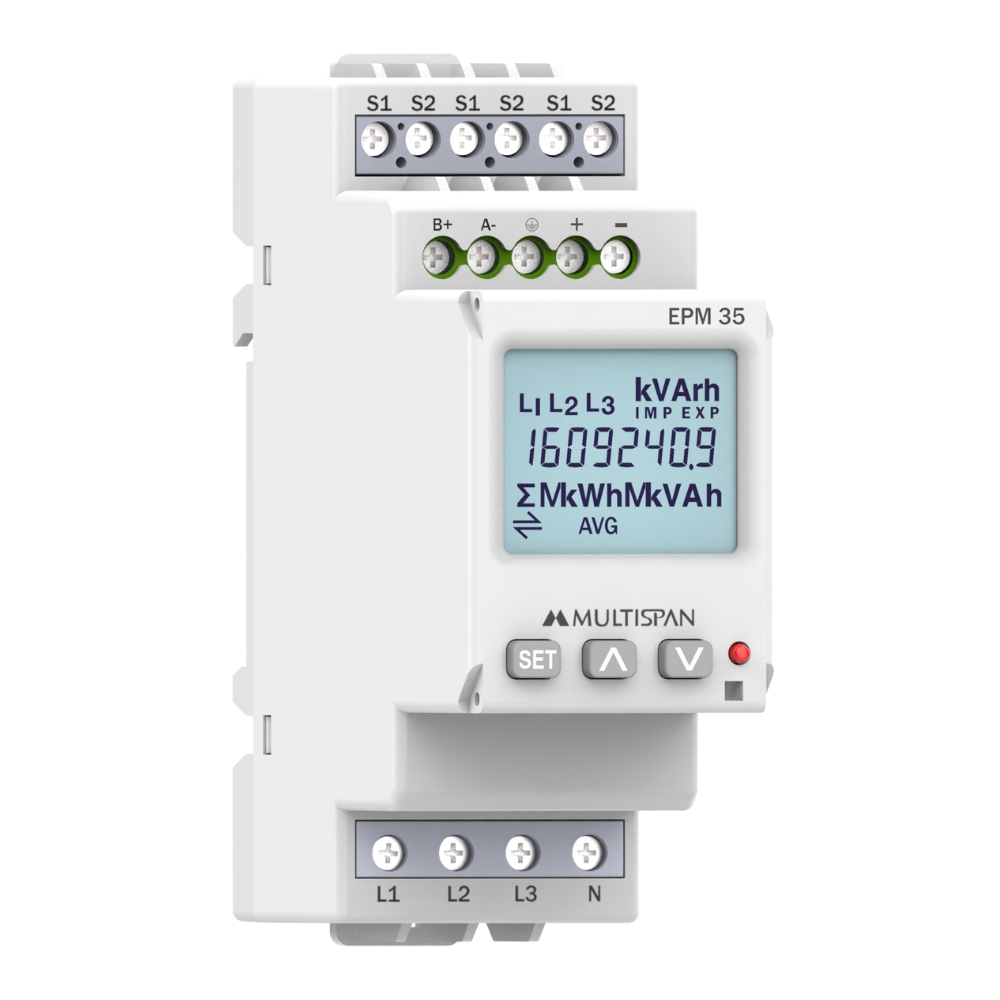

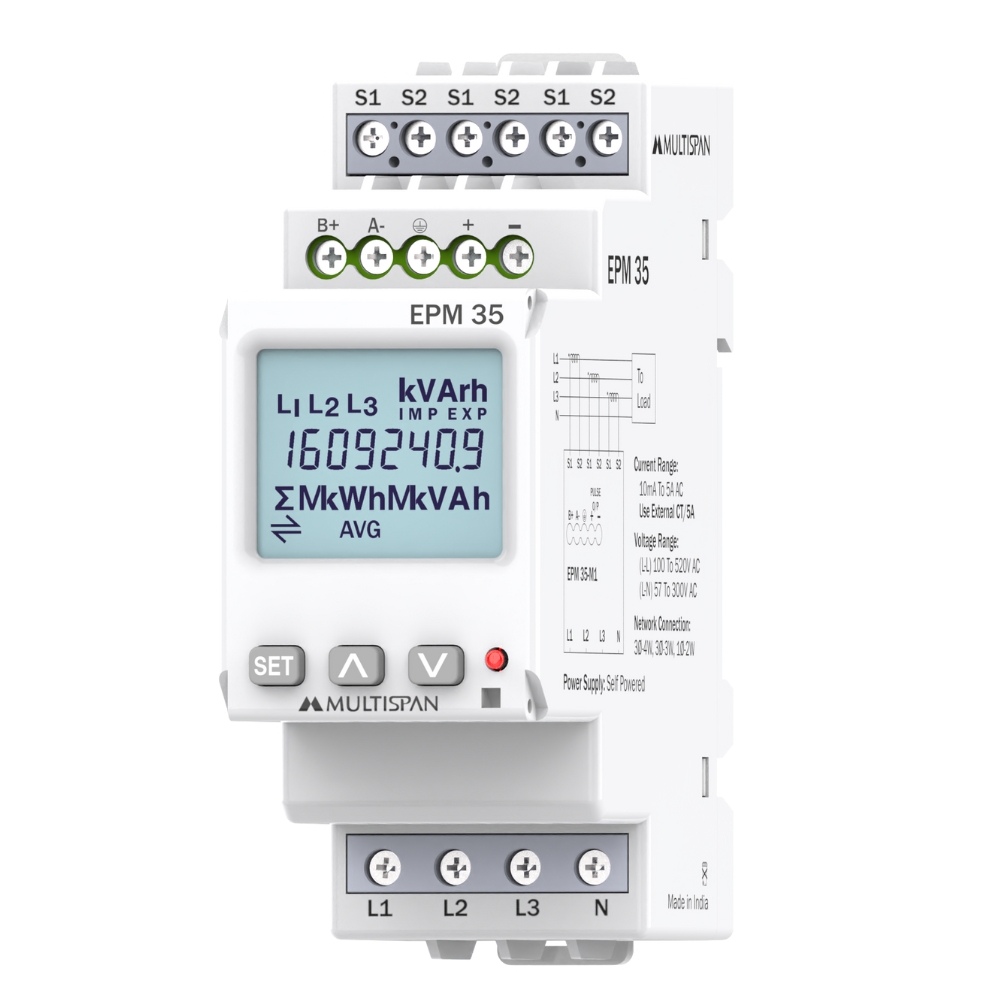

Energy Power Meter - EPM-35 regular image Energy Power Meter - EPM-35 front image Energy Power Meter - EPM-35 side image

Energy Power Meter

Product: EPM-35

  • Network Selection: 1Ø-2W, 3Ø-3W, 3Ø-4W
  • 57 to 300V AC (L-N), 100 to 520V AC (L-L)
  • Pulse, RS-485 Modbus Communications
  • Supply voltage: Self Powered

PARAMETER SPECIFICATION
Input Signal  3Ø 3 Wire / 3Ø 4Wire / 1Ø 2Wire
CT Primary up to 9999A (Programmable)
CT Secondary 5 Amp/1 Amp selectable
PT Primary 100V to 520kV (Programmable)
PT Secondary 100V to 520V (L-L) (Programmable)
Sys. PF & Per Phase 0.100 - 1.000
Frequency (Hz) 45.00 - 60.00 Hz
POWER
kW Total 0.000 - 9999 MW
kVA Total 0.000 - 9999 MVA
kVAr Total 0.000 - 9999 MVAr
Energy
kWh Import  000.000 - 99999999 MWh
kWh Export 000.000 - 99999999 MWh
kVAh Total 000.000 - 99999999 MVAh
kVArh Import 000.000 - 99999999 MVArh
kVArh Export 000.000 - 99999999 MVArh
DISPLAY & KEY
Display LCD
Key SET, INC, DEC
DIMENSION
Size (mm) 90 (H) x 35 (W) x 72 (D) mm
AUXILIARY SUPPLY
Supply voltage Self Power
ACCURACY
Class 1.0 (Standard)
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)

  • Electrical Control Panel
  • Power Distribution
  • Instrumentation Panel
  • Transformer training
