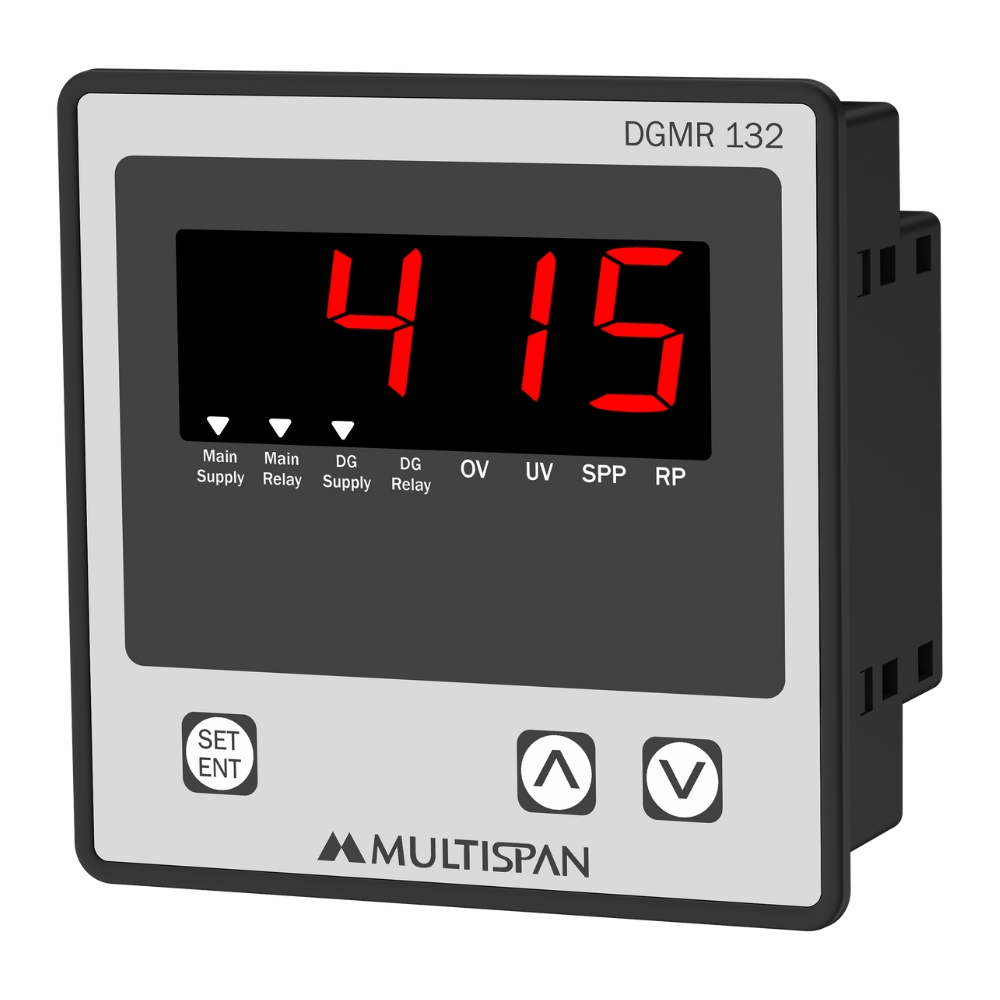

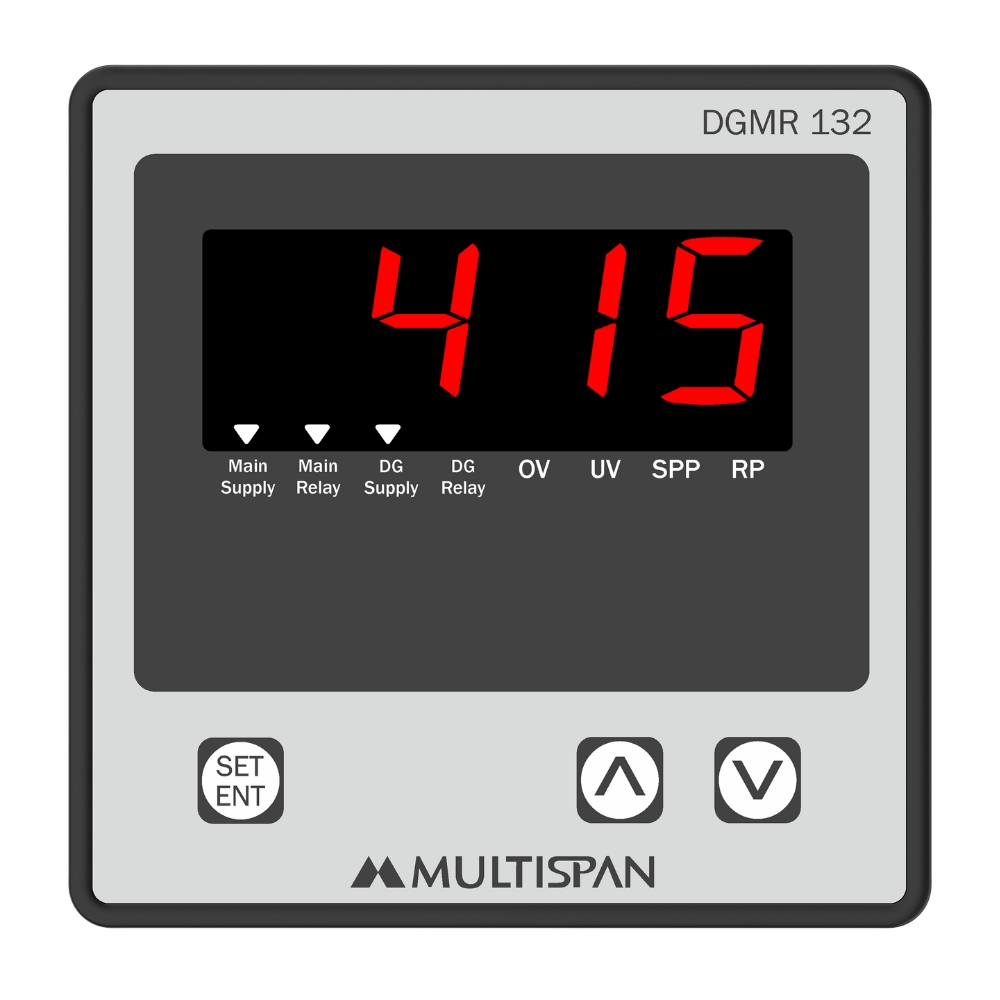

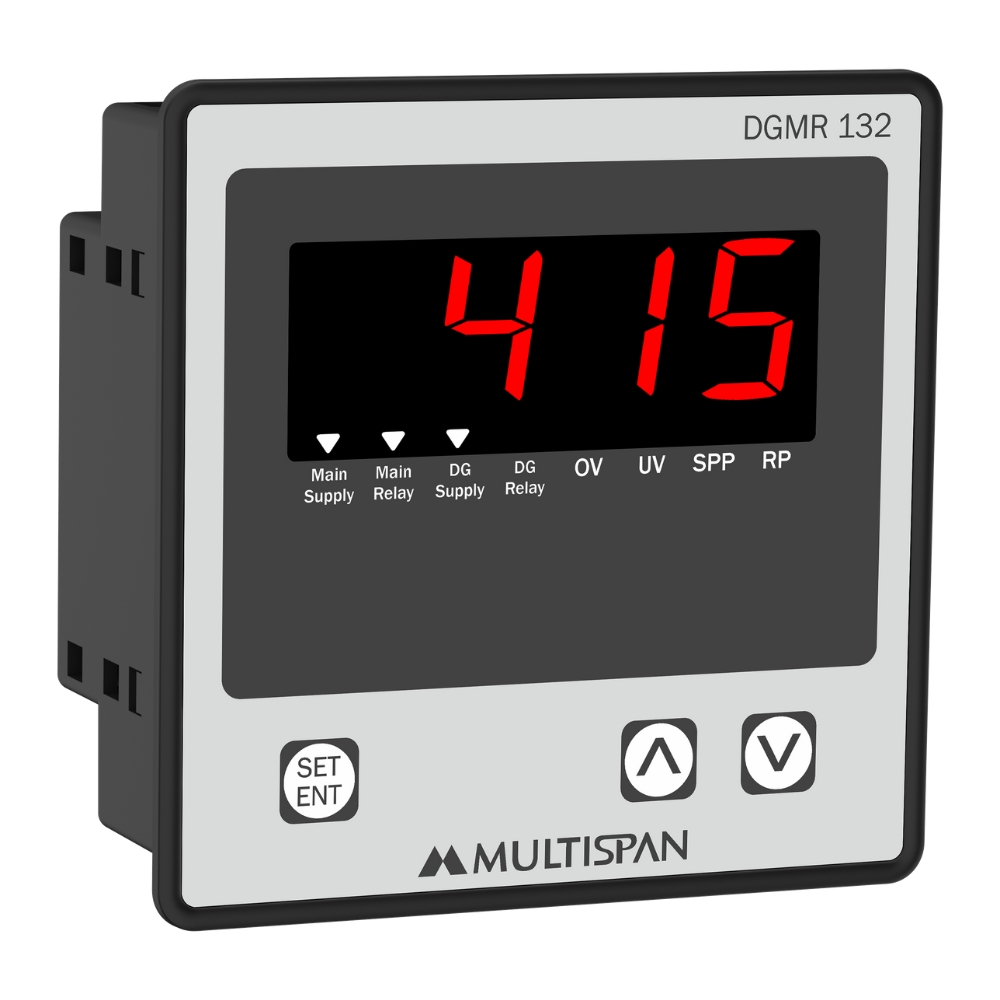

Voltage Monitoring Relay-DGMR-132 regular image Voltage Monitoring Relay-DGMR-132 front image Voltage Monitoring Relay-DGMR-132 side image

DG Monitoring Relay

Product: DGMR-132

  • Network Selection:3Ø-4W
  • Protection Available
    • Over / Under Voltage
    • Asymmetry
    • Phase loss
    • Phase Sequence
  • Reset Mode: Auto
  • Size: (H)96mm x (W)96mm x (D)45mm
  • Auxiliary Supply:
    • Mian Supply: 415V AC
    • DG Supply: 1Ø-2W, 230V

INPUT
Direct Voltage AC 300 to 500V AC (L - L) 3Ø-4W
Resolution 1 Volt
Accuracy Class 1.0
DISPLAY AND KEY
Display 4 digit, 1line, 7 seg, 0.8” RED LED
Key Set, Inc, Dec
GENERAL SPECIFICATION
DIMENSION
Size (mm) 96 (H) x 96 (W) x 45 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
Trip Setting Under Voltage : 300-380V AC 3Ø-4W
Over Voltage : 430-500V AC 3Ø-4W
Phase Asymmetry : 1-100V
Time Parameter R1D : 1 To 999 Sec.
R2D : 1 To 999 Sec.
R3D : 1 To 999 Sec.
I+D : 1 To 999 Sec.
Trip : 1 To 999 Sec.
OUTPUT SPECIFICATION
Relay 3 nos.
Relay Type 2 C/O (NO-C), (NO-C-NC)
Rating 5A, 230V AC Resistive Load
AUXILIARY SUPPLY
Supply voltage Main Supply : 415V AC
DG Supply : 1P-2W,230V AC
ENVIRONMENTAL CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity UP to 95% RH
(non-condensing)
Protection Level ( As per Request ) IP-65 (Front side) As per IS/IEC
60529 : 2001
NETWORK CONNECTION
3Ø-4W

  • DG Set Panel
  • Motor Control Center Panel
  • Control Panel
  • Distribution Panel
