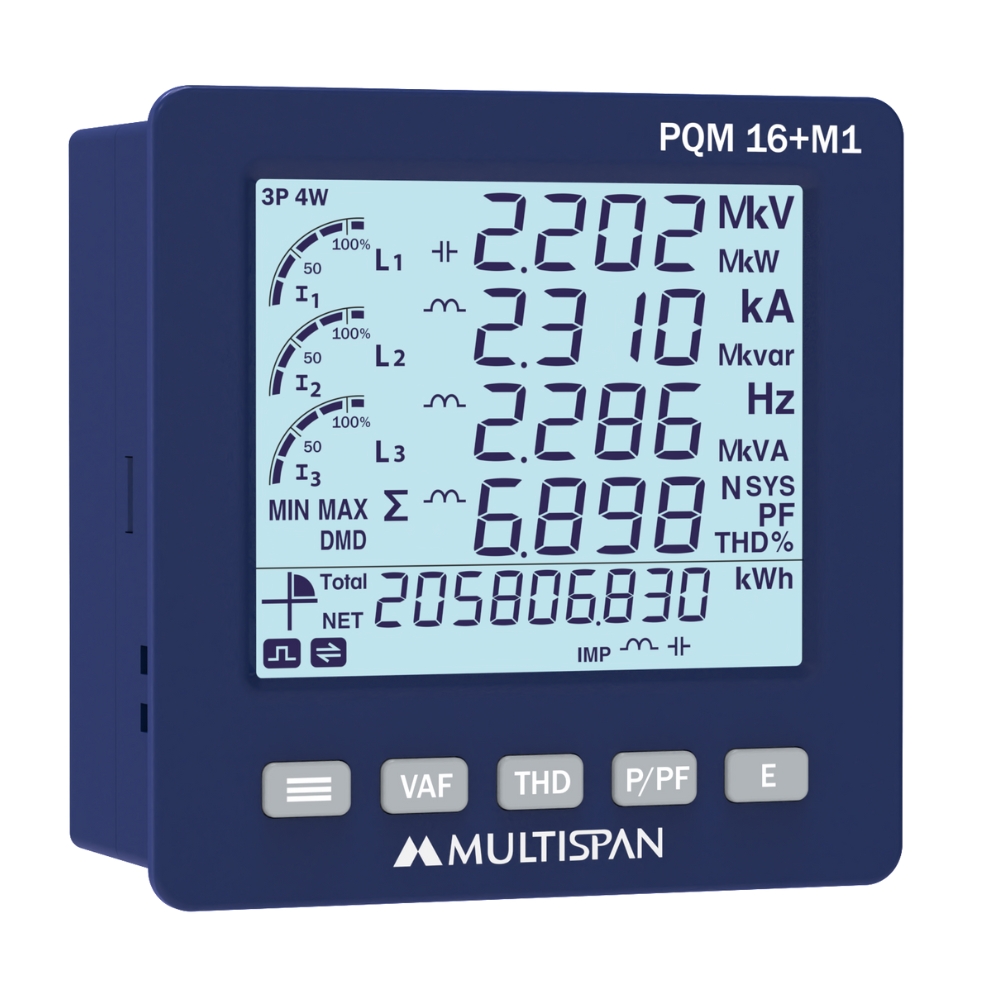

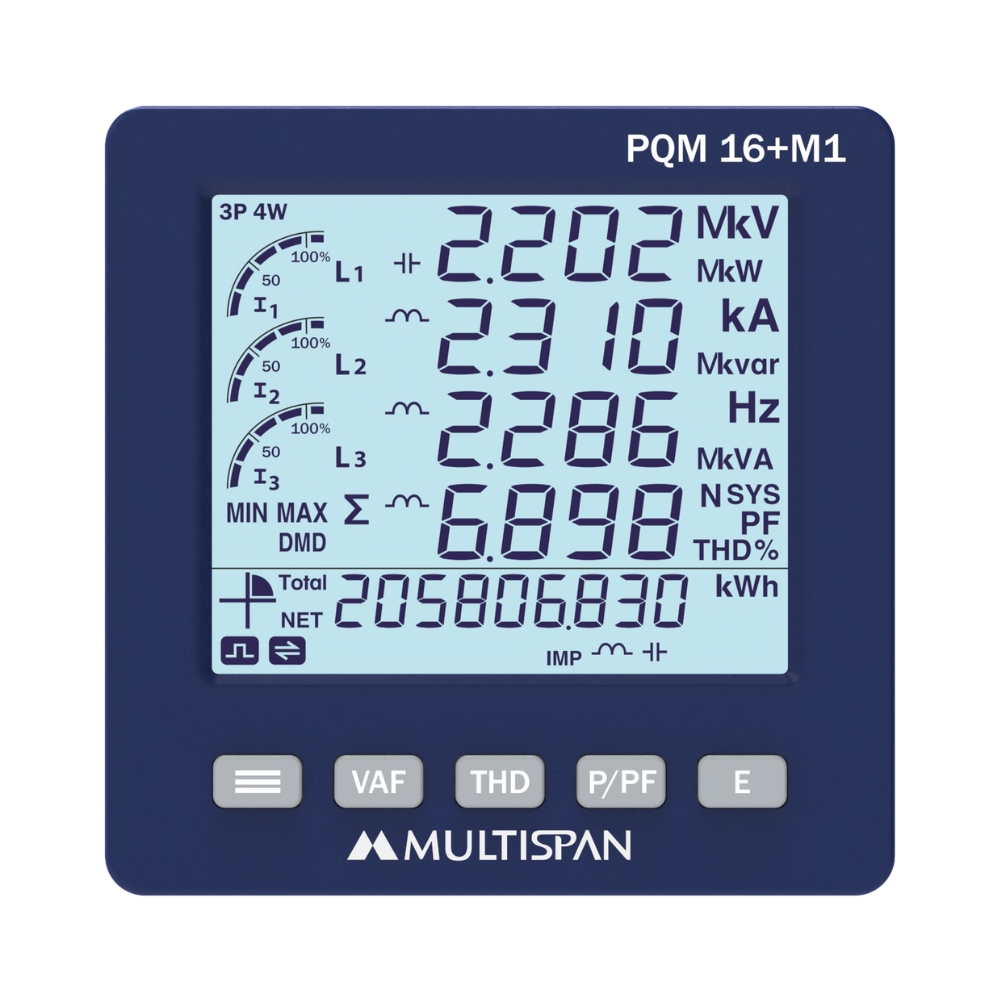

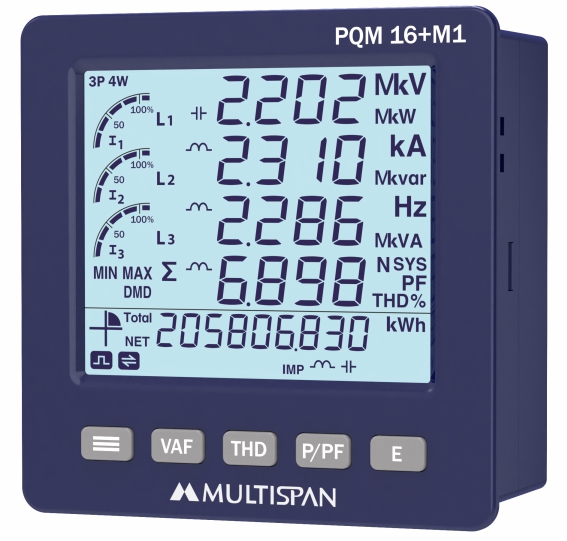

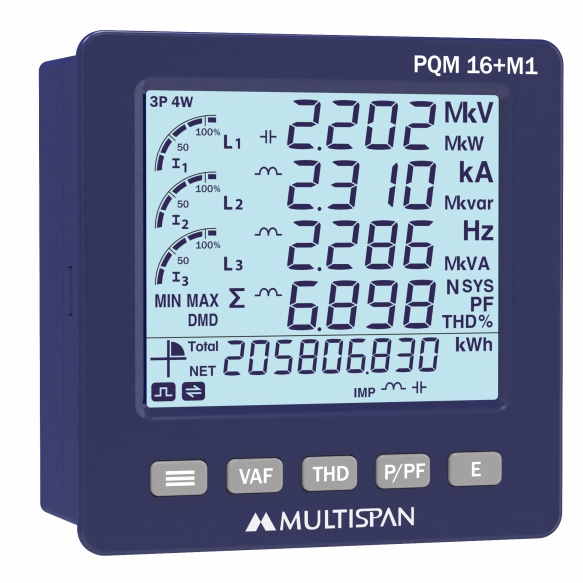

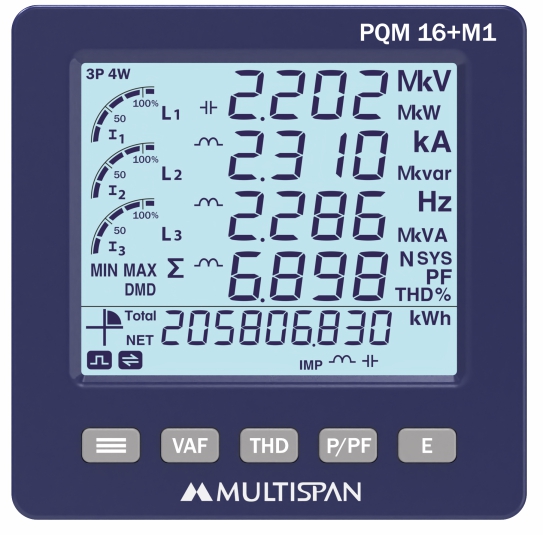

PQM-16+  regular image PQM-16+ front image PQM-16+ side image

Power Quality Meter

Product: PQM-16+

  • 1Ø-2W, 3Ø-3W/4W Selectable
  • Voltage Input 100V to 520kVAC, Secondary 100V to 520V AC
  • THD Upto 32th Order
  • Import Export Energy
  • Import Export Energy Measurement
  • Memory functionality available
  • Real Time Clock Available with Date
  • Pulse & RS-485 Modbus Communication

PARAMETER SPECIFICATION
Input Signal 3Ø-3Wire / 3Ø-4Wire / 1Ø-2Wire
CT Primary Upto 9999A (Programmable)
CT Secondary 5 Amp/1 Amp selectable
PT Primary 100V to 520kV (Programmable)
PT Secondary 100V to 520V (L-L) (Programmable)
True PF Avg. & Per Phase -1.000 to 1.000
Displacement PF -1.000 to 1.000
Frequency (Hz) 45.00 - 60.00 Hz
Load hours 9999.59 Hrs/Min.
No load hours 9999.59 Hrs/Min.
On Hour 9999 Hour
RPM 3600 RPM @ 60 Hz & 2-Pole
POWER
KW Total 0.000 - 9999 MW
kW Per Phase 0.000 - 9999 MW
kVA Total 0.000 - 9999 MVA
kVA Per Phase 0.000 - 9999 MVA
kVAr Total 0.000 - 9999 MVAr
kVAr Per Phase 0.000 - 9999 MVAr
ENERGY
Import kWh 000.000 - 999999999 MWh
Export kWh 000.000 - 999999999 MWh
Net kWh 000.000 - 999999999 MWh
Total kWh 000.000 - 999999999 MWh
kVAh Total 000.000 - 999999999 MVAh
Import kVArh 000.000 - 999999999 MVArh
Export kVArh 000.000 - 999999999 MVArh
Lag kVArh 000.000 - 999999999 MVArh
Lead kVArh 000.000 - 999999999 MVArh
Total kVArh 000.000 - 999999999 MVArh
DISPLAY & KEY
Display                                      Upper 4 Digit, 4 Line 7 Seg 0.37”,LCD
                                                  Lower 9 Digit, 1 Line 7 Seg 0.26”,LCD
Key PROGRAM, VAF, THD%, POWER/PF, ENERGY
DIMENSION
Size (mm) 98 (H) x 98 (W) x 46 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
AUXILIARY SUPPLY
Supply voltage 100 to 300V AC/DC, 50/60Hz
Power consumption (VA RATING) Approx 3 VA @ 230V AC
ACCURACY Class 0.5 (Standard)
COMMUNICATION
RS-485 MODBUS
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity

Upto 95% RH (non-condensing)

Protection Level (AS Per Request) IP-65 (Front side) As per IS/IEC 60529 : 2001
