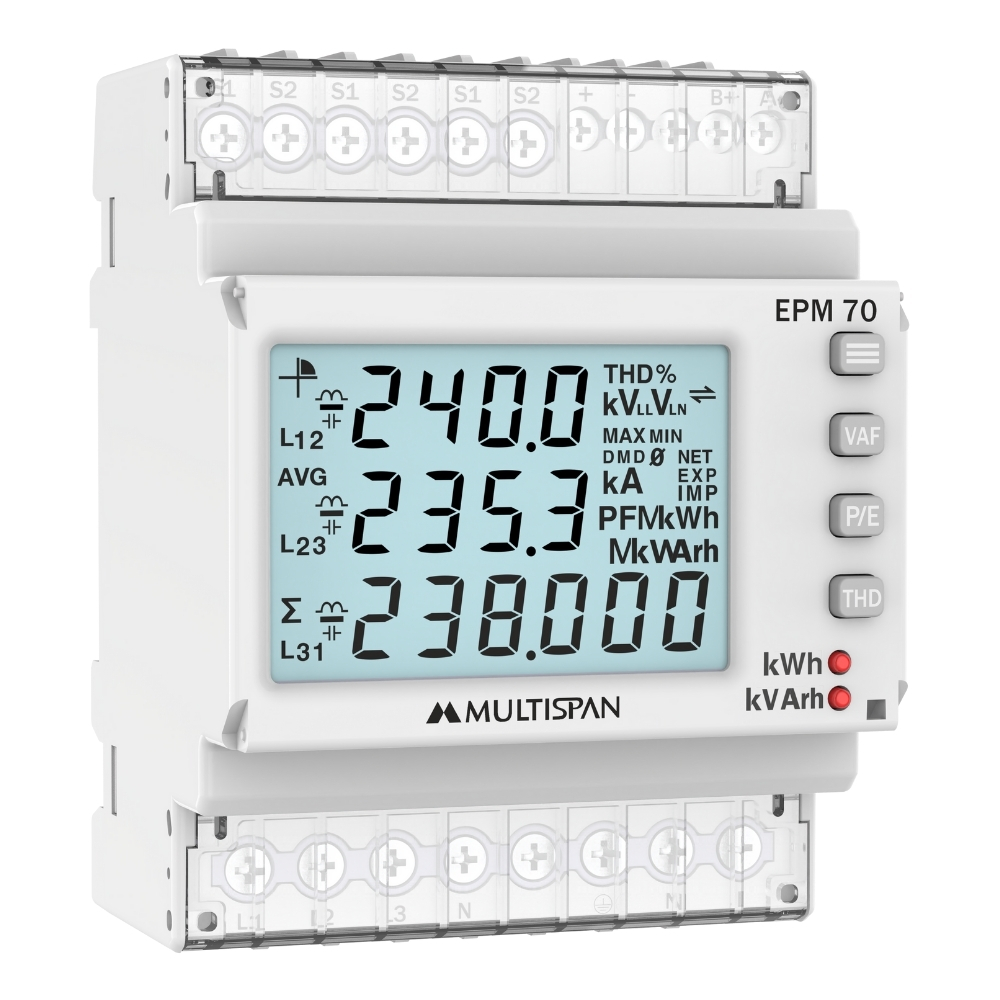

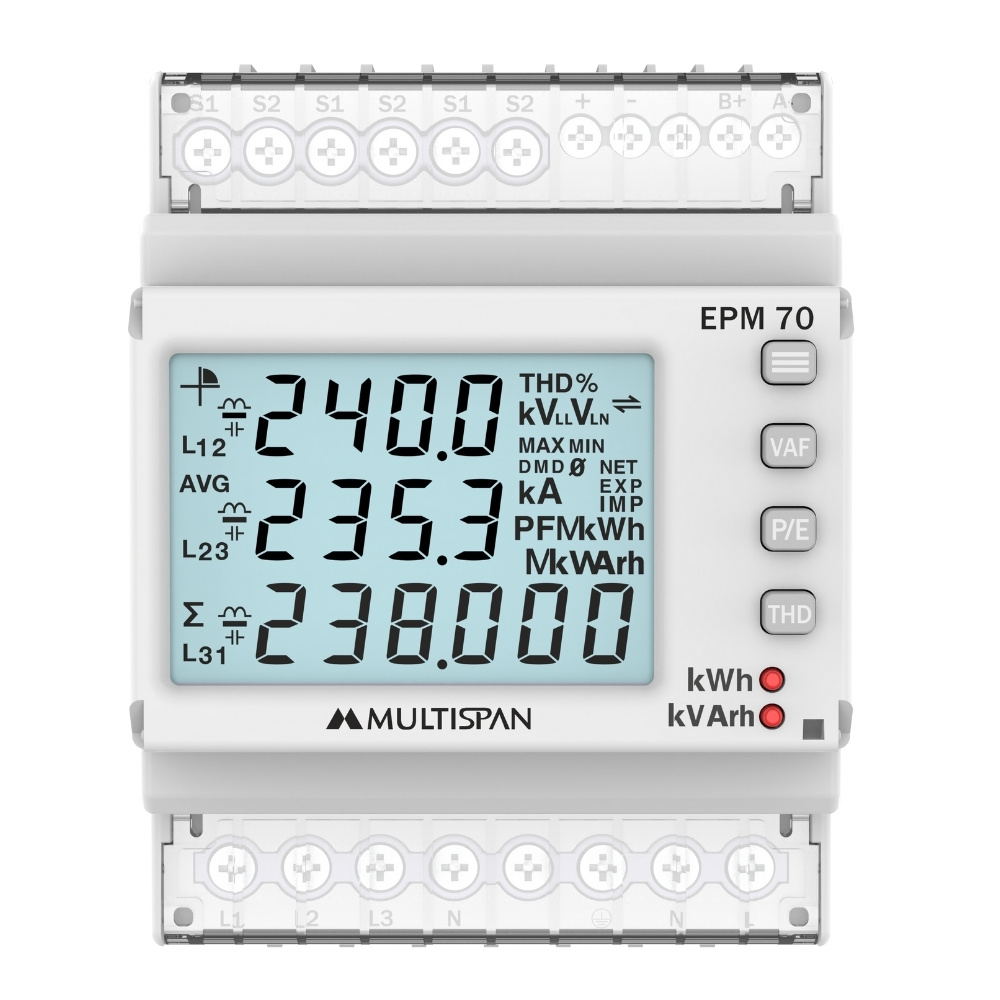

DIN Rail Digital Multifunction Meter
Product: EPM-70
- 1Ø-2W, 3Ø-3W/4W Selectable
- Voltage Input 100V to 520kVAC, Secondary 100V to 520V AC
- THD Upto 32th Order
- Import Export Energy Measurement
- Pulse & RS-485 Modbus Communication
| PARAMETER SPECIFICATION | ||
| Input Signal | 3Ø 3 Wire / 3Ø 4Wire / 1Ø 2Wire | |
| CT Primary | up to 9999A (Programmable) | |
| CT Secondary | 5 Amp/1 Amp selectable | |
| PT Primary | 100V to 520kV (Programmable) | |
| PT Secondary | 100V to 520V (L-L) (Programmable) | |
| PF Avg. & Per Phase | 0.100 - 1.000 | |
| Frequency (Hz) | 45.00 - 60.00 Hz | |
| Load hours | 9999.59 Hrs/Min. | |
| No load hours | 9999.59 Hrs/Min. | |
| On Hour | 9999 Hour | |
| RPM | 3600 RPM @ 60 Hz & 2 pole | |
| POWER | ||
| kW Total | 0.000 - 9999 MW | |
| kW Per Phase | 0.000 - 9999 MW | |
| kVA Total | 0.000 - 9999 MVA | |
| kVA Per Phase | 0.000 - 9999 MVA | |
| kVAr Total | 0.000 - 9999 MVAr | |
| kVAr Per Phase | 0.000 - 9999 MVAr | |
| ENERGY | ||
| Import kWh | 000.000 - 999999 MWh | |
| Export kWh | 000.000 - 999999 MWh | |
| Net kWh | 000.000 - 999999 MWh | |
| Total kWh | 000.000 - 999999 MWh | |
| kVAh Total | 000.000 - 999999 MVAh | |
| Import kVArh | 000.000 - 999999 MVArh | |
| Export kVArh | 000.000 - 999999 MVArh | |
| Lag kVArh | 000.000 - 999999 MVArh | |
| Lead kVArh | 000.000 - 999999 MVArh | |
| Total kVArh | 000.000 - 999999 MVArh | |
| DISPLAY & KEY | ||
| Display | Upper | 4 Digit, 2 Line 7 Seg 0.31”, LED |
| Lower | 6 Digit, 1 Line 7 Seg 0.31”, LED | |
| Key | PROGRAM, VAF, POWER/ENERGY THD% |
|
| AUXILIARY SUPPLY | ||
| Supply voltage | 100 to 300V AC/DC, 50/60Hz | |
| Power consumption (VA RATING) | Approx 3 VA @ 230V AC MAX | |
| LED Indication | ||
| Optical Output | 32000 Imp/kWh & kVArh | |
| COMMUNICATION | ||
| RS-485 MODBUS | ||
| ACCURACY | ||
| Class 0.5 (Standard) | ||
| ENVIRONMENT CONDITION | ||
| Operating Temp | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH (non-condensing) | |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
| DIMENSION | ||
| Size | 90 (H) x 70 (W) x 62 (D) mm | |
