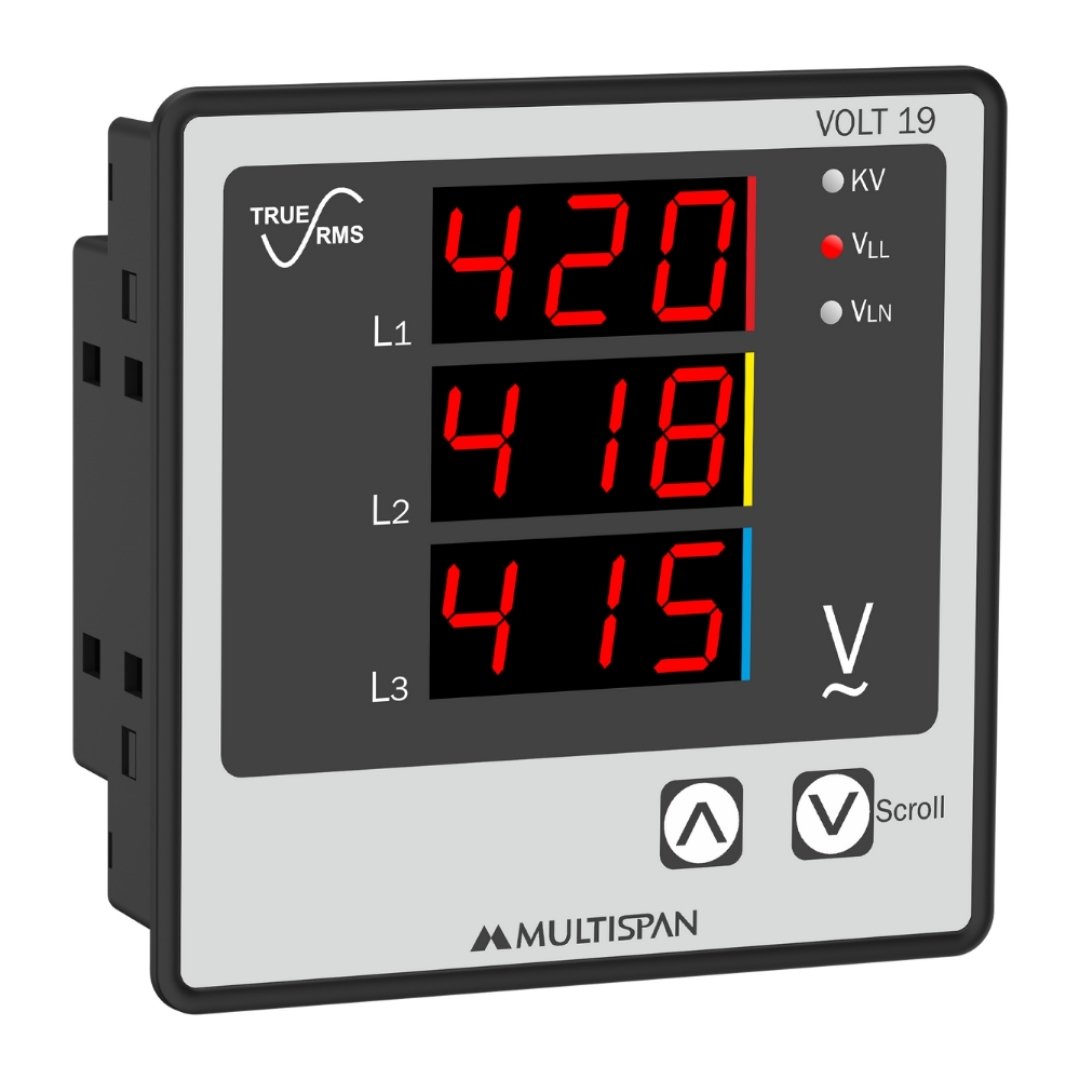

3Ø Voltmeter
Product: VOLT-19
- 3Ø-3W/4W
- Individual Display for 3Ø Voltage
- Primary Voltage : 100V to 520KV AC,Secondary Voltage : 100V to 520V AC
- Size: (H)96mm X (W)96mm X(D)43mm
- Supply Voltage: 100-270V AC, 50/60 Hz
Top Variants:
| INPUT SPECIFICATION | |
| Voltage AC | |
| Rated voltage Ac (Direct voltage AC) | 50 to 520V (L - L) |
| 30 to 300V (L - N) | |
| Primary PT Ratio | 100V to 520KV (Programmable) |
| Secondary PT Ratio | 100V to 520V (Programmable) |
| Burden | < 0.2 VA |
| Frequency | 45.0 to 65.0 Hz |
| DISPLAY AND KEYS | |

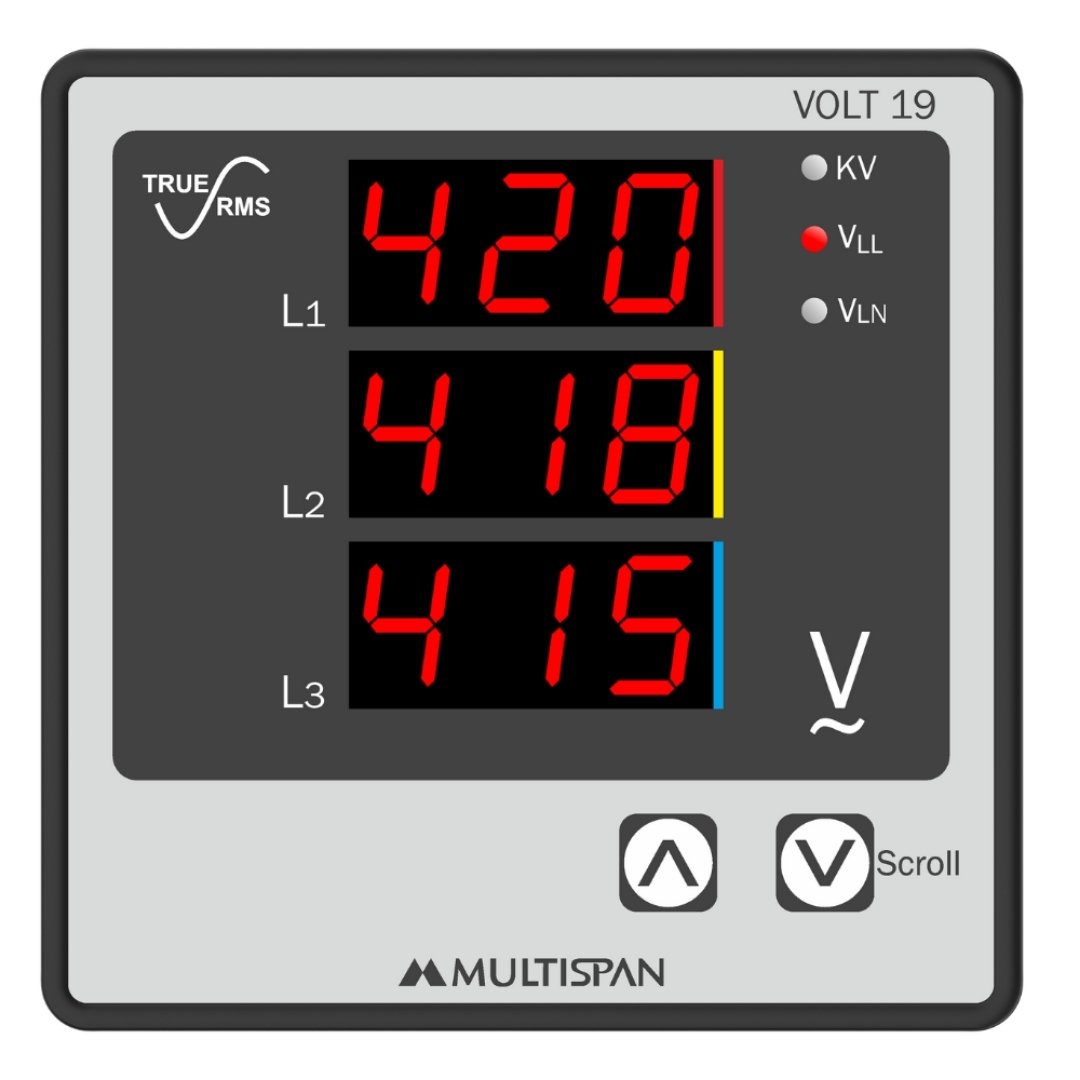

| Display | 3-Digit, 3-Line, 7-Seg, 0.56” RED LED |
| Keys | INC, DEC (Scroll) |
| GENERAL SPECIFICATION | |
| Dimension (mm) | 96 (H) x 96 (W) x 43 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Measure Parameter |
VLL - VLN (3Ø - 4W) VLL (3Ø - 3W) |
| ACCURACY | Class 0.5 (Standard) |
| AUXILIARY SUPPLY | |
| Supply voltage | 100 to 270V AC,50/60Hz |
|
Power consumption (VA RATING) |
3VA |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity |
Upto 95% RH |
| Protection Level (As per request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
| NETWORK CONNECTION | 3Ø-3W/3Ø-4W |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- Process Control
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Auxillary |
| VOLT-19-E3-N0 | Network Selection :3Ø3W/4W PT Primary: 100V to 520kV (Programmable) PT Secondary: 100V to 520V (L-L) (Programmable) |
100 to 270V AC/DC |
