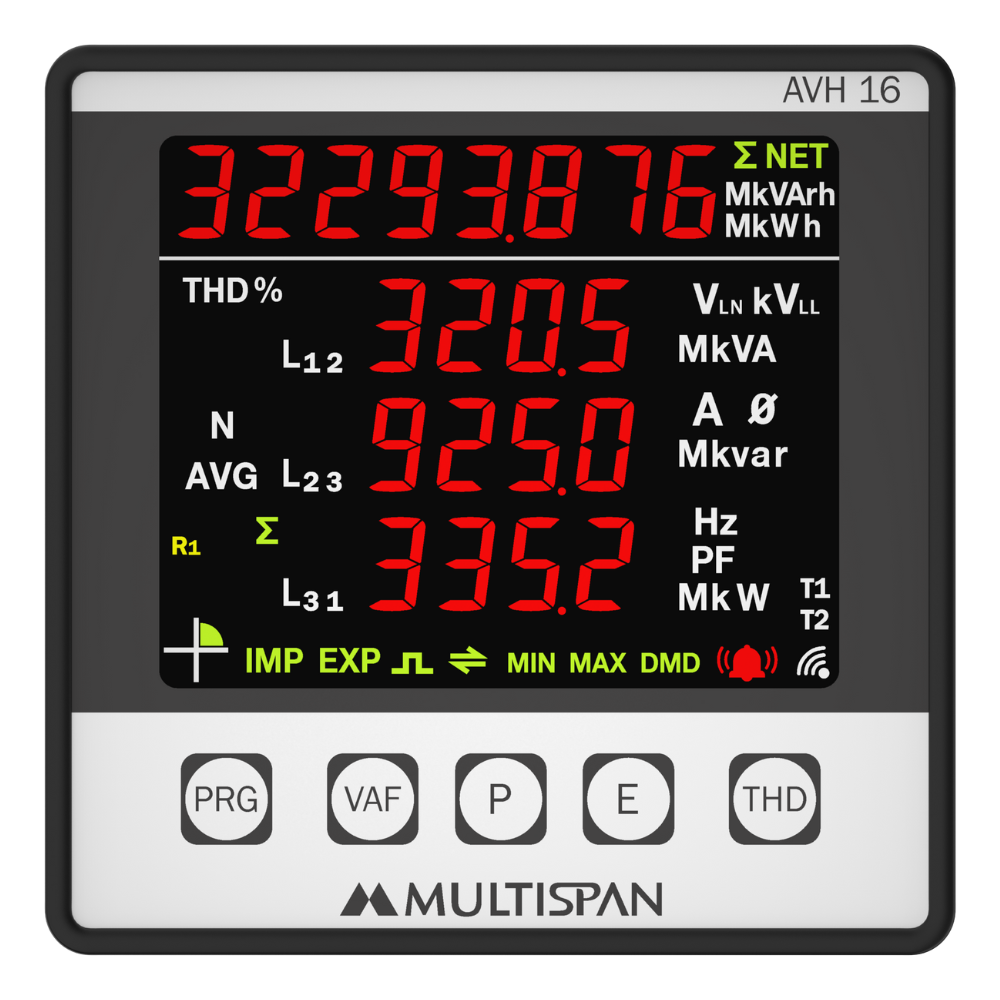

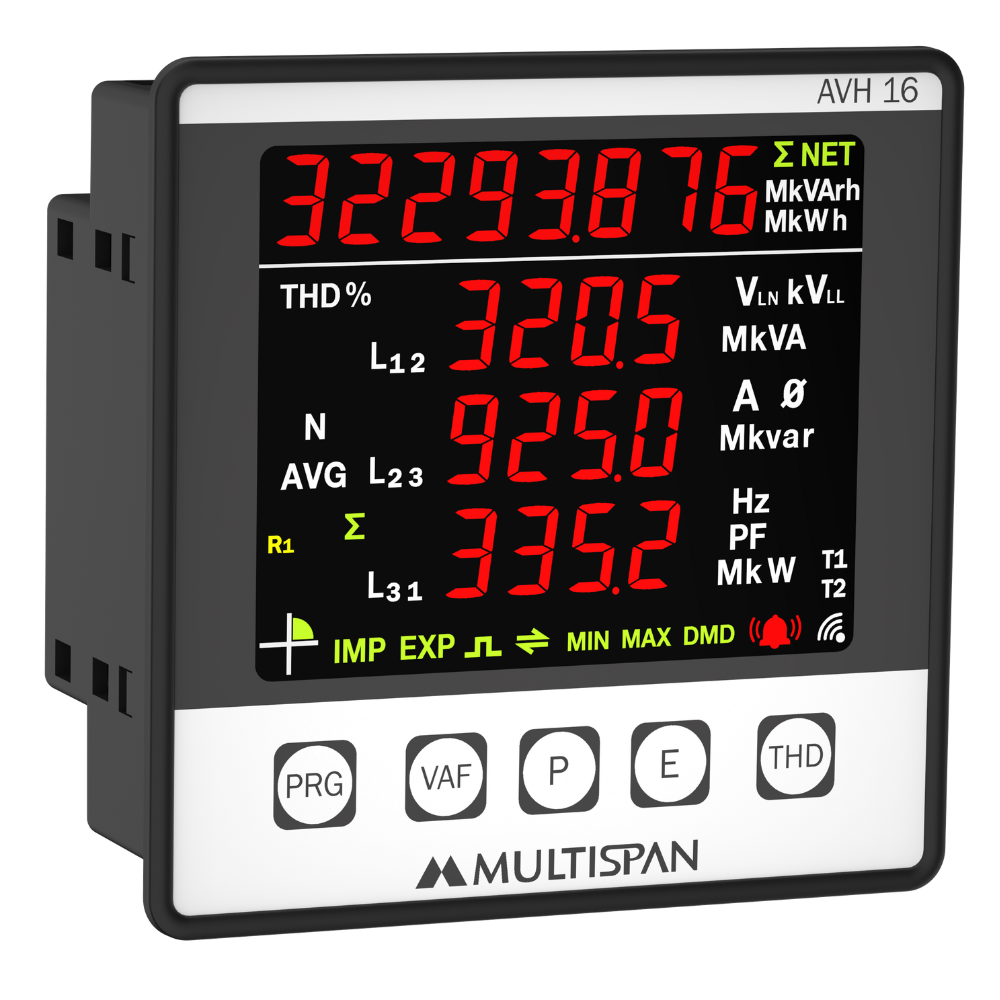

Multifunction Meter - THD & IMP-EXP
Product: AVH-16
- 1Ø-2W, 3Ø-3W/4W Selectable
- Voltage Measurement 100V to 520kVAC, Secondary 100V to 520V AC
- THD upto 32th Order for Voltage & Current
- Import-Export Energy
- Pulse & RS-485 Modbus Communication
- Accuracy Class 0.5
| PARAMETER SPECIFICATION | ||
| Input Signal | 3Ø-3Wire/4Wire / 1Ø 2Wire | |
| CT Primary | Up to 9999A (Programmable) | |
| CT Secondary | 5 Amp/1 Amp selectable | |
| PT Primary | 100V to 520kV (Programmable) | |
| PT Secondary | 100V to 520V (L-L) (Programmable) | |
| PF Avg. & Per Phase | 0.100 - 1.000 | |
| Frequency (Hz) | 45.00 - 60.00 Hz | |
| Load hours | 9999.59 Hrs/Min | |
| No load hours | 9999.59 Hrs/Min | |
| On Hour | 9999 Hour | |
| RPM | 3600 RPM @ 60 Hz & 2 pole | |
| POWER | ||
| KW Total | 0.000 - 9999 MW | |
| kW Per Phase | 0.000 - 9999 MW | |
| kVA Total | 0.000 - 9999 MVA | |
| kVA Per Phase | 0.000 - 9999 MVA | |
| kVAr Total | 0.000 - 9999 MVAr | |
| kVAr Per Phase | 0.000 - 9999 MVAr | |
| ENERGY | ||
| Import Kwh | 000.000 - 99999999 MWh | |
| Export Kwh | 000.000 - 99999999 MWh | |
| Net Kwh | 000.000 - 99999999 MWh | |
| Total Kwh | 000.000 - 99999999 MWh | |
| Kvah Total | 000.000 - 99999999 MVAh | |
| Import Kvarh | 000.000 - 99999999 MVArh | |
| Export Kvarh | 000.000 - 99999999 MVArh | |
| Lag Kvarh | 000.000 - 99999999 MVArh | |
| Lead Kvarh | 000.000 - 99999999 MVArh | |
| Total Kvarh | 000.000 - 99999999 MVArh | |
| DISPLAY & KEY | ||
| Display | Upper | 8 Digit, 7 Seg 0.40”,RED LED |
| Lower | 4 Digit, 3 Line 7 Seg 0.40”,RED | |
| Key | PROGRAM, VAF, POWER, ENERGY, THD% | |
| AUXILIARY SUPPLY | ||
| Supply voltage | 100 to 270V AC/DC, 50/60Hz | |
| Power consumption (VA RATING) | Approx 4 VA @ 230V AC MAX | |
| COMMUNICATION | ||
| RS-485 MODBUS | ||
| ACCURACY | ||
| Class 0.5 (Standard) | ||
| ENVIRONMENT CONDITION | ||
| Operating Temp | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH (non-condensing) | |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
| DIMENSION | ||
| Size (mm) | 96 (H) x 96 (W) x 54 (D) | |
| Panel Cutout (mm) | 92 (H) x 92 (W) | |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- LT / HT Panel
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Current | Supply |
| AVH-16-E3-N0 | Network Selection :3Ø3W/4W, 1Ø2W PT Primary: 100V to 520kV (Programmable) PT Secondary: 100V to 520V (L-L) (Programmable) |
CT Primary : Upto 9999A CT Secondary : 5A & 1A AC |
100 to 270V AC/DC |
| AVH-16-E3-N2 | CT Input: 60A with DIN 60AX CT | ||
| AVH-16-E3-N3 | CT Input: 30A with DIN 30AX CT | ||
| AVH-16-E3-N4 | CT Input: 100A with DIN 100AX CT | ||
| Note: | Modbus Available on Request | ||
