| Input | |
| NETWORK CONNECTION | 1 Phase- 2 Wire (1P-2W) |
| Voltage AC | |
| Direct voltage AC | 10 to 500V AC |
| Burden | <0.2 VA |
| Current AC | |
| Primary CT Radio | 5 to 2000 Selectable |
| Secondary Current Ac | 5 Amp (0.5 to 5 Amp) |
| Burden | <0.2 VA |
| Overload | For 5A CT : Upto 6A Continous |
| DISPLAY AND KEYS | |
| Display | 3-Digit , 2-Line , 7-Seg 0.56 Red LED |
| Key | Provided at Back Terminal |
| DIMENSION | |
| Size(mm) | 72 (H) x 72 (W) x 36 (D) |
| Panel Cutout (mm) | 68 (H) x 68 (W) |
| AUXILIARY POWER SUPPLY | |
| Power Supply | 100- 270V AC/DC 50/60 Hz |
| Burden | Approx 4VA @ 230V AC |
| ENVIRONMENAL CONDITION | |
| Working Temperature | 0 to 55 °C |
| Storage Temperature | 0 to 55 °C |
| Relative Humidity | 95 % RH Non - Condensing |
| Protection Level (As per Request ) | IP-65 (front side As per IS /IEC 60529 :2001) |
- Electrical Control Panel
- Power Distribution
- Instrumentation Panel
- Transformer training
Product Variant
| Model | Voltage | Current | Supply |

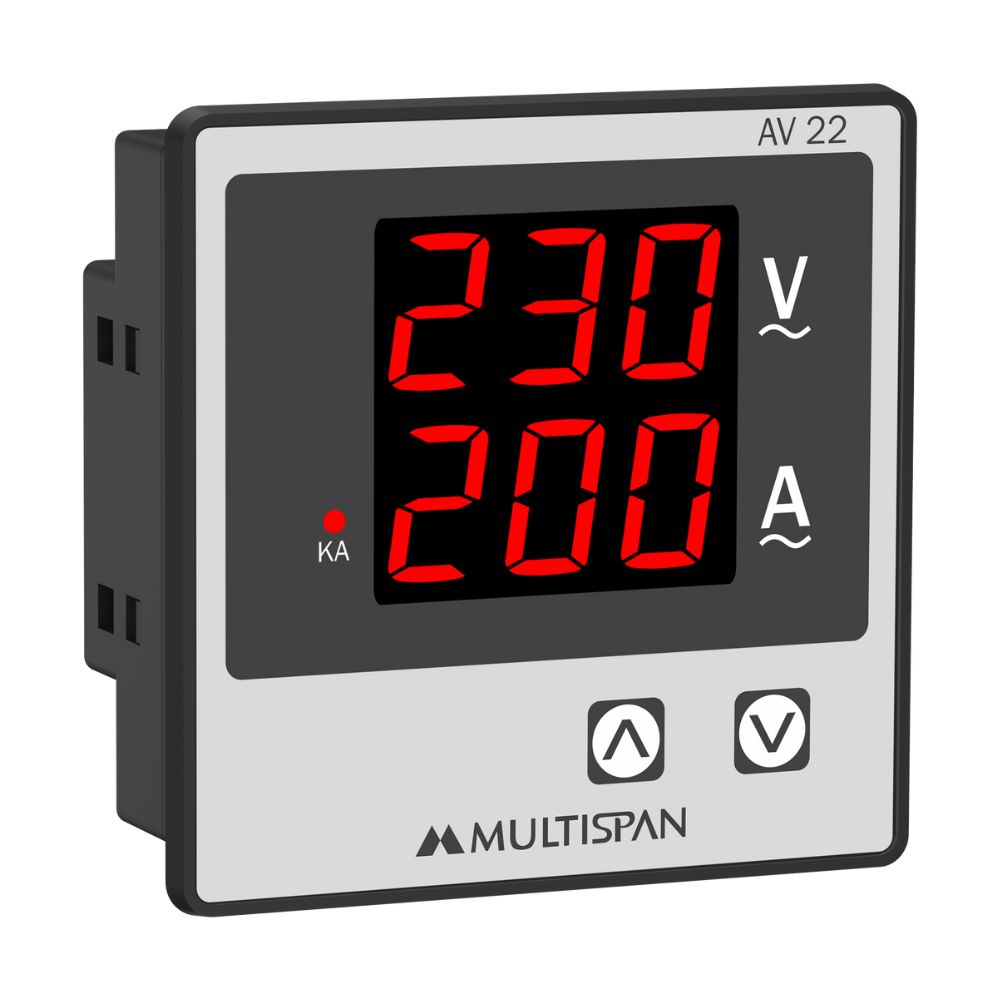

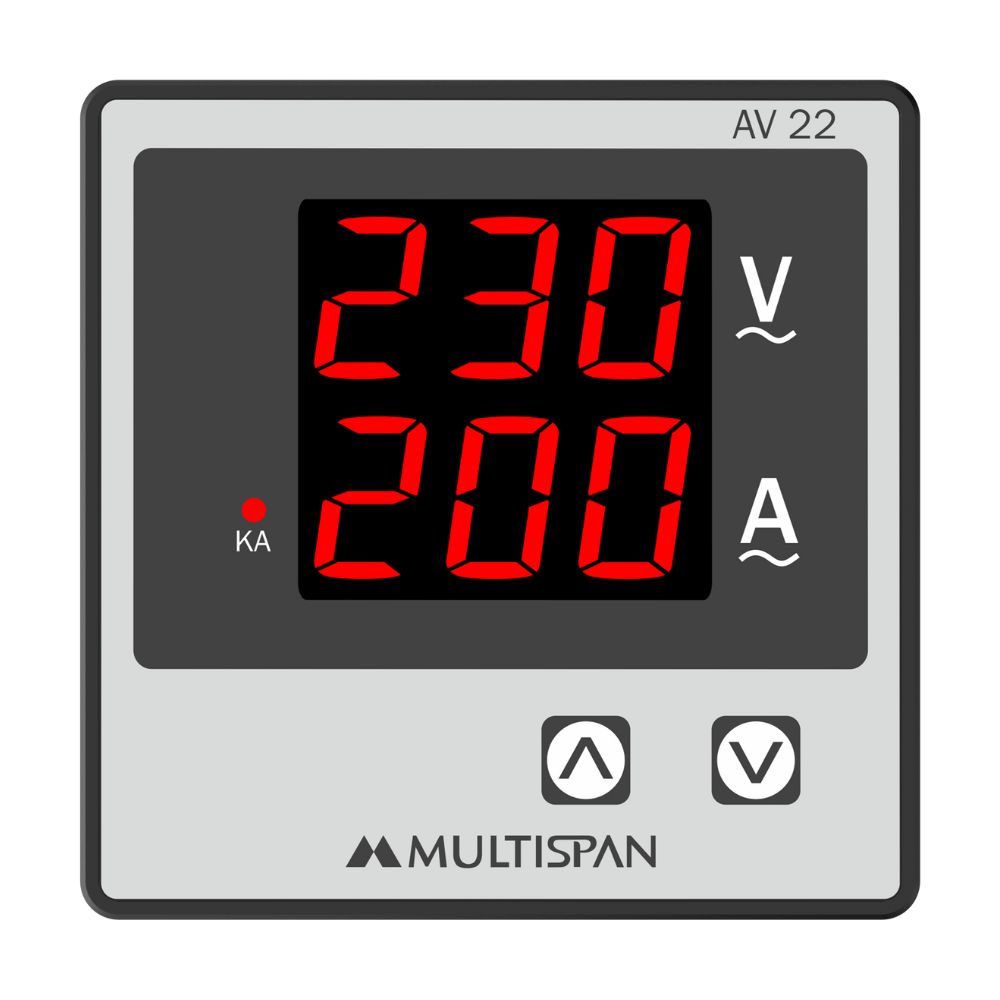

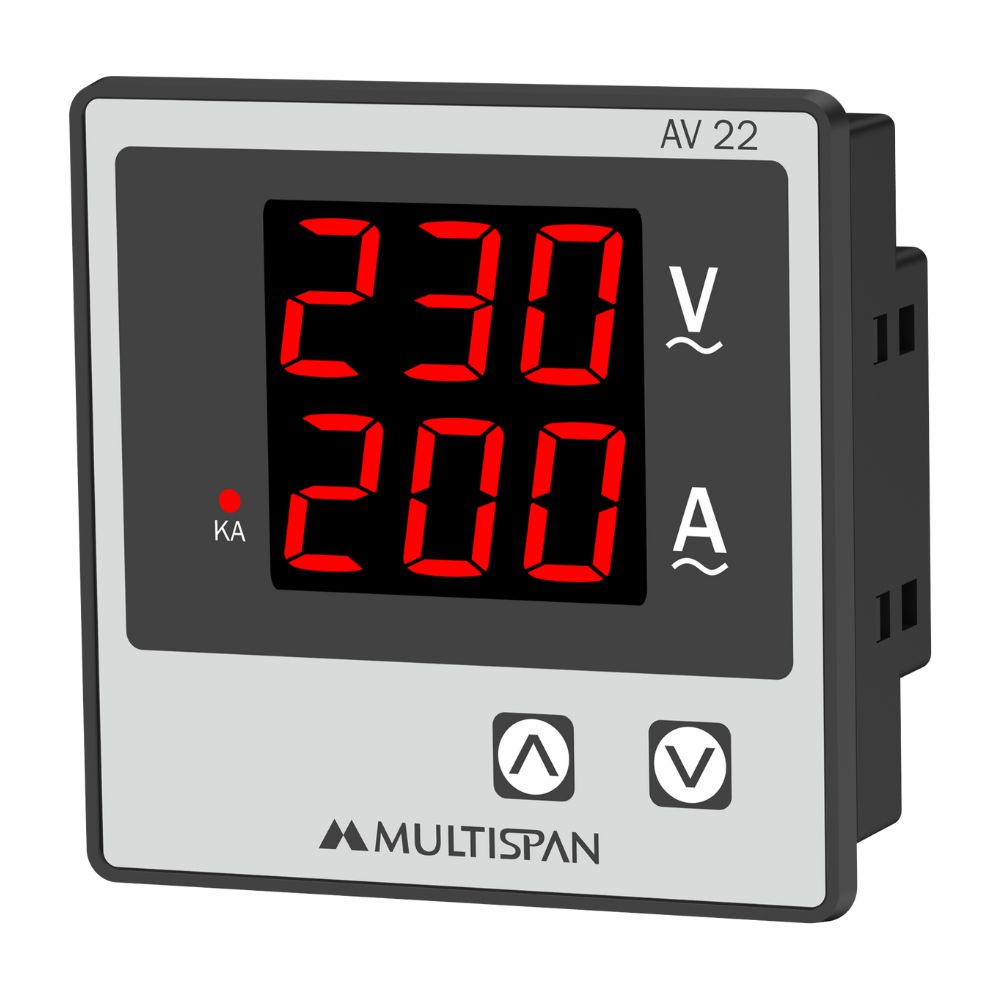

| AV-22 | Network Selection :1Ø-2Wire Voltage Input: 0 to 500V AC |
CT Primary :5A to 2000A CT Secondary : 5A |
100-270V AC/DC |
