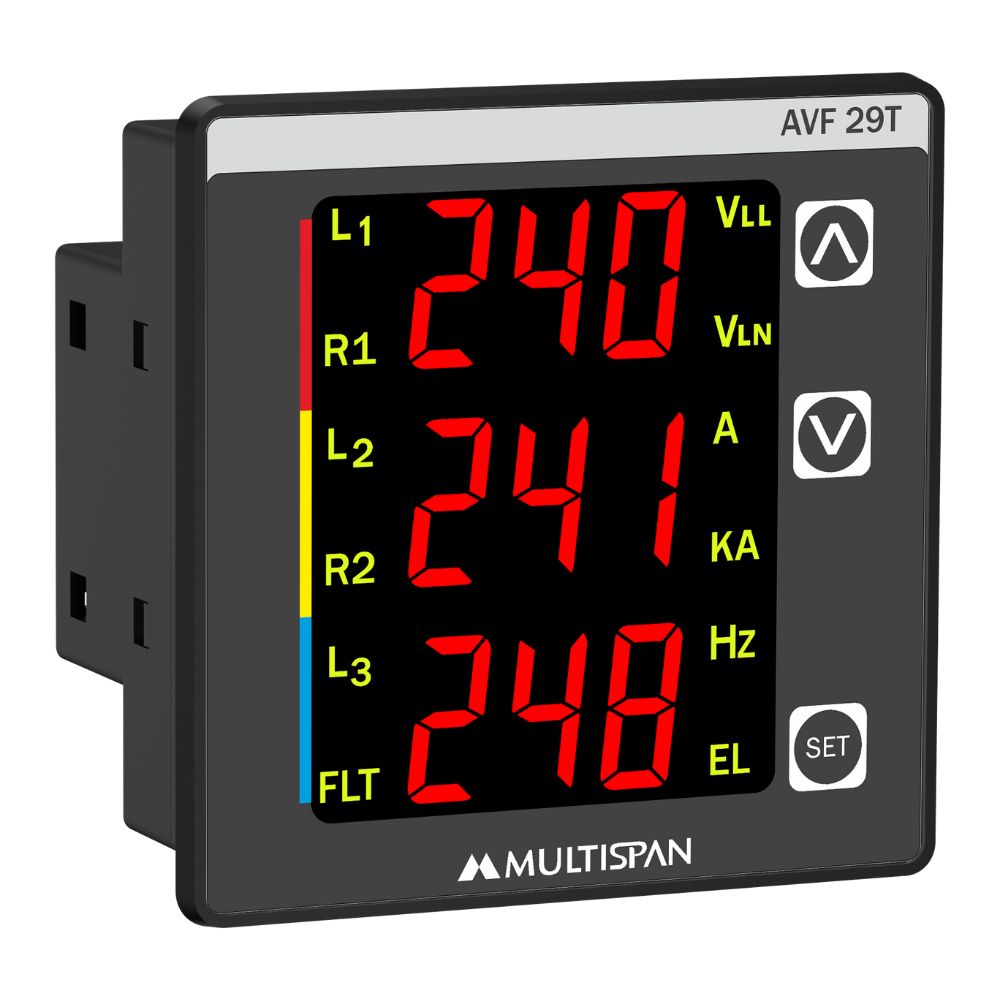

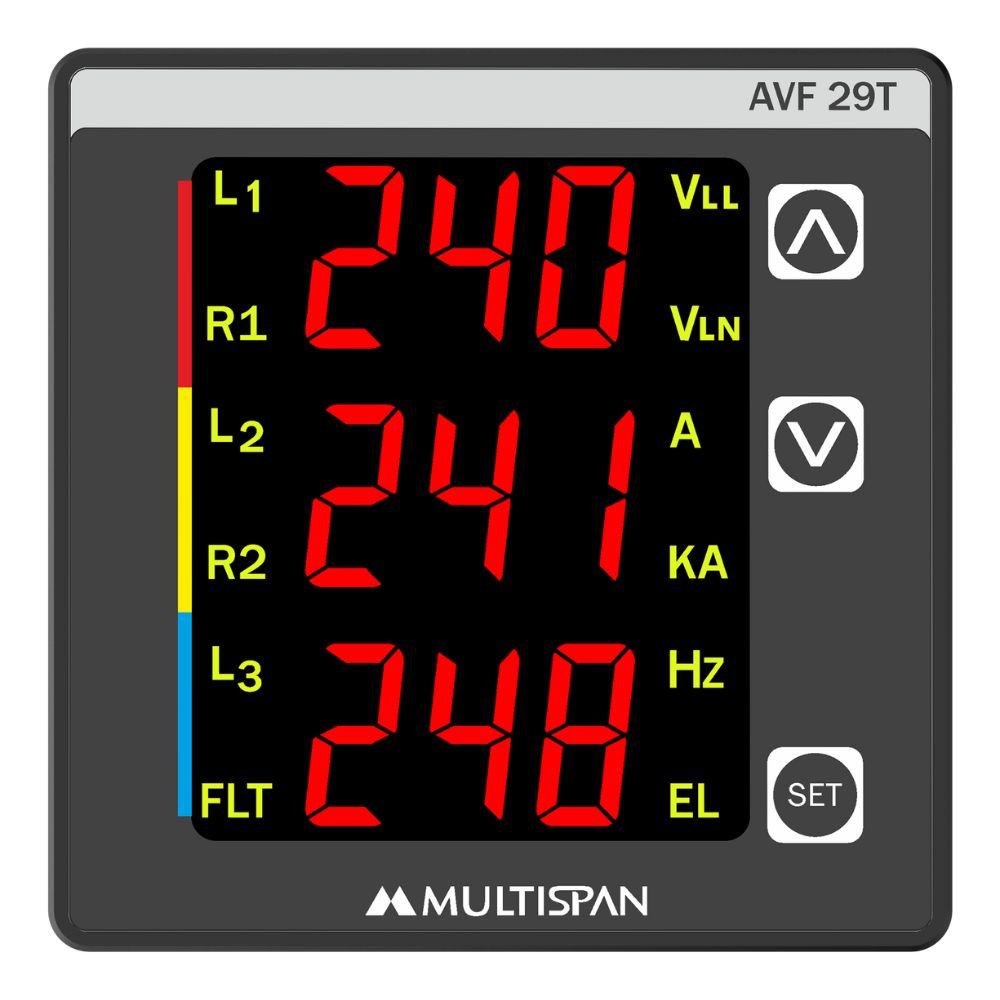

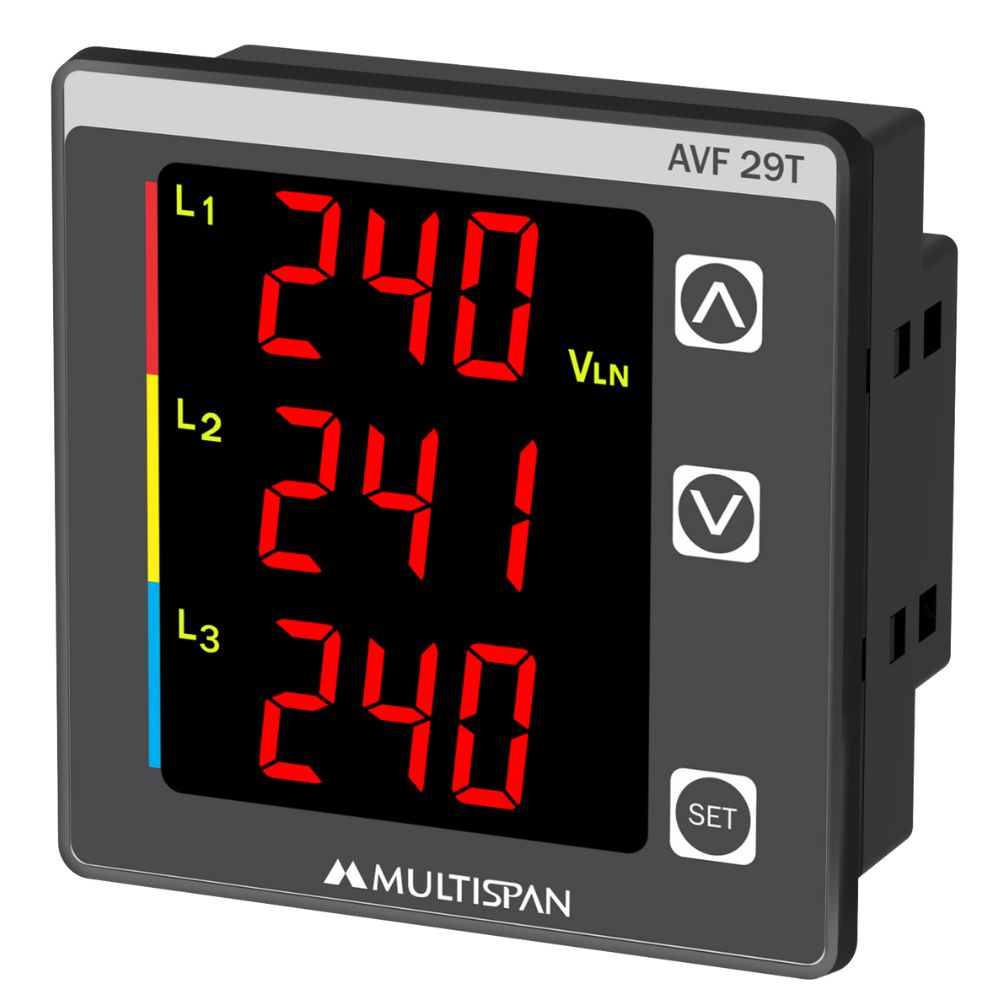

AVF Meter
Product: AVF-29T
- 3Ø-3W/4W, 1Ø-2W Selectable
- 3-Digit, 3-Line, 7-Seg, 0.59” RED LED
- CT Primary Selectable Upto 9999A
- CT Secondary Selectable 5A or 1A
- PT Primary Selectable 100V to 520KV
- PT Secondary Selectable 50V to 520V AC
- 50-520V AC (L-L), 30-300V AC (L-N)
- Size: (H)72mm X (W)72mm X (D)45mm
- Supply Voltage: 100-270V AC, 50/60 Hz
Top Variants:
| INPUT | |
| Voltage AC | |
| Direct voltage AC | 30 to 300V (L - N) 50 to 520V (L - L) |
| Primary PT Ratio | 100V to 520KV Selectable |
| Secondary PT Ratio | 100V to 520V Selectable |
| Burden | < 0.2 VA |
| Current AC | |
| Primary CT Ratio | 9999A Selectable |
| Secondary Current Ac | 5A or 1A |
| Burden | < 0.2 VA |
| Overload | Upto 6A Continuous |
| Frequency | 45.0 to 65.0 Hz |
| DISPLAY, KEY & LED | |
| Display | 3-Digit, 3-Line, 7-Segment, 0.59” RED LED |
| Key | Set/Ent, Inc, Dec/Scroll |
| LED Indication | A, KA, KV, VLL, VLN, Avg, HZ, L1, L2, L3, PS |
| DIMENSION | |
| Size (mm) | 72 (H) x 72 (W) x 45 (D) |
| Panel Cutout (mm) | 68 (H) x 68 (W) |
| CALCULATED PARAMETERS | |
| Voltage | VLL, VLN, Avg. |
| Current | All Phase Amp, Avg Amp |
| Frequency | System Frequency |
| Load hour | Upto 9999 Hr 59 min |
| RPM, Phase Sequence Indication | |
| ACCURACY | |
| Class 0.5 (Standard) | |
| AUXILIARY POWER SUPPLY | |
| Power Supply | 100 to 270V AC,50/60Hz |
| Burden | 4VA |
| ENVIRONMENTAL CONDITION | |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 55°C |
| Relative Humidity | 95% RH Non-Condensing |
| Protection Level ( As per Request ) |
IP-65 (Front side As per IS/IEC 60529 : 2001) |
- Control & Relay Panel
- Original Equipment Manufacturers (OEMs)
- Energy Management System
- DG Set Panels
- LT / HT Panel
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Current | Auxillary |
| AVF-29T-E3-00 | Network Selection :3Ø3W/4W, 1Ø2W PT Primary: 100V to 520kV (Programmable) PT Secondary: 100V to 520V (L-L) (Programmable) |
CT Primary :Upto 9999A CT Secondary : 5A & 1A AC |
100 to 270V AC/DC |
| AVF-29T-E3-06 | CT Input: 30A with DIN 30AX CT | ||
| AVF-29T-E3-07 | CT Input: 60A with DIN 60AX CT | ||
| AVF-29T-E3-08 | CT Input: 125A with DIN 125AX CT |
