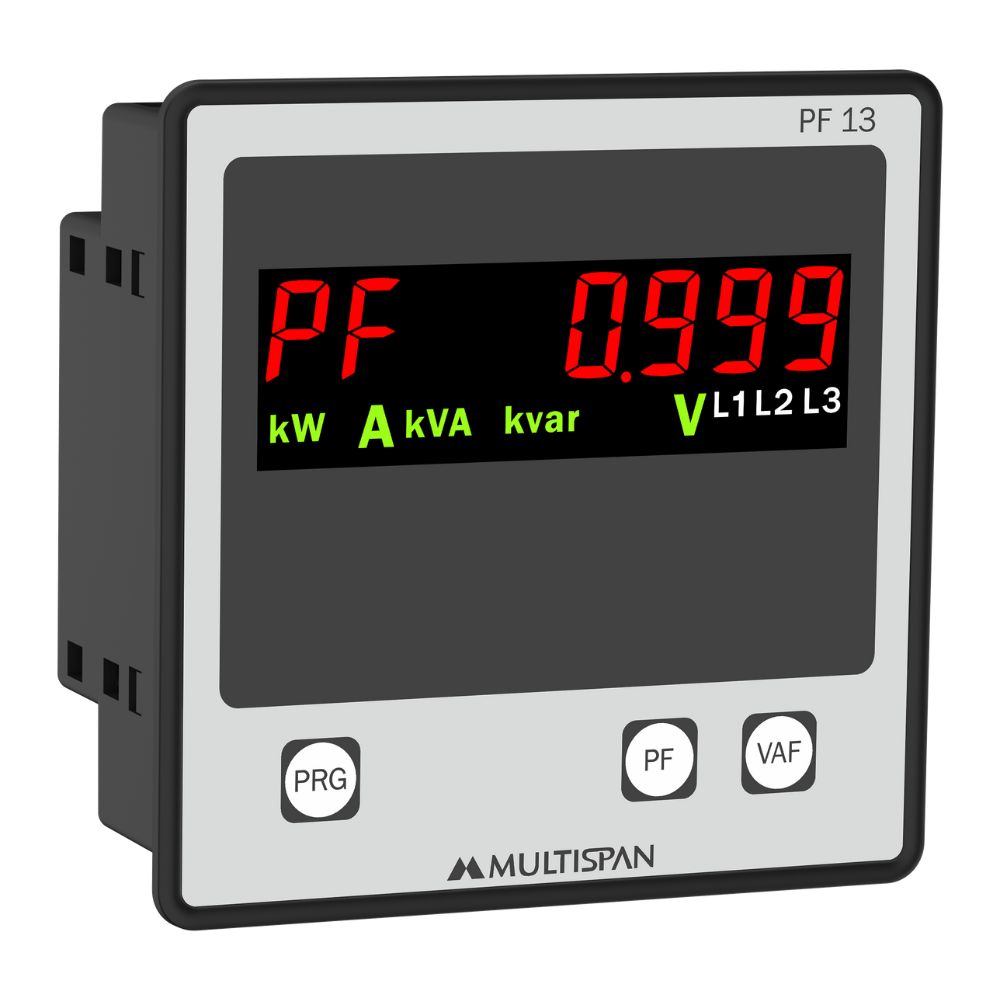

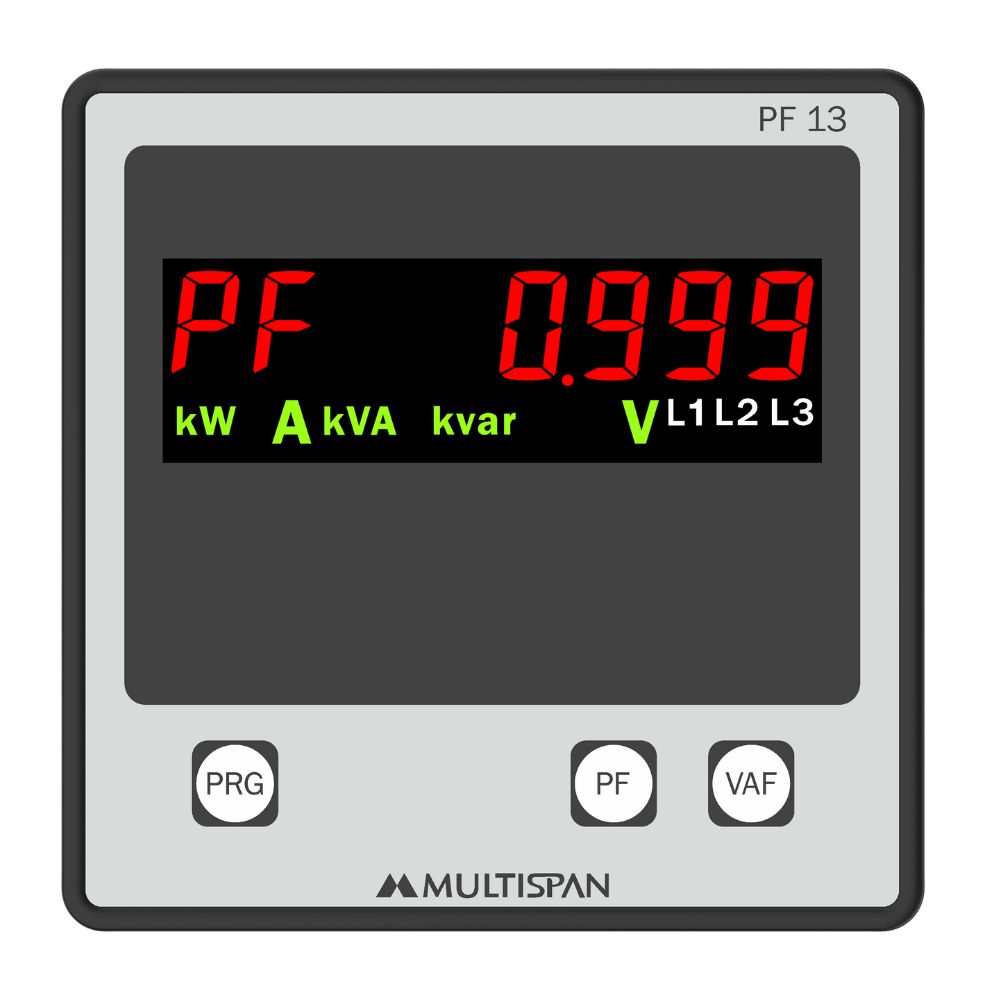

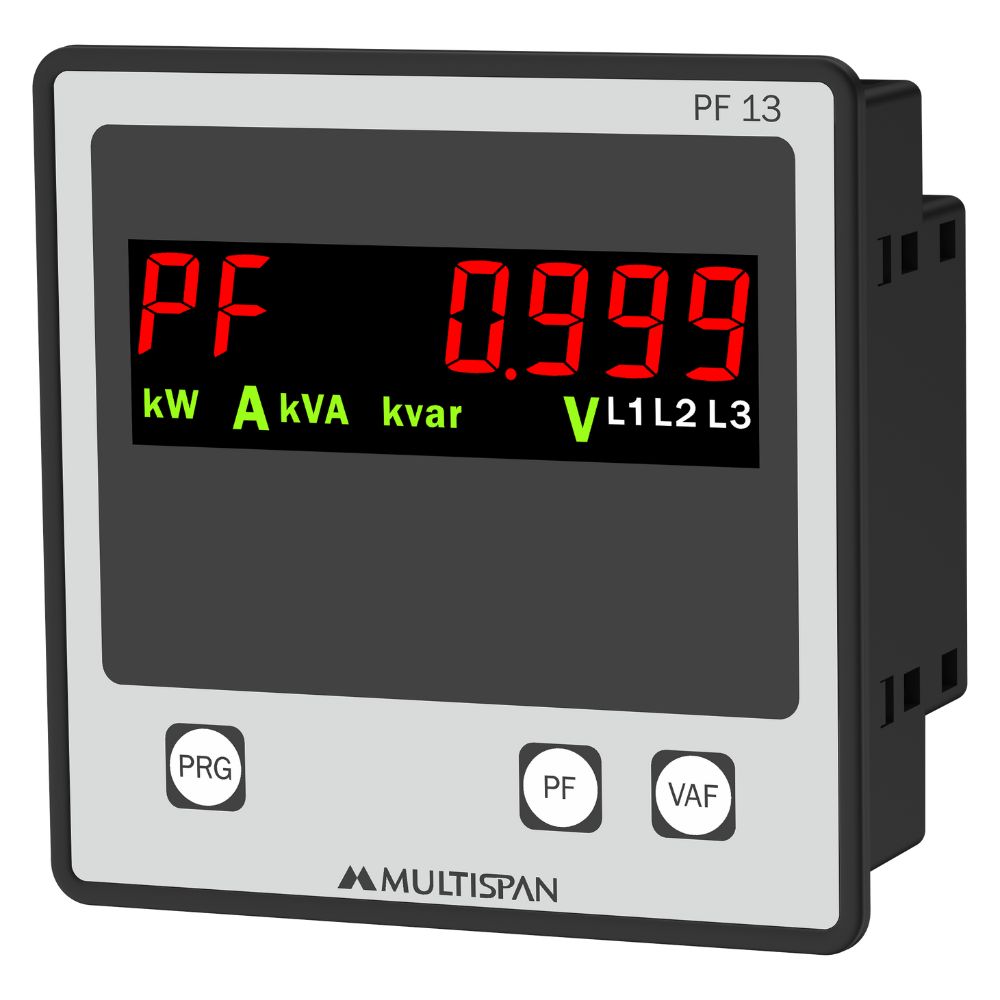

Digital Power Factor Indicator
Product: PF-13
- 3Ø-4W
- CT Primary Selectable Upto 9999A
- CT Secondary: 5A
- Size: (H)96mm X (W)96mm X (D)43mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
Top Variants:
| PARAMETER SPECIFICATION | |
| Input Signal | 3Ø-4Wire |
| CT Primary | Upto 9999A (Programmable) |
| PF Avg. & Per Phase | 0.100 - 1.000 |
| Frequency (Hz) | 45.00 - 60.00 Hz |
| Load hours | 9999.59 Hrs/Min. |
| No load hours | 9999.59 Hrs/Min. |
| RPM | 3600 RPM @ 60 Hz & 2-Pole |
| POWER | |
| KW Total | 0.000 - 9999 KW |
| kW Per Phase | 0.000 - 9999 KW |
| kVA Total | 0.000 - 9999 KVA |
| kVA Per Phase | 0.000 - 9999 KVA |
| kVAr Total | 0.000 - 9999 KVAr |
| kVAr Per Phase | 0.000 - 9999 KVAr |
| DISPLAY & KEY | |
| Display | 8-Digit, 7-Segment 0.5" RED |
| Key | SET/ENT, INC, DEC |
| DIMENSION | |
| Size (mm) | 96 (H) x 96 (W) x 43 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| AUXILIARY SUPPLY | |
| Supply voltage | 100 to 270V AC/DC, 50/60Hz |
| Power consumption (VA RATING) | Approx 3 VA @ 230V AC MAX |
| ACCURACY | Class 0.5 |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity |
Upto 95% RH (non-condensing) |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- Process Control
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Current | Auxillary |
| PF-13-E3-N0 | Network Selection :3Ø-4Wire Voltage Input: 50-520V AC |
CT Primary: 5 to 9999A CT Secondary: 5A |
100 to 270V AC/DC |
