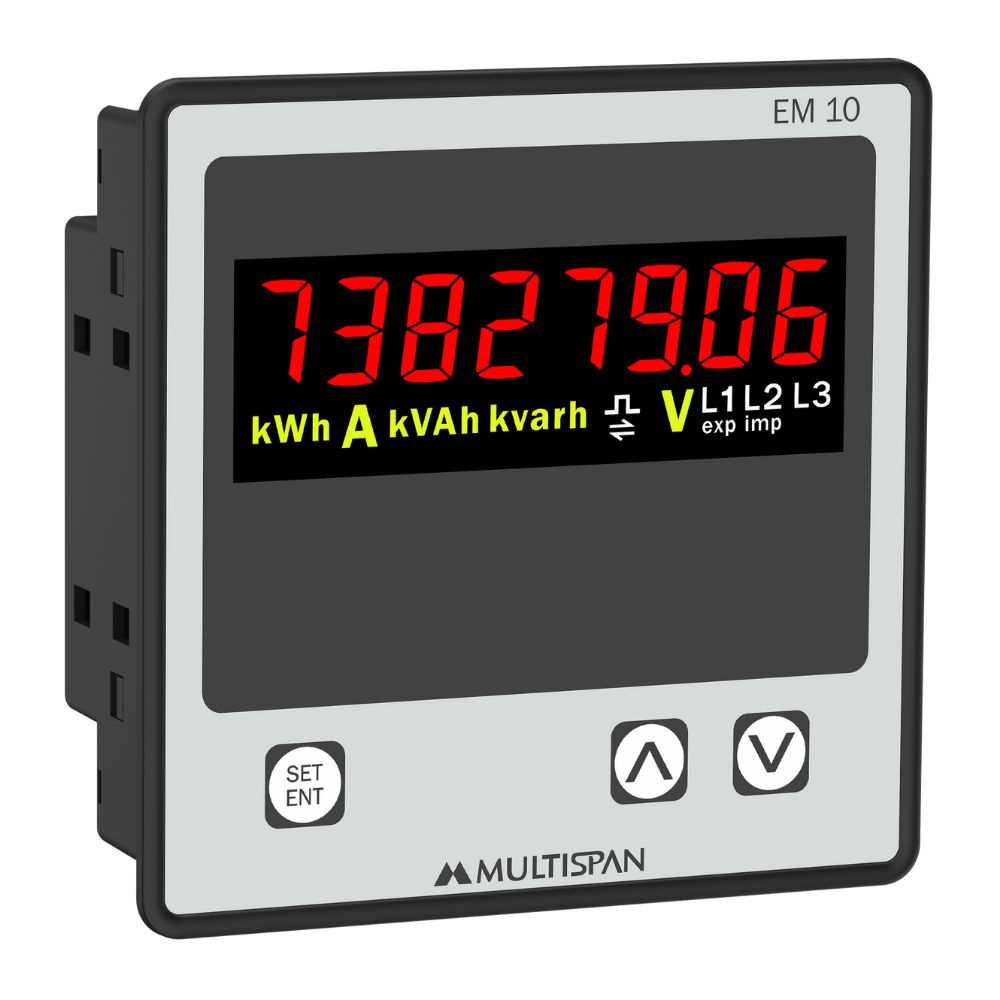

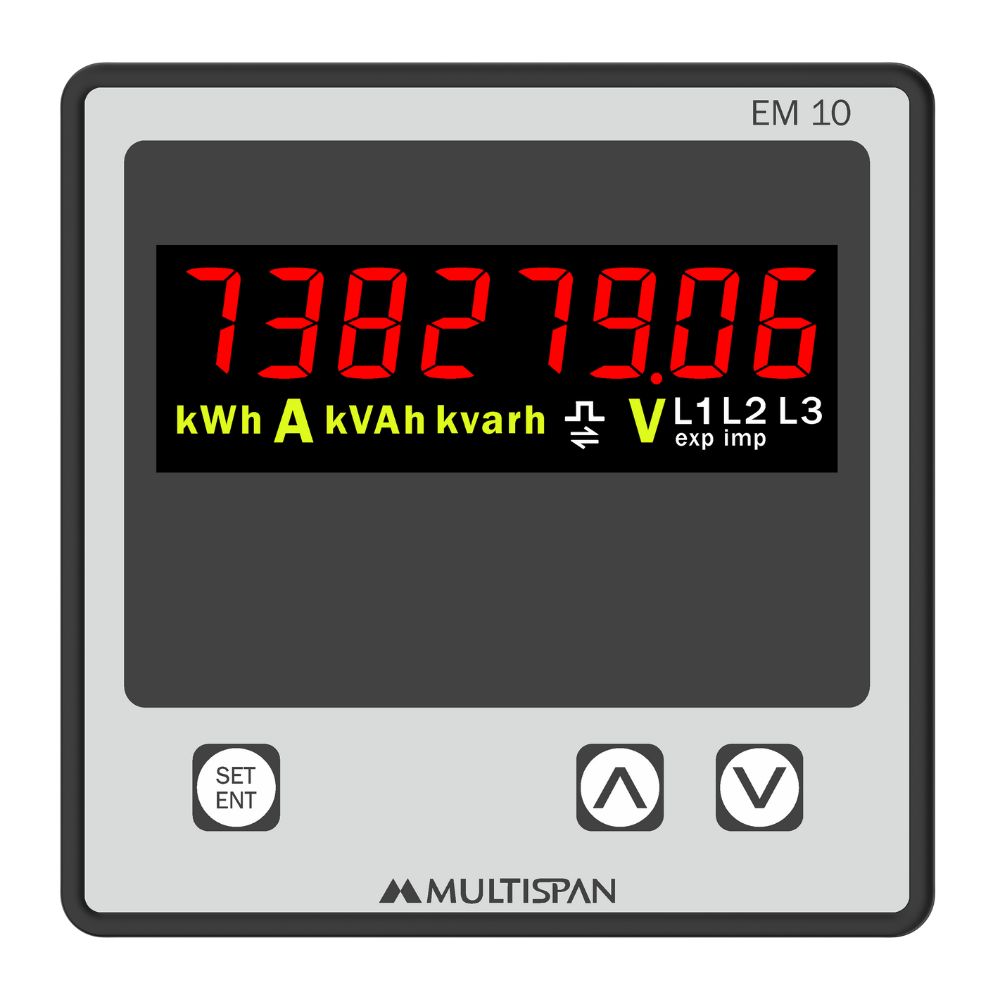

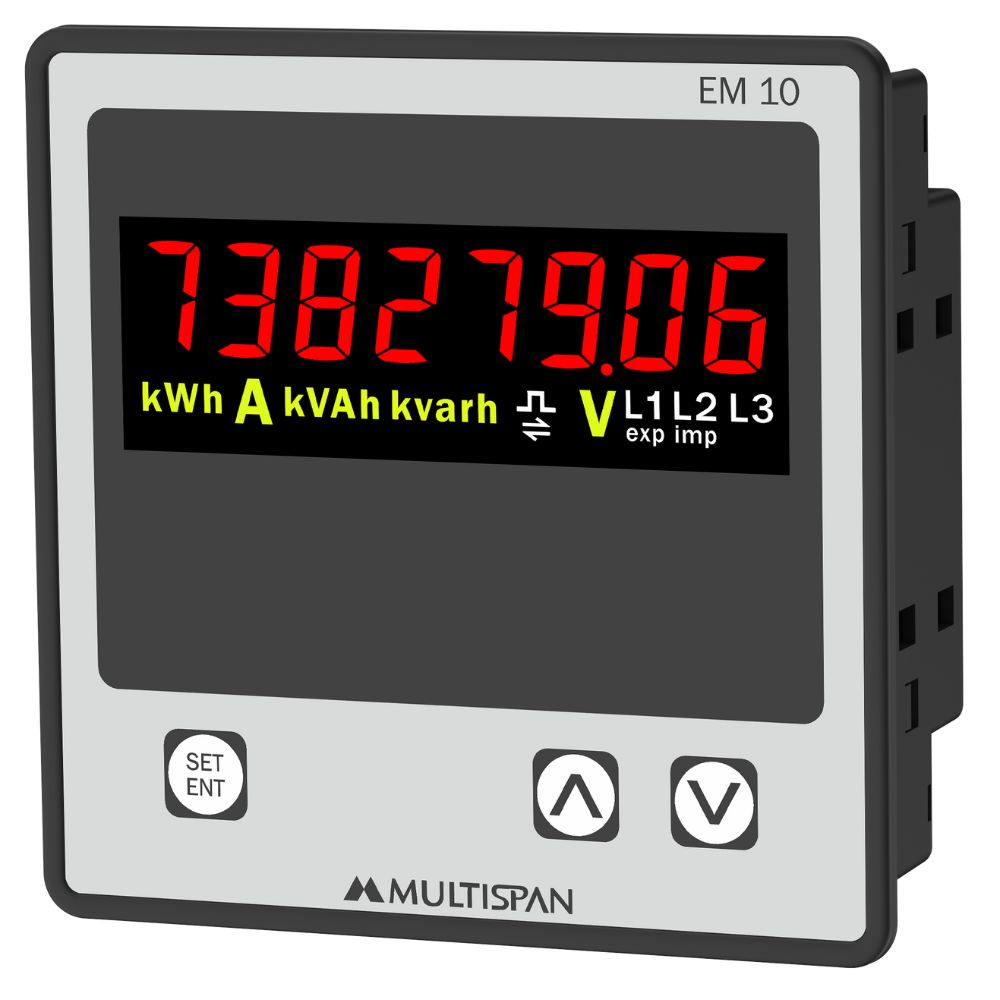

3Ø-Energy Meter
Product: EM-10
- Network Selection: 3Ø-4Wire
- 30 to 300V AC (L-N), 50 to 520V AC (L-L)
- Display for KWH and KW Indication
- Pulse, RS-485 Modbus Communications
Top Variants:
| Model | EM-10 |
| Display | 8 digit, 7 segment, 0.5" Red display |
| Size (mm) | 96(H) X 96 (W) X 43 (D) mm |
| Panel Cutout | 92 X 92 mm |
| Voltage Input | 50 Το 520V AC VLL CAT III |
| 30 Το 300V AC VLN CAT III | |
| Current Input | 5 Amp or higher through external CT |
| Active Power (KW) | 0.000 Το 9999 KW |
| Active energy (KWh) | 0.000 Το 99999999 KWH |
| Power Supply | 100 To 270V AC/DC, 50/60Hz, Approx 3VA |
| Frequency | 45 Το 65 Hz |
| Wiring System | 3Ph-4W |
| Protection Level | IP-65 (Front side) As per IS/IEC 60529: 2001 |
| Operating Temperature | 0°C To 50°C |
| Relative Humidity | Up to 95% RH Non Condensing |
- Electrical Control Panel
- Power Distribution
- Instrumentation Panel
- Transformer Training
Product Variant
| Model | Voltage | Current | Supply |
| EM-10-E3-00 | Network Selection :3Ø-4Wire Voltage Input (L-N):30 To 300V AC Voltage Input (L-L): 50 To 520V AC |
CT Primary : 5A to 6000A CT Secondary : 5A |
100 to 270V AC/DC |
| EM-10-E3-02 | CT Input: 30A with DIN 30AX CT | ||
| EM-10-E3-06 | CT Input: 60A with DIN 60AX CT | ||
| EM-10-A2-04 | CT Input: 100A with DIN 100AX CT |
100 to 270V AC |

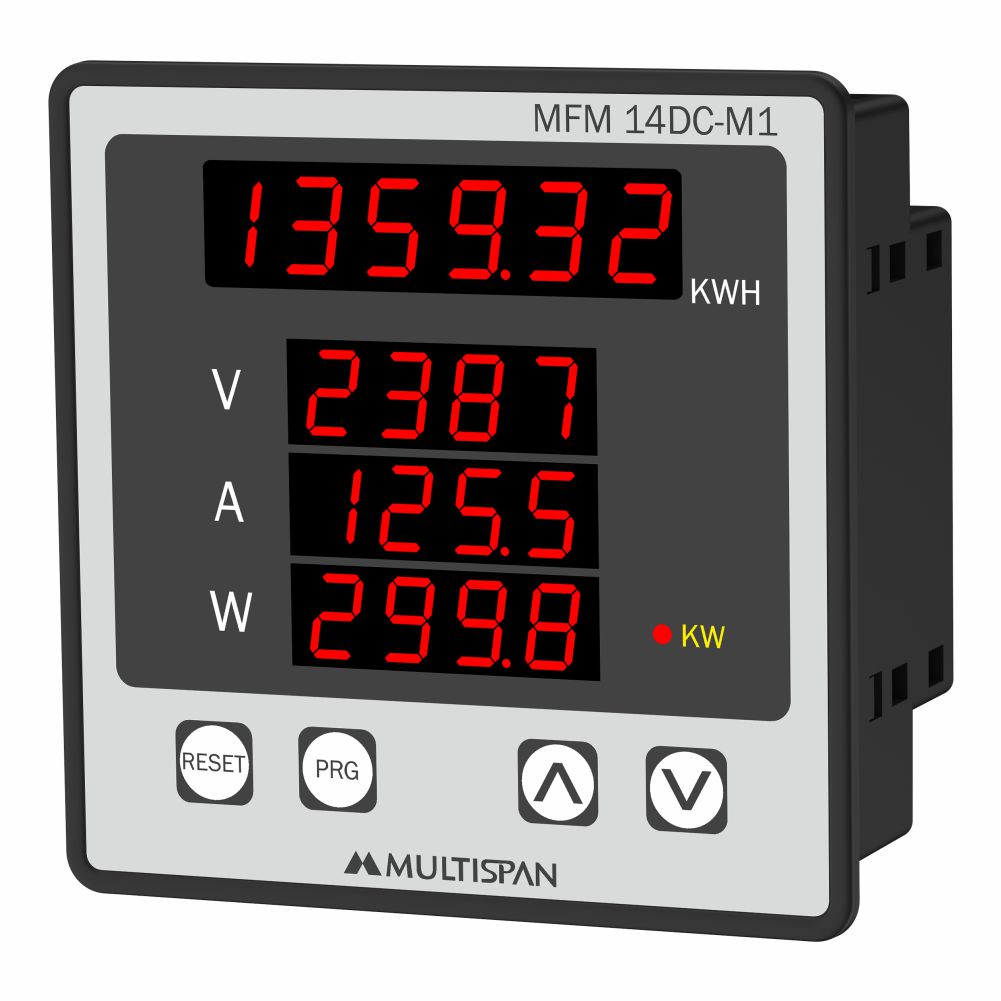

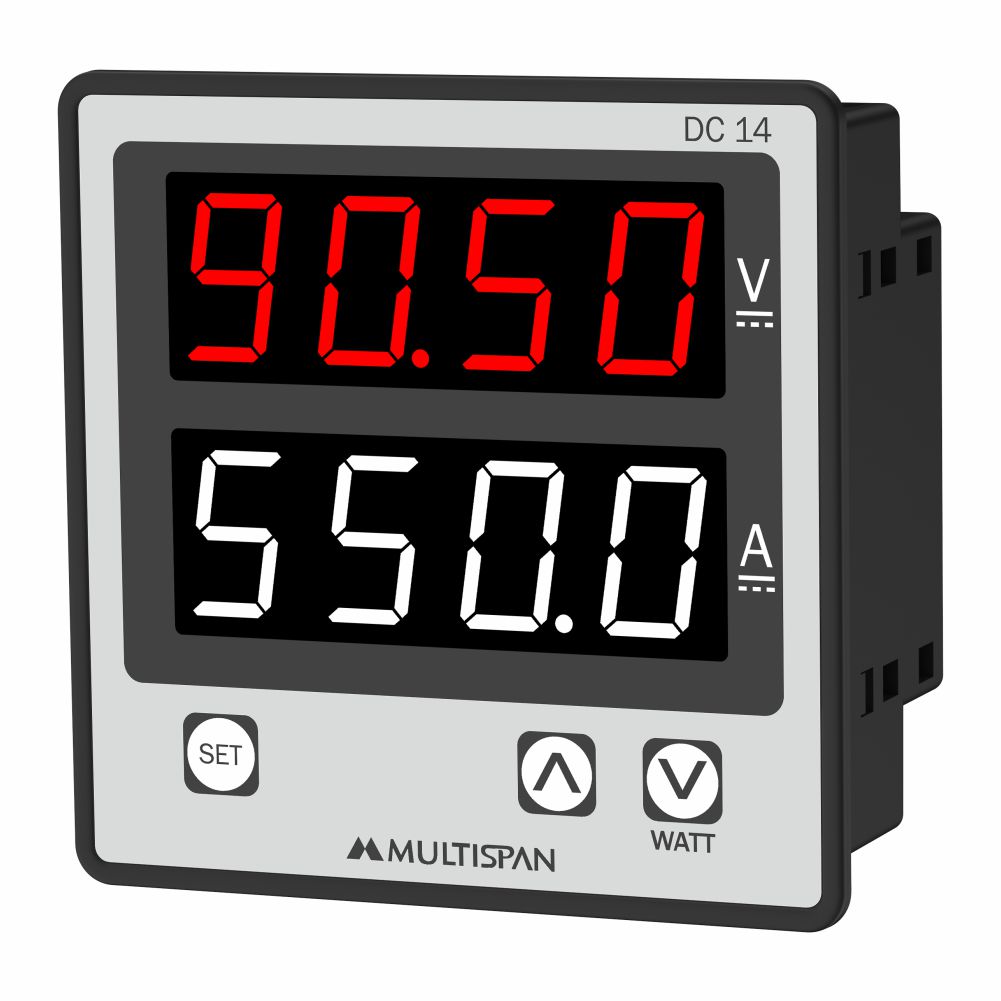

Related Products
