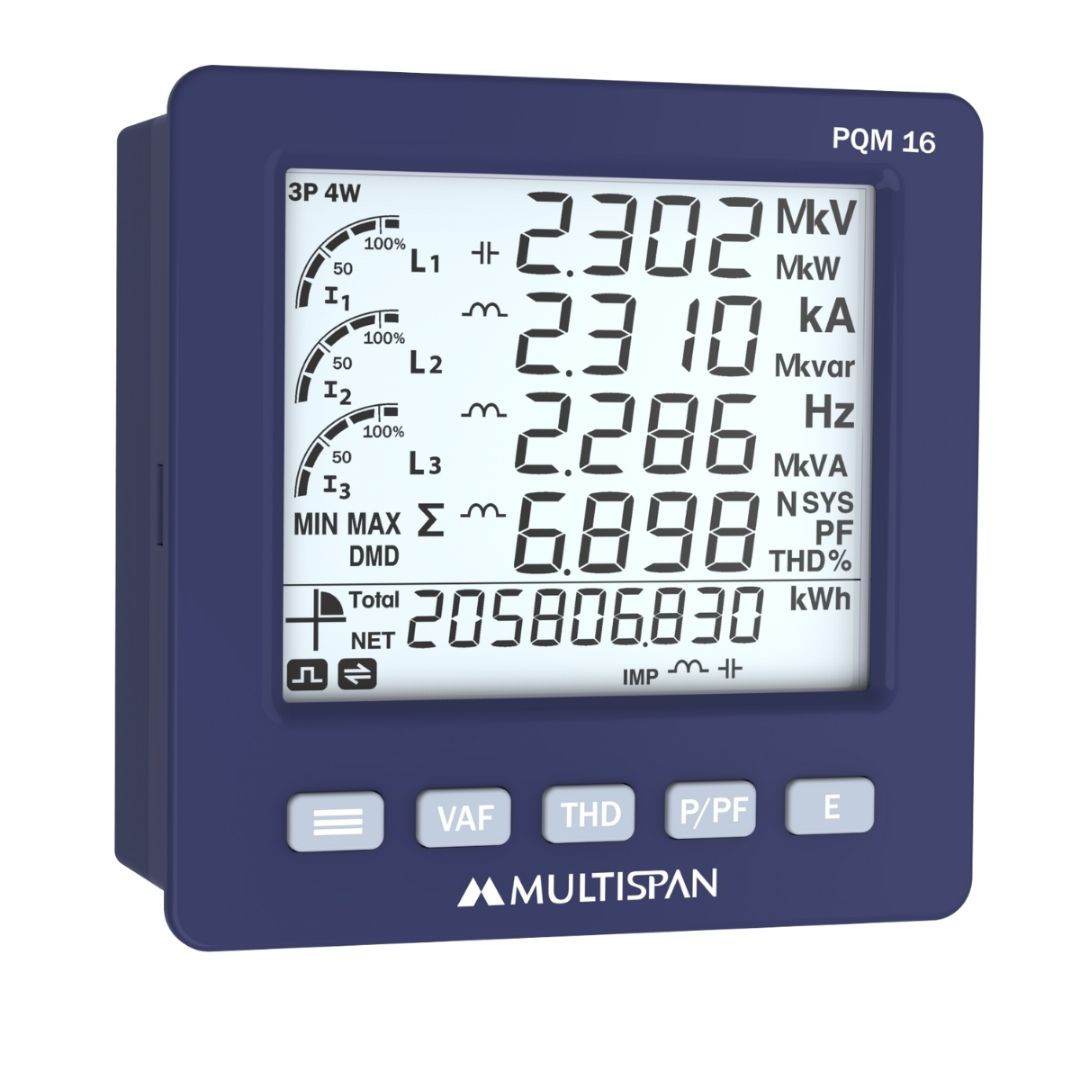

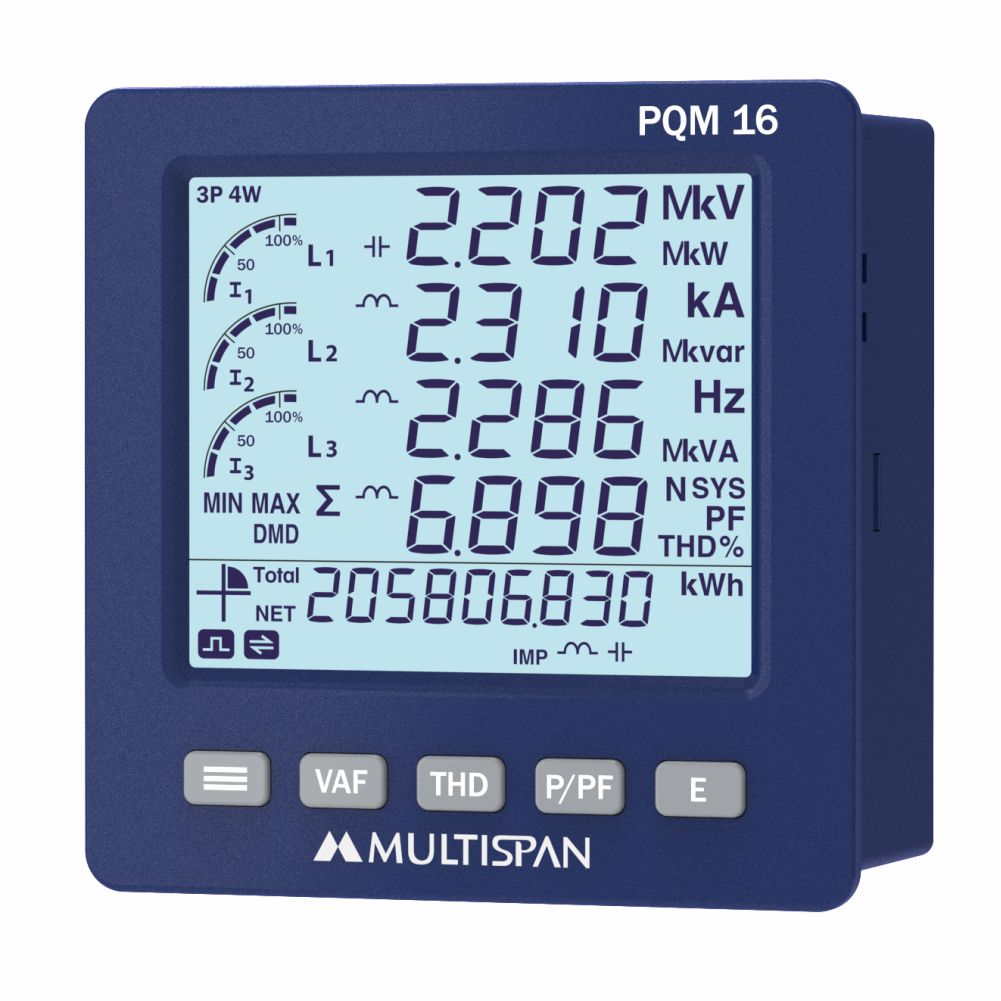

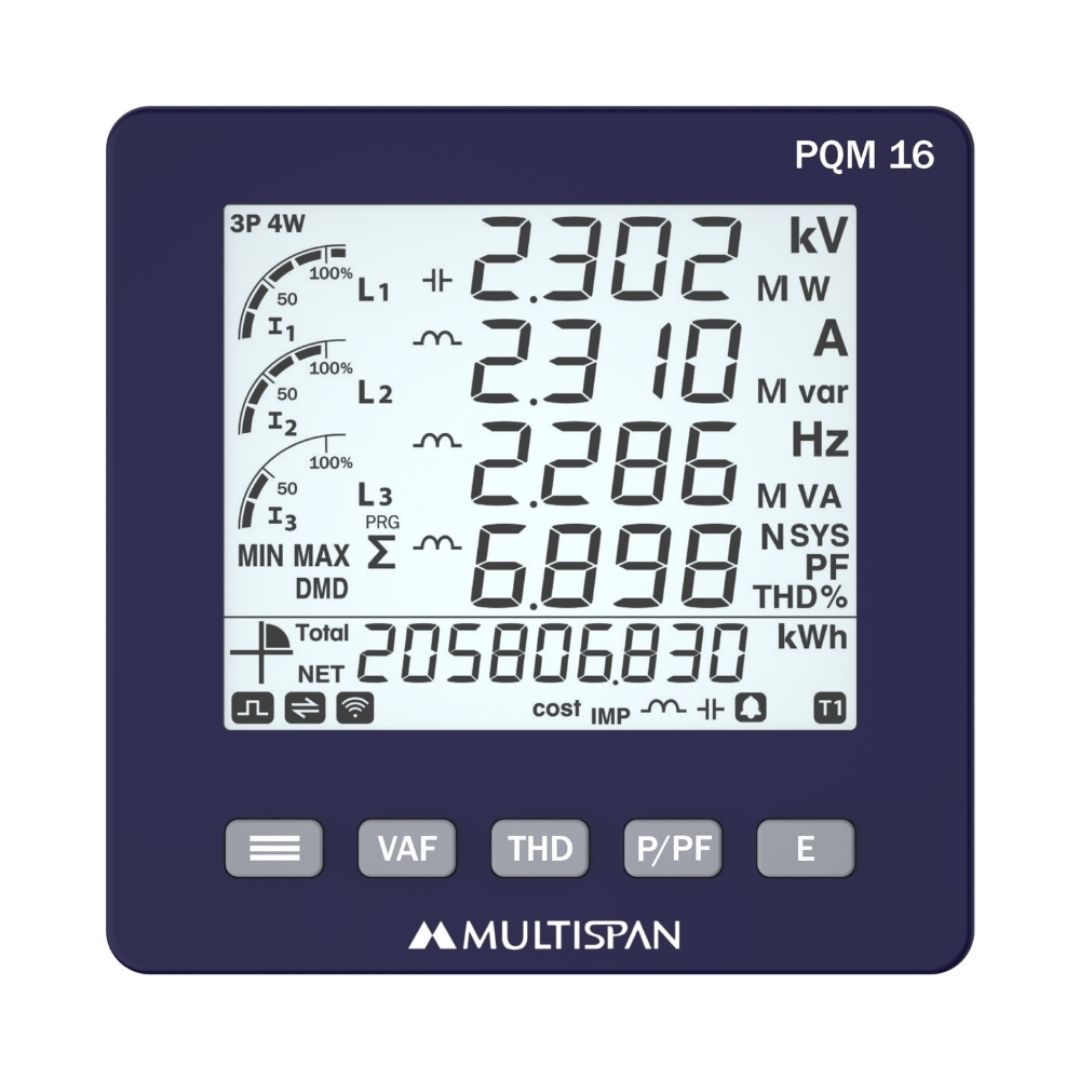

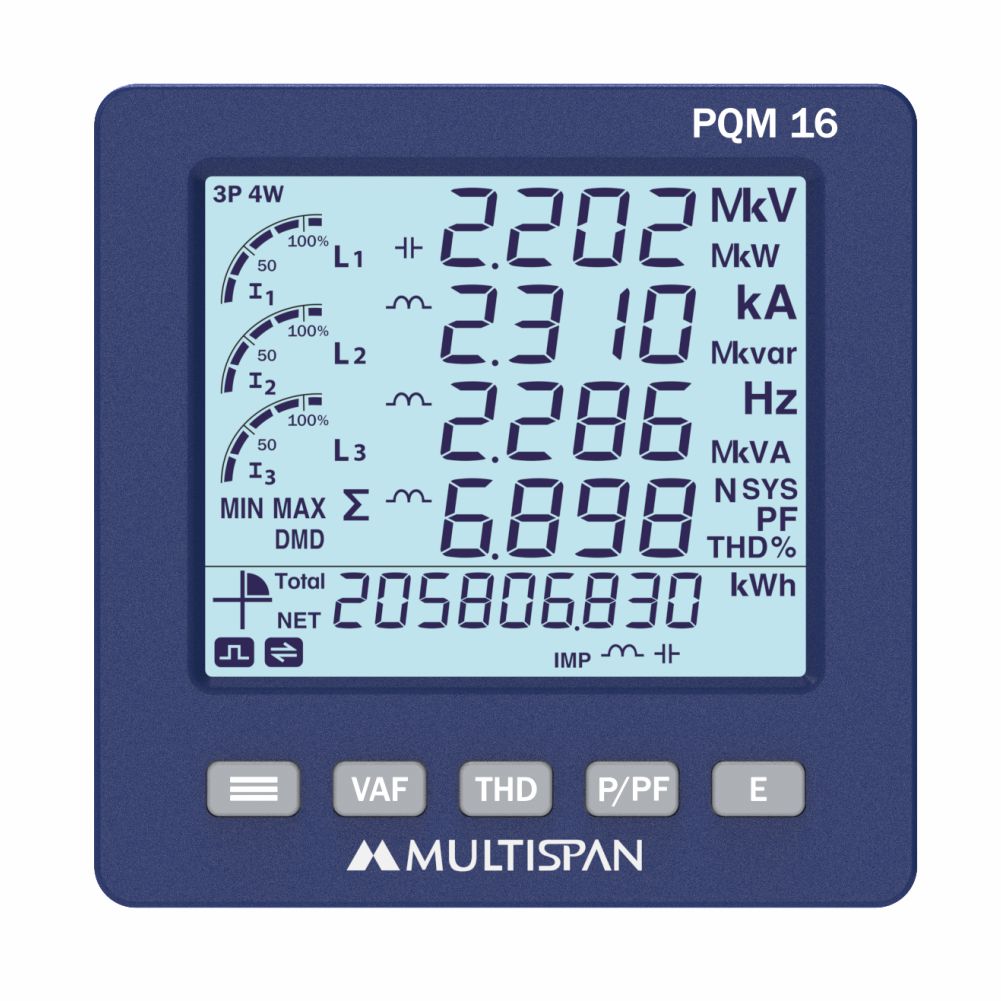

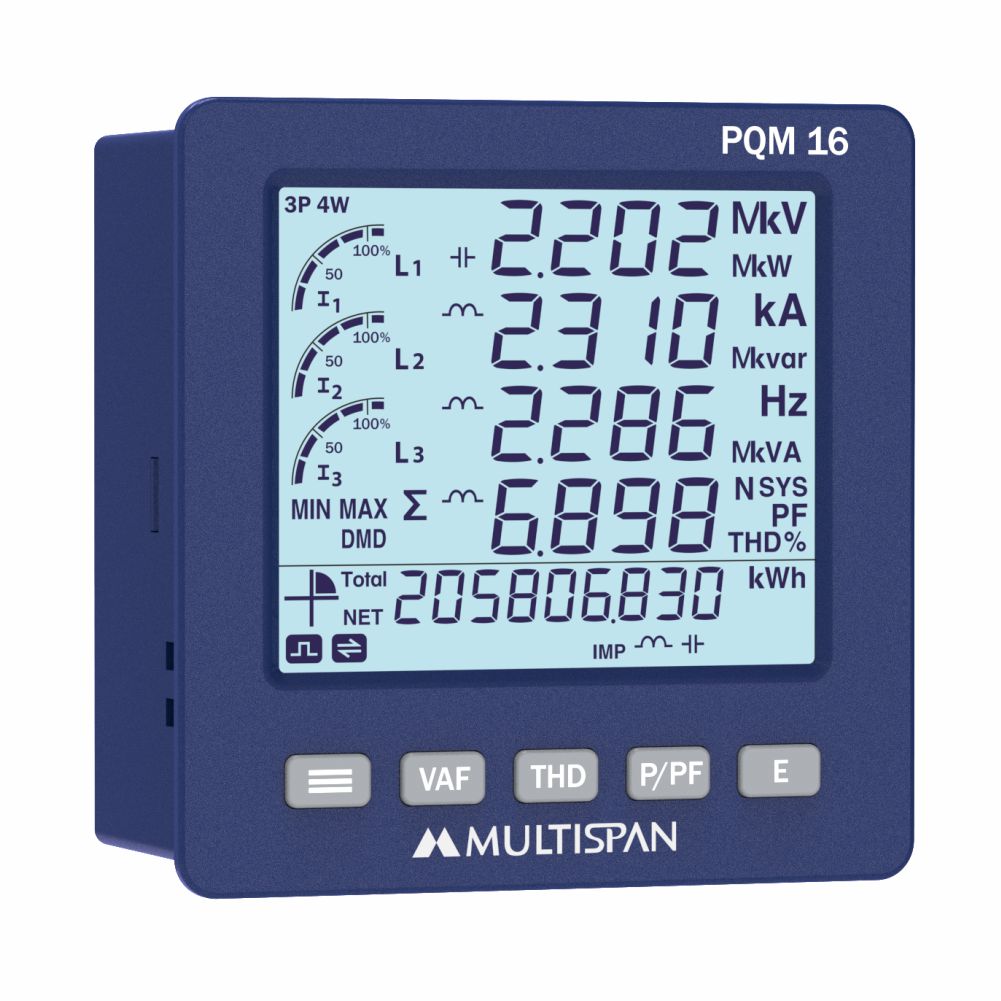

Multifunction Meter-LCD Display
Product: PQM-16
- 1Ø-2W, 3Ø-3W/4W Selectable
- Voltage Input 100V to 520kVAC, Secondary 100V to 520V AC
- THD Upto 32th Order
- Import Export Energy
- Import Export Energy Measurement
- Pulse & RS-485 Modbus Communication
| PARAMETER SPECIFICATION | |
| Input Signal | 3Ø-3Wire / 3Ø-4Wire / 1Ø-2Wire |
| CT Primary | Upto 9999A (Programmable) |
| CT Secondary | 5 Amp/1 Amp selectable |
| PT Primary | 100V to 520kV (Programmable) |
| PT Secondary | 100V to 520V (L-L) (Programmable) |
| True PF Avg. & Per Phase | -1.000 to 1.000 |
| Displacement PF | -1.000 to 1.000 |
| Frequency (Hz) | 45.00 - 60.00 Hz |
| Load hours | 9999.59 Hrs/Min. |
| No load hours | 9999.59 Hrs/Min. |
| On Hour | 9999 Hour |
| RPM | 3600 RPM @ 60 Hz & 2-Pole |
| THD Upto 32 level | |
| POWER | |
| KW Total | 0.000 - 9999 MW |
| kW Per Phase | 0.000 - 9999 MW |
| kVA Total | 0.000 - 9999 MVA |
| kVA Per Phase | 0.000 - 9999 MVA |
| kVAr Total | 0.000 - 9999 MVAr |
| kVAr Per Phase | 0.000 - 9999 MVAr |
| ENERGY | |
| Import kWh | 000.000 - 999999999 MWh |
| Export kWh | 000.000 - 999999999 MWh |
| Net kWh | 000.000 - 999999999 MWh |
| Total kWh | 000.000 - 999999999 MWh |
| kVAh Total | 000.000 - 999999999 MVAh |
| Import kVArh | 000.000 - 999999999 MVArh |
| Export kVArh | 000.000 - 999999999 MVArh |
| Lag kVArh | 000.000 - 999999999 MVArh |
| Lead kVArh | 000.000 - 999999999 MVArh |
| Total kVArh | 000.000 - 999999999 MVArh |
| DISPLAY & KEY | |
| Display Upper | 4 Digit, 4 Line 7 Seg 0.37”,LCD |
| Lower | 9 Digit, 1 Line 7 Seg 0.26”,LCD |
| Key | PROGRAM, VAF, THD%, POWER/PF, ENERGY |
| DIMENSION | |
| Size (mm) | 98 (H) x 98 (W) x 46 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| AUXILIARY SUPPLY | |
| Supply voltage | 100 to 300V AC/DC, 50/60Hz |
| Power consumption (VA RATING) | Approx 3 VA @ 230V AC |
| ACCURACY | Class 0.5 (Standard) |
| COMMUNICATION | |
| RS-485 MODBUS | |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity |
Upto 95% RH (non-condensing) |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- LT / HT Panel
- Power Control Center Panels
- Motor Control Center Panels
