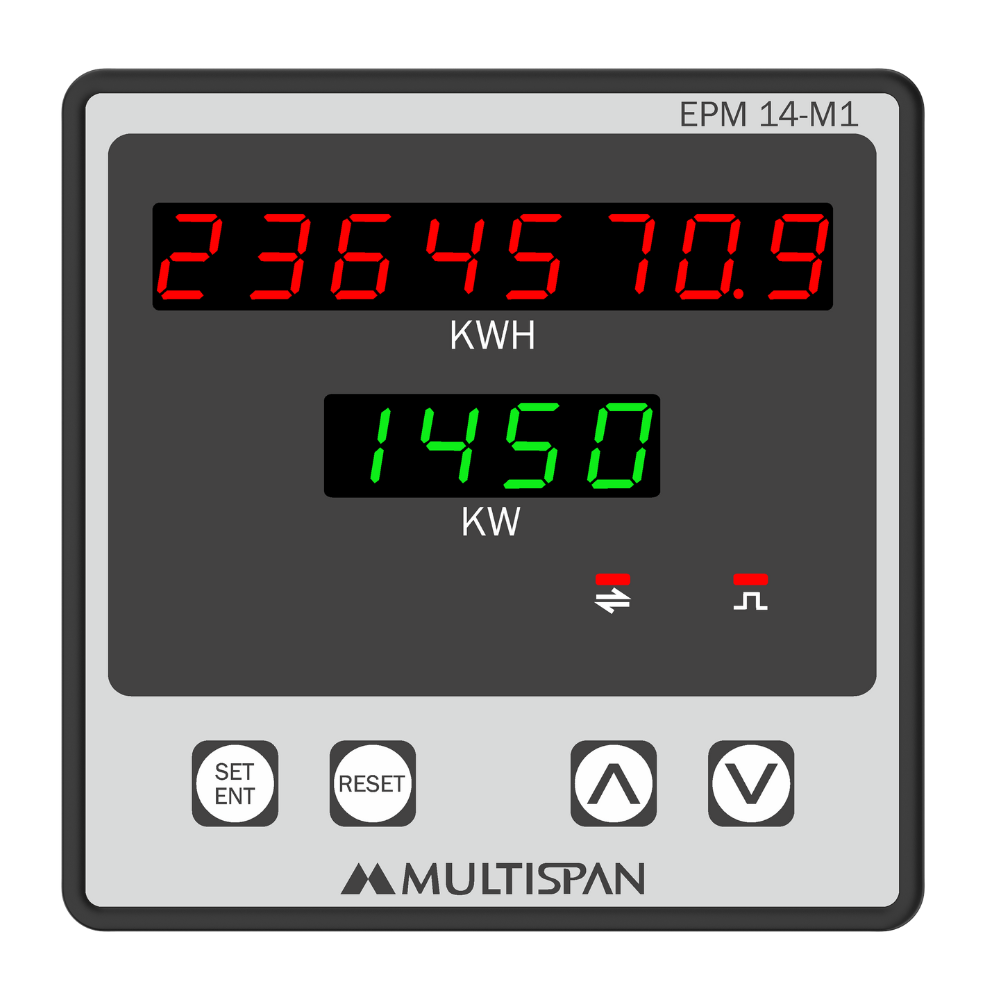

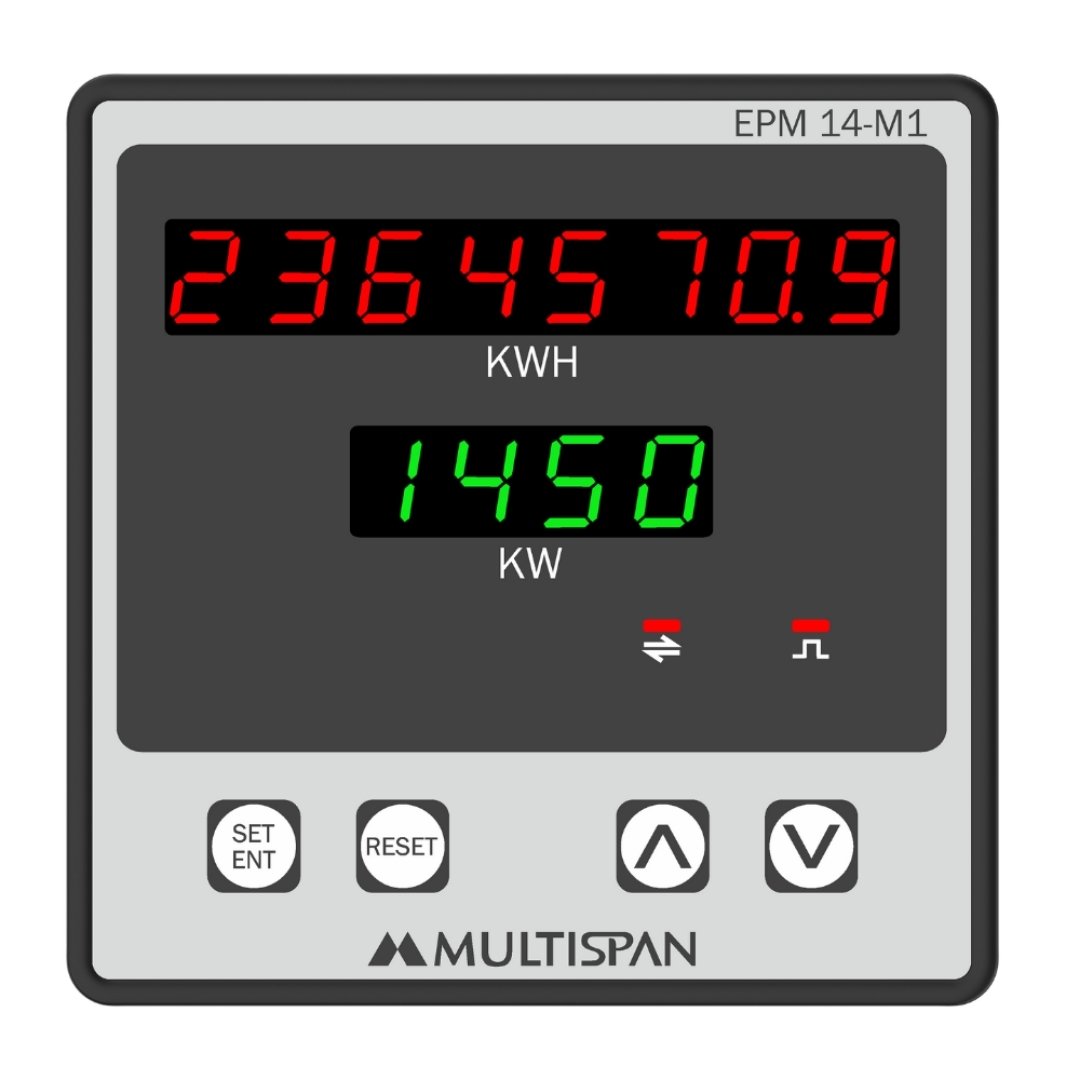

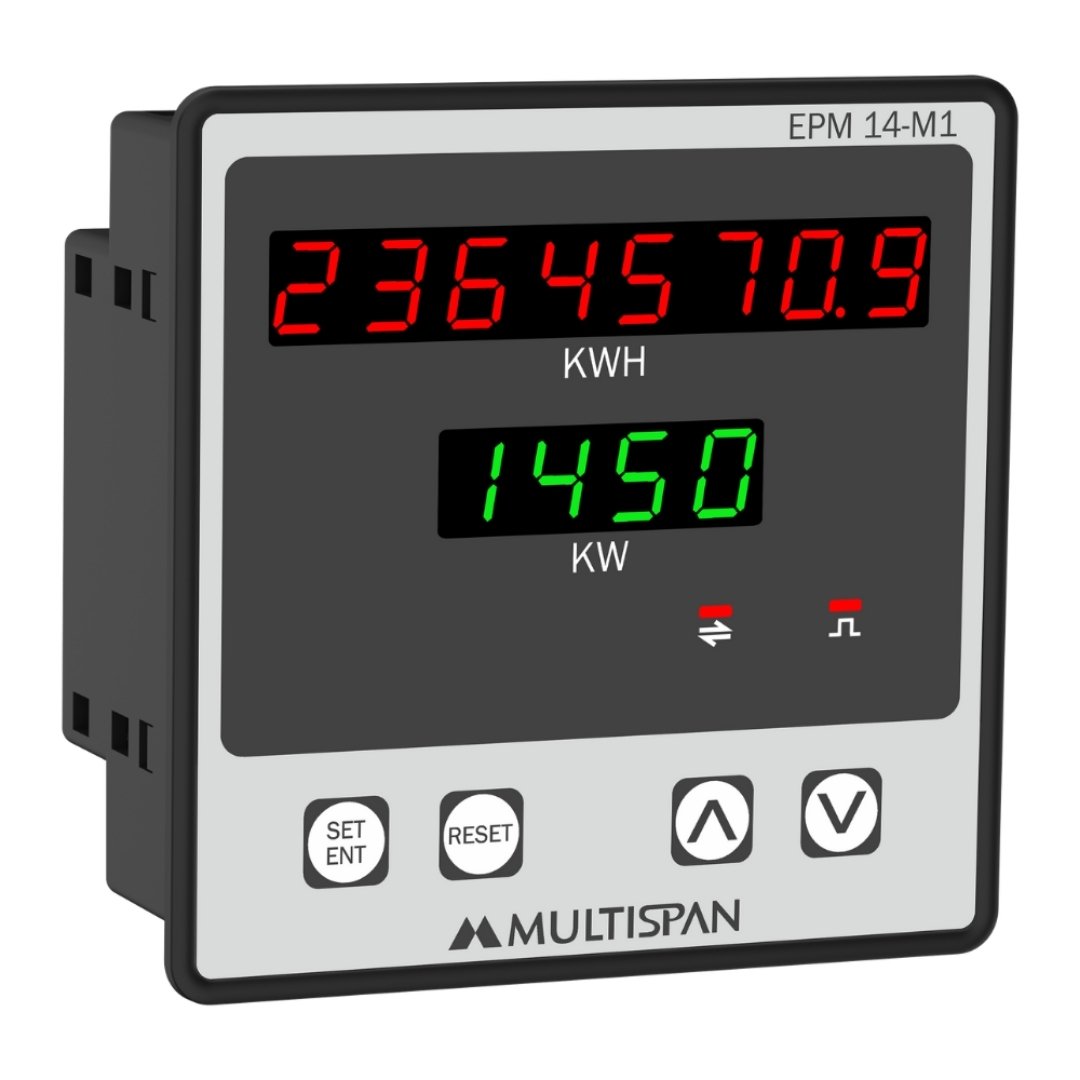

3Ø Energy Meter
Product: EPM-14-M1
- Network Selection: 3Ø-4Wire
- 30 to 300V AC (L-N), 50 to 520V AC (L-L)
- Individual Display for KWH and KW Indication
- Pulse, RS-485 Modbus Communications
- Relay Optional Available on KW, KVA Selectable
| Model | EPM-14-M1 |
| Display |
UPPER: 7-Seg, 8-Digit,0.39”, RED LED Display for KWH LOWER: 7-Seg, 4-Digit,0.39”, GREEN LED Display for KW |
| Size (mm) | 96(H) X 96 (W) X 54 (D) |
| Panel Cutout | 92 (H) X 92 (W) |
| Voltage Input | 50 To 520V AC L-L CAT III |
| 30 To 300V AC L-N | |
| Current Input | 50mA To 5Amp AC direct or C.T Selectable up to 6000/5 ratio |
| Active Power (KW) | 0000-9999 KW |
|
Active Energy |
0-99999999 KWH |
| Power Supply | 100 to 270V AC, 50/60Hz, Approx 4VA |
| Output |
Pulse Output : Voltage range 24V DC Max |
| Frequency | 45 To 65 Hz |
| Wiring System | 3Ø-4W |
| Protection Level (As per request) |
IP-65 (Front side) As per IS/IEC 60529 : 2001 |
| Operating Temperature | 0°C To 50°C |
| Relative Humidity | Upto 95% RH Non Condensing |
- Electrical Control Panel
- Power Distribution
- Instrumentation Panel
- Transformer training
Product Variant
| Model | Voltage | Current | Supply |
| EM-10-E3-00 | Voltage Input :3Ø-4Wire Voltage Input (L-N):30 To 300V AC Voltage Input (L-L): 50 To 520V AC |
CT Primary : 5A to 6000A CT Secondary : 5A |
100 to 270V AC/DC |
| EM-10-E3-02 | CT Input: 30A with DIN 30AX CT | ||
| EM-10-E3-06 | CT Input: 60A with DIN 60AX CT | ||
| EM-10-A2-04 | CT Input: 100A with DIN 100AX CT | ||
| EPM-14-E3-00 | CT Primary : 5A to 6000A CT Secondary : 5A |
||
| EPM-14-E3-02 | CT Input: 30A with DIN 30AX CT | ||
| EPM-14-E3-03 | CT Input: 60A with DIN 60AX CT | ||
| EPM-14-E3-04 | CT Input: 100A with DIN 100AX CT | ||
| Note: | 2-Relay Available on Request in "EPM-14" Modbus Available on Request |
||
