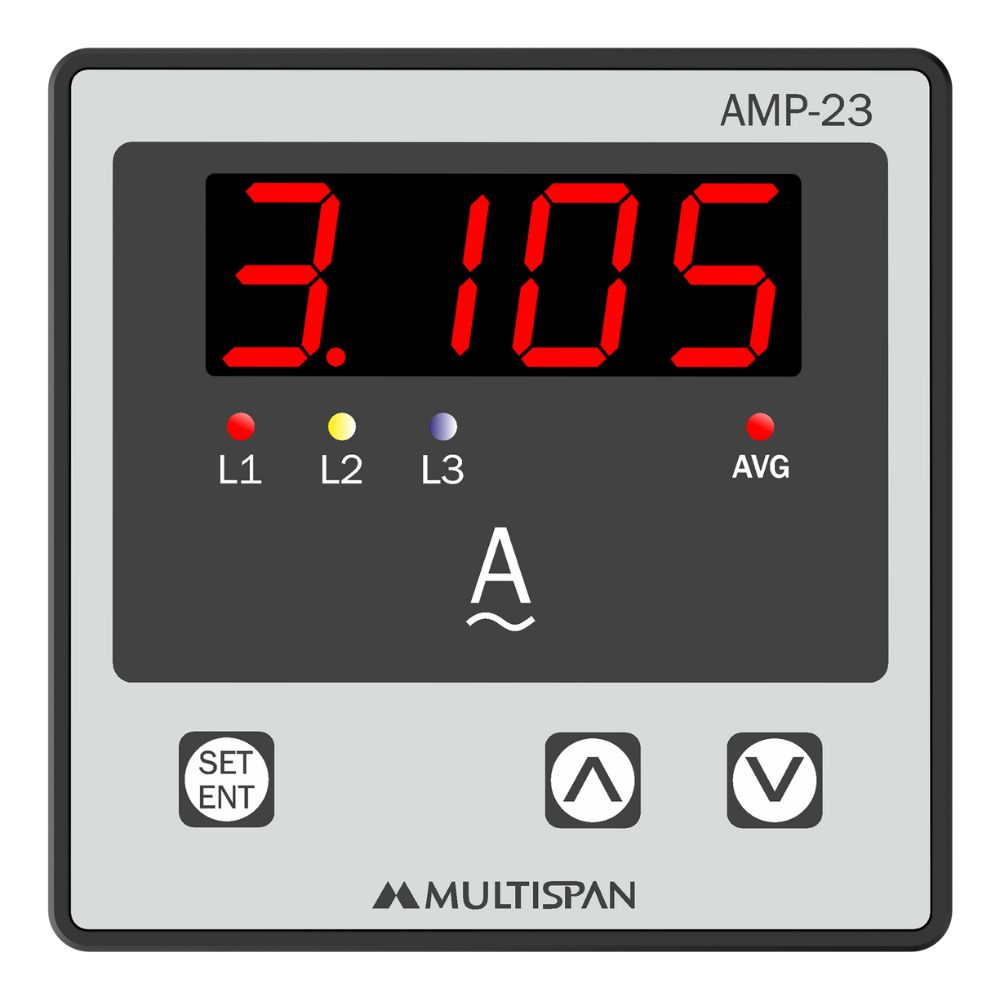

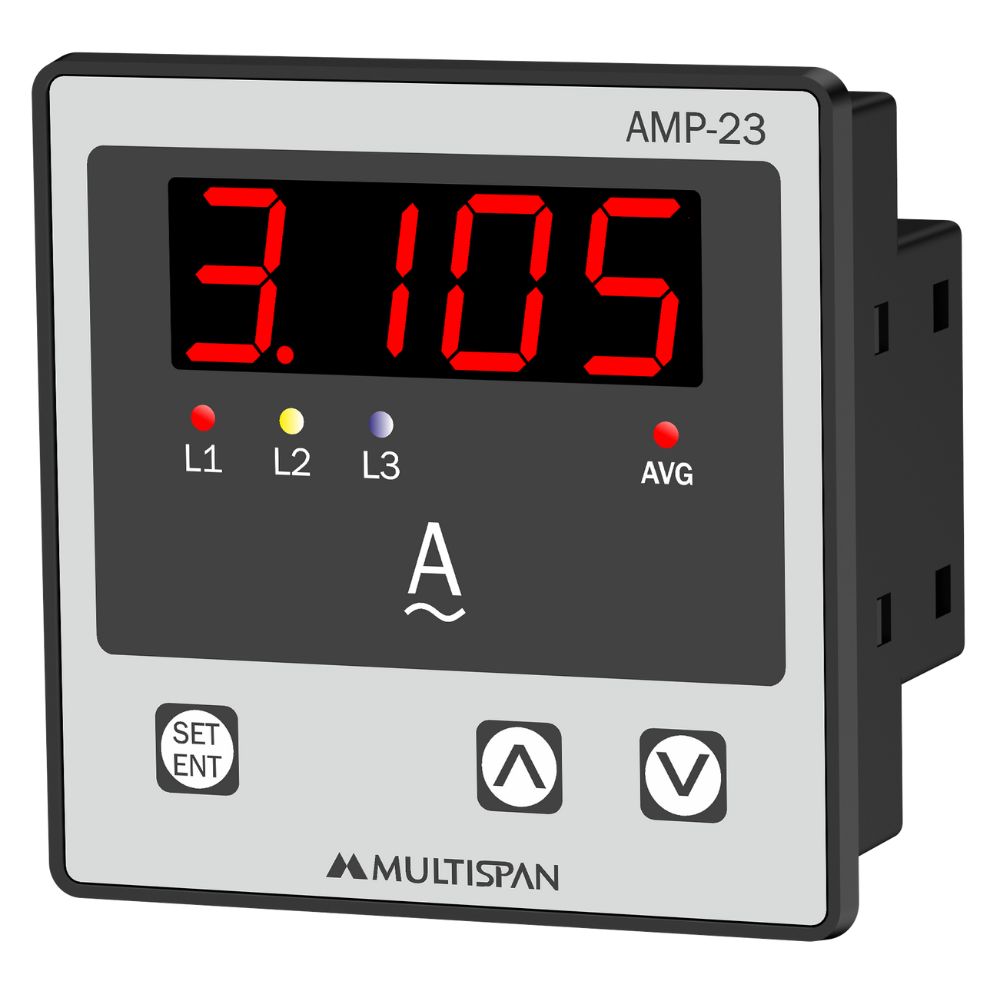

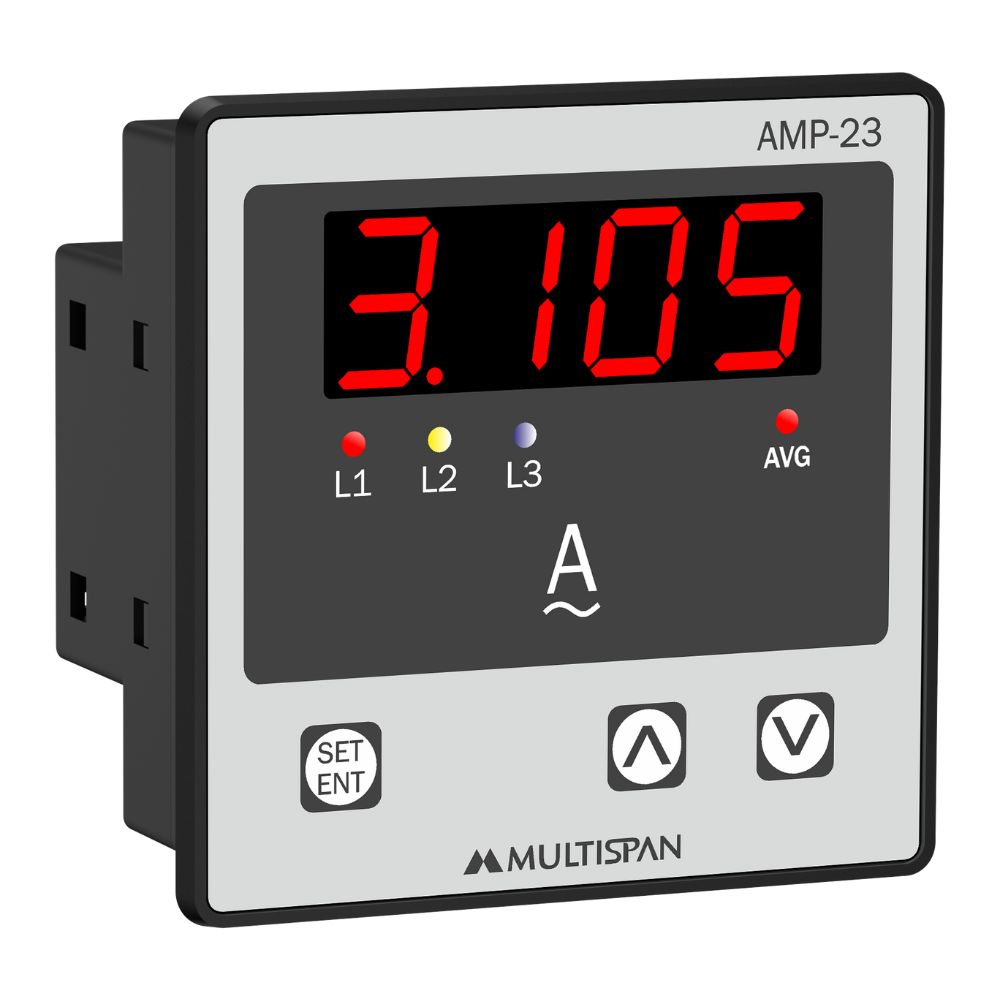

3 Phase Ampere Meter
Product: AMP-23
- Single Display for Each Phase Current Ampere with Scrolling Facility
- CT Primary :Upto 9999A
- CT Secondary : 5A & 1A AC
- Size: (H)72mm X (W)72mm X(D)45mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
Top Variants:
| INPUT | |
| Direct Current AC | 0.1Amp to 5 Amp AC |
| Primary CT | 9999 Amp (Selectable) |
| Secondary CT | 5 or 1 Amp (Selectable) |
| Accuracy | Class 0.5 |
| DISPLAY, KEY & LED | |
| Display | 4-Digit, 1-Line, 7-Seg, 0.56” RED LED |
| Key | SET/ENT, INC, DEC |
| LED Indication | L1, L2, L3, Avg |
| DIMENSION | |
| Size (mm) | 72 (H) x 72 (W) x 45 (D) mm |
| Panel Cutout (mm) | 68 (H) x 68 (W) |
| ACCURACY | |
| Class 0.5 (Standard) | |
| AUXILIARY POWER SUPPLY | |
| Power Supply | 100-270V AC 50/60HZ 3VA |
| Power consumption (VA RATING) | 3 VA MAX |
| ENVIRONMENTAL CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level ( As per Request ) | IP-65 (Front side As per IS/IEC 60529 : 2001) |
- Electrical Control Panel
- Power Distribution
- Instrumentation Panel
- Transformer Testing
Product Variant
| Model | Current | Auxillary |
| AMP-23-A2-00 | CT Primary :Upto 9999A CT Secondary : 5A & 1A AC |
100 to 270V AC |
| AMP-23-A2-03 | CT Input: 30A with DIN 30AX CT | |
| AMP-23-A2-06 | CT Input: 60A with DIN 60AX CT | |
| AMP-23-A2-08 | CT Input: 125A with DIN 125AX CT |
