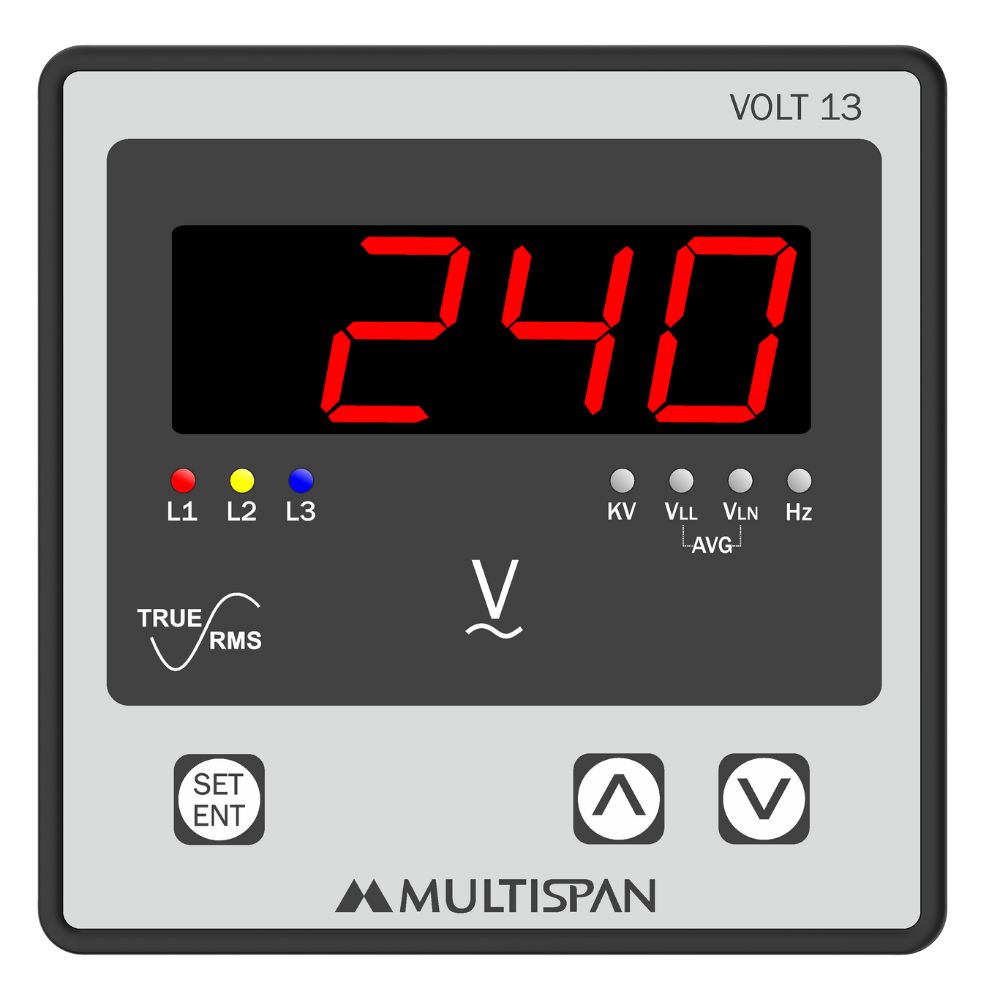

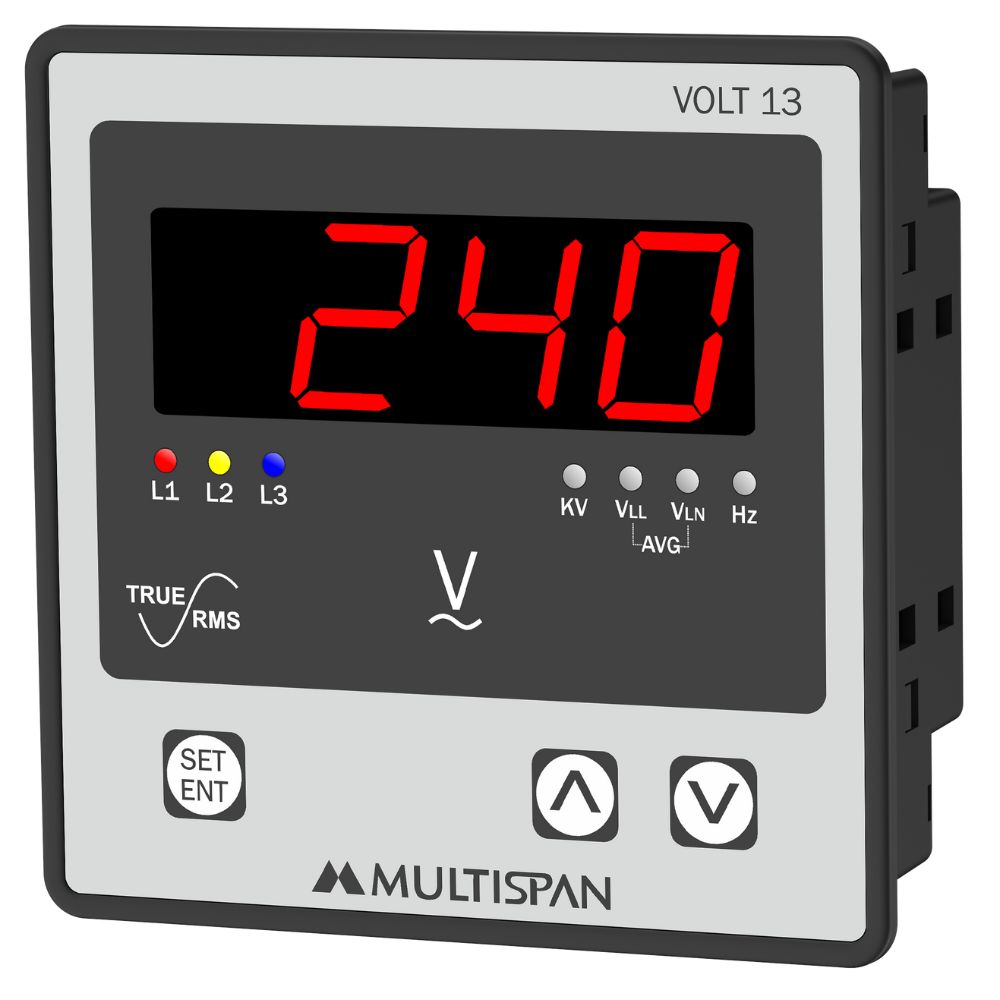

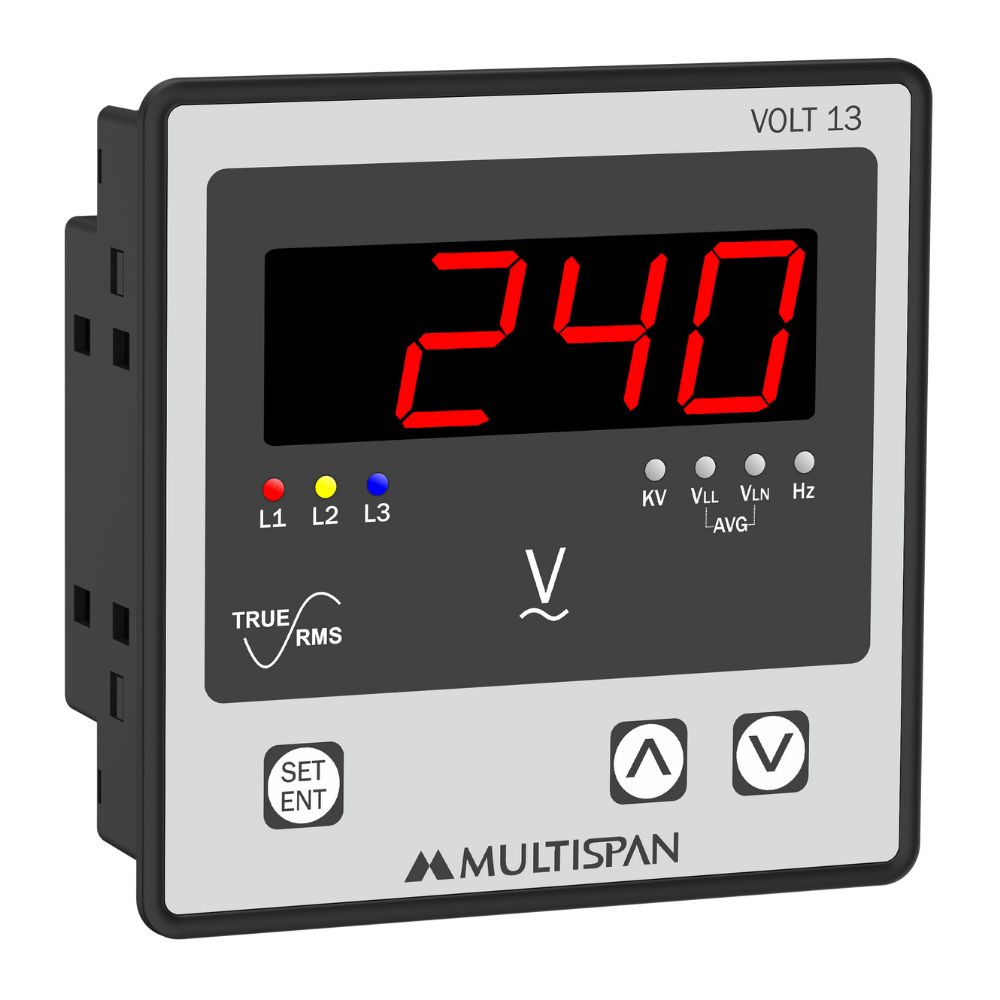

3Ø Voltmeter
Product: Volt-13
- 3Ø-3W/4W
- Single Line Display for 3Ø Voltage with Scrolling Facility
- Primary Voltage : 100V to 520KV AC
- Secondary Voltage : 100V to 520V AC
- Size: (H)96mm X (W)96mm X(D)43mm
- Supply Voltage: 230V AC, ±20%,50Hz
Top Variants:
| INPUT SPECIFICATION | |
| Voltage AC | |
| Rated voltage AC (Direct voltage AC) | 50 to 520V (L - L) |
| 30 to 300V (L - N) | |
| Primary PT Ratio | 100 to 520KV AC (L-L) (Selectable) |
| Secondary PT Ratio | 100 to 520V AC (L-L) (Selectable) |
| Frequency | 45.0 to 65.0 Hz |
| Resolution | 1 Volt |
| NETWORK CONNECTION | 3Ø-3W/4W |
| DISPLAY AND KEYS | |
| Display | 4-Digit, 1-Line, 7-Seg, 0.8” RED LED |
| Keys | SET/ENT, INC, DEC |
| LED Indication | L1, L2, L3, Avg, L-L, L-N, Hz |
| GENERAL SPECIFICATION | |
| Dimension (mm) | 96 (H) x 96 (W) x 43 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| ACCURACY | Class 0.5 (Standard) |
| AUXILIARY SUPPLY | |
| Supply Voltage | 230V AC, ±20%,50Hz |
|
Power consumption (VA RATING) |
4 VA MAX |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity |
Upto 95% RH (non-condensing) |
| Protection Level (As per request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- Process Control
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Auxillary |
| VOLT-13-B1-00 | Network Selection :3Ø3W/4W PT Primary: 100V to 520kV (Programmable) PT Secondary: 100V to 520V (L-L) (Programmable) |
230V AC |
