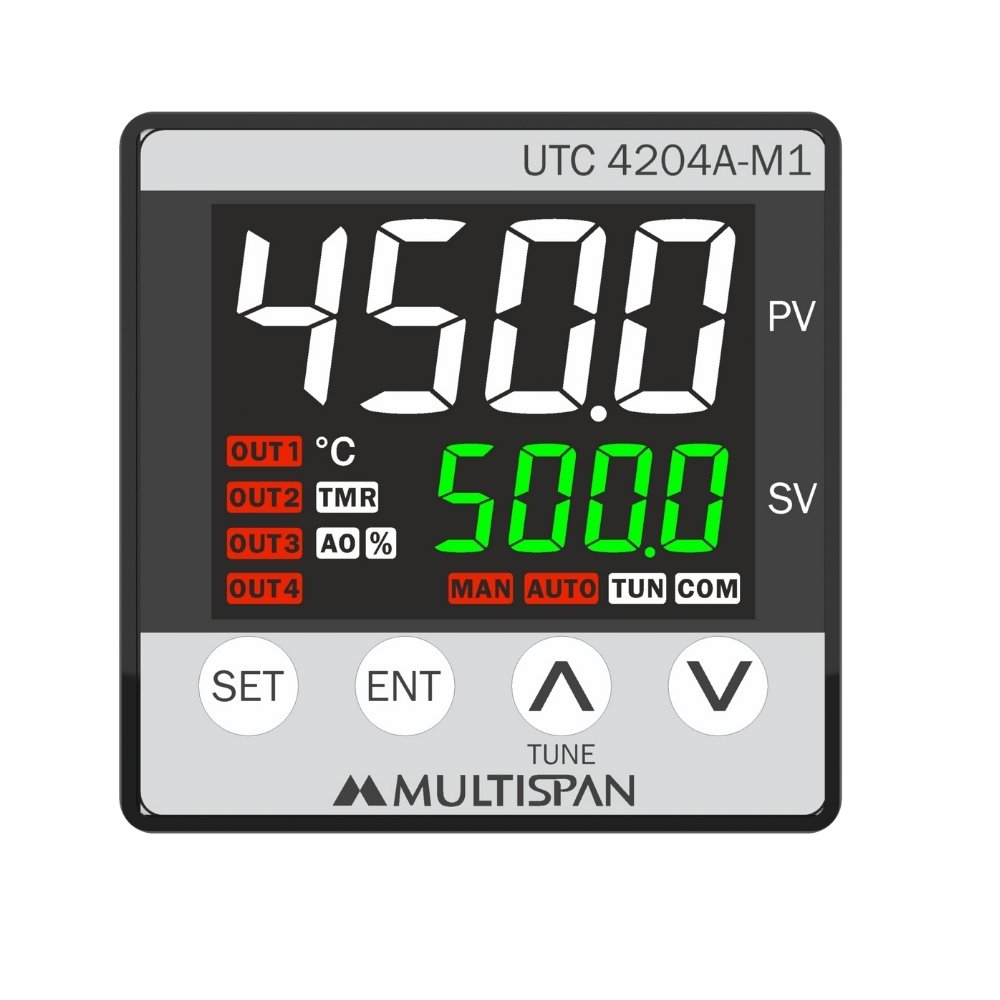

UTC-4204A-M1 PID Controller with 4 Outputs

LOADING IMAGES

Product: UTC-4204A-M1

INPUT SPECIFICATION:
Input Types	Input	Range
	J	0 to 600°C
	K	0 to 1200°C
	R	0 to 1600°C,
	S	0 to 1800°C,
	PT-100	-99 to 400°C,
	PT.1	-99.9 to 400.0°C,
Resolution	J,K,R,S,PT-100 = 1°C PT.1 = 0.1°C
Indication Accuracy	0.5% Full Scale ± 1 Digit
DISPLAY AND KEYS:
Display	Upper: 4 digit, 7 segment, 0.54”
	Lower: 4 digit, 7 segment, 0.30”
Keys	SET, ENT, INC, DEC
DIMENSION:
Size (mm)	48 (H) x 48 (W) x 103 (D)
Panel Cutout (mm)	45 (H) x 45 (W)
CONTROL METHOD:
Heating	1. PID control with Auto-Tuning
	2. ON-OFF control
Cooling	1) BL.TP (Blower Time Proportion)
	2) ON-OFF control
POWER SUPPLY
Supply voltage	100 to 270V AC, 50-60Hz
Power consumption (VA RATING)	Approx 7 VA @ 230V AC MAX
OUTPUT SPECIFICATION :
Relay Output
Relay	4 Nos
Relay Type	1R(NO-C-NC),2, 3 & 4R(NO-C)
Rating	5A, 230V AC/30 V DC
Analog Output
Controlling Output	4 to 20mA DC
Modbus Communication
RS-485
ENVIRONMENT CONDITION:
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH
	(non-condensing)
Protection Level (As per request)	IP-65 (Front side) As per IS/IEC 60529 : 2001

Product Variant

Sr.no	Model No	Input	Output	Analog O/P	Aux Supply	Display
1	UTC-4204A-M1-E3-00A	J/K/Pt-100/R/S Selectable	4 Relay	4-20mA DC	100-270V AC/DC	White + Green
2	UTC-4204A-M1-E3-00V	J/K/Pt-100/R/S Selectable	4 Relay	0-10V DC	100-270V AC/DC	White + Green
3	UTC-4204A-M1-E3-01A	J/K/Pt-100/R/S Selectable	1 SSR + 3 Relay	4-20mA DC	100-270V AC/DC	White + Green
