Signal Isolator

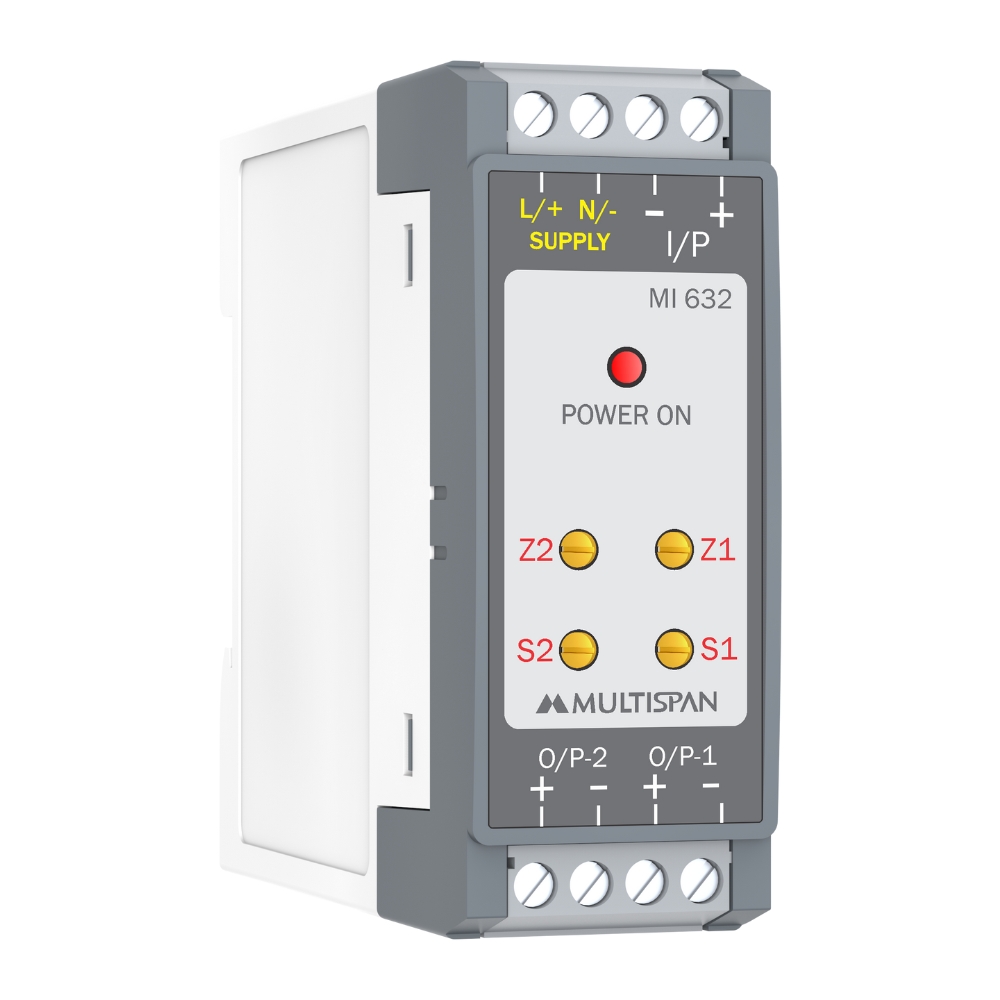

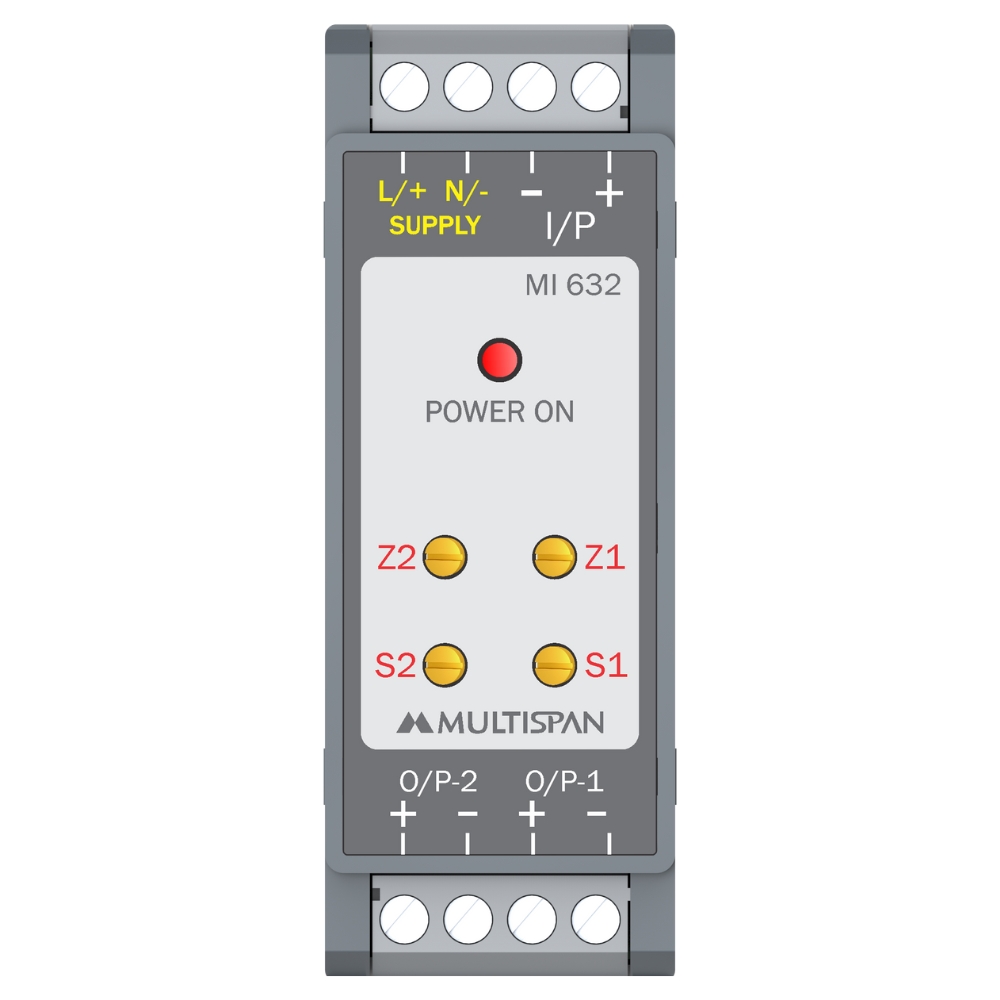

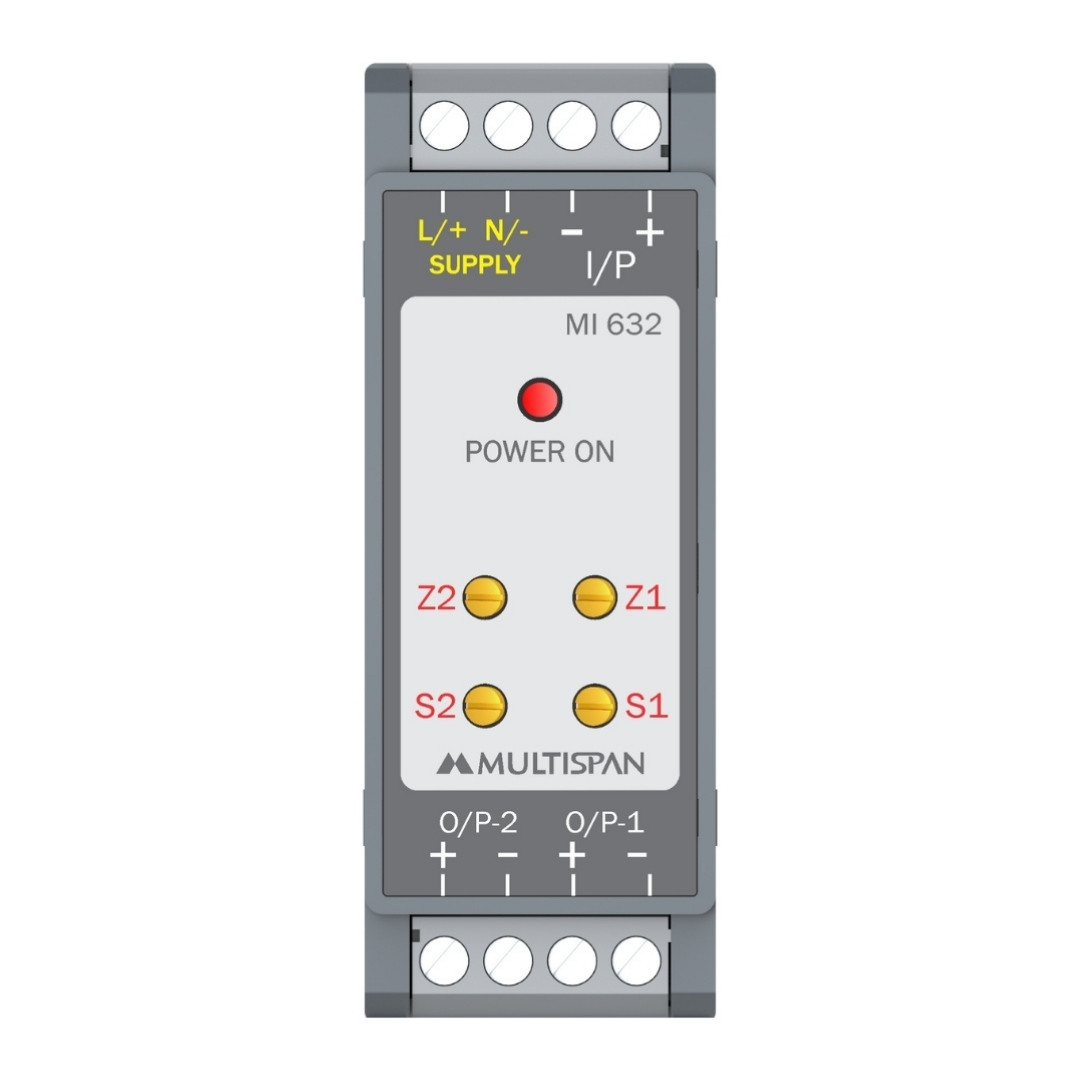

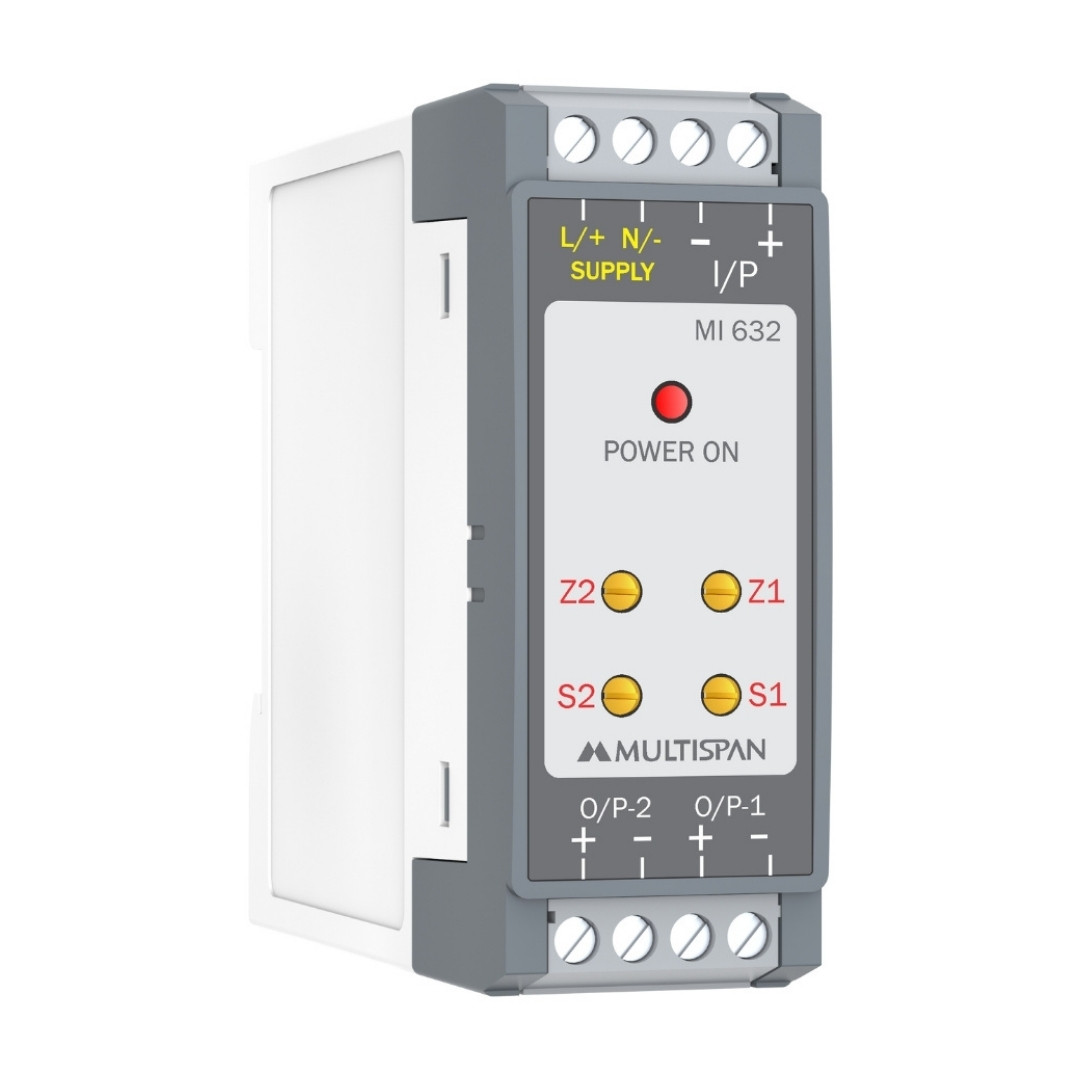

Product: MI-632
- Fix Analog Input & Output
- Available in Single and Dual Output with Higher Noise Rejection Ratio
- 3-Way Isolation Input-Output, Input-Supply, Output-Supply
- Size: (H)76mm x (W)28mm x (D)85mm
- Supply Voltage: 100-270V AC/24V DC
Top Variants:
| INPUT SPECIFICATION | |
| Input | 0-20 mA DC, 4-20 mA DC, 0-10 V DC (Factory Set) |
| Input Inpedance | <100Ω |
| CMRR | >120dp (Typical) |
| Temperature Co-efficient | <100 PPM |
| DIMENSION | |
| Size (mm) | 76 (H) X 28 (W) X 85 (D) |
| OUTPUT SPECIFICATION: | |
| Output 1 & 2 | 0-20 mA DC, 4-20 mA DC, 0-10 V DC (Factory Set) |
| Response Type | <150ms |
| Output Inpedance | <500Ω |
| POWER SUPPLY: | |
| Auxiliary Voltage | 100 to 270V AC,50/60Hz or 24 V DC (Factory Set) |
| Power Consumption ( VA Rating ) | 5VA @230V AC |
| ISOLATION: | |
| Isolation Type | Optical - 3 way |
|
Isolation between |
At least 1.5KV AC for 1 min |
- Field Interface device
- Impedance matching of transmitters and receiver
- Isolation of field signals
- Distribution of signals
- Factory automation
- Powering of field Transmitters
Product Variant
| sr.no | Model No | Input | Output 1 | Output 2 | Aux.supply |
| 1 | MI-631-A2-AA | 4-20mA DC | 4-20mA DC | 100-270V AC | |
| 2 | MI-631-A2-AV | 4-20mA DC | 0-10V DC | 100-270V AC | |
| 3 | MI-631-A2-VA | 0-10V DC | 4-20mA DC | 100-270V AC | |
| 4 | MI-631-A2-VV | 0-10V DC | 0-10V DC | 100-270V AC | |
| 5 | MI-631-24-AA | 4-20mA DC | 4-20mA DC | 24V DC | |
| 6 | MI-631-24-AV | 4-20mA DC | 0-10V DC | 24V DC | |
| 7 | MI-631-24-VA | 0-10V DC | 4-20mA DC | 24V DC | |
| 8 | MI-631-24-VV | 0-10V DC | 0-10V DC | 24V DC | |
| 9 | MI-632-A2-A-AA | 4-20mA DC | 4-20mA DC | 4-20mADC | 100-270V AC |
| 10 | MI-632-A2-A-VV | 4-20mA DC | 0-10V DC | 0-10V DC | 100-270V AC |
| 11 | MI-632-A2-A-AV | 4-20mA DC | 4-20mA DC | 0-10V DC | 100-270V AC |
| 12 | MI-632-A2-V-VV | 0-10V DC | 0-10V DC | 0-10V DC | 100-270V AC |
| 13 | MI-632-A2-V-AA | 0-10V DC | 4-20mA DC | 4-20mA DC | 100-270V AC |
| 14 | MI-632-A2-V-AV | 0-10V DC | 4-20mA DC | 0-10V DC | 100-270V AC |
| 15 | MI-632-24-A-AA | 4-20mA DC | 4-20mA DC | 4-20mADC | 24V DC |
| 16 | MI-632-24-A-VV | 4-20mA DC | 0-10V DC | 0-10V DC | 24V DC |
| 17 | MI-632-24-A-AV | 4-20mA DC | 4-20mA DC | 0-10V DC | 24V DC |
| 18 | MI-632-24-V-VV | 0-10V DC | 0-10V DC | 0-10V DC | 24V DC |
| 19 | MI-632-24-V-AA | 0-10V DC | 4-20mA DC | 4-20mA DC | 24V DC |
| 20 | MI-632-24-V-AV | 0-10V DC | 4-20mA DC | 0-10V DC | 24V DC |
