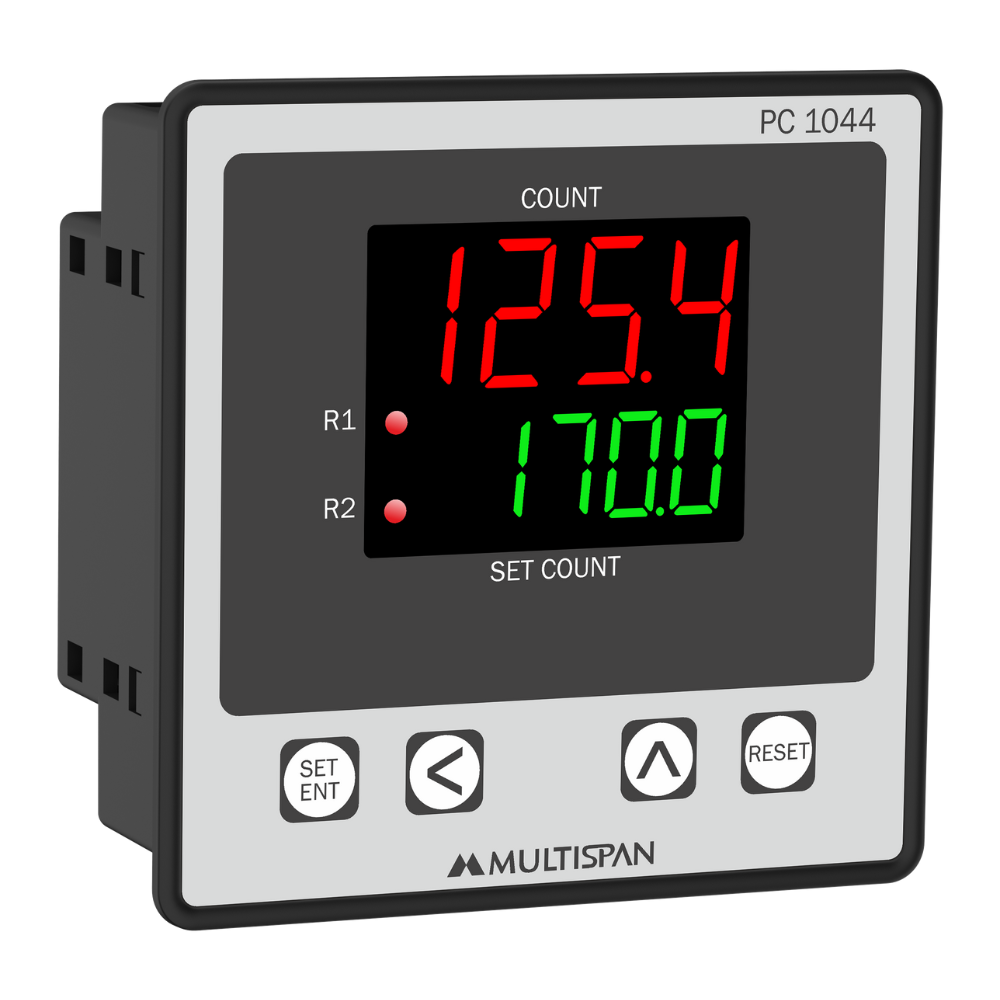

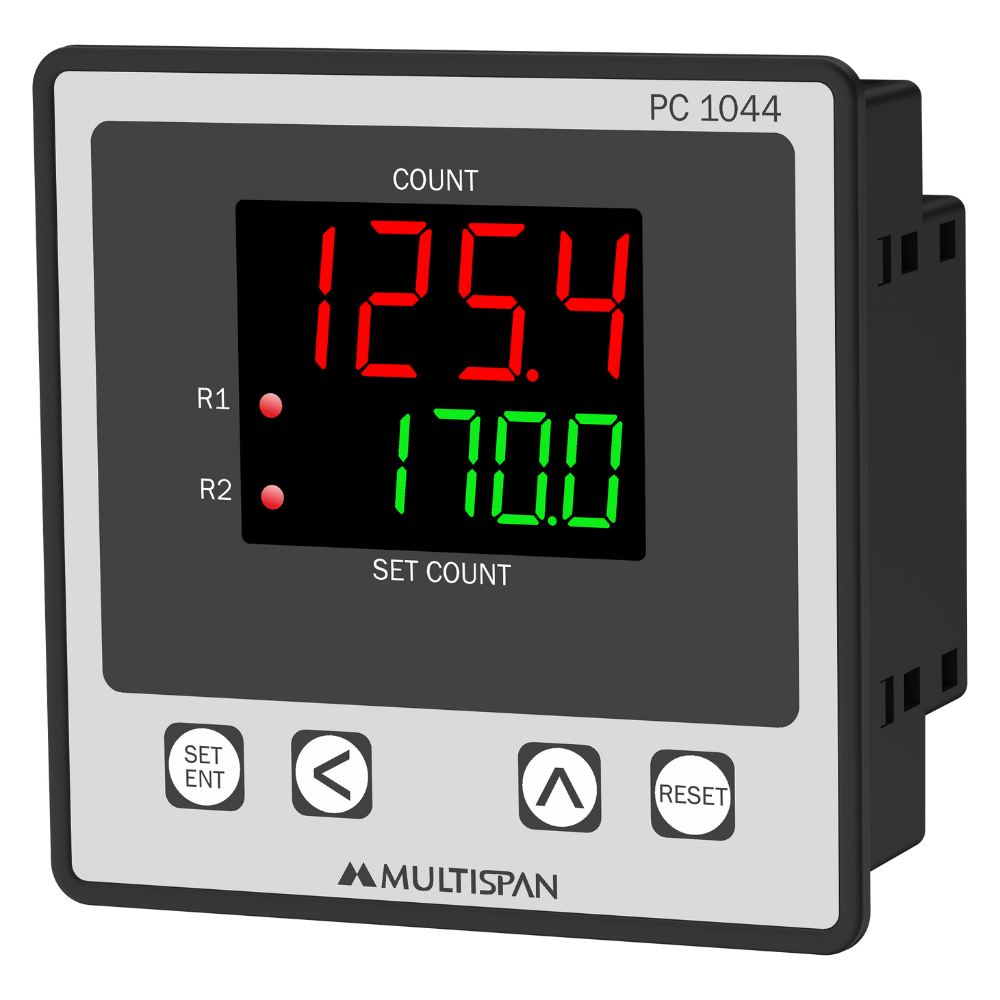

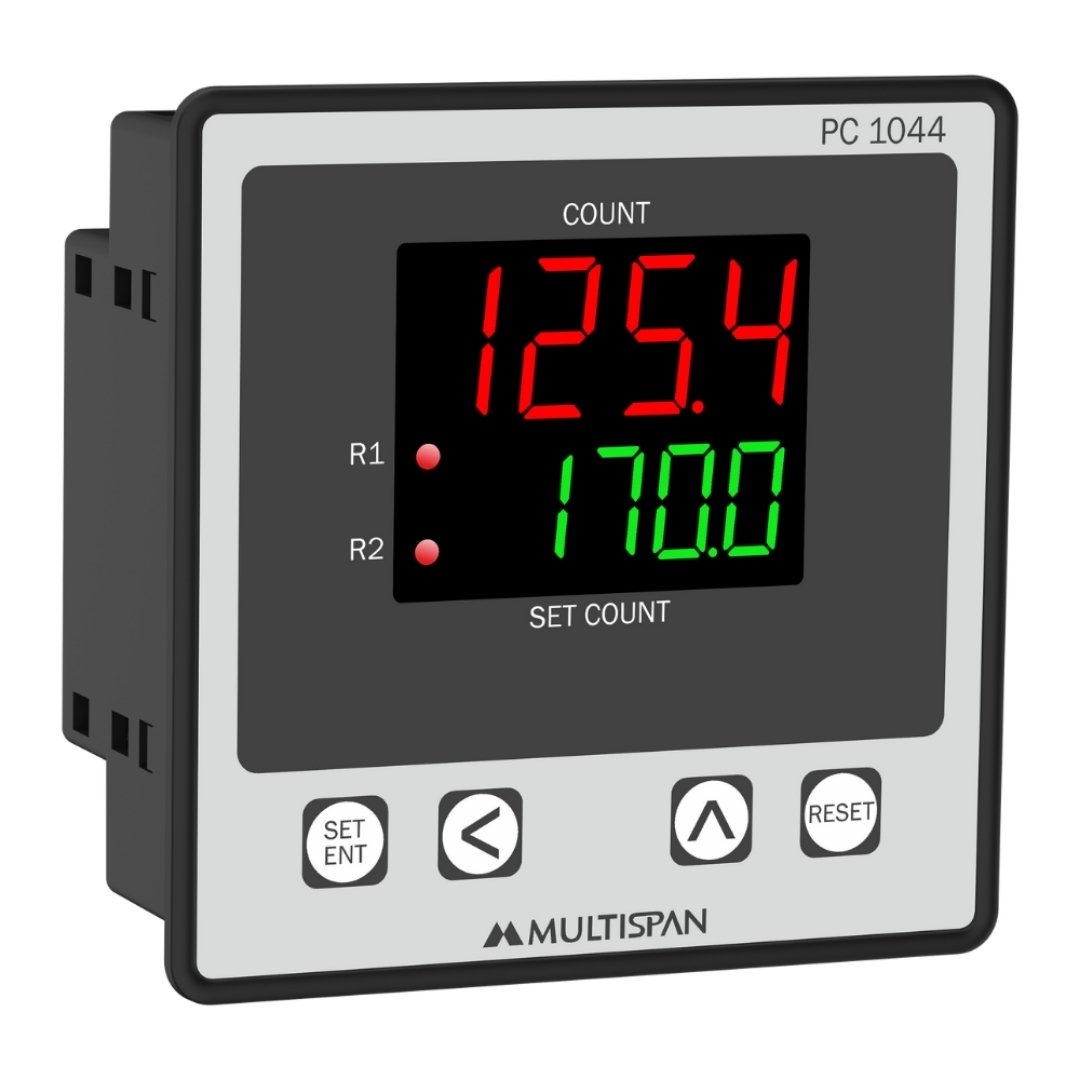

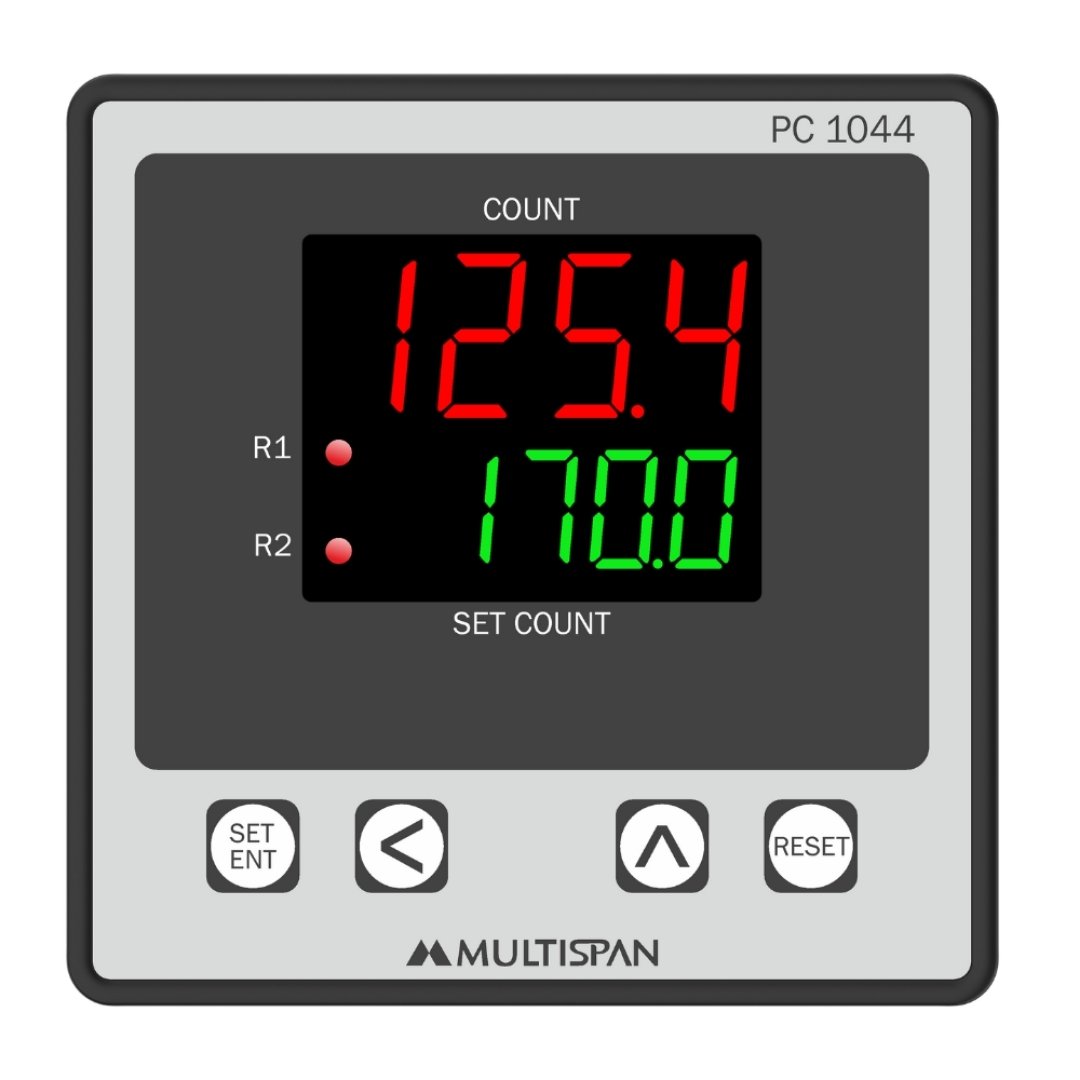

Programmable counter
Product: PC-1044
- Proximity or Micro switch Input
- 1Relay 2C/O Output
- Individual display for Process Count & Set Count
- Auto/Manual reset
- Size: (H)96mm X (W)96mm X (D)54mm
- Supply Voltage: 230V AC
Top Variants:
| Parameter | Specification |
|---|---|
| Model | PC-1044 |
| Display UPPER | 4-Digit, 7-seg 0.70", Red LED |
| Display LOWER | 4-Digit 7-Seg 0.50", Green LED |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Input | NPN/PNP Proximity & Micro Switch |
| Output | 1-Relay, 2-C/O Contact, 5A 230V AC |
| Power Supply | 230V AC, 50Hz, Approx 4VA |
| Memory Selectable | Yes/No |
| Reset | Front Reset Key & Back Reset Terminal |
| Protection Level | IP-65 (Front side) as per IS/IEC 60529:2001 |
| Operating Temperature | 0°C to 55°C |
| Humidity | Upto 95% RH, Non-Condensing |
- Pharmaceutical Machinery
- Product Counting Machinery
- Packaging Machinery
Product Variant
| Model | Description | Auxillary |
| PC-1044-B1-00 | Input: NPN/PNP Proximity Range: 0 to 9999 Count Output: 1 Relay 2C/O Front Reset & Back Reset |
230V AC |
| Note | 2 Relay Available on Request | |
