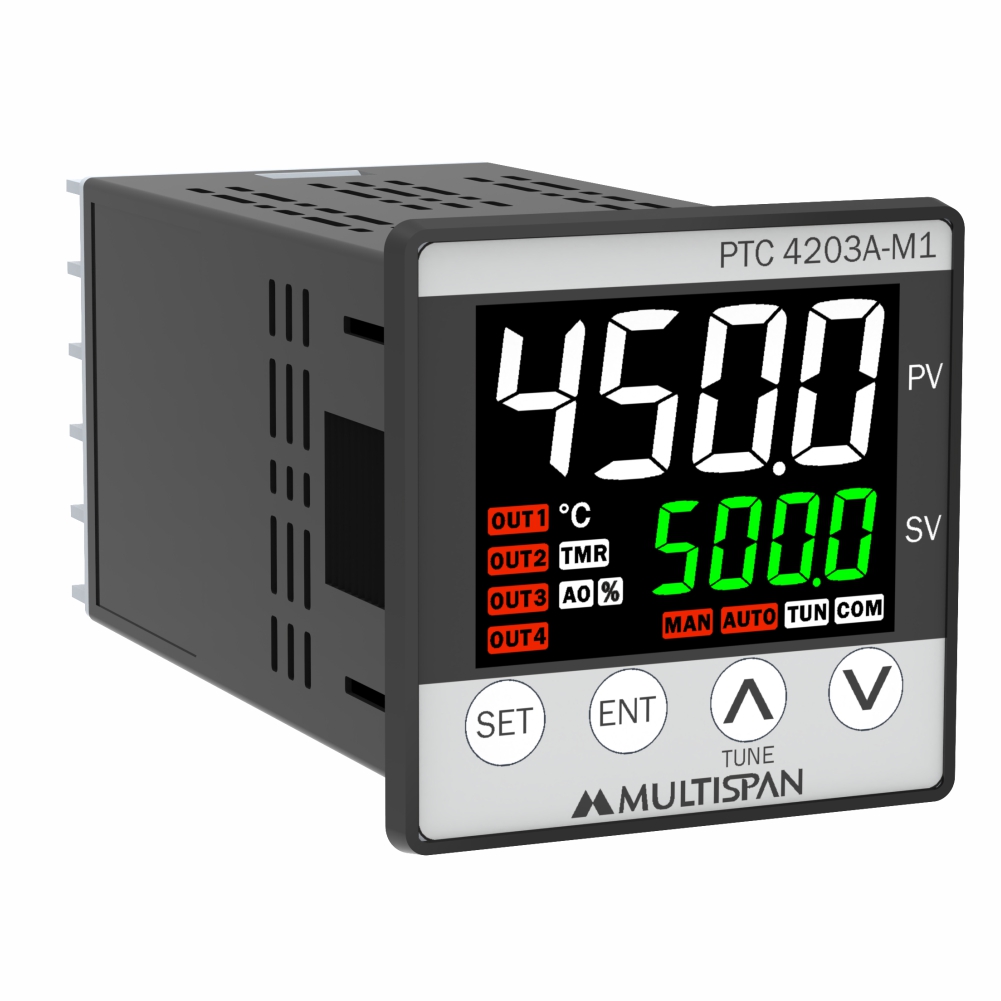

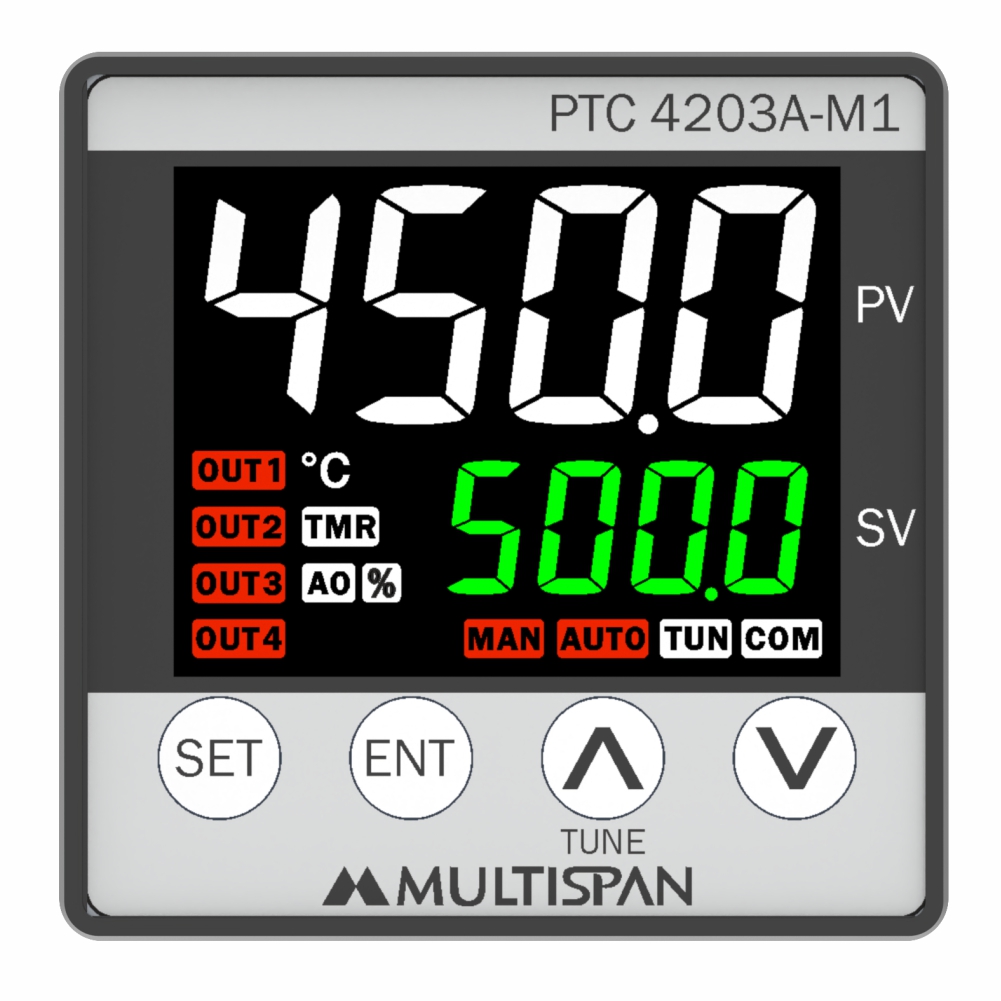

Process Temperature Controller - PTC 4203A-M1
Product: PTC-4203A-M1
- Universal Input (J/K/R/S/RTD/4-20mA DC/0-10V DC/0-20mA DC)
- 4-Digit Dual White/Green LED Display
- 3-Relay Output
- Analog Output (Retransmission & Controlling) & RS-485 Modbus Facility
- Size: (H)48mm x (W)48mm x (D)103mm
- Supply Voltage: 100-270V AC/DC
| INPUT SPECIFICATION: | ||
| Input Types | Input | Range |
| J | 0 to 800°C | |
| K | 0 to 1200°C | |
| R | 0 to 1800°C | |
| S | 0 to 1800°C | |
| PT-100 | -100 to 400°C | |
| PT.1 | -100.0 to 400.0°C | |
| 0-10V DC | -1999 to 9999 | |
| 0-20mA DC | -1999 to 9999 | |
| 4-20mA DC | -1999 to 9999 | |
| Resolution | J,K,R,S,PT-100 = 1°C | |
| PT.1 = 0.1°C | ||
| 0-10V DC,0-20mA DC,4-20mA DC | ||
| = 0.1,0.01,0.001,0001 | ||
| Indication Accuracy | ±0.5% of FS ± 1°C | |
| (FS : full scale) | ||
| DISPLAY AND KEYS: | ||
| Display | Upper: 4 digit, 7 segment, 0.54” | |
| Lower: 4 digit, 7 segment, 0.30” | ||
| Keys | SET, ENT, INC, DEC | |
| DIMENSION: | ||
| Size (mm) | 48 (H) x 48 (W) x 103 (D) mm | |
| Panel Cutout (mm) | 45 (H) x 45 (W) mm | |
| CONTROL METHOD: | ||
| Heating | 1. PID Control with Auto-Tuning | |
| 2. ON-OFF Control | ||
| Cooling | 1. BL.TP (Blower Time Proportion) | |
| 2. ON-OFF Control | ||
| OUTPUT SPECIFICATION | ||
| Relay Output | ||
| Relay | 3 nos. | |
| Relay Type | 1R (NO-C-NC), 2 & 3 (NO-C) | |
| Rating | 5A, 230V AC/30V DC | |
| Analog Output | ||
| 4 to 20mA DC | ||
| Transmitter supply | ||
| 24V DC | ||
| Modbus Communication | ||
| RS-485 | ||
| AUXILIARY SUPPLY | ||
| Supply voltage | 100 to 270V AC/DC, 50-60Hz | |
| Power consumption (VA RATING) | Approx 7 VA @ 230V AC MAX | |
| ENVIRONMENT CONDITION | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
- Menufacturing industries
- Pharmaceutical and Biotech Industries
- Industrial Process Control
Product Variant
|
Sr.no |
Model No |
Input |
Output |
RS-485 Modbus |
Aux Supply |
Size |
| 1 | PTC-4203-M1-E3-00 | J/K/R/S/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) | 3 Relay | yes | 100-270V AC/DC | 48x48x103(HxWxD)mm |
| 2 | PTC-4203A-E3-00A | J/K/R/S/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) | 4-20mA DC + 3 Relay | 100-270V AC/DC | 48x48x103(HxWxD)mm | |
| 3 | PTC-4203A-M1-E3-00A | J/K/R/S/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) | 4-20mA DC + 3 relay | yes | 100-270V AC/DC | 48x48x103(HxWxD)mm |
| 4 | PTC-4203A-M1-E3-00V | J/K/R/S/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) | 0-10V DC + 3 relay | yes | 100-270V AC/DC | 48x48x103(HxWxD)mm |
