Process controller

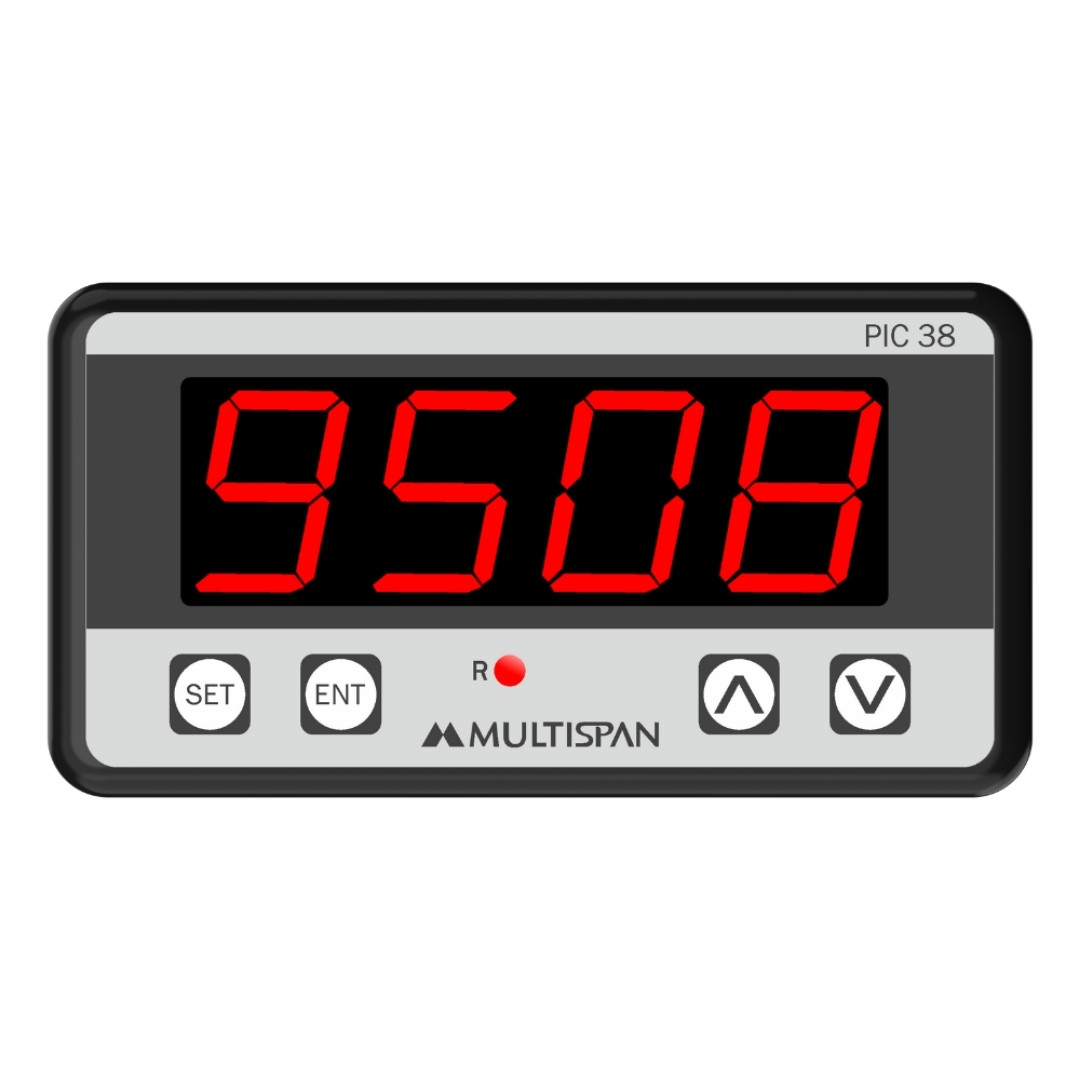

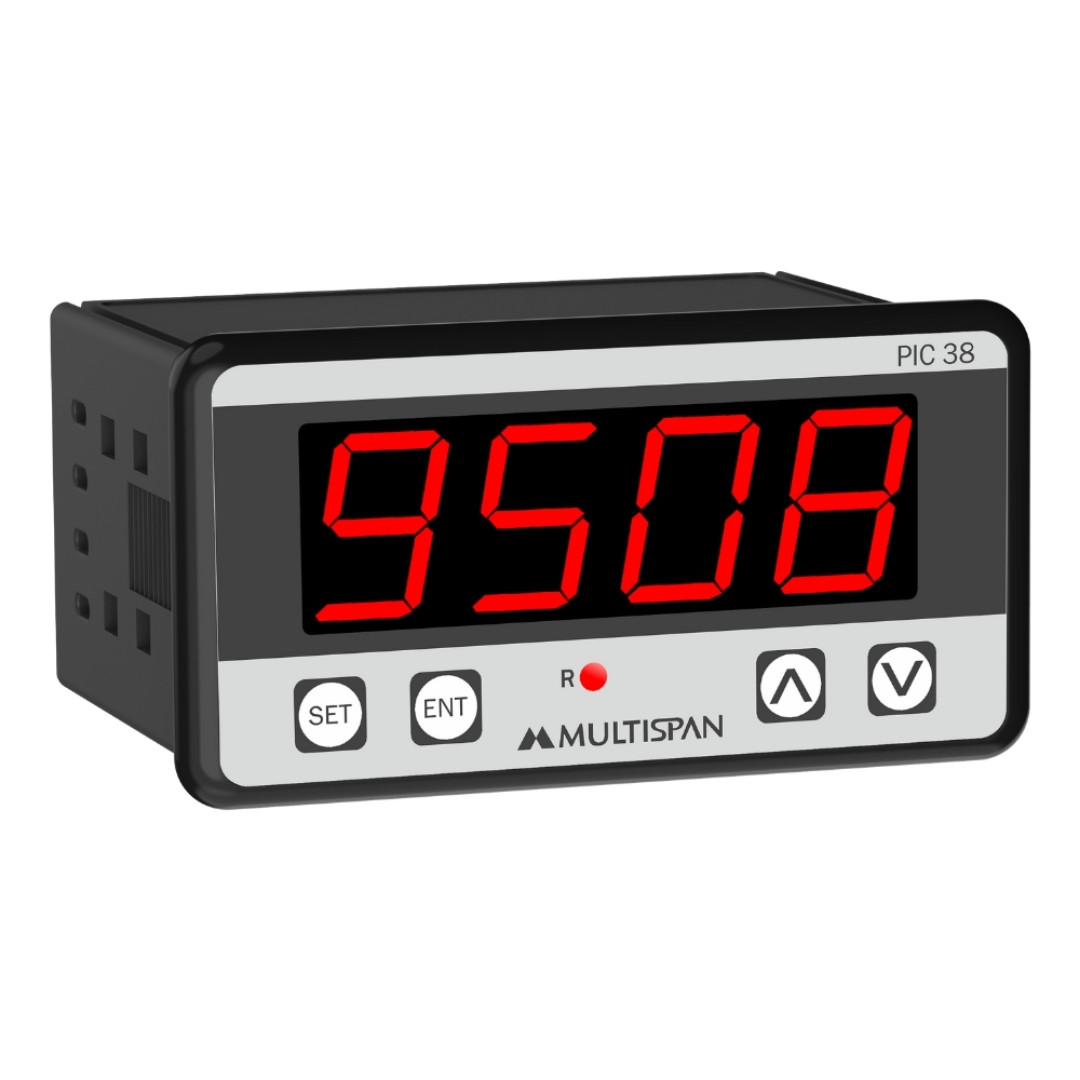

Product: PIC-38
- 4 Digit Process Controller with In-Built Sensor Supply
- Universal Input (4-20mA DC/0-20mA DC/0-10V DC)
- Upto 2-Relay Output with Analog Retransmission & RS-485 Modbus Output
- Size: (H)48mm x (W)96mm x (D)76mm
- Supply Voltage: 100-270V AC
Top Variants:
| Model | PIC-38 |
| Display | 4-Digit 7-Seg 0.8”,Red LED Display |
| Size (mm) | 48 (H) X 96 (W) X 76 (D) |
| Panel Cutout (mm) | 46 (H) X 92 (W) |
| Input | 0-10V DC, 0-20mA DC, 4-20mA DC (configurable) |
| Output | 1 Relay 1 C/O & 24V DC Transmitter |
| Range | -999 To 9999 Selectable |
| Power Supply | 100 to 270V AC, 50 / 60 Hz, Approx 4VA |
| Protection Level (As per request) |
IP-65(Front side) AS per IS/IEC 60529:2001 |
| Operating Temperature | 0°C To 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
Monitoring of process parameters
with digital display
- Pressure
- Level
- Flow
- Temp.
Measurement of PH, O (oxygen), 2
CO (Carbon Monoxide), PH, etc.
Use of analytic transmitter.
Measurement of RPM from VFD
use of analog signal.
Product Variant
| Sr.no | Model No | Output | Size |
| 1 | PIC-38-A2-00 | 1 Relay | 48x96x76(HxWxD)mm |
| 2 | PIC-38-A2-01 | 2 Relay | 48x96x76(HxWxD)mm |
| 3 | PIC-1101-A2-00 | 1 Relay | 96x96x54(HxWxD)mm |
| 4 | PIC-1102-A2-00 | 2 Relay | 96x96x54(HxWxD)mm |
| 5 | PIC-4202-A2-00 | 2 relay | 48x48x95(HxWxD)mm |
