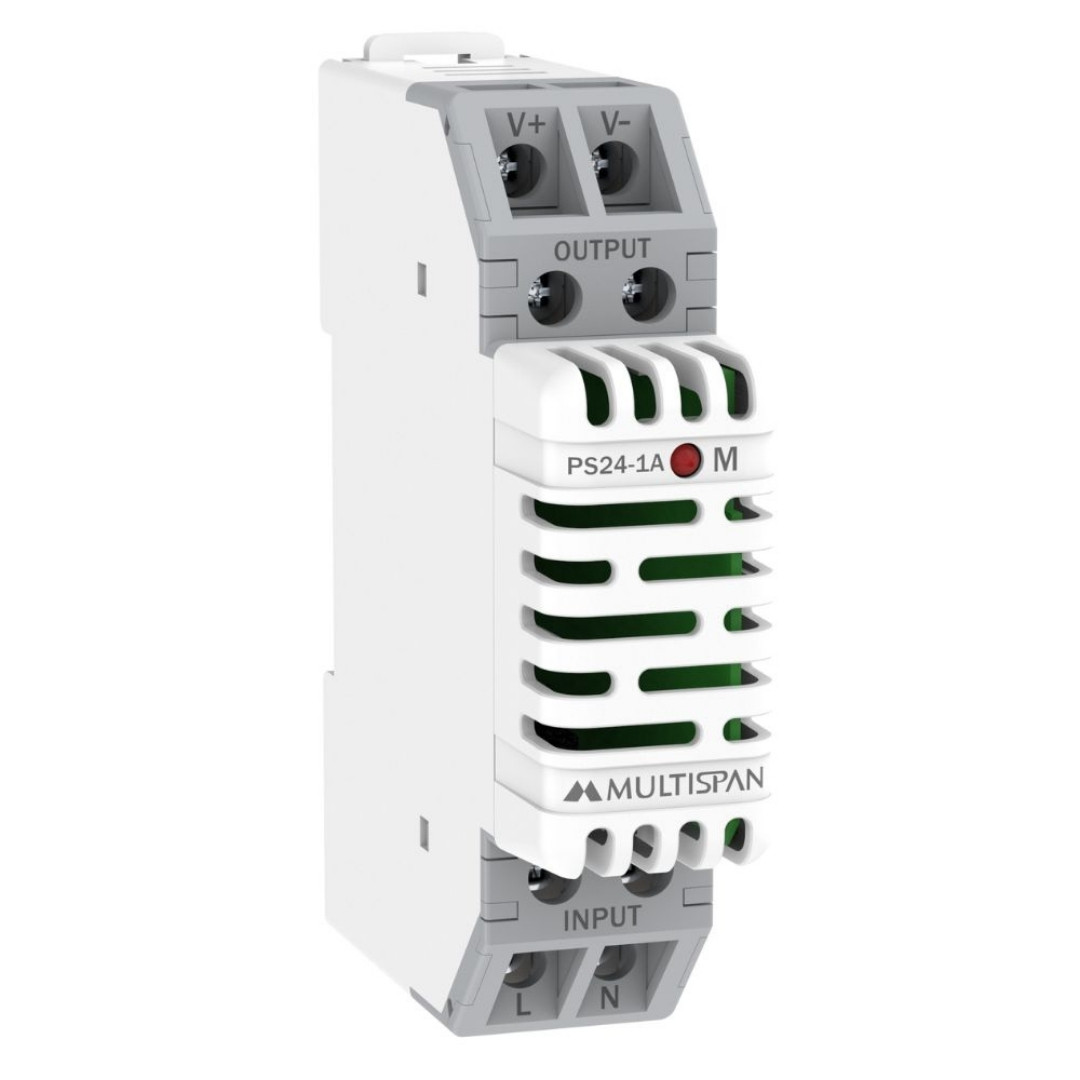

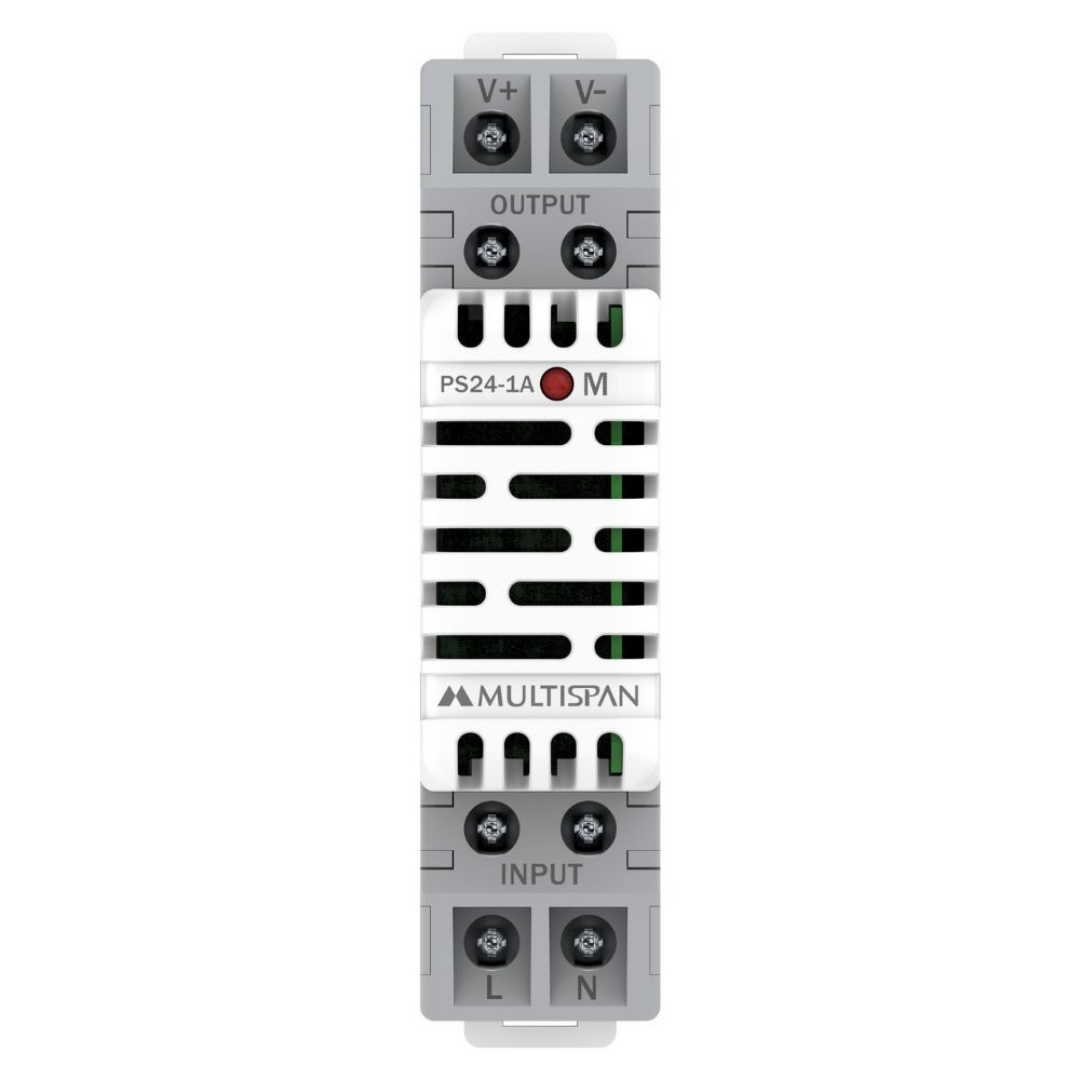

Product: PS24-1A

Input Specification:
Supply Voltage	100 to 270V AC±10%,(L-N)
Frequency Range	50/60 Hz
AC Current (TYP.)	0.49A@100V AC
AC Current (TYP.)	0.24A@270V AC
Efficiency (TYP.)	>85%@230VAC
Start UP time	<1 sec@230VAC &
Start UP time	<3 sec@100VAC (Full Load)
Output Specification:
Output Voltage	24V DC
Output Current	1A at 24V
Ripple & noise	<1% of V out
Line & Load Regulation	±1%
Hold UP Time	<60ms at 230VAC &
Hold UP Time	>15ms at 100VAC (Full Load)
Protection:
Input Fused	2A-250V AC Internal
Output Over Load	110% to 120% of rated output Current protection Protection Type : hiccup mode;
Output Over Load	recover automatically after fault condition is removed
Output Short Circuit	Hiccup mode when output is shorted;Recovers automatically after fault condition is removed.
Over Temperature	Power supply shuts down when the temperature goes above specified limit;
Over Temperature	Turns on automatically after temperature goes back to Normal operating conditions.
Physical :
Mounting Type	Din Rail Mount
Size (H) x (W) x (D)(mm)	90 x 22.5 x 75
Material	Polycarbonate (PC)
Environmental:
Working Temperature	-25°C to 50°C * De-rate output power at 3w/°C above +50°C Ambient
Storage Temperature	-40°C to 85°C
Relative Humidity	95% RH Non-condensing
Warm up time	5 minutes
