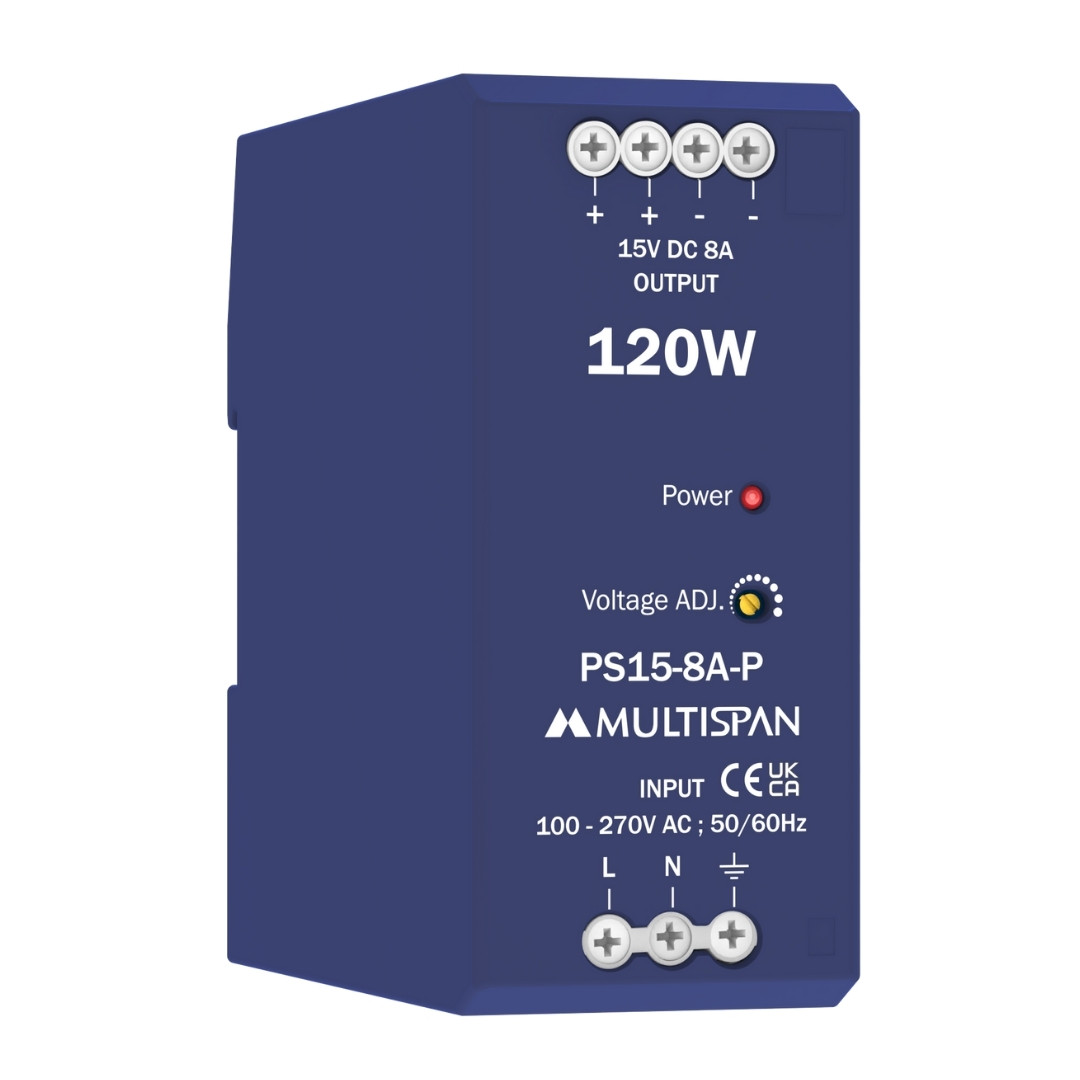

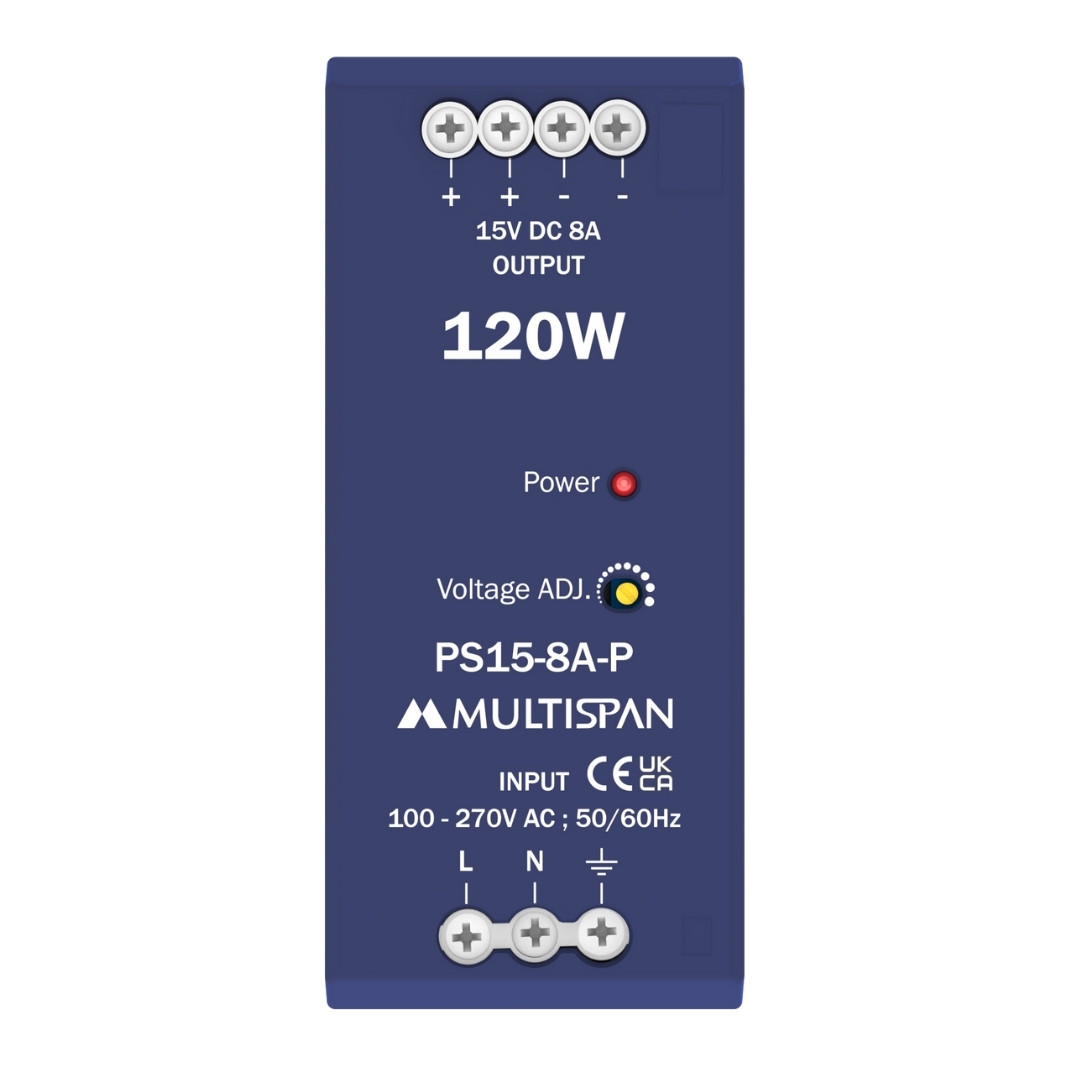

Product: PS15-8A-P (Plastic Body)

Input Voltage : 100-270V AC
Output Voltage : 15V DC
Efficiency : 89% @230V AC
Material: Polycarbonate (PC)
Protection parameter : Overload, Over Voltage , Output short circuit, Over Temperature

Input Specification :
Supply Voltage	100 to 270V AC (L-N) 127 to 350V DC
Frequency Range	50 / 60Hz
AC Current (TYP.)	2.2A@100V AC 0.83A@270V AC
Efficiency (TYP.)	<89%@230VAC
Start UP time	<1 sec@230V AC &
Start UP time	<3 sec@100VAC (Full Load)
Output Specification :
Output Voltage	15-18V DC
Output Current	8A at 15V; 6.67A at 18V
Ripple & noise	<1% of V out
Line & Load Regulation	±1%
Hold UP Time	<60ms at 230V AC &
Hold UP Time	>15ms at 100V AC (Full Load)
LED Indication
LED 1	Power On
Protection:
Input Fused	3.15A-250V AC Internal
Output Over Load	110% to 120% of rated output Current protection Protection Type : hiccup mode;
Output Over Load	recover automatically after fault condition is removed
Output Short Circuit	Hiccup mode when output is shorted;Recovers automatically after fault condition is removed.
Output Over Voltage	SMPS Latches off if output voltage Exceeds the specified output voltage Limits.
Over Temperature	SMPS Latches off if the transformer temperature exceeds 120°C
Isolation between Input and Output :	2.5 KV
Environmental
Working Temperature	-25°C to 50°C * De-rate output power at 3w/°C above +50°C Ambient
Storage Temperature	-40°C to 85°C
Relative Humidity	95% RH Non-condensing
Mechanical Characteristics
Mounting Type	Din Rail Mount
Size	110 (H) x 48 (W) x 111 (D)
Material Body	Polycarbonate (PC)
Terminal Screw Size	M3
Screw Torque (N.m)	0.5
Wire Gauge (AWG)	28-12
