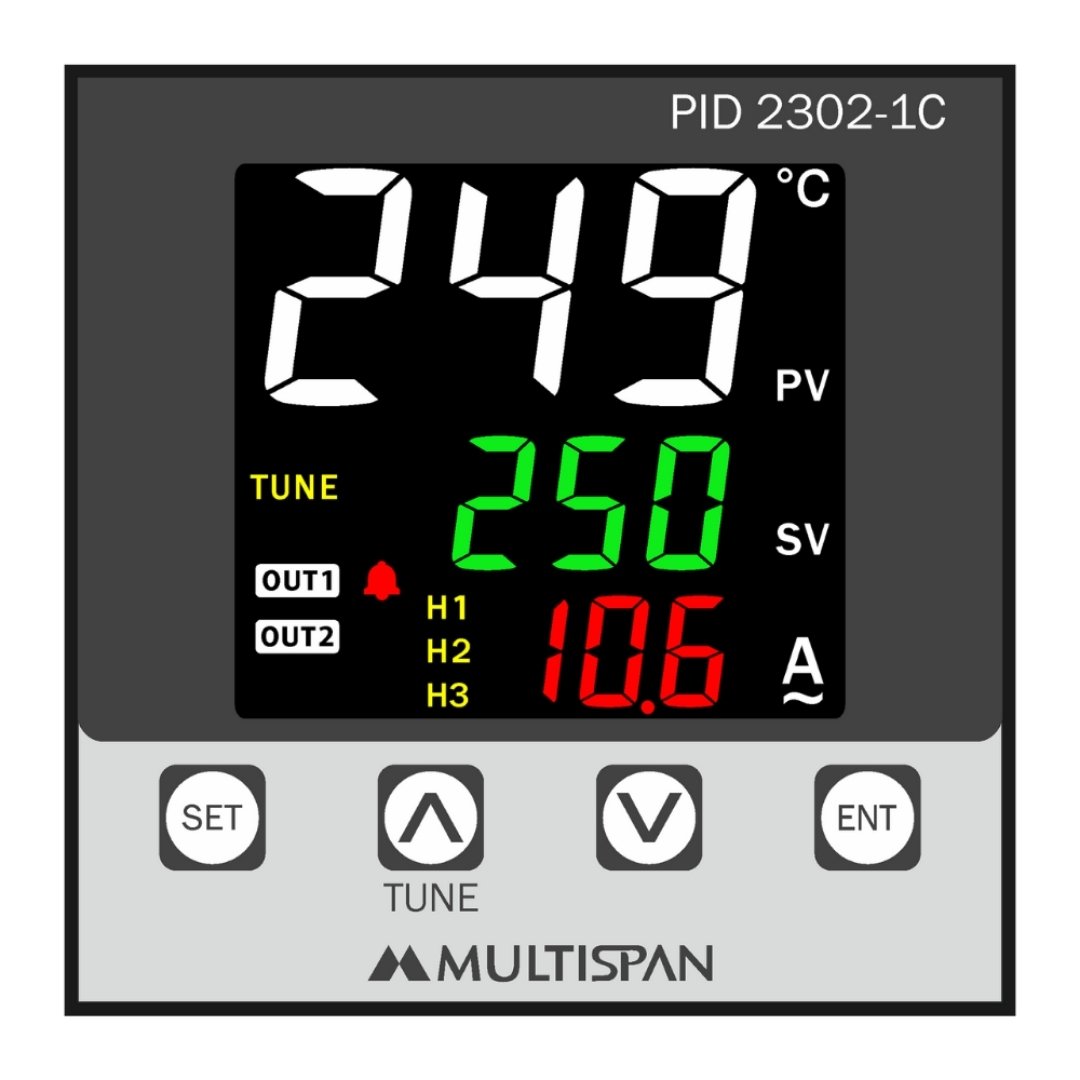

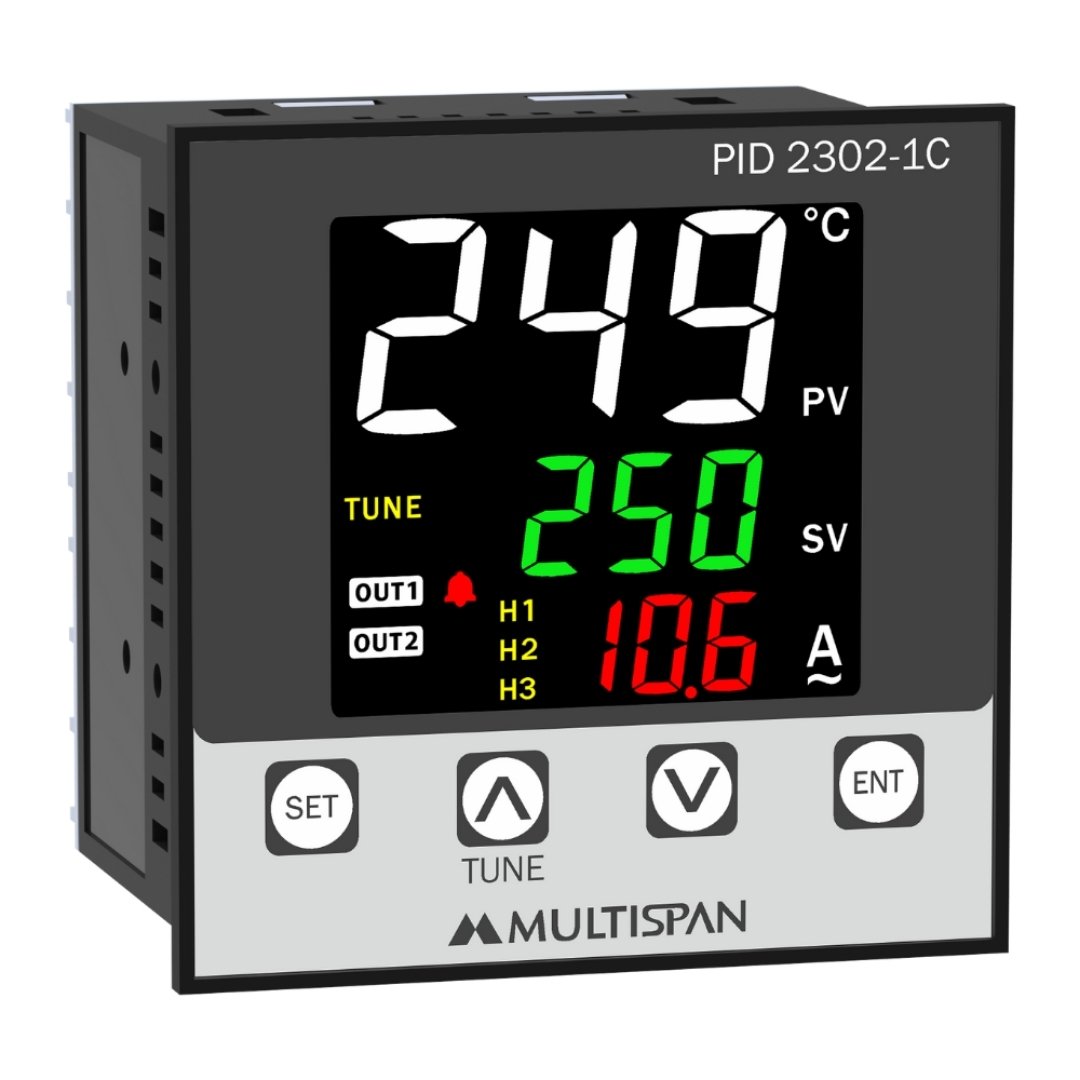

PID-2302-1C-PID Controller With Ampere Indicator - 2 OUTPUT - product image PID-2302-1C-PID Controller With Ampere Indicator - 2 OUTPUT - product image PID-2302-1C-PID Controller With Ampere Indicator - 2 OUTPUT - product image

PID Controller with Ampere Indication-2 OUTPUT

Product: PID-2302-1C

  • J/K Thermocouple Input
  • PID Controller with Ampere Indication for Various Loads
  • With Single or Three Phase CT upto 60A Rating
  • 3-Line, 3-Digit Display (SV, PV and Amp)
  • 2-Relay Output
  • Size: (H)72mm x (W)72mm x (D)85mm
  • Supply Voltage: 100-270V AC

INPUT SPECIFICATION:
Input Types Input Range
J 0 to 400°C
K 0 to 500°C
1 CT 0.0 to 60.0 A
Resolution J,K = 1°C
Indication Accuracy ±1% of FSD
(FSD:- full scale deflection)
DISPLAY AND KEYS:
Display Upper: 3-Digit, 7-Seg 0.6” White LED
Middle: 3-Digit, 7-Seg, 0.3” Green LED
Lower: 3-Digit, 7-Seg, 0.39” Red LED
Keys SET, INC, DEC, ENT
DIMENSION:
Size (mm) 72 (H) x 72 (W) x 85 (D)
Panel Cutout (mm) 68 (H) x 68 (W)
CONTROL METHOD:
Heating 1. PID control with Auto-Tuning
2. ON-OFF control
Cooling 1. BL.TP ( Blower Time Proportion)
2. ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay 2 Nos
Relay Type 1st Relay 1C/O & 2nd Relay (NO-C)
Rating 10A, 230V AC / 28V DC
SSR Drive Output
Output Signal 21V DC, 30mA DC
(On-Off Condition)
POWER SUPPLY:
Supply Voltage 100 to 250V AC, 50-60Hz
Power Consuption (VA Rating) Approx 6VA @ 230V AC
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)
Protection Level IP-65 (Front side) As per IS/IEC 60529 : 2001

  • Packaging Machinery
  • Extrusion Machinery
  • Furnace & Boilers
  • Ovens & Incubators
  • Food Industry

Product Variant

Sr.no Model No Input  Output  RS-485 Modbus  Aux Supply Size
1 PID-2303-1C-A2-60AN-X0 J/K+60A 1CT  Relay||SSR + 2 Relay   100-270V AC 72x72x85(HxWxD)mm
2 PID-2303-3C-A2-60AX-X0 J/K+60A 3CT  Relay||SSR + 2 Relay   100-270V AC 72x72x85(HxWxD)mm
3 PID-2303-1C-M1-A2-60AN-X0 J/K+60A 1CT  Relay||SSR + 2 Relay yes 100-270V AC 72x72x85(HxWxD)mm
4 PID-2303-3C-M1-A2-60AN-X0 J/K+60A 3CT  Relay||SSR + 2 Relay yes 100-270V AC 72x72x85(HxWxD)mm
5 PID-2302-1C-A2-60AN-X0 J/K+60A 1CT  Relay||SSR + 1 Relay   100-270V AC 72x72x85(HxWxD)mm
