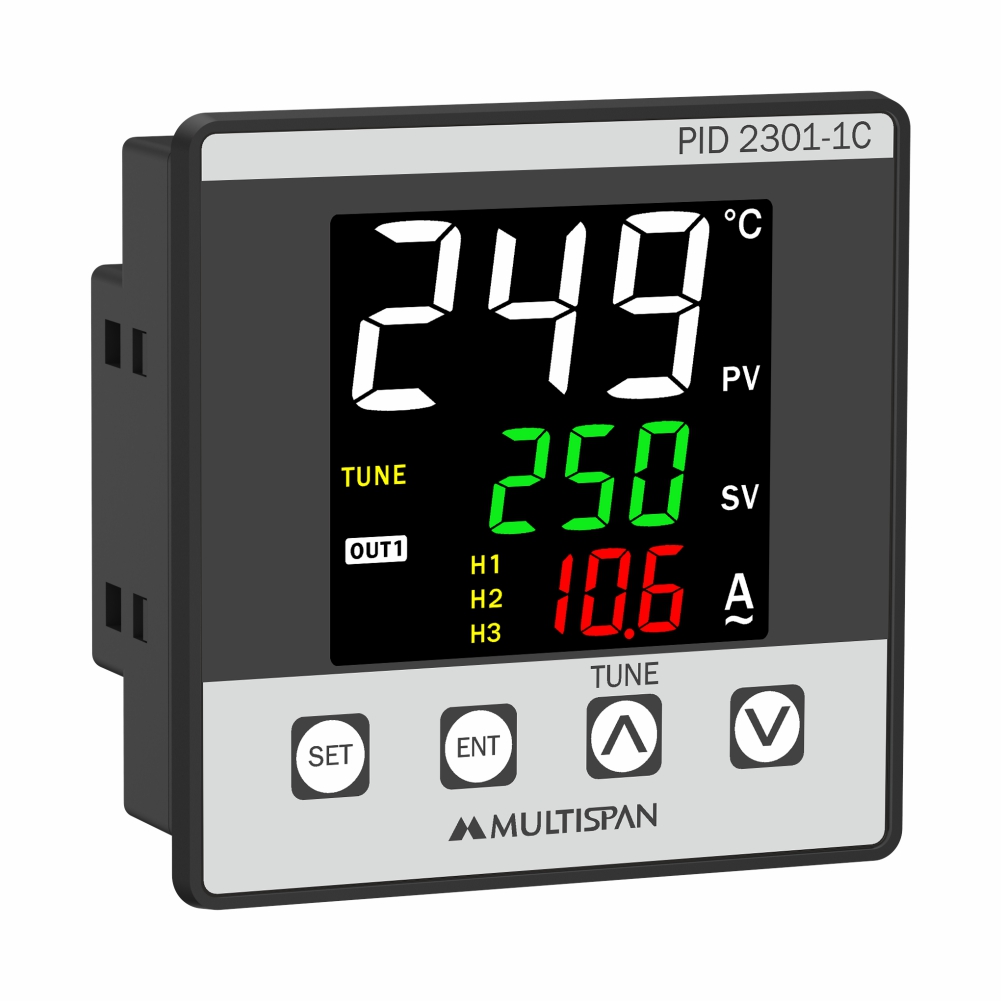

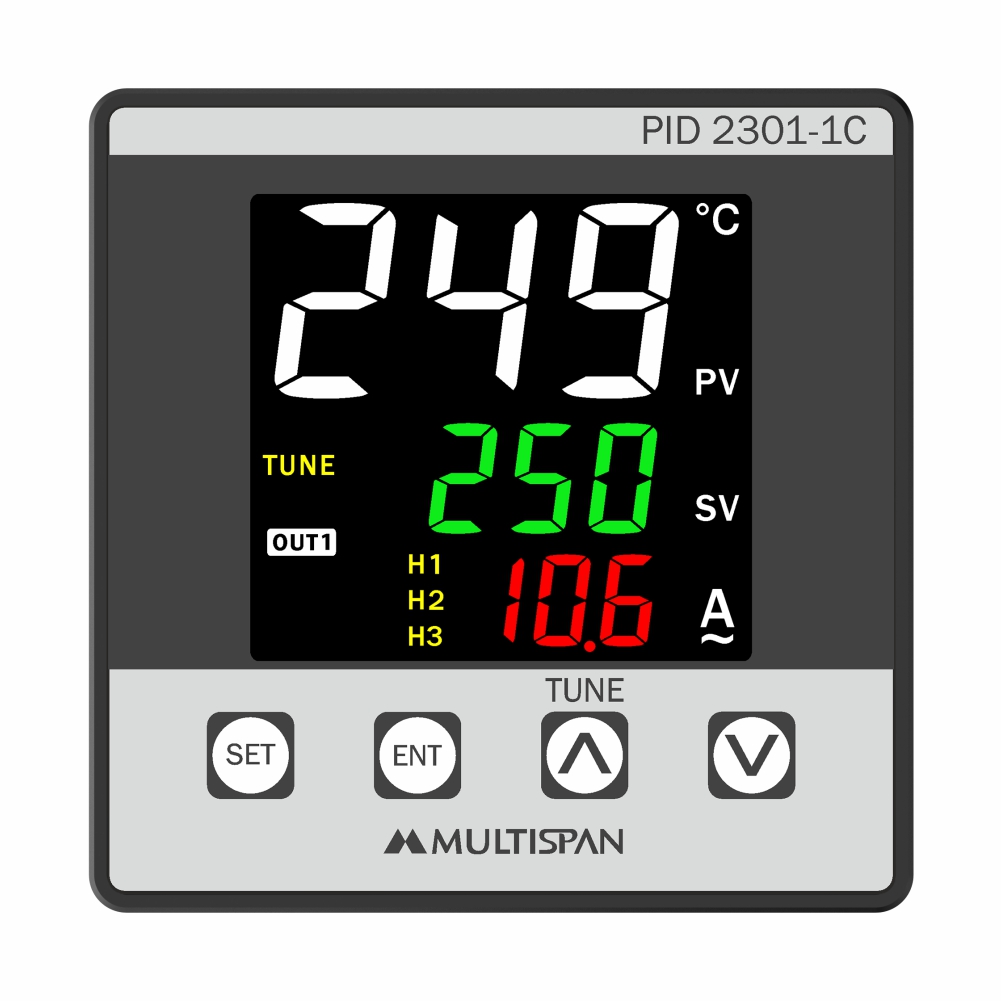

PID Controller with Ampere Indication-1 OUTPUT
Product: PID-2301-1C
- J/K Thermocouple Input
- PID Controller with Ampere Indication for Various Loads
- With Single or Three Phase CT upto 60A Rating
- 3-Line, 3-Digit Display (SV, PV and Amp)
- 1-Relay Output
- Size: (H)72mm x (W)72mm x (D)45mm
- Supply Voltage: 100-270V AC/DC
| INPUT SPECIFICATION: | ||
| Input Types | Input | Range |
| J | 0 to 600°C | |
| K | 0 to 900°C | |
| 1 CT | 0.0 to 60.0 A | |
| Resolution | J,K = 1°C | |
| Indication Accuracy | ±0.5% of FS ± 1°C | |
| (FS:- full scale) | ||
| DISPLAY AND KEYS: | ||
| Display | Upper: 3 digit, 7 seg 0.70” white LED | |
| Middle: 3 digit, 7 seg, 0.39” green LED | ||
| Lower: 3 digit, 7 seg, 0.33” red LED | ||
| Keys | SET, INC, DEC, ENT | |
| DIMENSION: | ||
| Size (mm) | 72 (H) x 72 (W) x 45 (D) | |
| Panel Cutout (mm) | 68 (H) x 68 (W) | |
| CONTROL METHOD: | ||
| Heating | 1. PID control with Auto-Tuning | |
| 2. ON-OFF control | ||
| OUTPUT SPECIFICATION: | ||
| Relay Output | ||
| Relay | 1 Nos | |
| Relay Type | 1 Relay 1C/O (NO-C-NC) | |
| Rating | 5A, 230V AC / 28V DC | |
| SSR Drive Output | ||
| Output Signal | 12V DC, 30mA DC | |
| (On-Off Condition) | ||
| POWER SUPPLY: | ||
| Supply Voltage | 100 to 270V AC/DC, 50-60Hz | |
| Power Consuption (VA Rating) | Approx 3VA @ 230V AC | |
| ENVIRONMENT CONDITION: | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
- Packaging Machinery
- Extrusion Machinery
- Furnace & Boilers
- Ovens & Incubators
- Food Industry
Product Variant
| Sr.no | Model No | Input | Output | Aux Supply | Size |
| 1 | PID-2301-1C-E3-60AN-XO | J/K+60A 1CT | Relay||SSR | 100-270V AC/DC | 72x72x45(HxWxD)mm |
| 2 | PID-2301-1C-E3-60AN-X1 | J/K+60A 1CT | Relay||SSR | 100-270V AC/DC | 72x72x45(HxWxD)mm |
