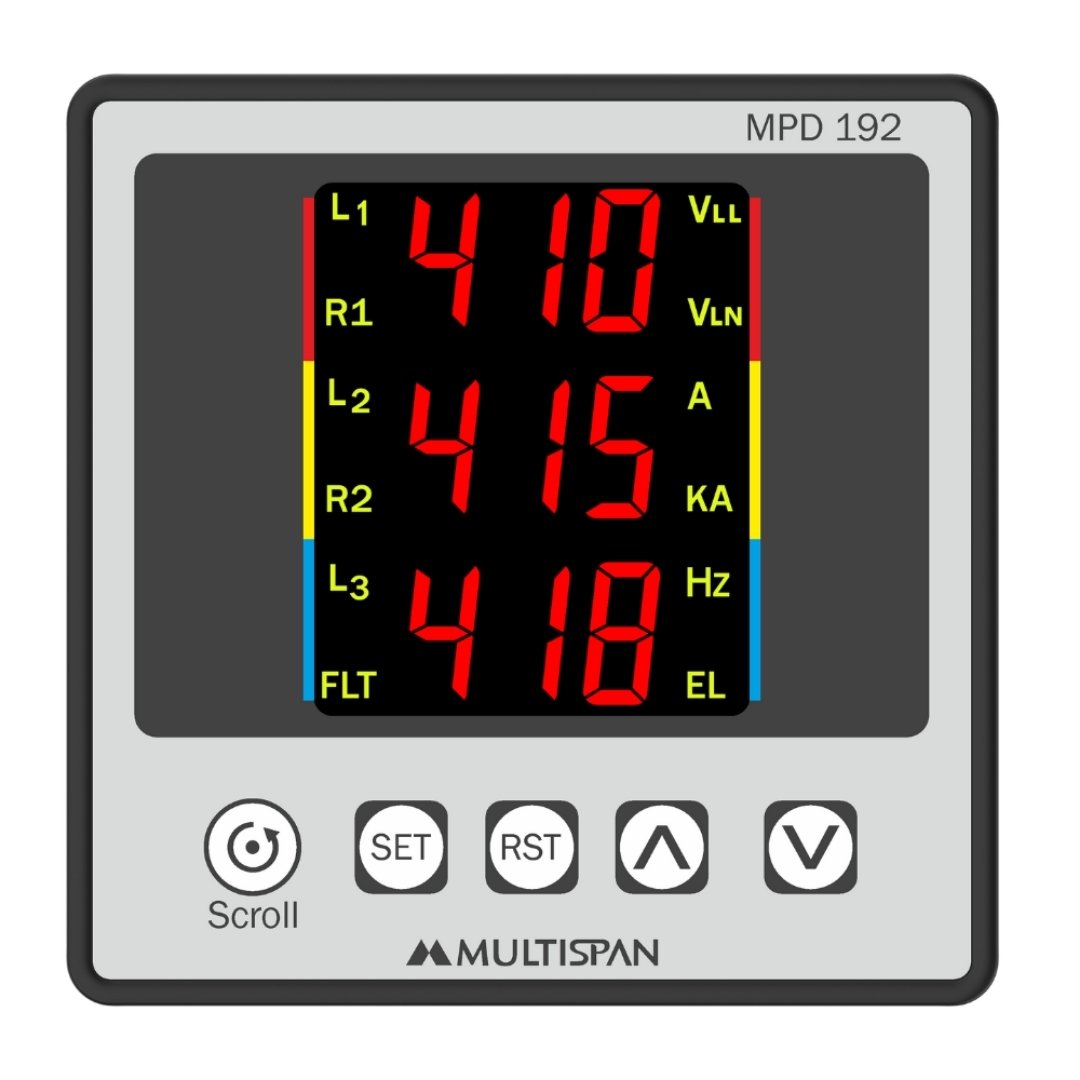

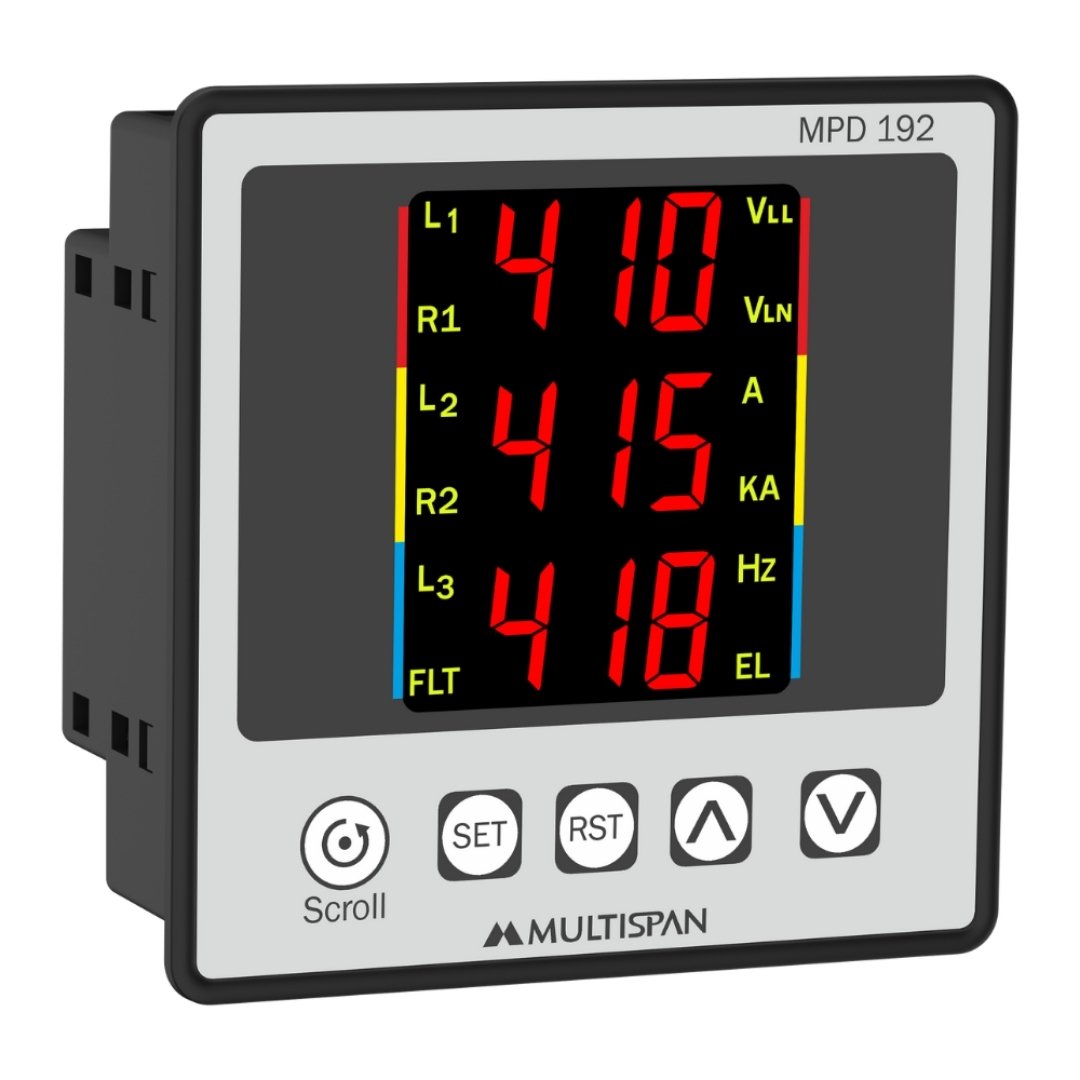

(Panel Mount) Multifunction 3 Phase Protection Relay

Product: MPD-192

  • 3 Line – 3 Digit Display for Easy to Use and Understand 3 Phase Value
  • 3 Phase 3 Wire / 4 Wire Selectable
  • Display 3 Phase Voltage (Ph-Ph, Ph-N), 3 Phase Ampere & Frequency
  • Programmable Tripping Parameter
  • Single Instrument works for Both VAF Monitoring and Protection Relay
  • Programmable Relay 1 Relay 2 C/O
  • Fail Safe and Non Fail Safe Mode
  • RS-485 MODBUS Available as on request

INPUT:
Voltage AC
Direct Voltage AC 30 to 300V(L - N)
50 to 520V(L - L)
Burden < 0.2VA
Current AC
Primary CT Ratio 5 to 6000 Amp selectable
Secondary Current AC 0.1 to 5 Amp
Burden < 0.2VA
Overload Up to 6A continuous
Frequency 45.0 to 65.0 Hz
DISPLAY AND KEYS:
Display 3 Digit, 3 Line 7 Seg 0.56”,
RED LED
Keys Scroll, SET, RST, INC, DEC
DIMENSION:
Size (mm) 96 (H) X 96 (W) X 54 (D) mm
Panel Cutout (mm) 92 (H) X 92 (W) mm
Network Selection 3 Phase - 4 Wire,3 Phase - 3 Wire
TRIP SETTING:
Under Current 0.00 to CTR
Over Current 0.00 to CTR
Under Voltage 50 to 520V For 3Ø - 3W
30 to 300V For 3Ø - 4W
Over Voltage 50 to 550V For 3Ø - 3W
30 to 330V For 3Ø - 4W
Over / Under Frequency 45.0 to 65.0 Hz
Short Circut 1 - 9 Scale
Lock Rotor Point 0.5 to 9.0 Scale
Unbalance 5 - 60%
TIME PARAMETER:
Power On Delay 0 to 99 Sec
Initial Time Delay 0 to 99 Sec
Trip Delay Time(Voltage, Current, Frequency, SSP, Unbalance) 0 to 999 Sec
Scrolling Time 1 to 99 Sec
Reset Time 0 to 99 Sec
OUTPUT SPECIFICATION:
Relay 2 Nos
Relay Type 1st Relay ( NO - C - NC )
2nd Relay ( NO - C )
Rating 1st  Relay 10Amp, 230V AC (Resistive Load)
2nd Relay 5 Amp (With Simultaneous Actuation)
AUXILIARY SUPPLY:
Supply Voltage 100 to 270V AC, 50Hz
Power Consumption 4VA @ 230 AC MAX
ENVIRONMENTAL CONDITION:
Working Temperature 0 to 55°C
Storage Temperature 0 to 55°C
Relative Humidity 95 % RH Non-Condensing
Protection Level (As Per request) IP-65 (Front side As per IS/IEC 60529 : 2001)

  • Electrical Control Panel
  • Submersible Pump
  • Road Construction Panel
  • MCC Panel
  • Industrial Chiller And HV AC System
  • D.G. Set

Product Variant

Part Code

Voltage Input

Ampere Input

Other Input

Supply

MPD-192-E3-N0

30 to 300V AC (L-N), 50 to 520V AC (L-L)

60mA to 5A AC CT Selectable, CT Selectable up to 6000/5



100-270V AC/DC

MPD-192-E2-N0

30 to 300V AC (L-N), 50 to 520V AC (L-L)

60mA to 5A AC CT Selectable, CT Selectable up to 6000/5



50-550V AC

 MPD-19EL-E3-N0

30 to 300V AC (L-N), 50 to 520V AC (L-L)

60mA to 5A AC CT Selectable, CT Selectable up to 6000/5

ELR CBCT

100-270V AC/DC

MPD-192-E3-N7

30 to 300V AC (L-N), 50 to 520V AC (L-L)

Fixed Multispan 30A- 3 Ph CT Module



100-270V AC/DC

MPD-192-E3-N6

30 to 300V AC (L-N), 50 to 520V AC (L-L)

Fixed Multispan 60A- 3 Ph CT Module



100-270V AC/DC

MPD-192-E3-N8

30 to 300V AC (L-N), 50 to 520V AC (L-L)

Fixed Multispan 125A- 3 Ph CT Module



100-270V AC/DC

 MPD-19EF-E3-N0

30 to 300V AC (L-N), 50 to 520V AC (L-L)

60mA to 5A AC CT Selectable, CT Selectable up to 6000/5

EFR CBCT

100-270V AC/DC

MPD-192-M1-E3-N0

30 to 300V AC (L-N), 50 to 520V AC (L-L)

60mA to 5A AC CT Selectable, CT Selectable up to 6000/5



100-270V AC/DC
