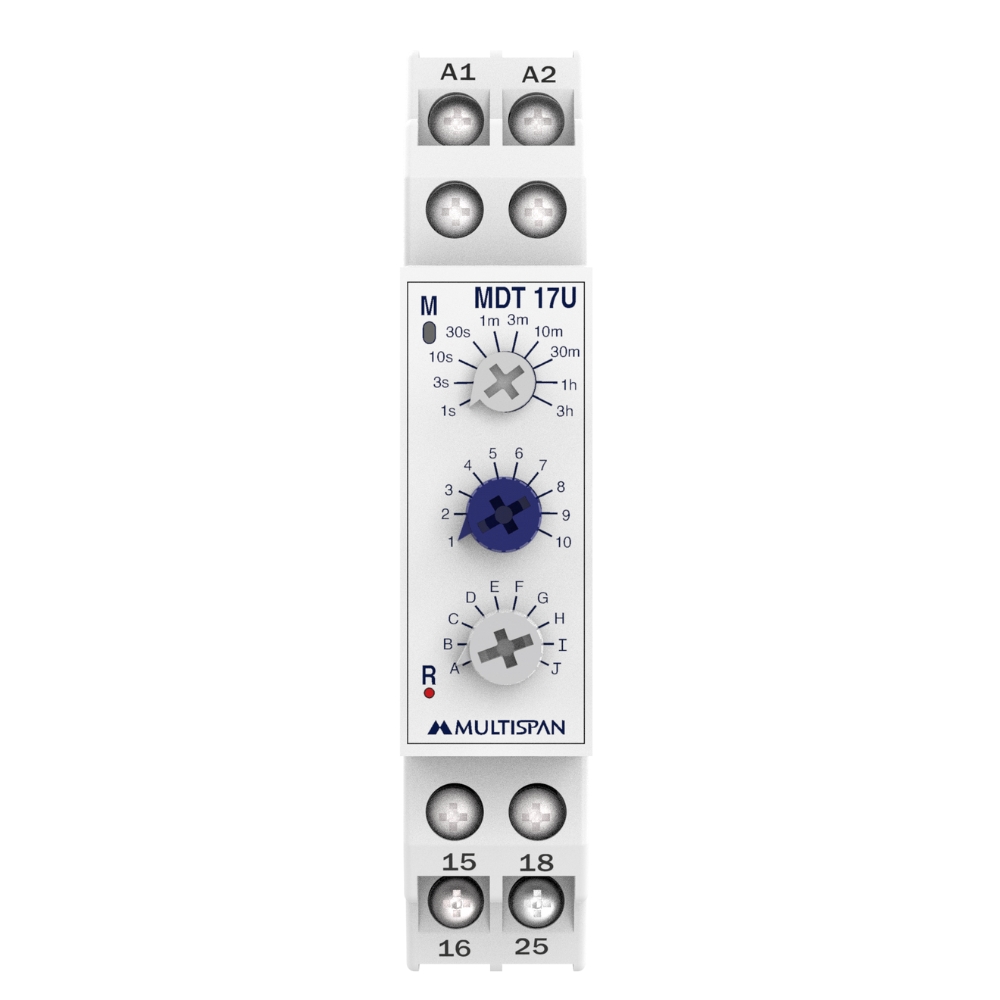

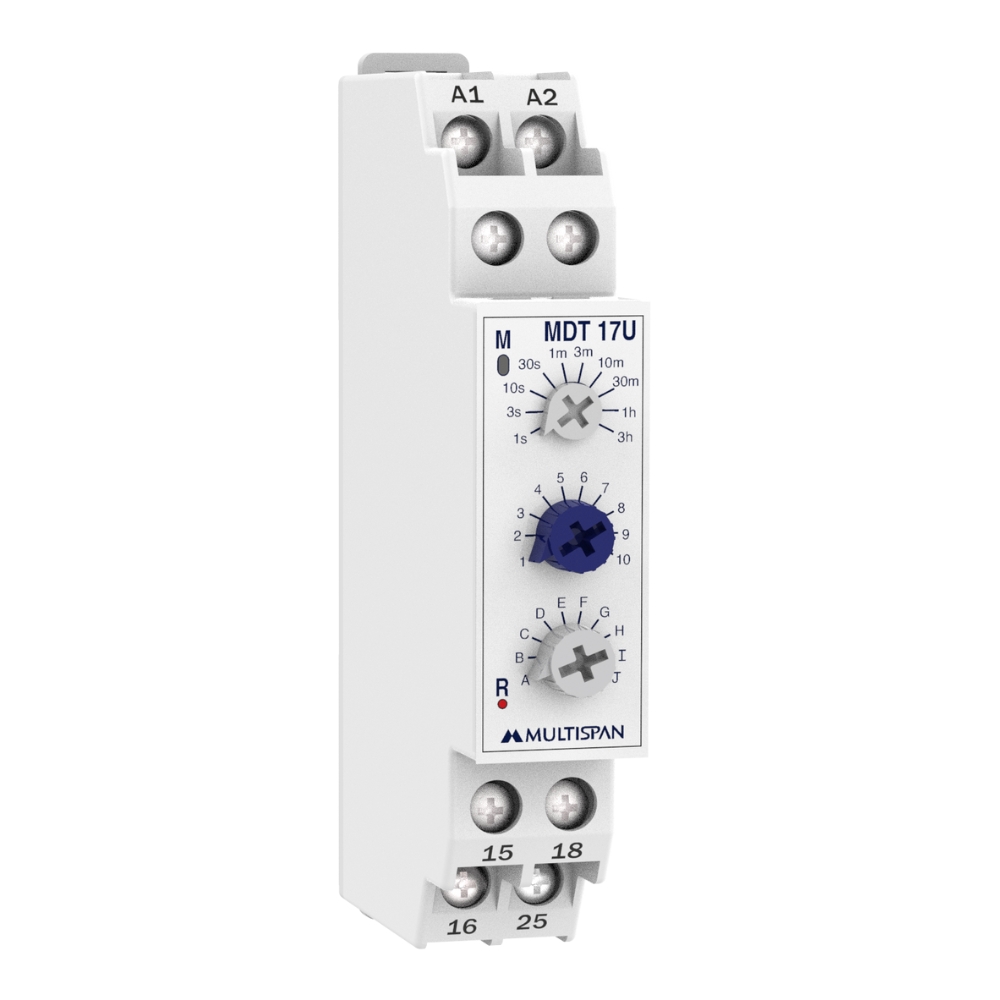

Multifunction Timer
Product: MDT-17U
- Selection of Modes- by Knob
- Selection of Time Range- by Knob
- Trip Delay Selection
- 1-Relay, 1-C/O, 5A, 230V AC
- Size: (H)90mm X (W)17.5mm
- 12 to 240V DC & 20 to 240V AC, 50/60Hz
| Input | |
| Input | A1 & 25 Terminal Potential Free Contact |
| LED Indication | |
| LED | Main LED, Relay LED |
| SUPPLY VOLTAGE | |
| Auxiliary Supply | 12 to 240V DC & 20 to 240V AC, 50/60Hz |
| Output | |
| Relay contact | 1 Relay 1C/O |
| Contact Rating | 5@250V AC, Resistive Load |
| Environmental Characteristics | |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 70°C |
| Relative Humidity | 95% RH Non-condensing |
| Protection (As per Request) | IP-65 (Front Side) |
| Mechanical Characteristics | |
| Mounting Type | Din Rail Mount |
| Bezel (HXW) | 90 x 17.5 |
| Depth of Installation | 62 |
- Electrical Appliances
- Control of Lights, Fans, and Heaters
- Automation panels
- Special purpose machine
- Air conditioning - HVAC
Product Variant
| Part No. | Input | Relay | Power Supply |
| MDT-17U-00 | Start Pulse M/S | 1 | 12 to 240V DC & 20V to 240V AC |
| MDT-17U-51 | Start Pulse M/S | 1 | 12 to 240V DC & 20V to 240V AC |
