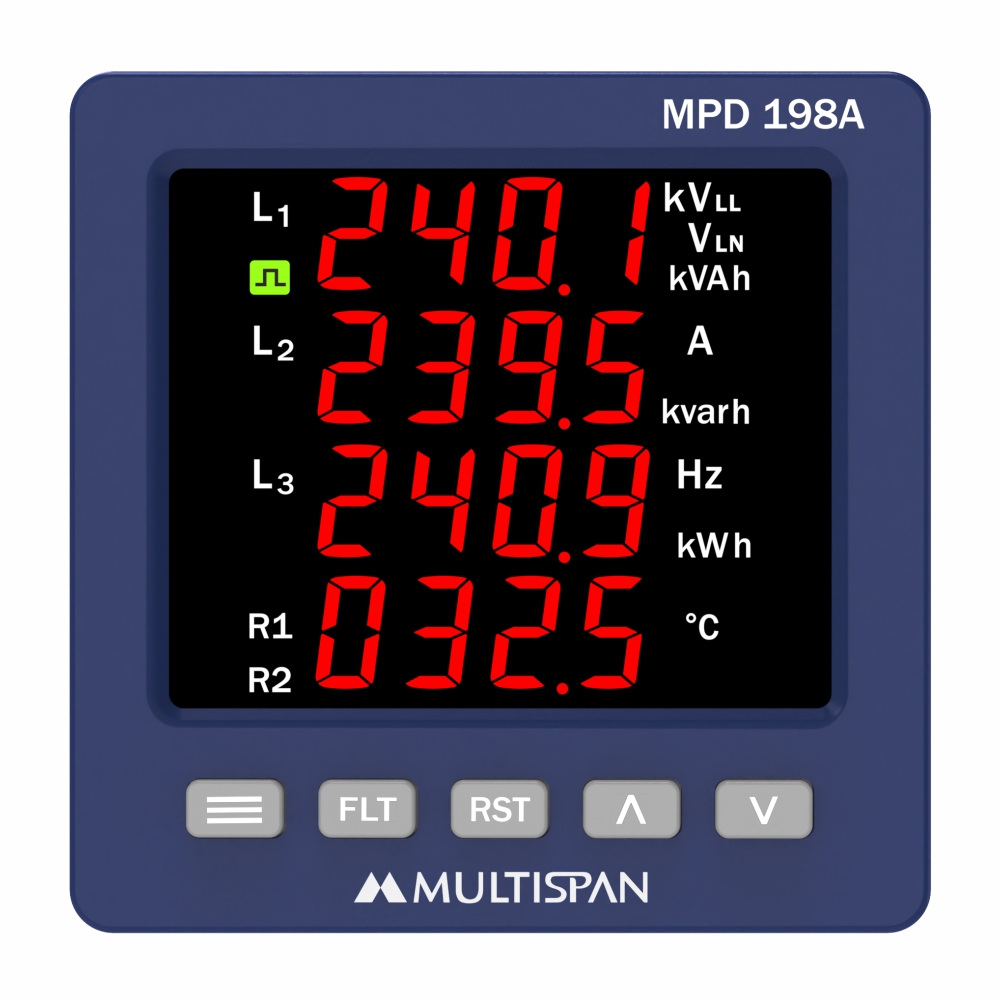

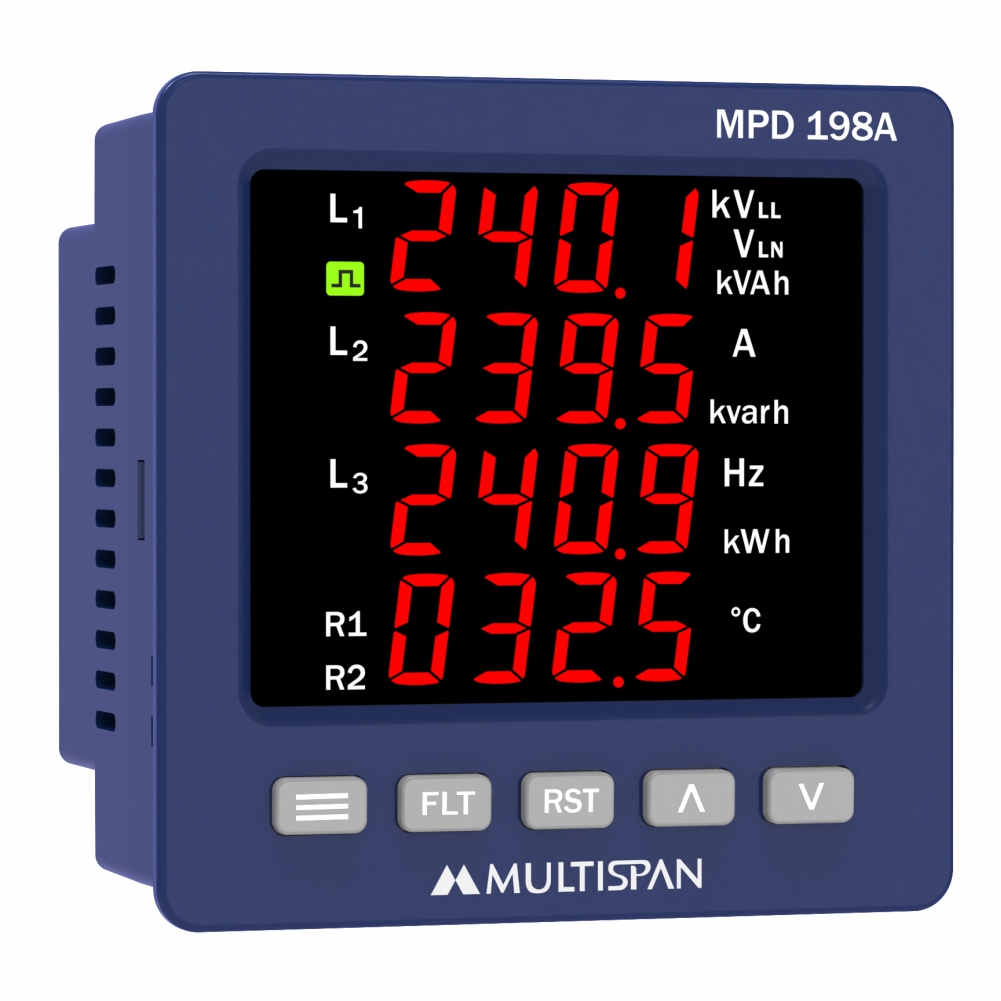

Motor Protection Device - MPD-198A regular image Motor Protection Device - MPD-198A front image Motor Protection Device - MPD-198A side image

Motor Protection Device - MPD-198A

Product: MPD-198A

  • 4 Line – 4 Digit Display for Easy to Use and Understand 3 Phase Value
  • 3Ø 4Wire /3 Ø 3Wire / 1Ø 2Wire
  • Programmable Tripping Parameter
  • Single Instrument works for Both MFM and Protection Relay
  • Programmable Relay 1 Relay 2 C/O
  • Fail Safe and Non Fail Safe Mode
  • RS-485 MODBUS Available as on request

PARAMETER SPECIFICATION
Input Signal 3Ø-3Wire / 3Ø-4Wire / 1Ø-2Wire
Current Input Up To 9999
Voltage 30 To 320V AC
Input 50 To 550V AC
System PF -1.000 - 1.000
Frequency (Hz) 45.00 - 60.00 Hz
Load hours 9999.59 Hrs/Min.
No load hours 9999.59 Hrs/Min.
RPM 3600 RPM @ 60 Hz & 2 pole
POWER
kW Total 0.000 - 9999 kW
kW Per Phase 0.000 - 9999 kW
kVA Total 0.000 - 9999 kVA
kVA Per Phase 0.000 - 9999 kVA
kVAr Total 0.000 - 9999 kVAr
kVAr Per Phase 0.000 - 9999 kVAr
ENERGY
kWh Total 000.000 - 999999999.999 kWh
kVAh Total 000.000 - 999999999.999 kVAh
kVArh Total 000.000 - 999999999.999 kVArh
Input PTC Thermistor
Setting for PTC
1. Sensor Short 0-39 ohm
2. Sensor Healthy 40 ohm - 4K ohm
3. Sensor Trip 4.1K ohm - 5.5K ohm
4. Sensor Open 5.6K ohm & Above
5. Sensor Cut in 1.5K ohm - 1.8K ohm
Temperature range for
Thermisto
70°C to 180°C ( for PTC)
DISPLAY & KEY
Display 4 Digit,4 Line 0.50" RED
Key PROGRAM , FLT, RST, UP, DOWN
DIMENSION :
Size 98 (H) x 98 (W) x 61.5 (D) mm
Panel Cutout 92 (H) x 92 (W) mm
AUXILIARY SUPPLY :
Supply voltage 50 to 550V AC/DC, 50/60Hz
Power consumption
(VA RATING)
Approx 6 VA @ 230V AC MAX
TIME PARAMETER:
Power On Delay 2.0 to 999.9 Sec
Initial Time Delay 0.0 to 999.9 Sec
Trip Delay Time 0.0 to 999.9 Sec
Reset Time 0.0 to 999.9 Sec
OUTPUT SPECIFICATION:
Relay 2 Nos
Relay Type 1st Relay ( NO - C - NC )
2nd Relay ( NO - C - NC )

Rating 1st Relay 10Amp, 250V AC
2nd Relay 10 Amp, 250V AC

Analog Output  4 To 20mA DC (±1% OFF FS)
ACCURACY:
Class 0.5 (Standard)
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity

Upto 95% RH (non-condensing)


Protection Level (AS Per Request) IP-65 (Front side) As per IS/IEC 60529 : 2001
Weight (Approx) gms :
Unpacked 810
Packed 880

  • Electrical Control Panel
  • Submersible Pump
  • Road Construction Panel
  • MCC Panel
  • Industrial Chiller And HV AC System
  • D.G. Set

Product Variant

Part No. Input Current Ampere Range
MPD-198A-E9-01-P1 Up to 9999 Amp Primary CT Selectable 10mA to 5.00A
MPD-198A-E9-01-P2-30AX 30A with DIN 30AX CT 1 to 30.0A
MPD-198A-E9-01-P2-60AX 60A with DIN 60AX CT 2 to 60.0A
MPD-198A-E9-01-P2-100AX 100A with DIN 100AX CT 4 to 100A
MPD-198A-E9-01-P2-30A 30A with MCT 30A 1 to 30.0A
MPD-198A-E9-01-P2-125A 125A with MCT 125A 4 to 125A
MPD-198A-E9-01-P2-250A 250A with MCT 250A 10A to 250A
