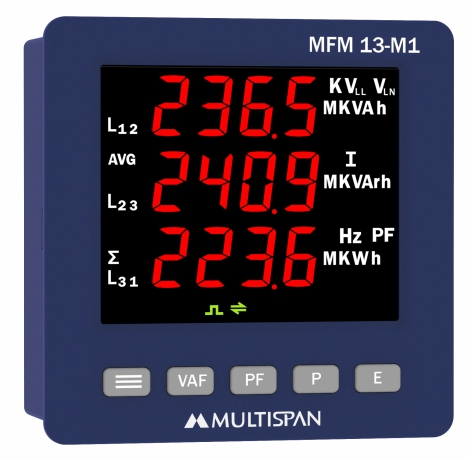

MFM 13-M1
Product: MFM 13-M1
- 1Ø-2W, 3Ø-3W/4W Selectable
- Primary Voltage 100V to 520kVAC
- Secondary Voltage 100V to 520V AC
- Pulse & RS-485 Modbus Communication
| PARAMETER SPECIFICATION | |
| Input Signal | 3Ø-3Wire / 3Ø-4Wire / 1Ø-2Wire |
| CT Primary | Upto 9999A (Programmable) |
| CT Secondary | 5 Amp/1 Amp selectable |
| PT Primary | 100V to 520kV (Programmable) |
| PT Secondary | 100V to 520V (L-L) (Programmable) |
| PF Avg. & Per Phase | 0.100 - 1.000 |
| Frequency (Hz) | 45.00 - 60.00 Hz |
| Load hours | 9999.59 Hrs/Min. |
| No load hours | 9999.59 Hrs/Min. |
| RPM | 3600 RPM @ 60 Hz & 2-Pole |
| POWER | |
| KW Total | 0.000 - 9999 MW |
| kW Per Phase | 0.000 - 9999 MW |
| kVA Total | 0.000 - 9999 MVA |
| kVA Per Phase | 0.000 - 9999 MVA |
| kVAr Total | 0.000 - 9999 MVAr |
| kVAr Per Phase | 0.000 - 9999 MVAr |
| ENERGY | |
| kWH Total | 000.000 - 999999999.999 kWh |
| kVAh Total | 000.000 - 999999999.999 kVAh |
| kVArh Total | 000.000 - 999999999.999 kVArh |
| DISPLAY & KEY | |
| Display | 4-Digit, 3-Line 0.57" RED |
| Key | PRG, VAF, PF, POWER , ENERGY |
| DIMENSION | |
| Size (mm) | 98 (H) x 98 (W) x 46 (D) mm |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| AUXILIARY SUPPLY | |
| Supply voltage | 100 to 300V AC/DC, 50/60Hz |
| Power consumption (VA RATING) | Approx 4 VA @ 230V AC MAX |
| ACCURACY | Class 0.5 (Standard) |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity |
Upto 95% RH (non-condensing) |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529: 2001 |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- LT / HT Panel
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Current | Supply |
| MFM-13-E5-00 | Network Selection :3Ø3W/4W, 1Ø2W PT Primary: 100V to 520kV (Programmable) PT Secondary: 100V to 520V (L-L) (Programmable) |
CT Primary : Upto 9999A CT Secondary : 5A & 1A AC |
100 to 300V AC/DC |
| MFM-13-E5-03 | CT Input: 60A With DIN 60AX | ||
| MFM-13-E5-04 | CT Input: 100A with DIN 100AX | ||
| MFM-13-E5-250A | CT Input: 250A with MCT 250A CT | ||
| Note: | Modbus Available on Request | ||
