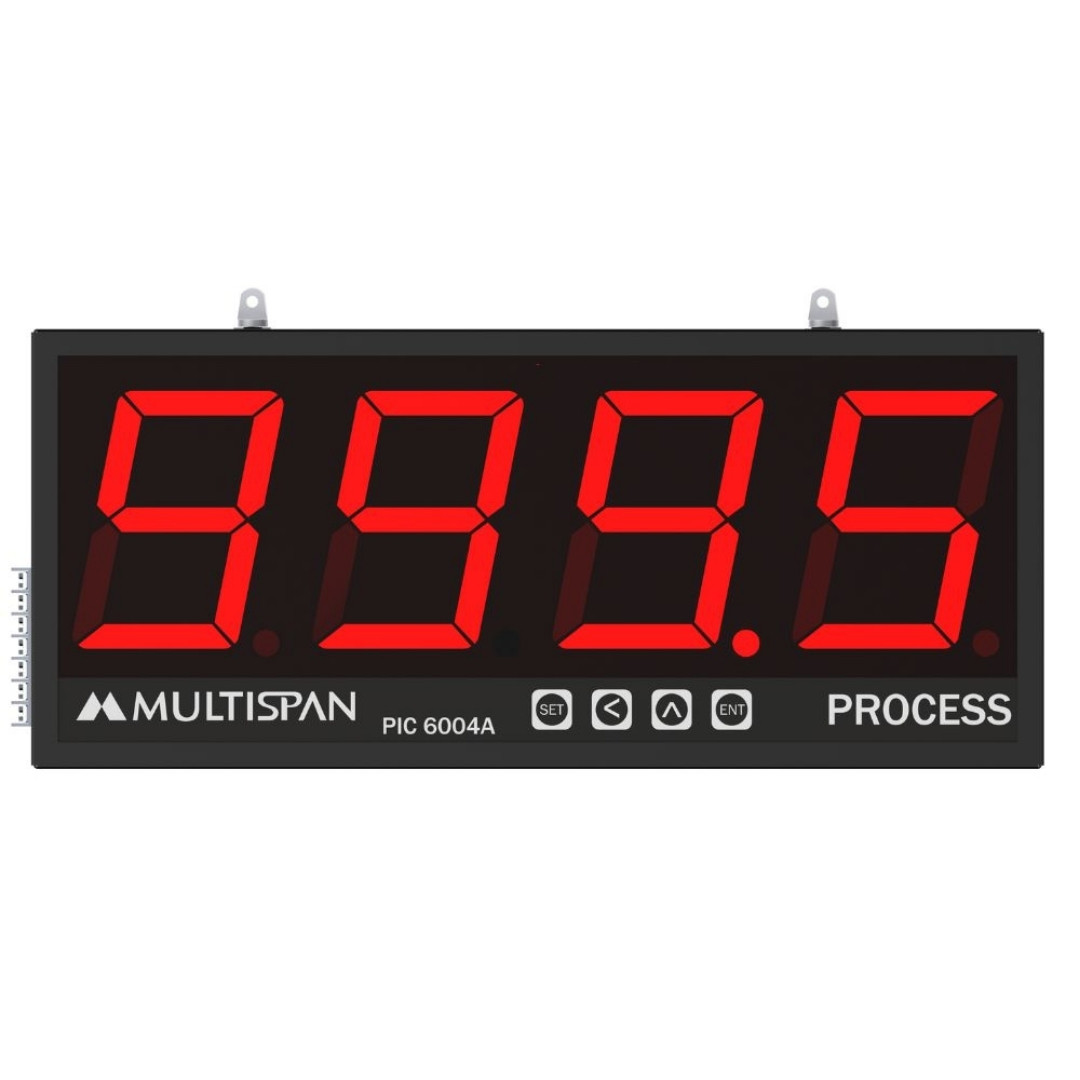

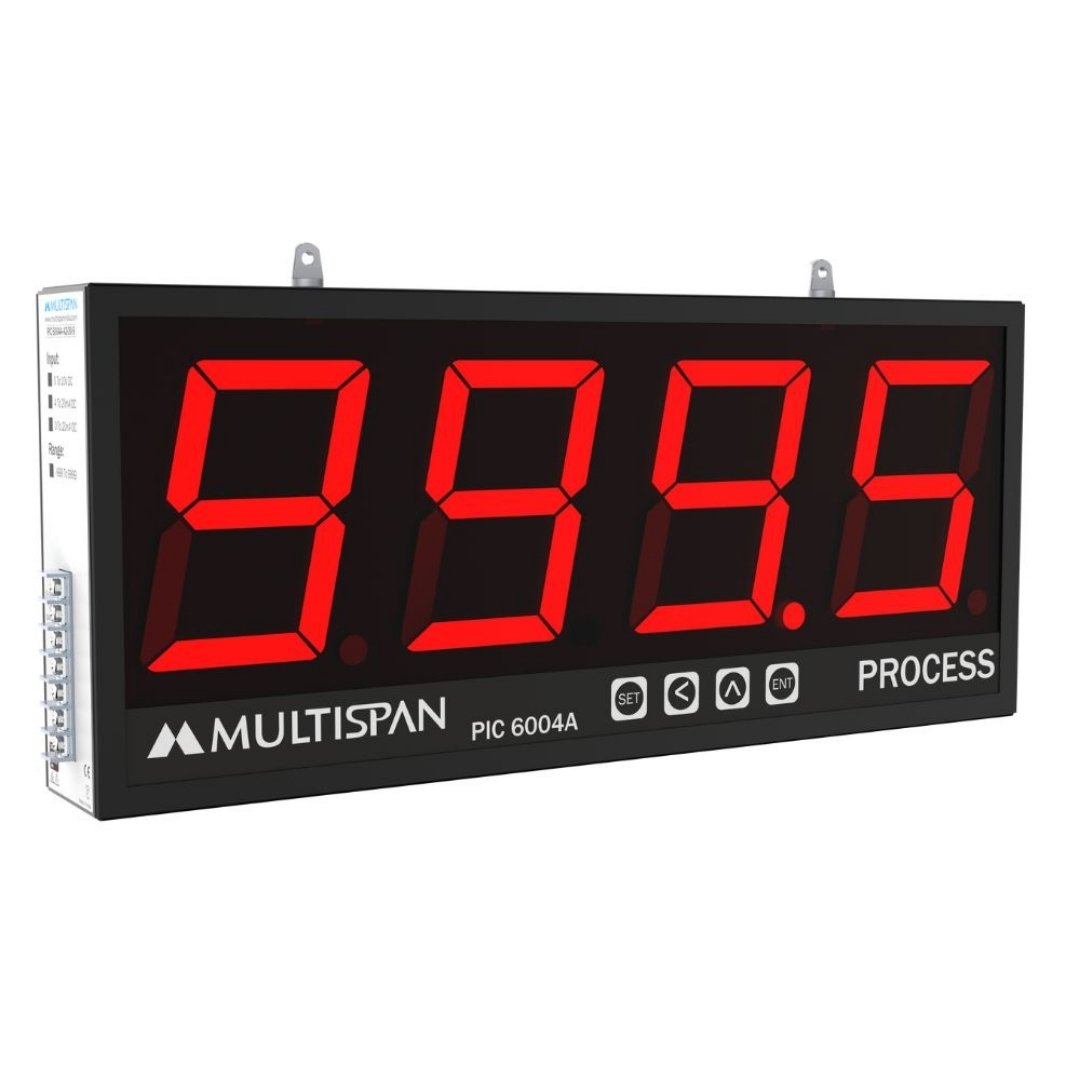

PIC-6004A Jumbo Display Indicator - product image PIC-6004A Jumbo Display Indicator - product image PIC-6004A Jumbo Display Indicator - product image

Jumbo Display Process indicator

Product: PIC-6004A

  • 4-Digit, 4-Inch Red LED Display(Single/Dual Side)
  • Universal Input (4-20mA DC/0-20mA DC/0-10V DC)
  • Upto 3-Digit resolution
  • Optional Relay and Retransmission Output Possible
  • Size: Single Display:- 165 (H) X 392 (W) X 55 (D)
             Dual display :- 165 (H) X 392 (W) X 75 (D)
  • Supply Voltage: 100-270V AC

Model No PIC-6004A
Description Micro Controller Based, Single Side & Dual Side Display
Display 4-Digit, 7-Seg, 4-Inch”, Red LED Display
Size (mm) Single Display:- 165 (H) X 392 (W) X 55 (D)
Dual display :- 165 (H) X 392 (W) X 75 (D)
Range -999 to 9999 (selectable)
Input 0 To 10V DC, 0 To 20mA DC, 4 To 20mA DC ( Selectable)
Power Supply Single:- 100 To 250V AC, 50/60 Hz Approx 4VA
Dual:- 100 To 250V AC, 50/60 Hz Approx 7VA
Protection Level
(As per request)
IP-65(Front side) AS per IS/IEC 60529:2001
Note Range & Decimal Point Selectable Reverse Scalling Possible

Product Variant

sr.no Model  Input  Display Output Relay Transmitter supply
1 PIC-6004A-A2-00-S 4-20mA DC/0-20mA DC/0-10V DC  Single Side
2 PIC-6004A-A2-00-D Dual Side
3 PIC-6004A-A2-01-S Single Side  1
4 PIC-6004A-A2-02-S Single Side  1 YES
5 PIC-6004A-A2-03-S Single Side    YES
6 PIC-6004A-A2-04-S Single Side  2
