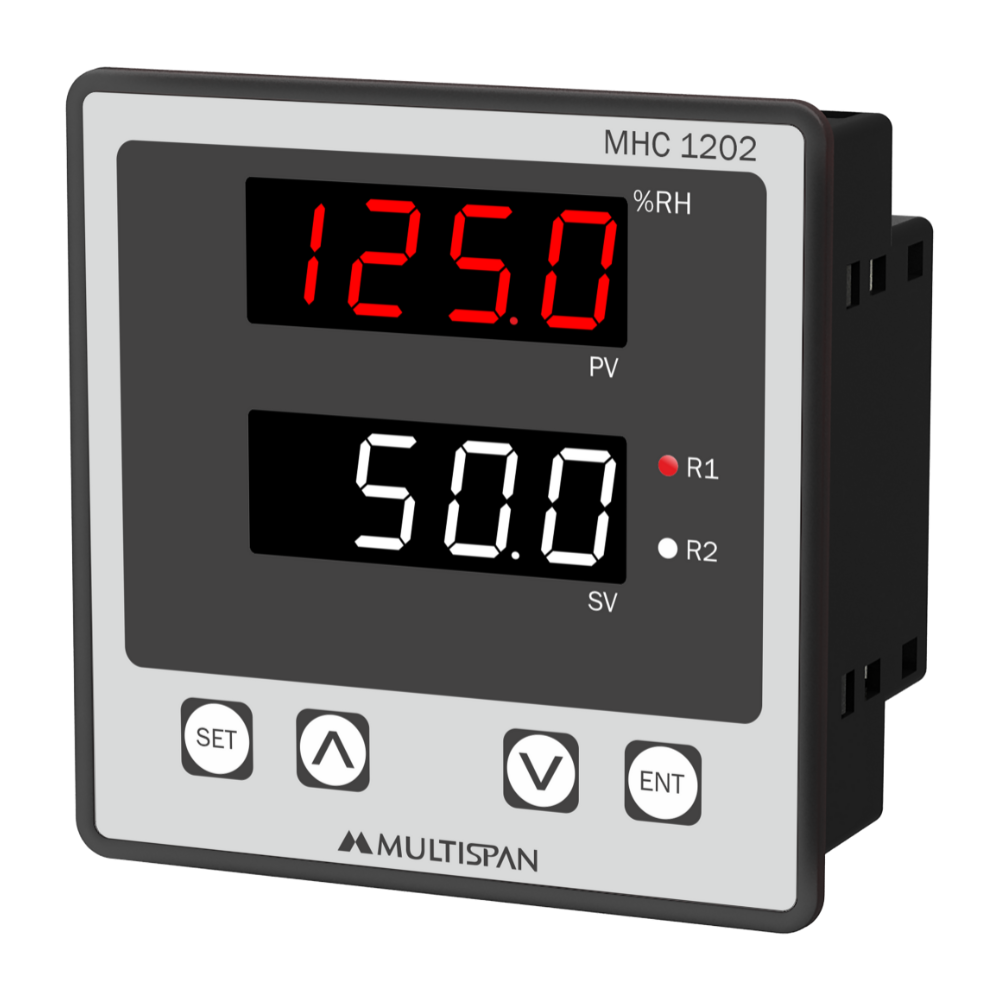

MHC-1202 - Humidity Controller - regular image

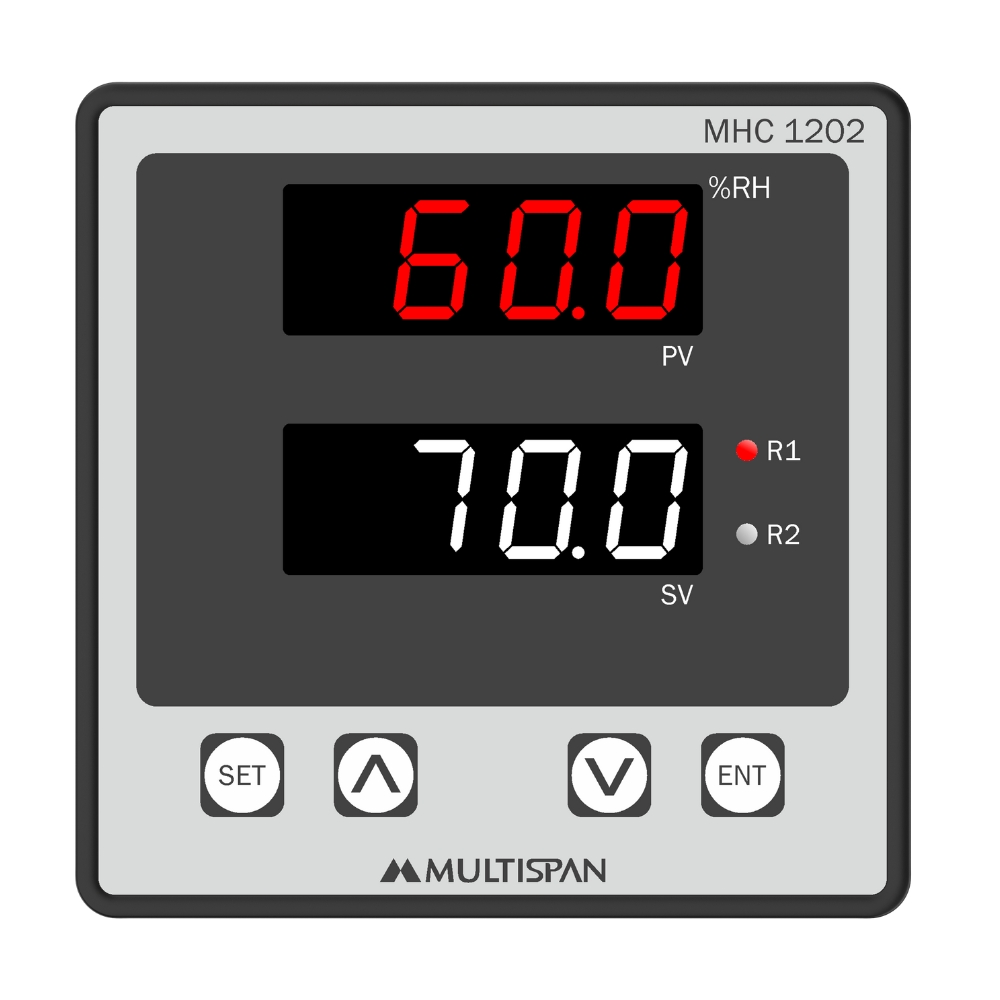

MHC-1202 - Humidity Controller - front image

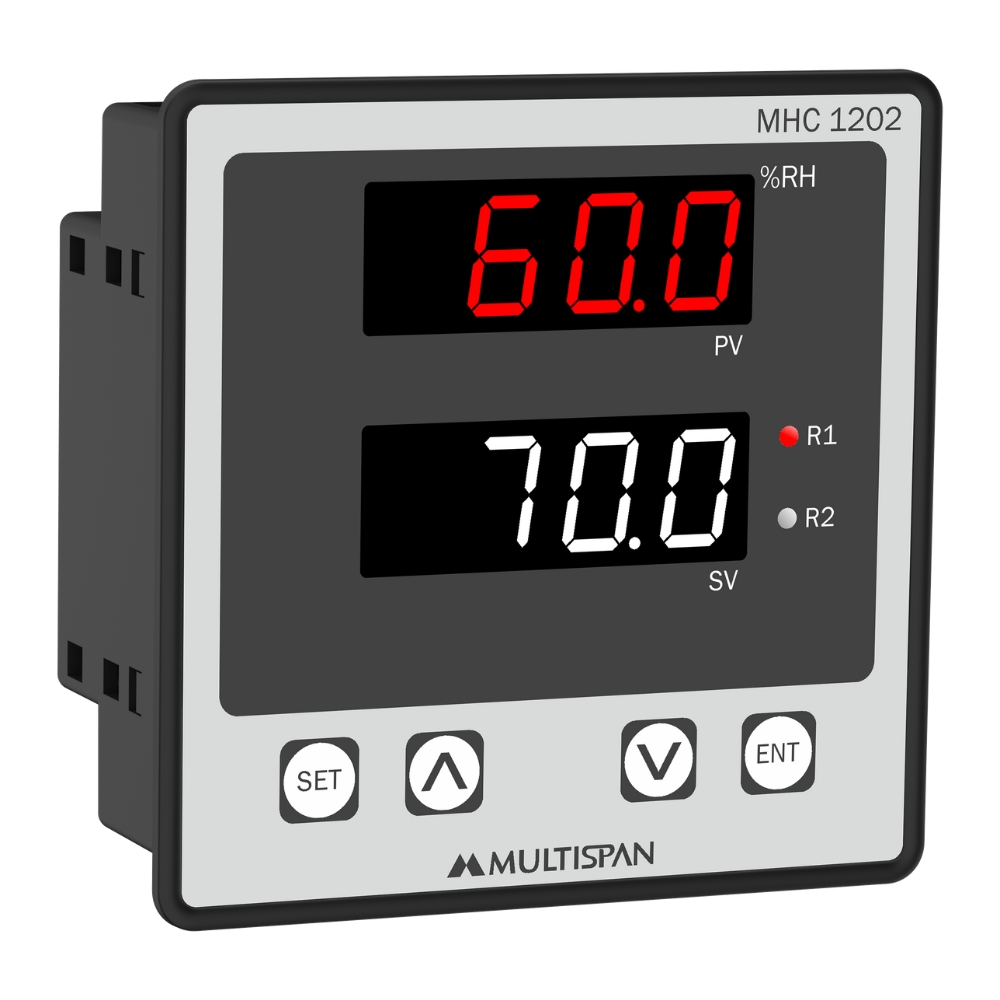

MHC-1202 - Humidity Controller - side image

Humidity Controller

Product: MHC-1202

Humidity Sensor Input
2-Relay Output for Humidification/Dehumidification Function
RS-485 Modbus
Analog Retransmission output.
Size: (H)96mm x (W)96mm x (D)54mm
Supply Voltage: 100-270V AC

Top Variants:

MHC-1202 MHC-1101 MHC-512

Product Variant

Technical Specification
Display	Upper display, 7-Seg, Red 0.56” LED for Process Value
Display	Lower display, 7-Seg, White 0.56” LED for Process Set Value
Dimension	Size (mm): 96(H) X 96(W) X 54(D)
Panel Cutout	92 (H) X 92 (W)
Input	RH-100 ( Humidity)
Range	Humidity (0.0 TO 100.0 % RH)
Supply	100 To 270V AC, 50/60 Hz, Approx 4VA
Output	2Relay 1C/O (On-Off)
Protection Level	IP-65 (Front side) As per IS/IEC 60529 : 2001

Process industries
Lab Testing equipment
Testing Chambers
HVAC & Refrigeration industries

Product Variant

Sr.no	Model No	Input	Output	Aux Supply	Size
1	MHC-1202-A2-02	Humidity Sensor (RH-100)	2 Relay	100-270V AC	96x96x54(HxWxD)mm
2	MHC-1101-A2-01	Humidity Sensor (RH-85)	1 Relay	100-270V AC	96x96x54(HxWxD)mm
3	MHC-1101-A2-02	Humidity Sensor (RH-100)	1 Relay	100-270V AC	96x96x54(HxWxD)mm
4	MHC-1101-A2-04	Humidity Sensor (RH-100)	1Relay + 4-20mA Retransmission	100-270V AC	96x96x54(HxWxD)mm
5	MHC-512-A2-00	Humidity Sensor (RH-100)	2 Relay	100-270V AC	37x78x70(HxWxD)mm
6	MHC-512-A2-01	Humidity Sensor (RH-85)	2 Relay	100-270V AC	37x78x70(HxWxD)mm
