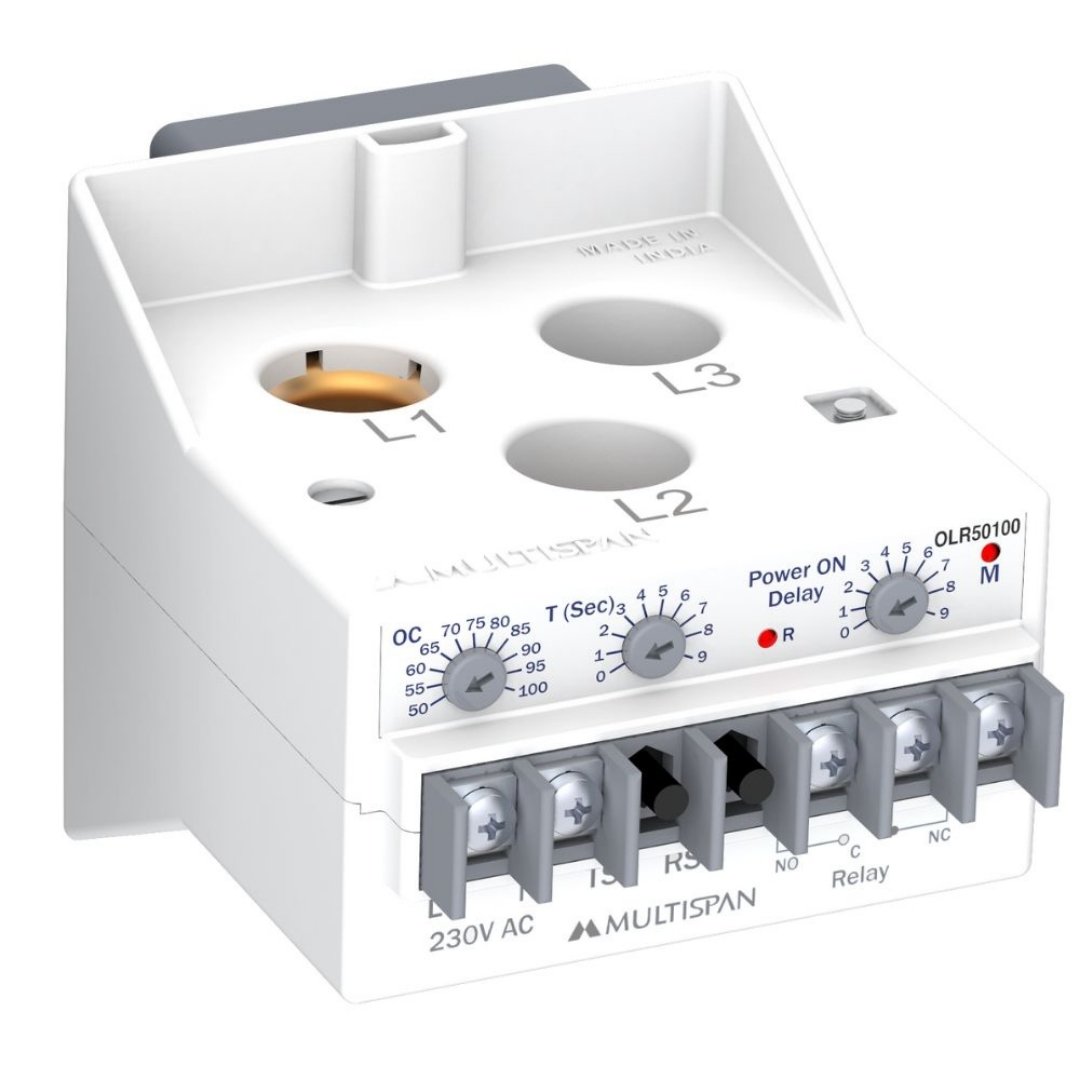

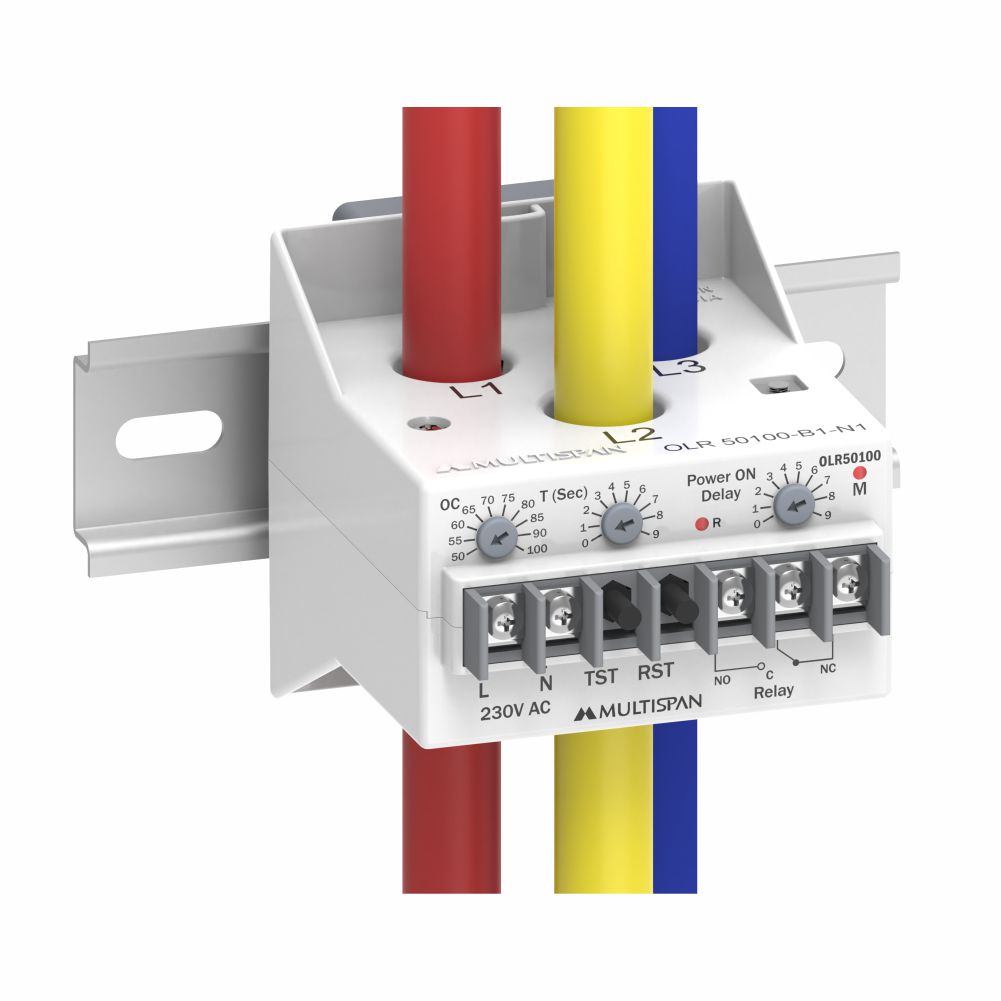

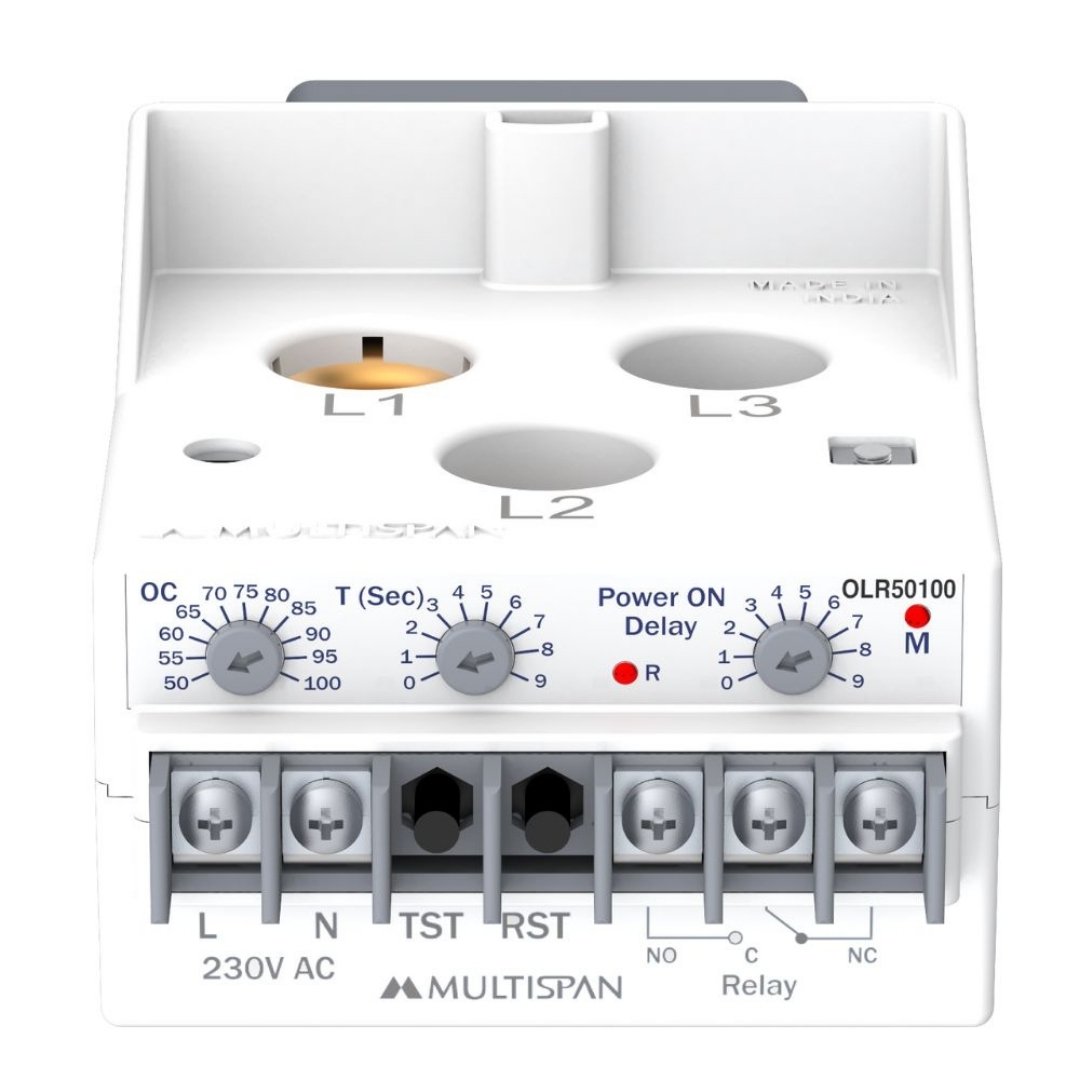

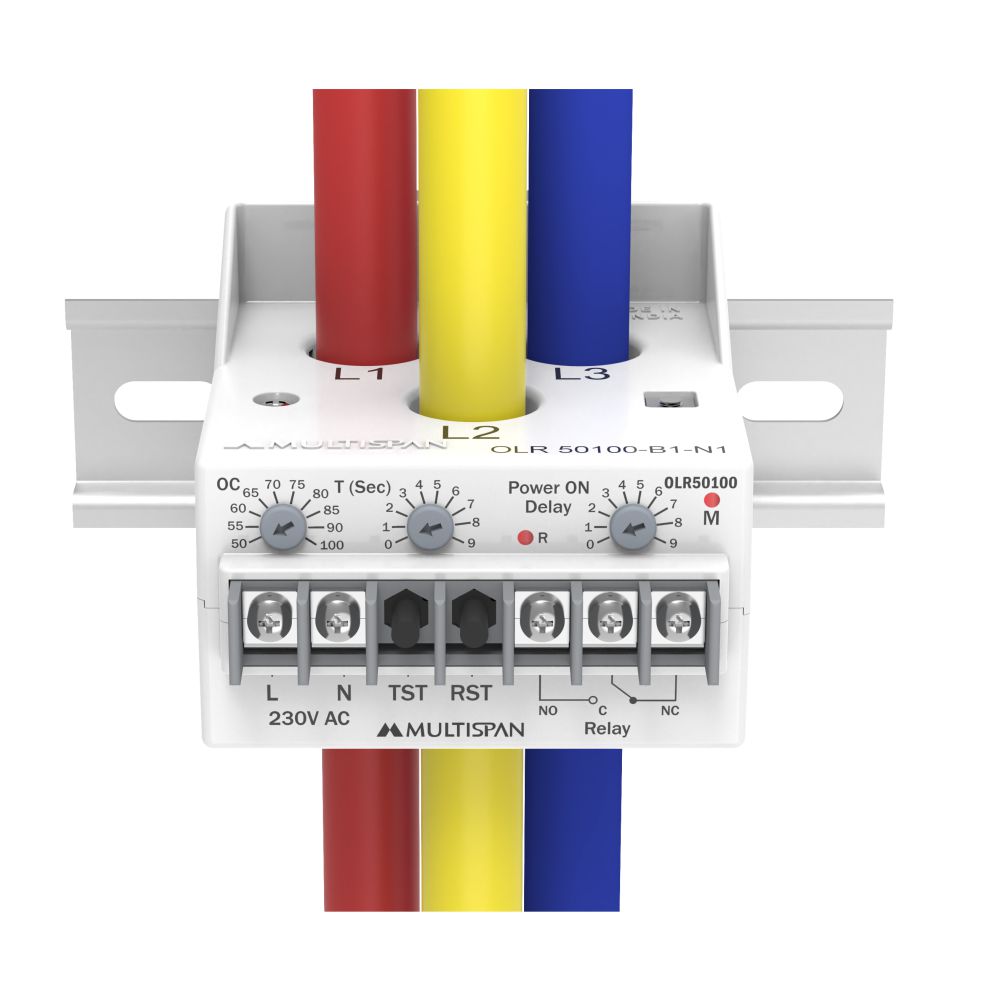

Din Rail Mount – Overload Relay 3Phase-CT Built-in

Product: OLR-50100

  • Range 50-100A AC
  • Trip and Power On Delay 0-9 Sec
  • 1 Relay 1C/O, 5A,230V AC
  • Front Test and Rest Key
  • Size: 70 X 70.5 X 91 (H X W X D) mm
  • Supply Voltage : 230V AC



Parameter Specification
Power Supply 230V AC, 50Hz
Input Current 50 to 100A AC
Output 1 Relay NO/C/NC, 5A 230V AC, 30V DC Resistive load
Tripping Parameters Over Current, SPP
Delay Time Power ON Delay: 0 To 9 Sec Settable
Initial Time Delay: 5 Sec
Reset Mode: Manually
Trip Time Trip Time Delay: 0 To 9 Sec Settable
Keys Test, Reset

Product Variant

Part Code Range  Output Supply
OLR06-B1-00 0.1 to 6A AC 1R 1C/O 230V AC
OLR110-B1-00 1 to 10A AC 1R 1C/O 230V AC
OLR-1030-B1-00  10 to 30A AC 1R 1C/O 230V AC
OLR-1060-B1-00 10 to 60A AC 1R 1C/O 230V AC
OLR-50100-B1-00 50 to 100A AC 1R 1C/O 230V AC
