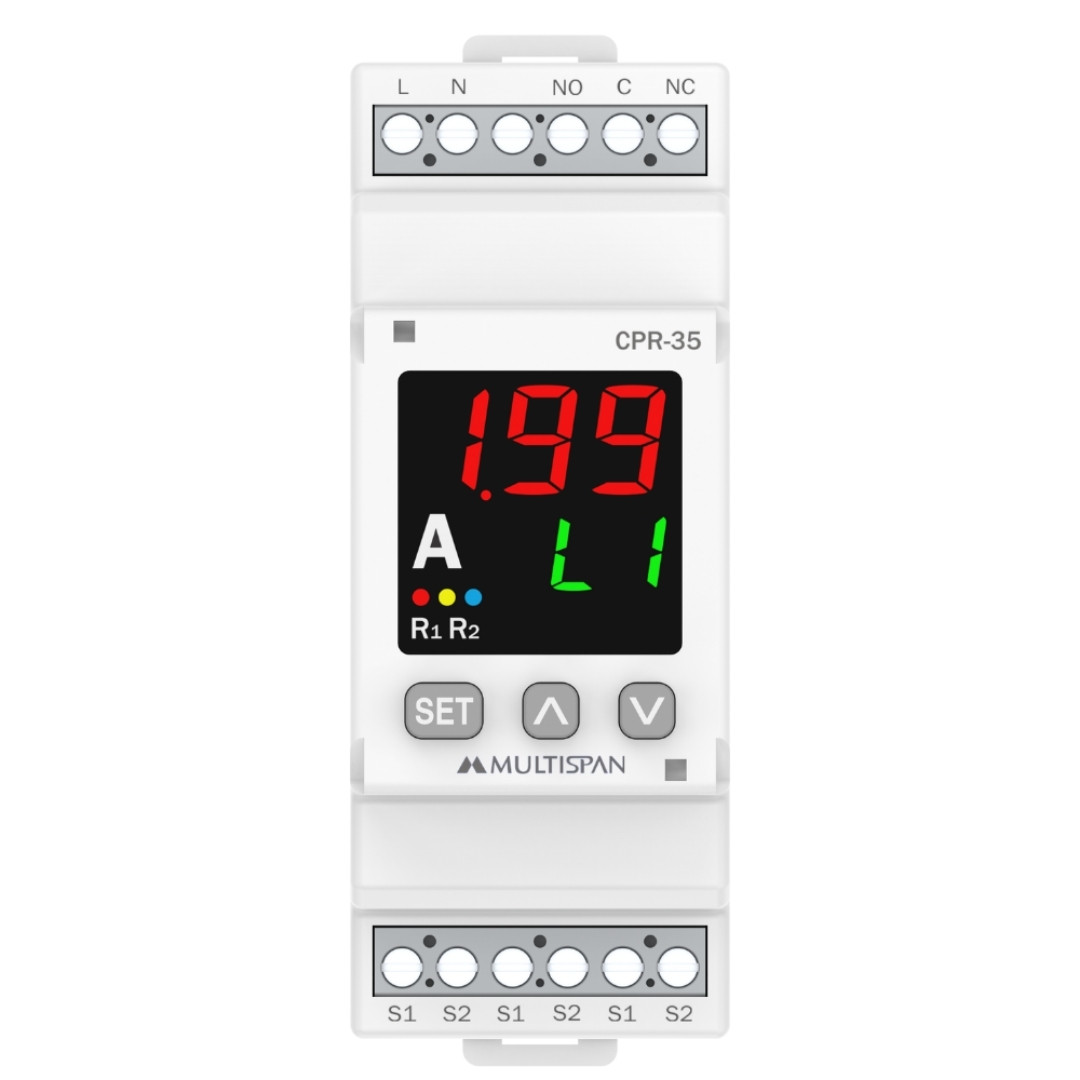

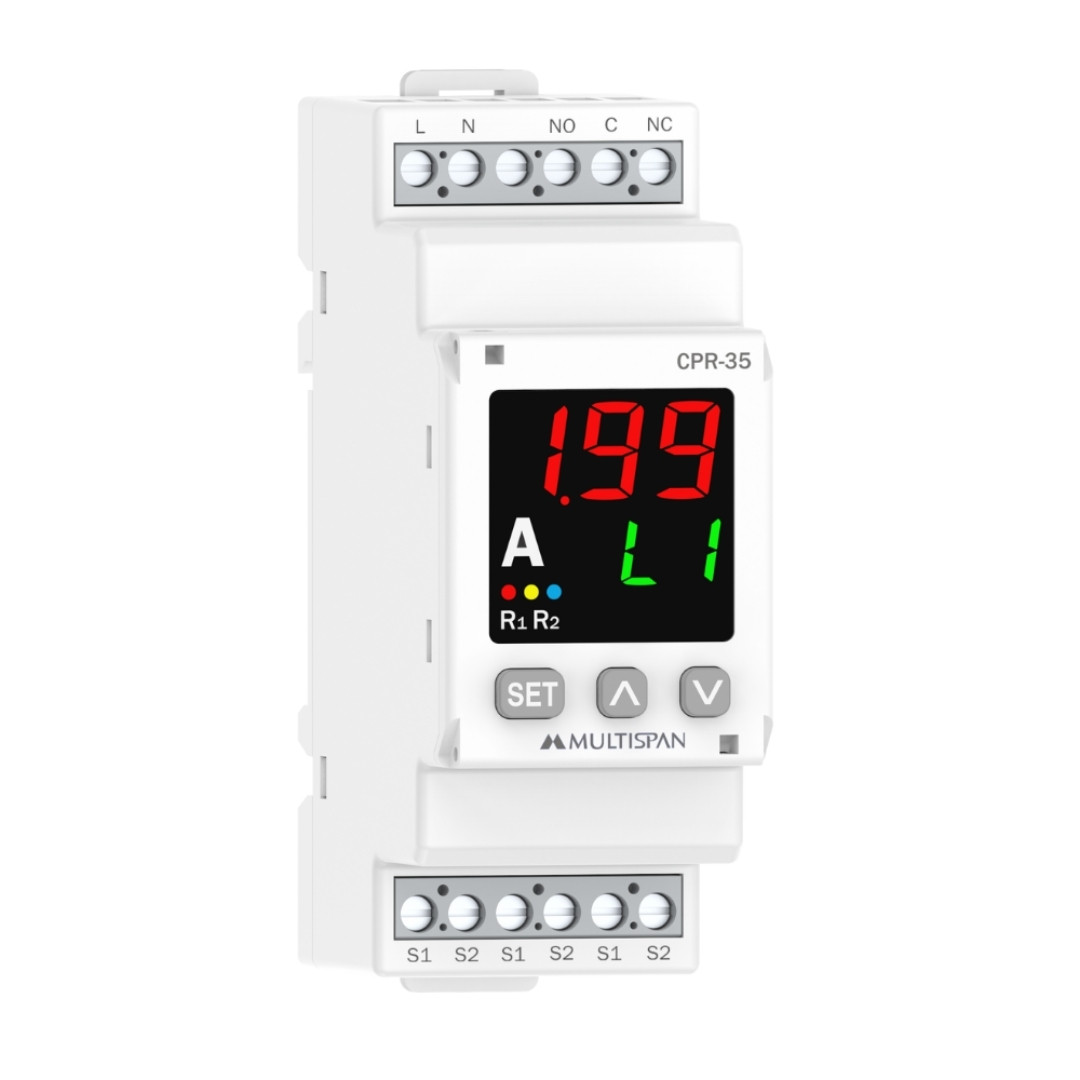

Digital Din Rail Mount – Current Protection Relay
Product: CPR-35
- Programmable Over & Under Current
- 1-Relay, 1-C/O
- Fail Safe & Non Fail Safe Mode
- Available in 1Ø and 3Ø
- Size: (H)90mm X (W)35mm X (D)61.5mm
- Supply Voltage: 100-270V AC
| INPUT SPECIFICATION | |
| Primary CT value | 5 to 999 Selectable |
| Secondary current AC | 0.05 to 5 Amp AC |
| Resolution | 0.01A, 0.1A, 1A |
| DISPLAY AND KEY: | |
| Display | UPPER : 3-Digit, 7-Seg 0.4” LOWER : 3-Digit, 7-Seg 0.28” |
| Keys | SET, INC, DEC/ RST |
| OUTPUT SPECIFICATION: | |
| Relay | 1 nos. |
| Relay Type | 1 C/O (NO-C-NC) |
| Rating | 5A, 250V AC/30 V DC |
| ACCURACY | Class 1.0 (Standard) |
| GENERAL SPECIFICATION: | |
| Dimension (mm) | 90 (H) x 35 (W) x 61.5 (D) |
| Trip Setting | Under current: 0.00 to 100% of primary C.T value Over current: 0.00 - 120% of primary C.T value |
| Time parameter | Trip delay time : 0 to 999 sec Power on time : 0 to 99 sec Initial time delay : 0 to 99 sec Recovery time : 0 to 99 sec |
| AUXILIARY SUPPLY: | |
| Supply voltage | 100 to 250V AC, 50-60Hz |
| Power consumption (VA RATING) | 3 VA @ 230V AC MAX |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
- DG Set Panels
- Motor Control Center Panels
- Control Panels
- Distribution Panels
- Process Control
Product Variant
| Part Code | Size(mm) | Network | Input | Output | Supply |
| CPR-35-A1-00 | 90 x 35 x 61.5 | 3Ø | 5A to 999A | 1R, 1-C/O | 100-250V AC |
| CPR-35-1C-A1-00 | 90 x 35 x 61.5 | 1Ø | 5A to 999A | 1R, 1-C/O | 100-250V AC |
