CRYO – Panel AC Application

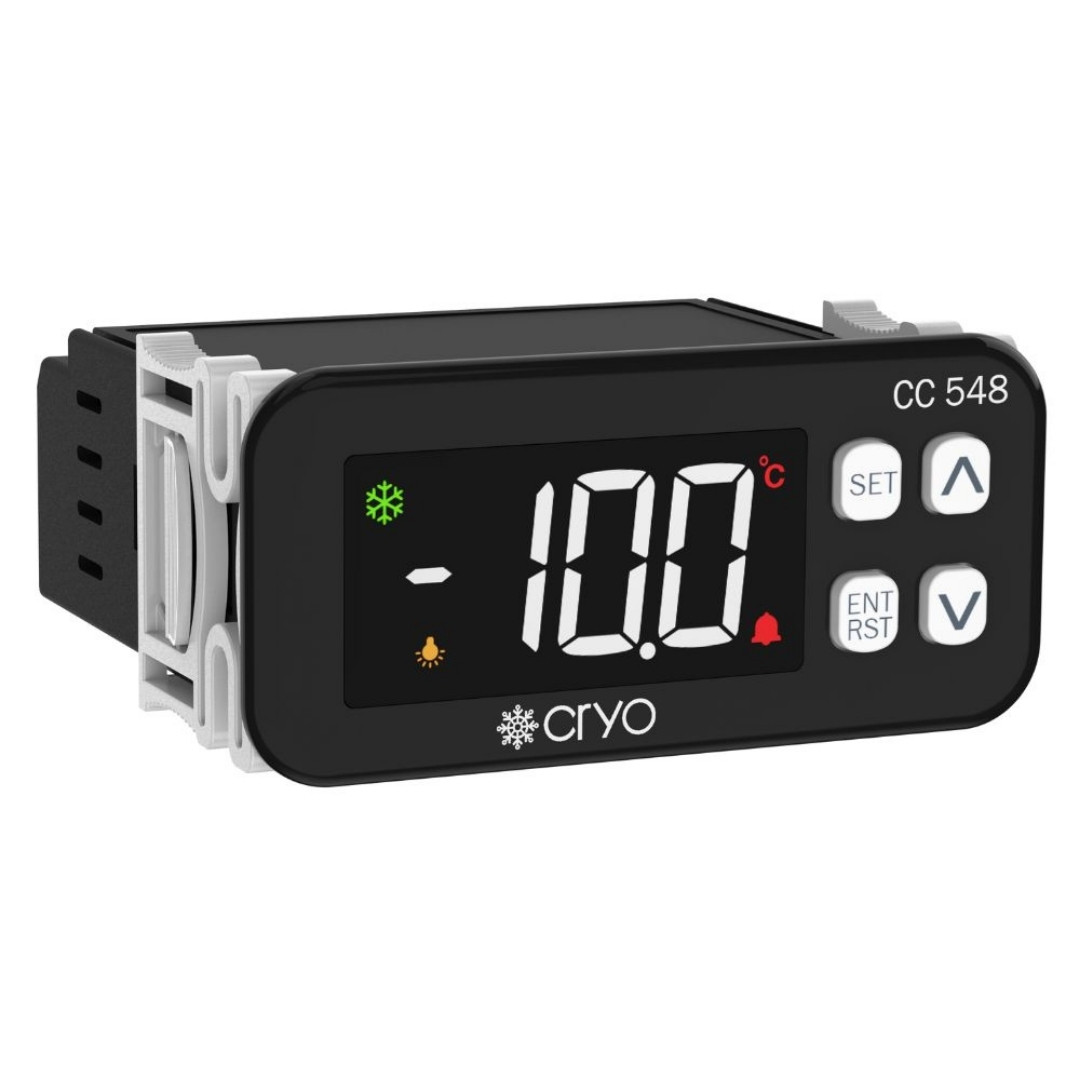

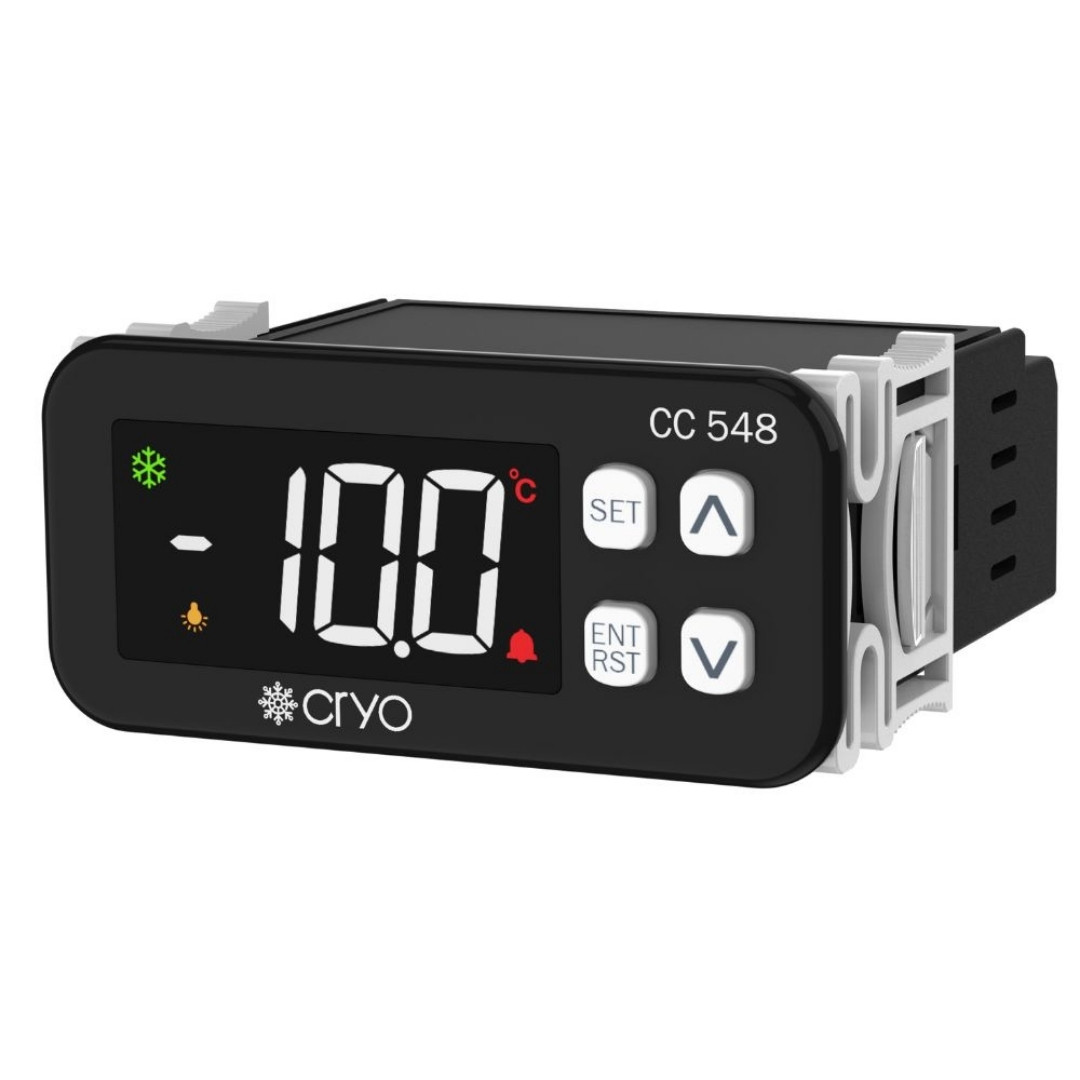

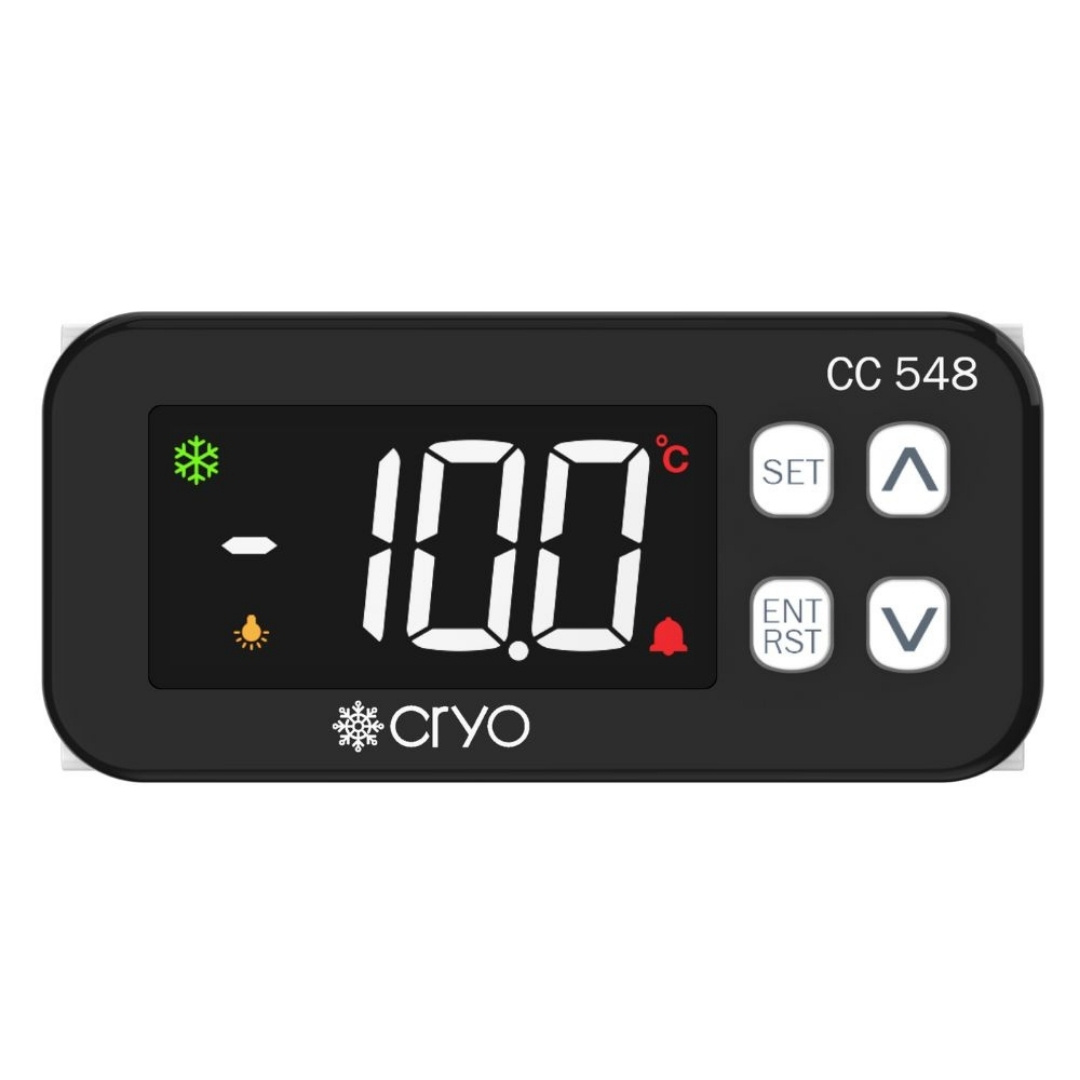

Product: CC-548
- Single NTC Input + Pulse Input/Door Input
- 20A Relay Output for Compressor Load
- 5A Relay for High/Low Alarm Function
- Available in Touch/Keypad Module with Black Plastic Enclosure
- Size : (H)37mm x (W)78mm x (D)70mm
- Supply Voltage: 230V AC/24V DC/12V DC
| Model | CC-548 |
| Display | 3 Digit 0.62” 7 Segment RED / WHITE Display |
| Size (mm) | 37 (H) x 78 (W) x 70 (D) mm |
| Panel Cutout (mm) | 30 (H) X 71 (W) |
| Input | NTC Thermistor Pulse Input |
| Output | 2-Relay 1st Relay for Compressor 20A ( Resistive Load ) 2nd Relay for Alarm & Door 5A ( Resistive Load ) |
| Range | -50.0°C To 99.9°C |
| Power Supply | 230V AC, 50/60Hz, Approx 3VA |
| Operating Temperature | 0°C TO 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
- Air Conditioner Panel
Product Variant
| sr.no | Model Number | Output 1 | Output 2 (Alarm) | Keypad | Display Color | Body color |
| 1 | CC-548-B1-01-W-BL | 20A Relay | 5A Relay | Key | White | Black |
| 2 | CC-548T-B1-01-W-BL | 20A Relay | 5A Relay | Touch | White | Black |
