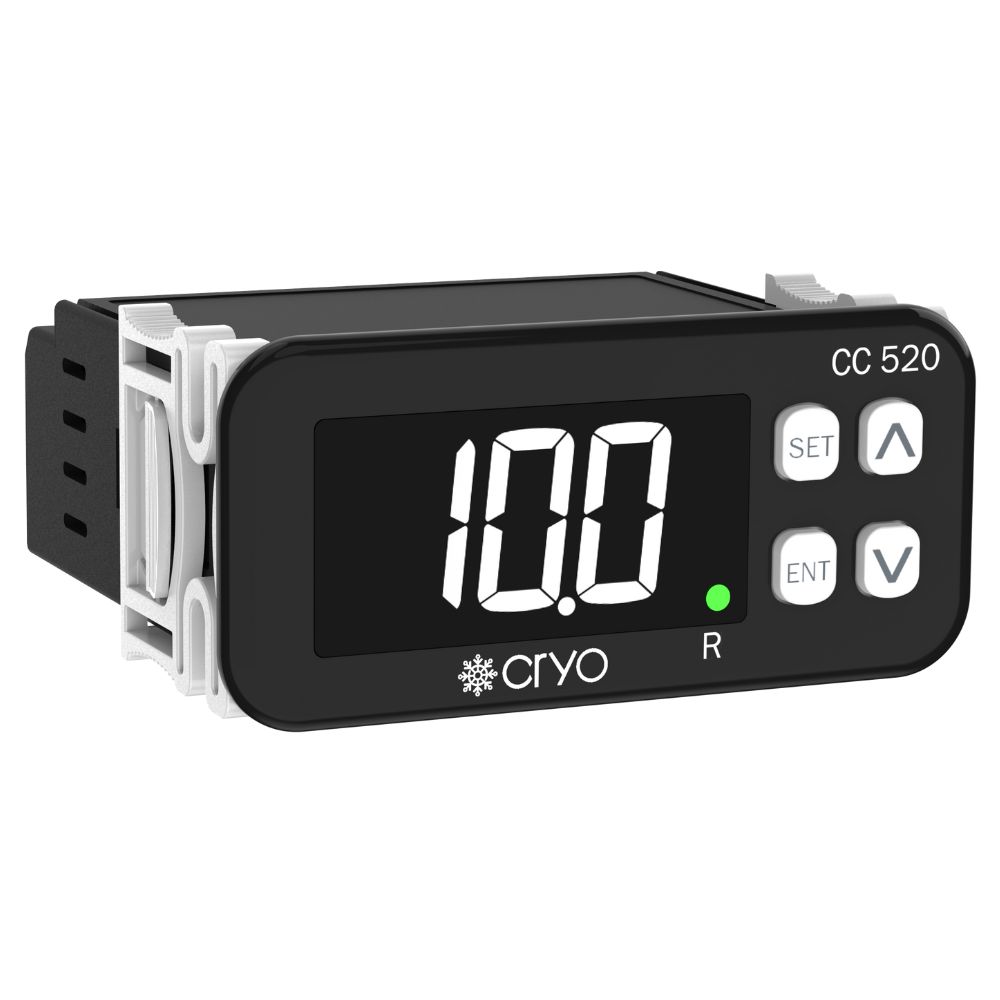

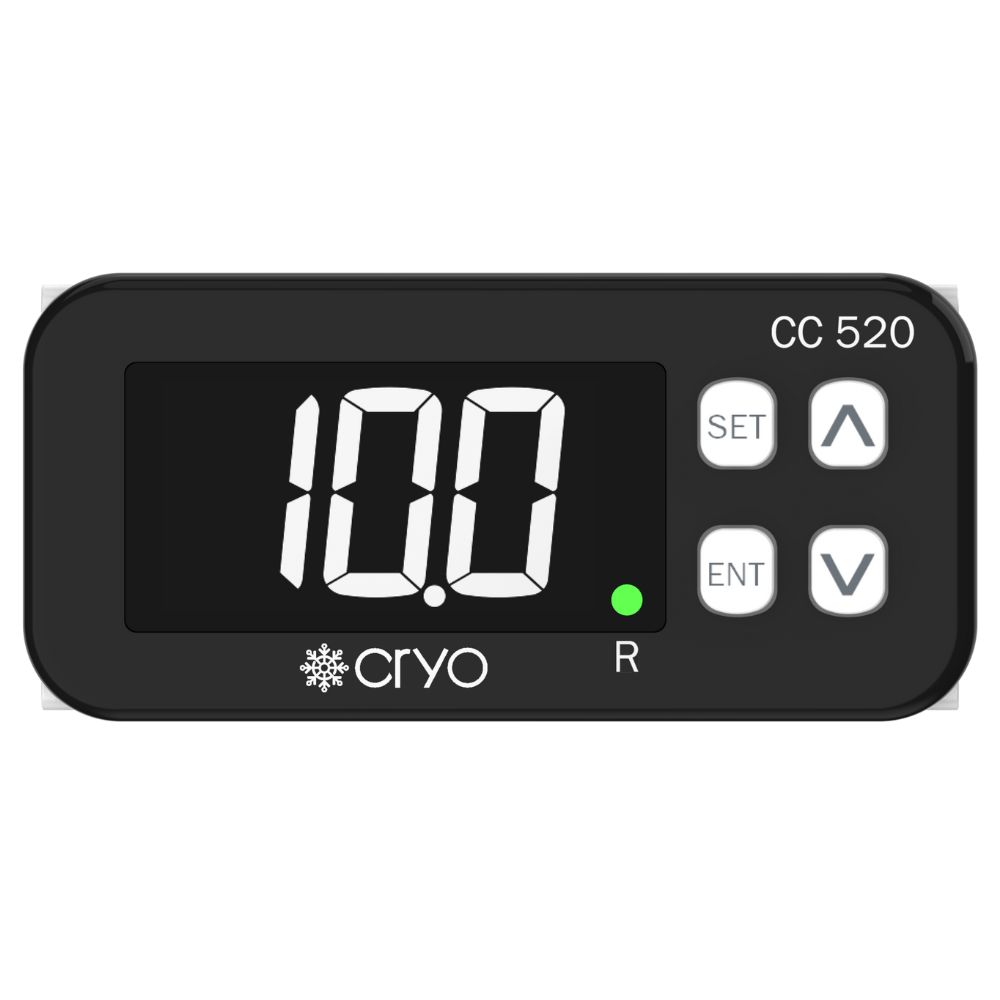

CRYO -20A Single Output
Product: CC-520
- Single NTC input
- 20A Relay Output for Compressor or heater load
- 3 Digit White/Red Display With 0.1 Resolution
- Time based defrost facility.
- Available in touch/keypad module With Black & White color plastic Enclosure
- Size : 37x78x78(HxWxD)mm
- Supply : 230V AC/24VDC/12V DC
| Model | CC-520 |
| Display | 3 Digit 0.56” 7 Segment RED / WHITE Display |
| Size (mm) | 37 (H) x 78 (W) x 78 (D) mm |
| Panel Cutout | 30(H) X 71(W) mm |
| Input | NTC Thermistor |
| Output | 1 Relay, No - C/O contact, 20A (Resistive) |
| Range | -50°C To 99.9°C |
| Power Supply | 230V AC,50/60Hz,Approx 3VA |
| Operating Temperature | 0°C To 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
Product Variant
| sr.no | Model Number | Output 1 | Keypad | Display Color | Body color |
| 1 | CC-520-B1-01-W | 20A Relay | Key | White | White |
| 2 | CC-520-B1-01-R | 20A Relay | Key | Red | White |
| 3 | CC-520-B1-01-W-BL | 20A Relay | Key | White | Black |
| 4 | CC-520-B1-01-R-BL | 20A Relay | Key | Red | Black |
| 5 | CC-520T-B1-01-W | 20A Relay | Touch | White | White |
| 6 | CC-520T-B1-01-R | 20A Relay | Touch | Red | White |
| 7 | CC-520T-B1-01-W-BL | 20A Relay | Touch | White | Black |
| 8 | CC-520T-B1-01-R-BL | 20A Relay | Touch | Red | Black |
