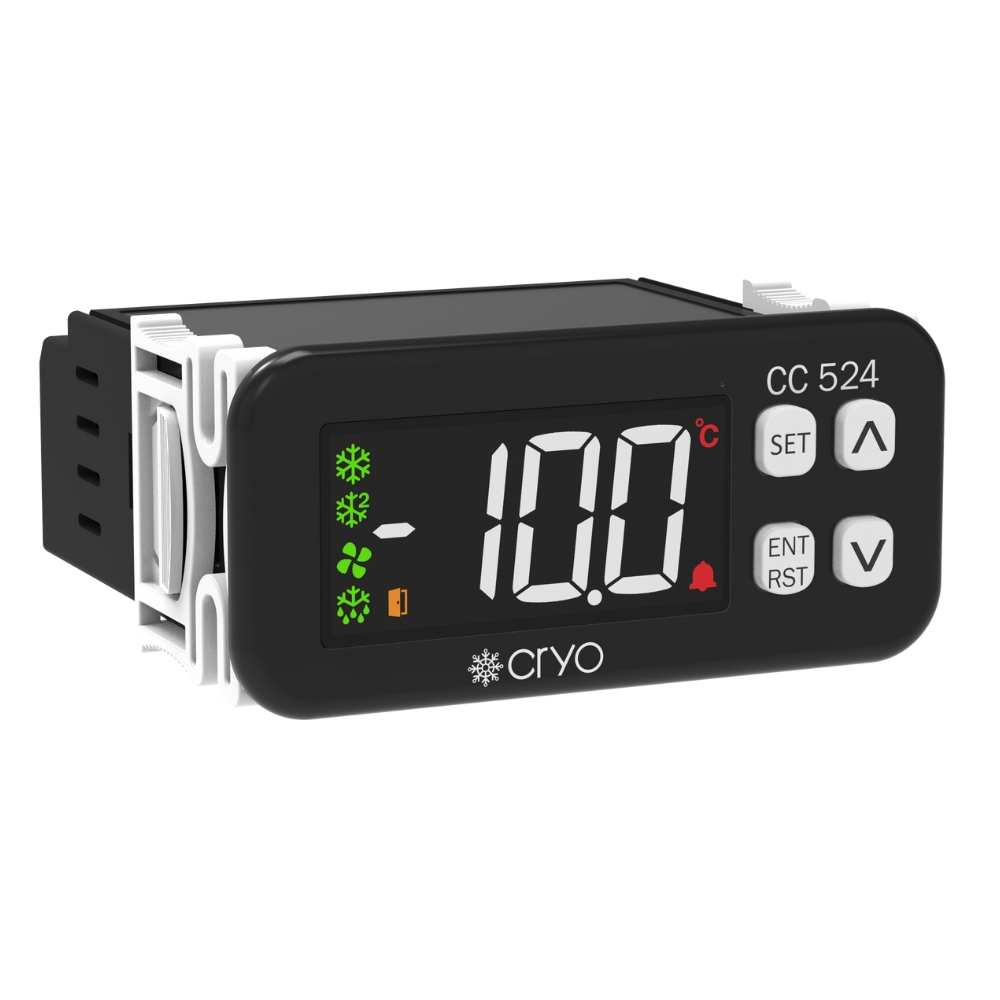

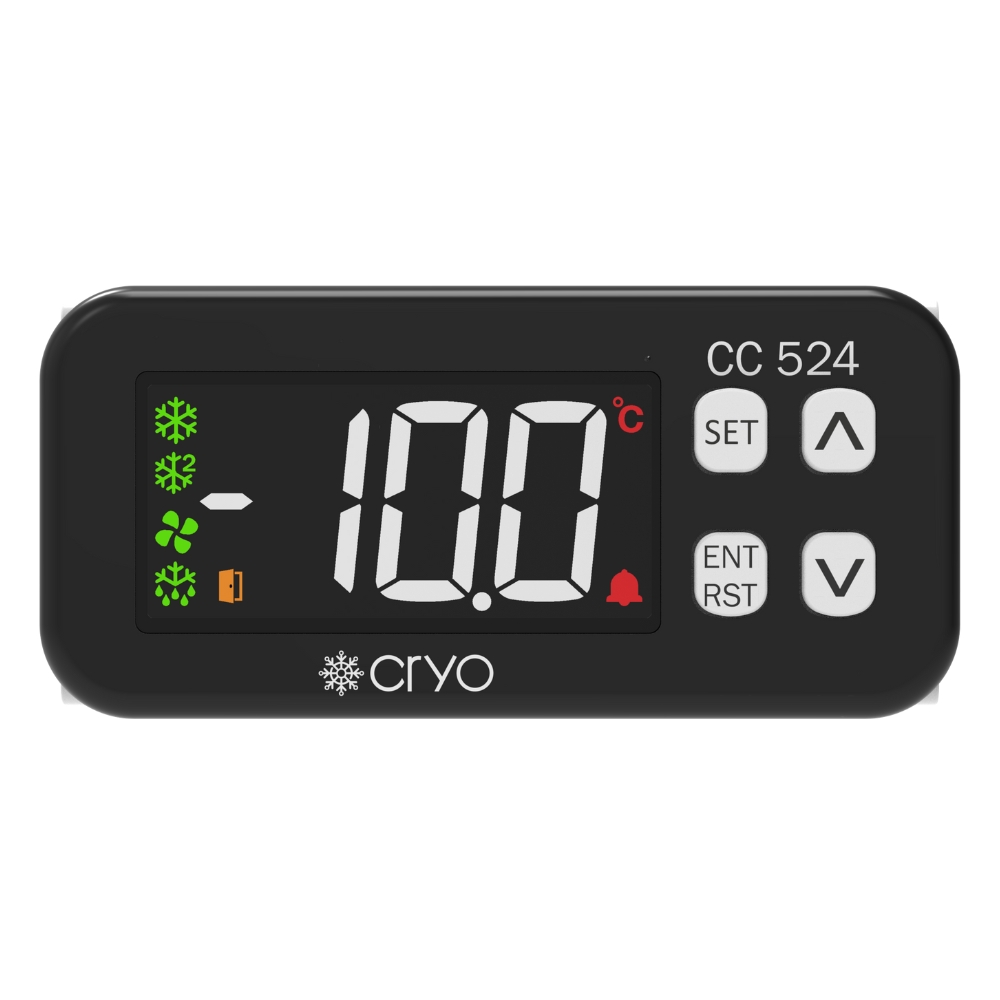

Cooling Controller
Product: CC-524
- 2NTC Thermistor & Pulse
- 10A Relay Output Controls Compressor Load
- Dedicated 10A Relay for Fan & Defrost Functions
- Keypad Module for User Interaction
- White / Black Plastic Enclosure
- Size : (H)37mm x (W)78mm x (D)70mm
- Supply Voltage: 230V AC/24V DC/12V DC
| Model | CC-524 |
| Display | 3 Digit 0.62” 7 Segment RED / WHITE Display |
| Size (mm) | 37 (H) x 78 (W) x 70 (D) mm |
| Panel Cutout (mm) | 30 (H) X 71 (W) |
| Input | 2NTC Thermistor & Pulse |
| Output | 3 Relay 1st Relay (NO-C-NC) For Compressor 2nd Relay(NO-C) For Fan 10A ( Resistive load ) 3rd Relay(NO-C) For Defrost 10A ( Resistive load ) |
| Range | -50.0°C To 99.9°C |
| Power Supply | 230V AC,50/60Hz,Approx 3VA |
| Operating Temperature | 0°C TO 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
- Air Conditioner Panel
- Deep freezer
- Display Cabinet
- Chillers
- Heat Pump
- Portable Chillers
Product Variant
| Part No. | Input | Display Color | Relay | Power Supply |
| CC-524-B1-01-R | 2 NTC sensor | Red | 3 | 230V AC |
| CC-524-B1-01-W | 2 NTC sensor | Red | 3 | 230V AC |
| CC-524-B1-01-W-BL | 2 NTC sensor | White | 3 | 230V AC |
| CC-524-D1-01-W-BL | 2 NTC sensor | White | 3 | 24V DC |
| CC-524-D2-01-W-BL | 2 NTC sensor | White | 3 | 12V DC |
