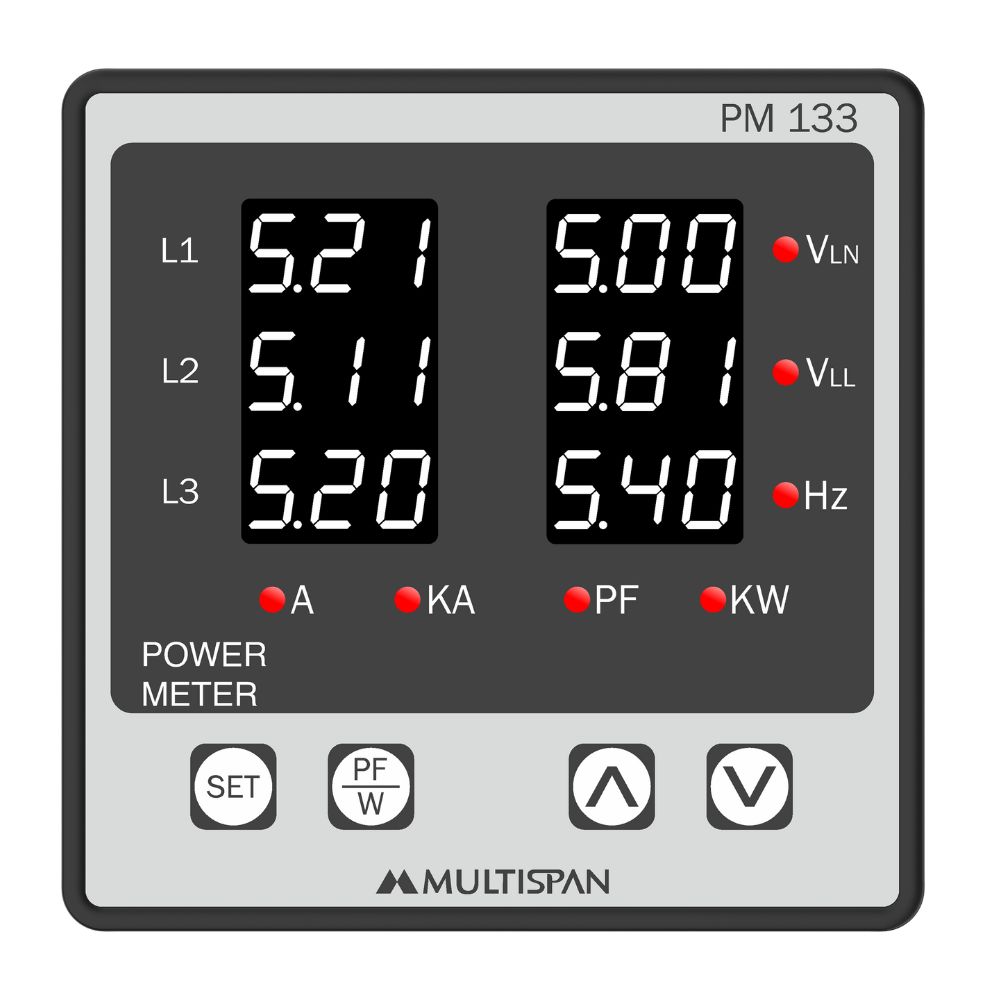

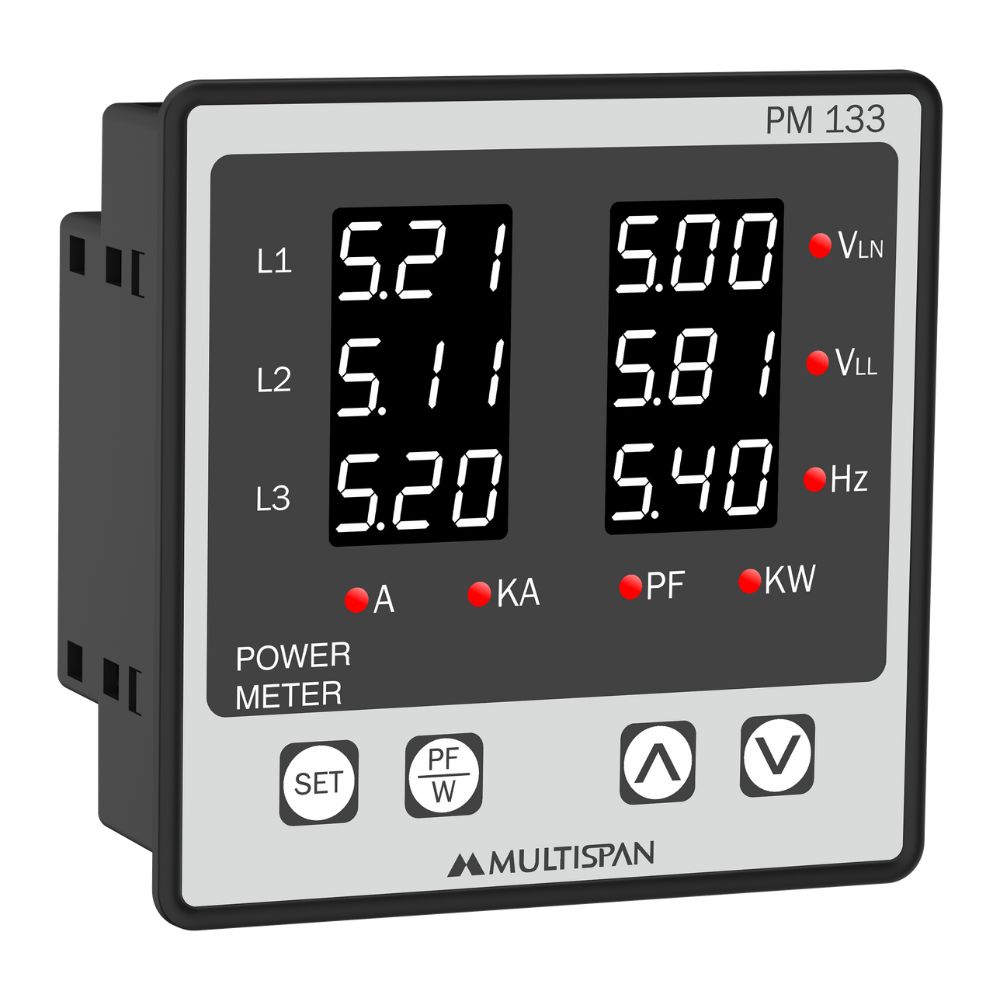

3Ø Power Meter
Product: PM-133
- Network Selection: 3Ø-4W
- 3+3-Digit, 7-Segment White LED Display
- Additional Features: Power Factor and Kilo-Watt Display with Indication
- 87-519V AC (L-L), 50-300V AC (L-N)
- Size: (H)96mm X (W)96mm X (D)54mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
| INPUT | |
| Voltage AC | |
| Direct Voltage AC | 50 to 300V (L - N) |
| 87 to 519V (L - L) | |
| Burden | < 0.2 VA |
| Current AC | |
| Primary CT Ratio | 5 to 3000 Selectable |
| Secondary Current Ac | 5 Amp |
| Burden | < 0.2 VA |
| Overload | Upto 6A Continuous |
| Frequency | 45.0 to 65.0 HZ |
| CALCULATED PARAMETERS | |
| Voltage | VLL, VLN, Avg |
| Current | L1, L2, L3, Avg |
| Frequency | System Frequency |
| Load Hour, No load hour | Upto 9999Hr, 59 Min |
| Power Factor | L1, L2, L3, Avg |
| Kilo Watt | L1, L2, L3, Total |
| RPM | 2 to 100 Pole |
| AUXILIARY POWER SUPPLY | |
| Power Supply | 100 to 270V AC/DC, 50/60Hz |
| Burden | 4VA |
| DISPLAY, KEY & LED | |
| Display |
3-Digit, 6-Line, 7-Seg White Display 0.36” LED |
| Key | Set, PF/W, Inc, Dec |
| LED Indication | A, KA, VLL, VLN, PF, Hz, Kw |
| ENVIRONMENTAL CONDITION | |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 55°C |
| Relative Humidity | 95 % RH Non - Condensing |
| Protection Leval | IP-65 (Front side As per IS/IEC 60529 : 2001) |
| DIMENSION | |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- LT Panel
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Current | Auxillary |
| PM-133-E3-00 | Network Selection :3Ø4W Voltage Input: 87 to 519V AC (P-P) 50 to 300V AC (P-N) |
CT Primary :Upto 3000A CT Secondary : 5A |
100 to 270V AC/DC |
| PM-133-E3-06 | CT Input: 60A with DIN 60AX CT |
