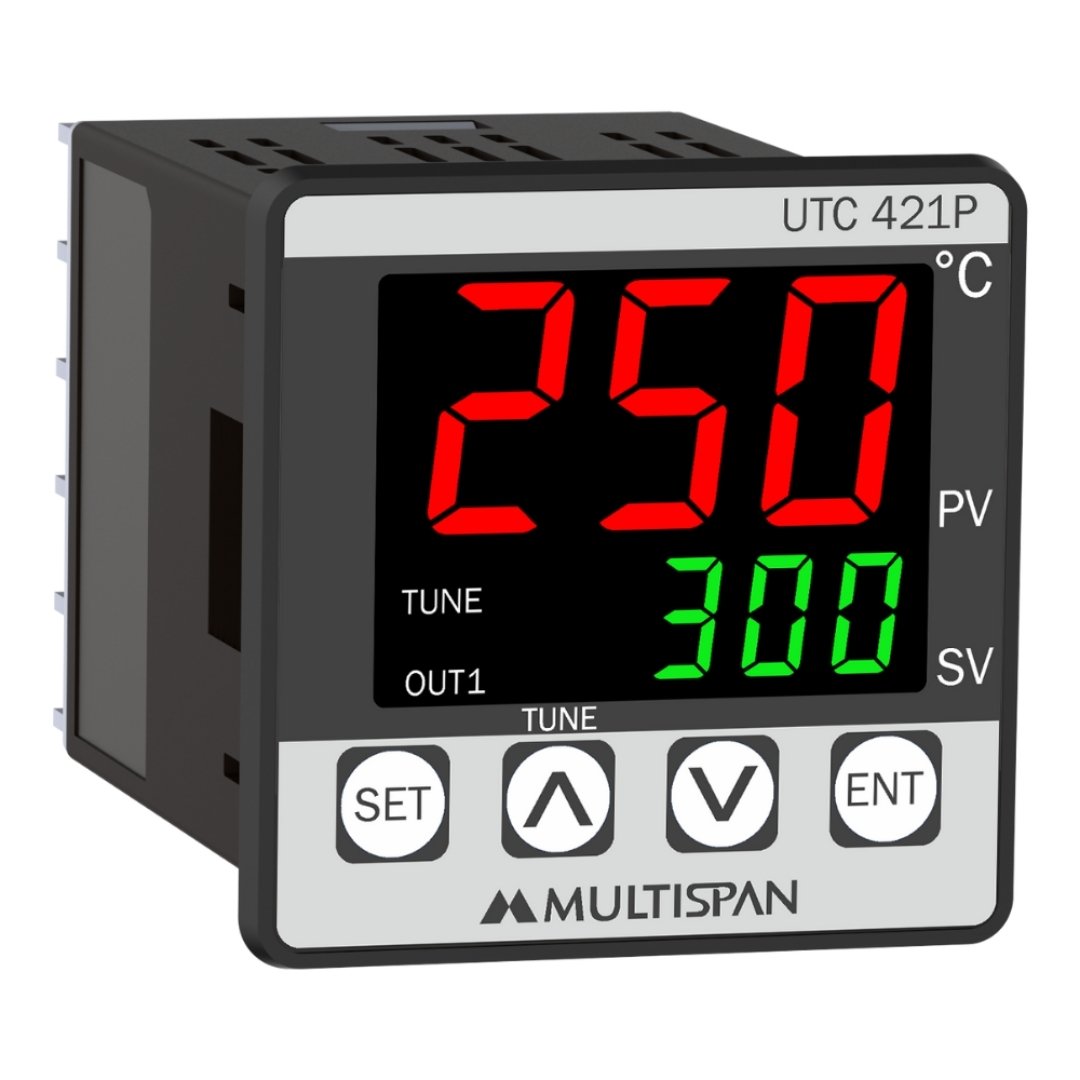

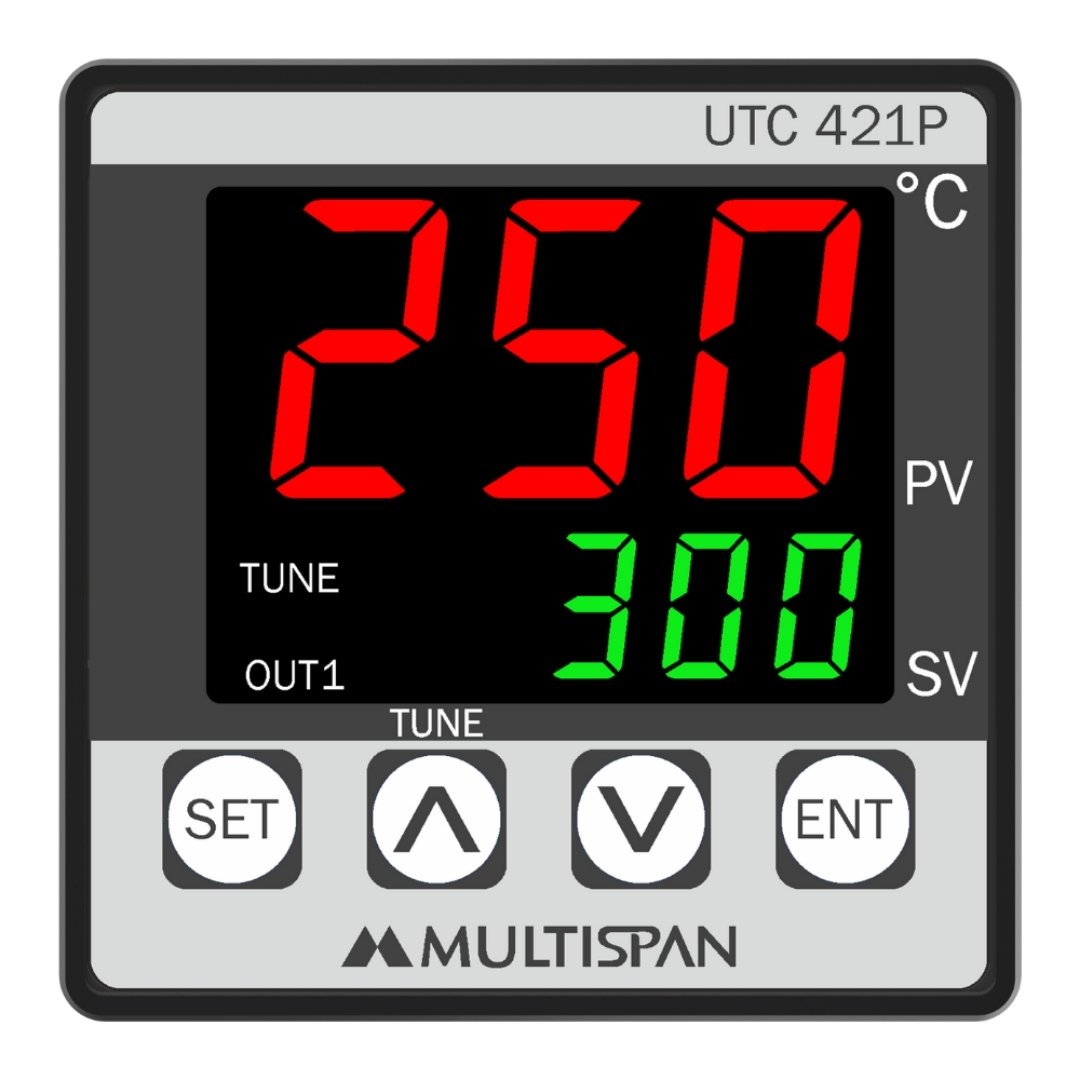

3-Digit Dual Display Single Output PID Controller
Product: UTC-421P
- Universal Input (J/K/RTD)
- 3-Digit Dual Red/White LED Display
- PID/On-Off Controller
- Single Output (Relay || SSR) for Load Control
- Size: (H)48mm x (W)48mm x (D)70mm
- Supply Voltage: 100-270V AC
Top Variants:
| INPUT SPECIFICATION: | ||
| Input Types | Input | Range |
| J | 0 to 600°C, | |
| K | 0 to 999°C, | |
| PT-100 | -99 to 400°C, | |
| PT.1 | -19.9 to 99.9°C, | |
| Resolution | J,K,PT-100 = 1°C,PT.1 = 0.1°C | |
| Indication Accuracy | ±1% of FSD | |
| (FSD:-Full Scale Deflection) | ||
| DISPLAY AND KEYS: | ||
| Display | Upper: 3-Digit, 7-Segment, 0.63” | |
| Lower: 3-Digit, 7-Segment, 0.30” | ||
| Keys | SET, INC, DEC, ENT | |
| DIMENSION: | ||
| Size (mm) | 48 (H) x 48 (W) x 70 (D) | |
| Panel Cutout (mm) | 45 (H) x 45 (W) | |
| CONTROL METHOD: | ||
| Heating | 1. PID control with Auto-Tuning | |
| 2. (TP) Time Proportional | ||
| 3. ON-OFF control | ||
| Cooling | ON-OFF control | |
| OUTPUT SPECIFICATION: | ||
| Relay Output | ||
| Relay | 1 Nos | |
| Relay Type | 1C/O (NO-C-NC) | |
| Rating | 10A, 230V AC / 28V DC | |
| SSR Drive Output | ||
| Output Signal | 12V DC, 30mA DC | |
| (On-Off condition) | ||
| POWER SUPPLY: | ||
| Supply Voltage | 100 to 270V AC, 50-60Hz | |
| Power Consumption (VA Rating) | 4VA @ 230V AC MAX | |
| ENVIRONMENT CONDITION: | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
| (As per request) | ||
- Packaging Machinery
- Extrusion Machinery
- Furnace & Boilers
- Ovens & Incubators
- Food Industry
Product Variant
|
Model No |
Display |
Input |
Output |
Aux Supply |
| UTC-421P-A2-3-RS | Red + Green | J/K/Pt-100 (Selectable) | Relay || SSR | 100-270V AC |
| UTC-421P-A2-3-WS | White + Green | J/K/Pt-100 (Selectable) | Relay || SSR | 100-270V AC |
