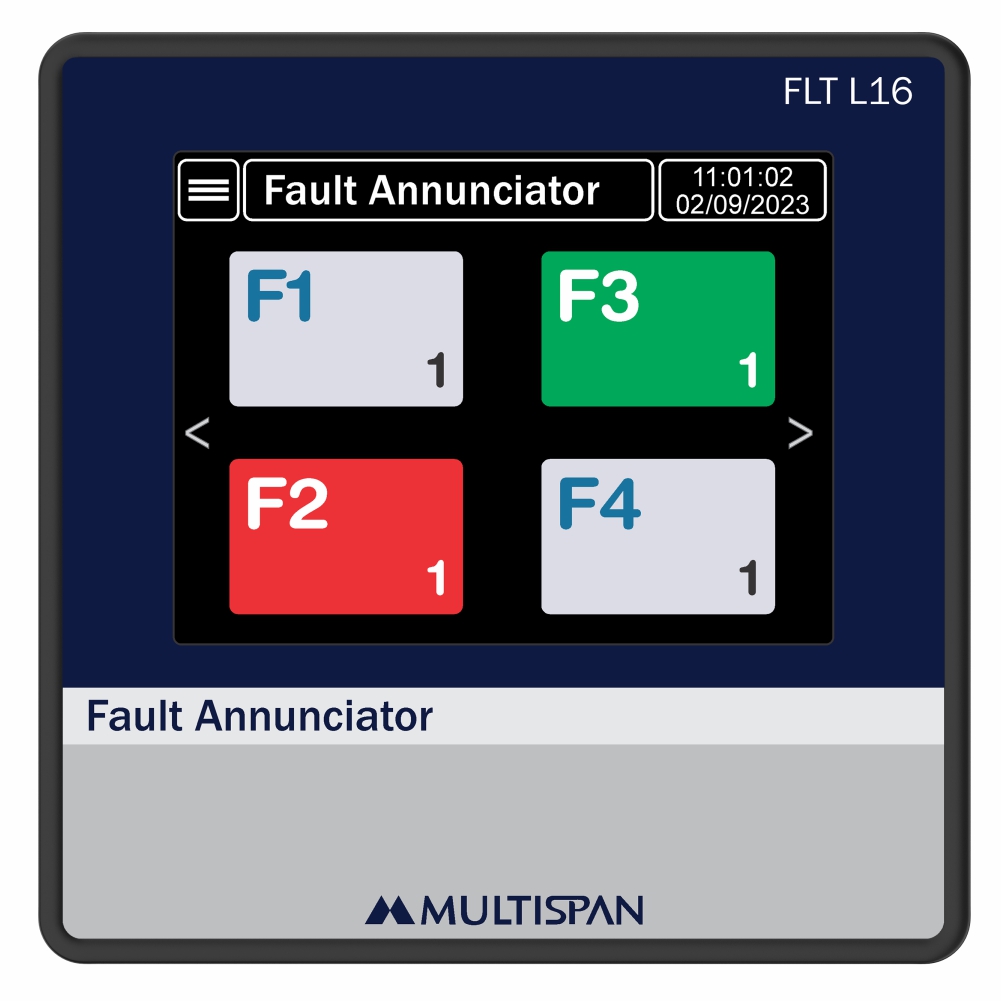

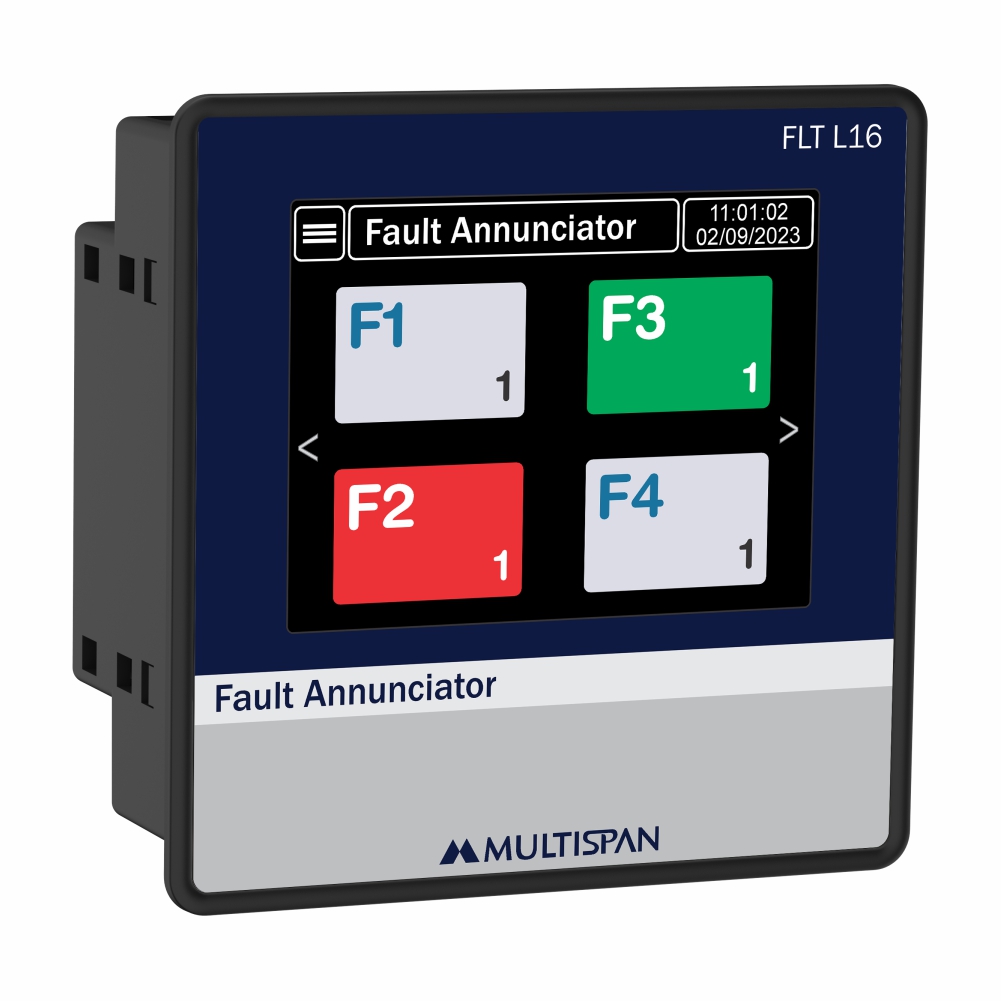

16-channel Fault Annunciator
Product: FLT L16
16 channel Fault Annunciator
- Input: 16 Fault NC-NO Free Contact
- Output: 2 relay 1C/O, (NO-C-NC) & RS 485 Modbus
- Display: 320 x 240 px Resistive Touch screen Display
- Supply voltage: 100 to 270V AC/DC,50/60Hz
| INPUT SPECIFICATION: | ||
| Input Types | 16 Fault NC-NO Free Contact, Micro Switch | |
| DISPLAY: | ||
| Display | 320 x 240 px Resistive Touch screen Display |
|
| DIMENSION: | ||
| Size (mm) | 96 (H) x 96 (W) x 54 (D) mm | |
| Panel Cutout (mm) | 92 (H) x 92 (W) mm | |
| OUTPUT SPECIFICATION: | ||
| Relay Output | ||
| Relay | 2 nos. | |
| Relay Type | 1 C/O , (NO-C-NC) | |
| Rating | 5A, 230V AC / 30 V DC | |
| AUXILIARY SUPPLY: | ||
| Supply voltage | 100 to 270V AC/DC,50/60Hz | |
| Power consumption (VA RATING) |
6VA @ 230V AC Max | |
| COMMUNICATION : | ||
| RS - 485 MODBUS | ||
| ENVIRONMENT CONDITION: | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
| (As per request) | ||
- Process Industries
- Thermal Power Plant
- Industrial Automation Panel
- BMS (Building Management System)
- HVAC
- Fire & Safety Panels
Product Variant
| Sr.no | Model No | Input | Output | RS-485 Modbus | Aux Supply | Size |
| 1 | FLT-16-D1-00 | 16 Fault NC-NO Free Contact, Micro Switch | RLY-1 Audio Alarm NO-C-NC RLY-2 M/C Output NO-C | yes | 100 to 270V AC/DC,50/60Hz | 96x96x54 (HxWxD)mm |
| 2 | FLT-L16-D3-00 | 16 Fault NC-NO Free Contact, Micro Switch | RLY-1 Audio Alarm NO-C-NC RLY-2 M/C Output NO-C | yes | 100 to 270V AC/DC,50/60Hz | 96x96x54 (HxWxD)mm |
| 3 | FLT-L16-E3-00 | 16 Fault NC-NO Free Contact, Micro Switch | RLY-1 Audio Alarm NO-C-NC RLY-2 M/C Output NO-C | yes | 100 to 270V AC/DC,50/60Hz | 96x96x54 (HxWxD)mm |
