VMR-232 | Voltage Monitoring Relay | Protection Relays

LOADING IMAGES

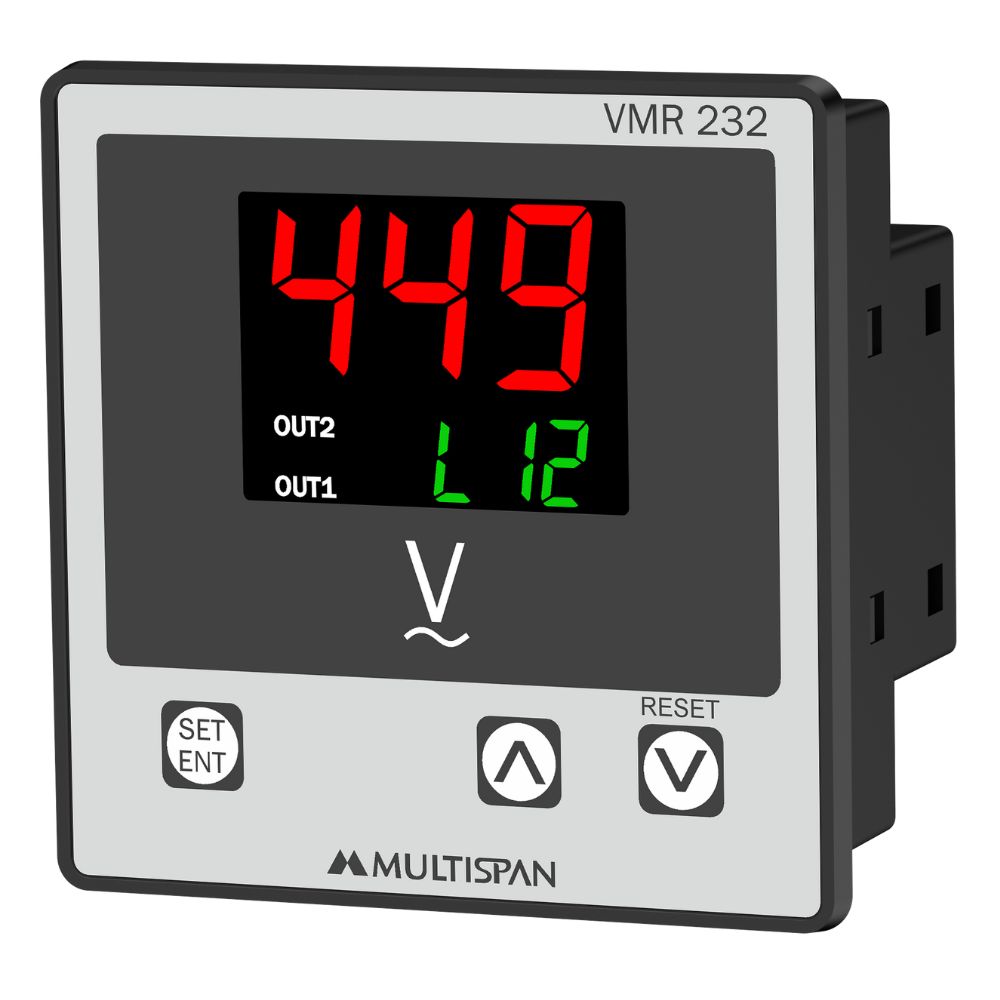

VMR-232 regular image

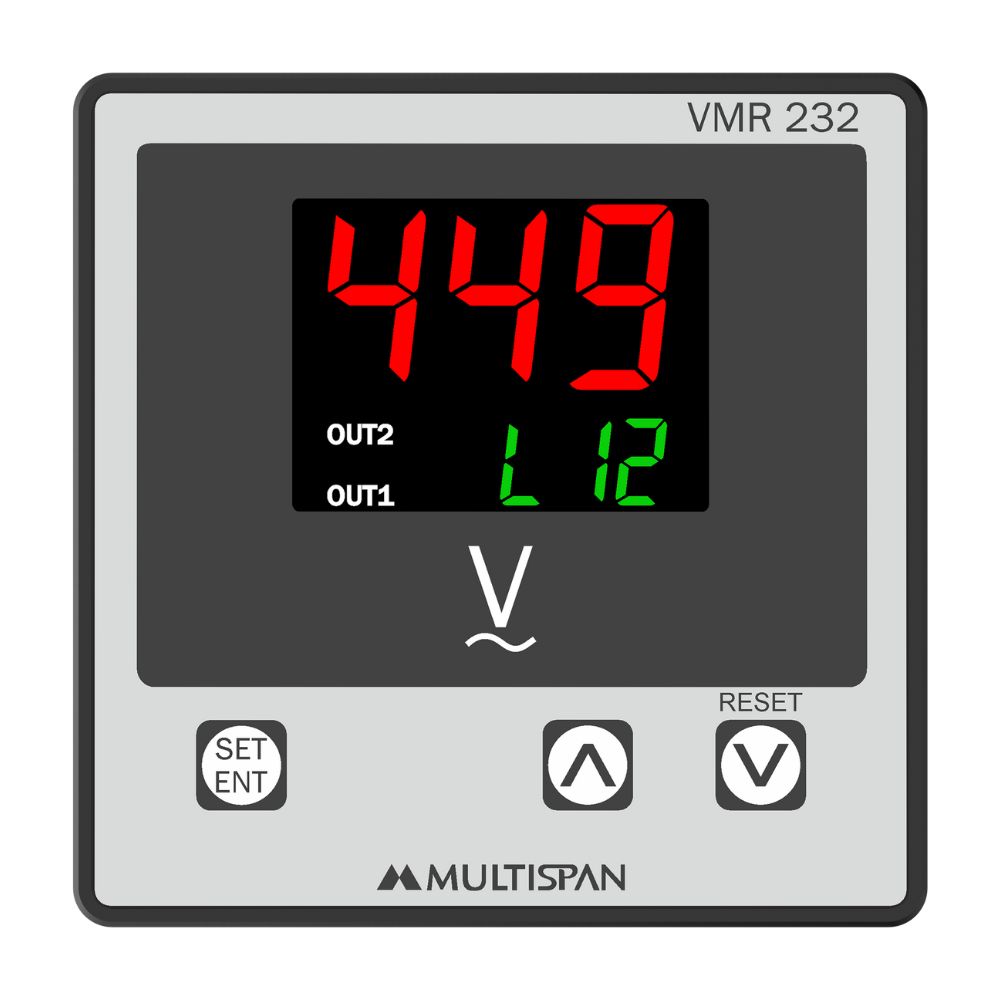

VMR-232 front image

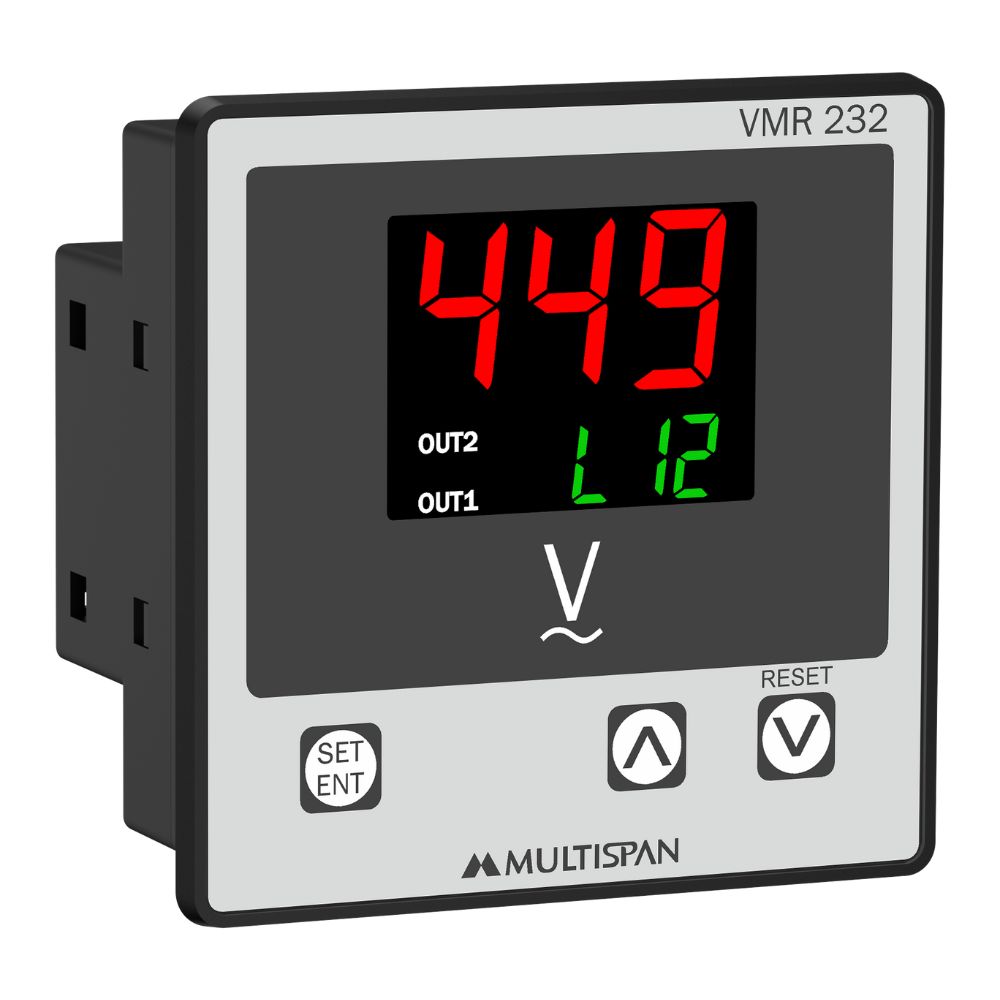

VMR-232 side image

voltage protection relay

Product: VMR-232

Upper: 3 digit, 7 segment, 0.63” Lower: 3 digit, 7 segment, 0.30”
2-Relay 5A, 230V AC
Programmable Tripping Parameter On
Over & Under Voltage, Phase Asymmetry, Phase Loss, Phase Sequence, Neutral Loss
Individual Enable /Disable Tripping Parameter
More Accurate and Immediate Tripping
Fail Safe and Non Fail Safe Mode
Size: (H)72mm X (W)72mm X (D)45mm
Supply Voltage : 50 to 520V AC,50Hz

Top Variants:

VMR-132 VMR-232

INPUT SPECIFICATION :
Direct Voltage AC	50 to 300V AC (L - N) 3Ø-4W/1Ø-2W 85 to 520V AC (L - L) 3Ø-3W
Frequency	45.0 Hz to 65.0 Hz
Resolution	1 Volt
DISPLAY AND KEY :
Display	Upper: 3-Digit, 7-Seg, 0.63” RED LED
Display	Lower: 3-Digit, 7-Seg, 0.30” RED LED
Keys	SET/ENT, INC, DEC/RST
GENERAL SPECIFICATION
Dimension (mm)	72 (H) x 72 (W) x 45 (D)
Panel Cutout (mm)	68 (H) x 68 (W)
Trip Setting	Under Voltage : 85-520V AC 3Ø-3W 50-300V AC 3Ø-4W/1Ø-2W
	Over Voltage : 85-550V AC 3Ø-3W 50-330V AC 3Ø4W/1Ø2W
	Under Frequency : 45.0 Hz To 65.0 Hz
	Over Frequency : 45.0 Hz To 65.0 Hz
	Phase Asymmetry : 2-30%
Time Parameter	Power ON Delay Time : 0 To 99 Sec.
	Trip Delay Time : 0 To 999 Sec.
	Recovery Time : 0 To 99 Sec.
ACCURACY	Class 1.0 (Standard)
OUTPUT SPECIFICATION
Relay	2 nos.
Relay Type	1-C/O (NO-C-NC)
Rating	1st Relay 10A, 230V AC 2nd Relay 5A, 230V AC
AUXILIARY SUPPLY :
Supply voltage	50 to 520V AC,50Hz
Power consumption (VA RATING)	4VA
ENVIRONMENT CONDITION
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH (non-condensing)
Protection Level (As per request)	IP-65 (Front side) As per IS/IEC 60529 : 2001
NETWORK CONNECTION
3Ø-3W/3Ø-4W, 1Ø-2W

DG Set Panels
Motor Control Center Panels
Control Panels
Distribution Panels
