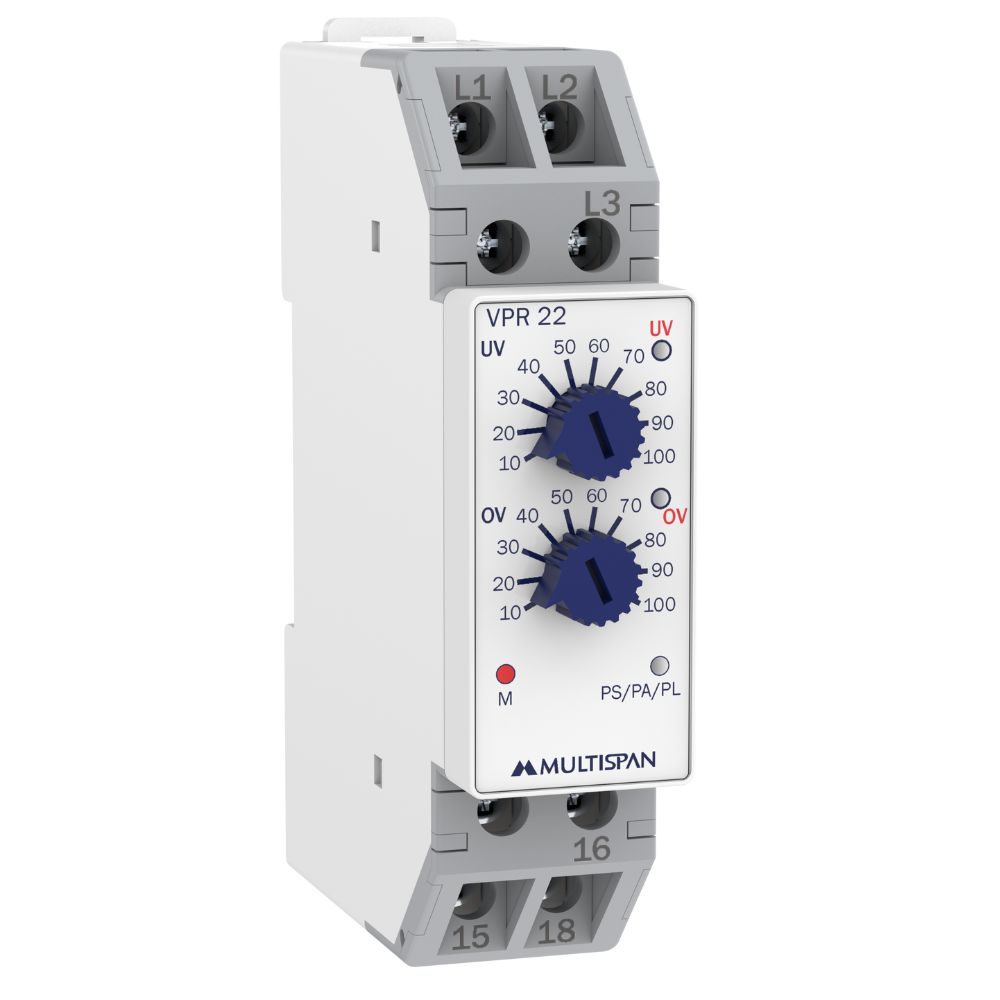

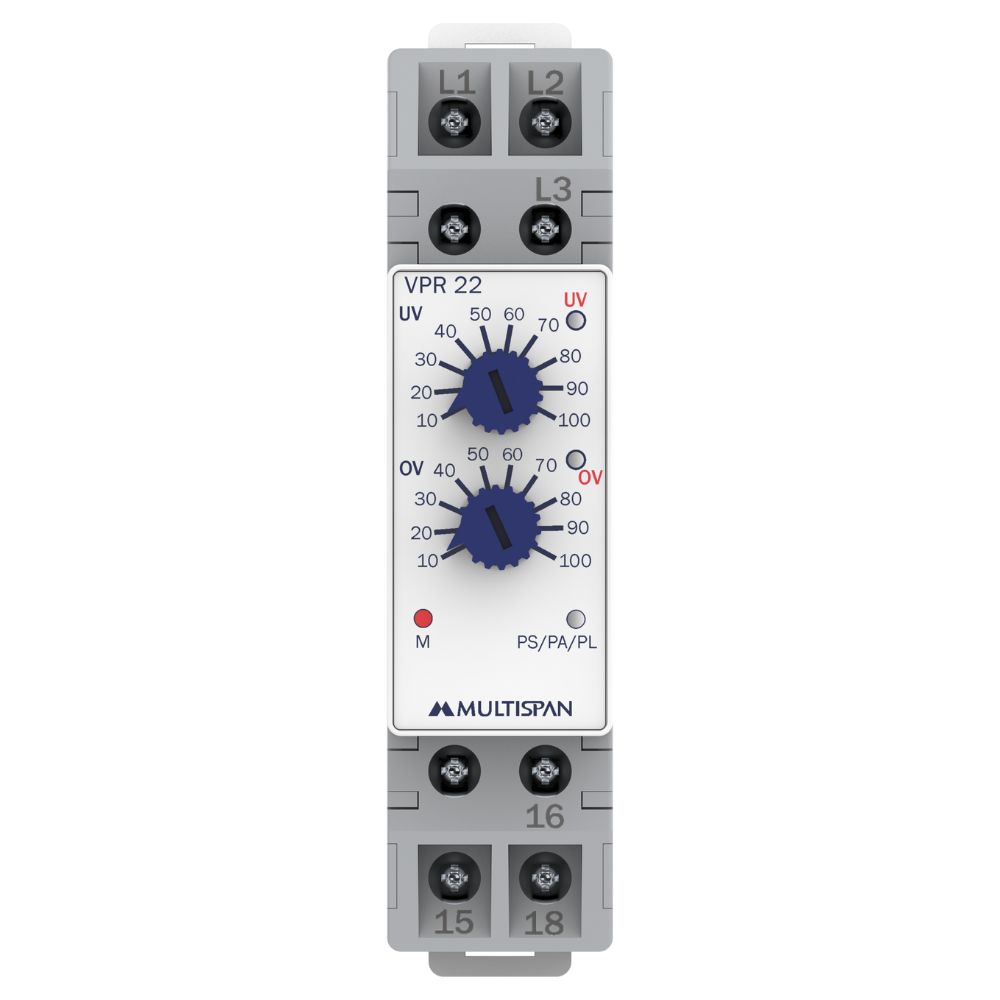

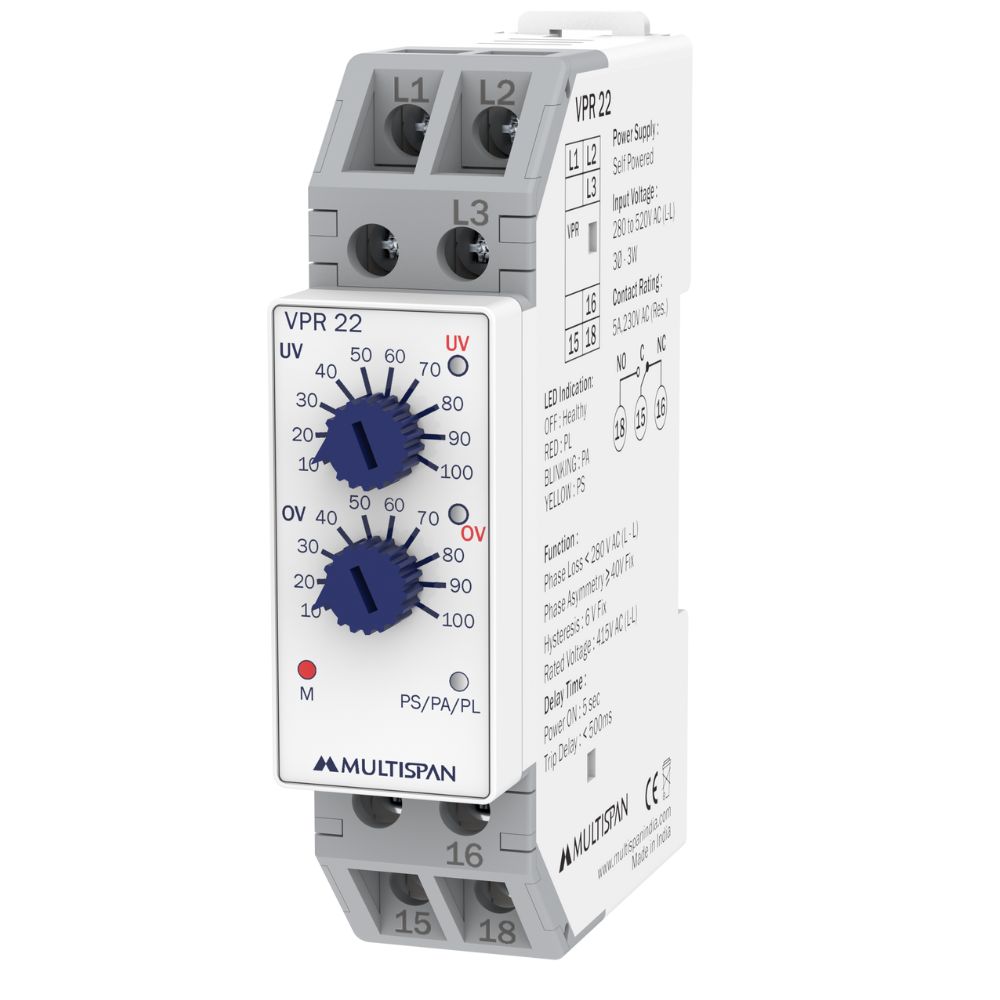

VPR-22 regular image VPR-22 front image VPR-22 side image
Enquiry

Voltage Protection Relay Din Rail Mount

Product: VPR-22

  • Selection of Under- Over Voltage by Knob
  • Trip Delay 5 sec.
  • 1-Relay, 2-C/O, 5A, 230V AC
  • Size: (H)90mm X (W)22.5mm X (D)71mm
  • Self-Powered

Top Variants:

VPR-22U VPR-22
Parameter Specification
Power Supply Self Power
Input Voltage 280 to 520V AC (L-L) 3Ø -3W
Rated Voltage 415V AC (L-L)
Output 1-Relay, 1-C/O, 5A 230V AC Resistive Load
Tripping Parameters Under Voltage
Over Voltage
Phase Asymmetry
Phase Sequence
Phase Loss
  • DG Set Panels
  • Motor Control Center Panels
  • Control Panels
  • Distribution Panels
  • Process Control
